ETC – Hog Tour Wing

ETC

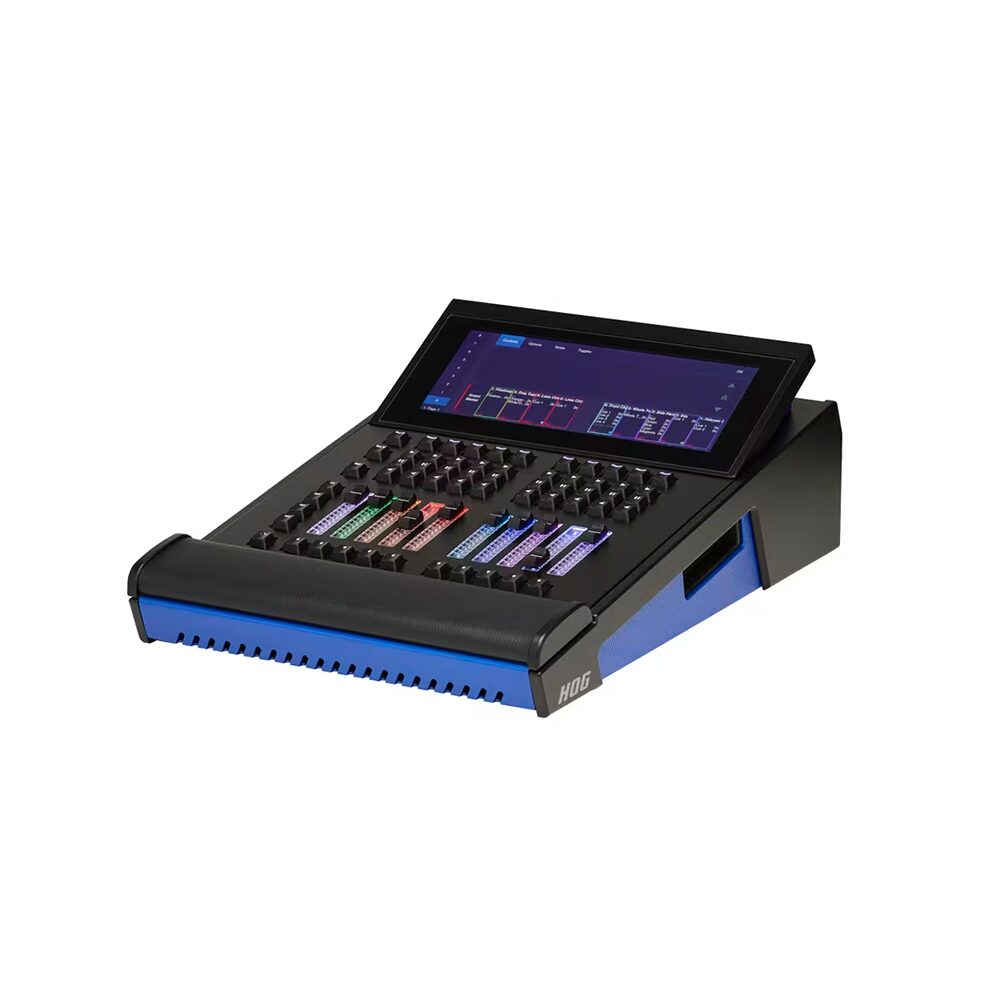

When additional faders are needed, the Tour Wing provides professional-quality, motorized playback control for your Hog system. Featuring ten motorized, RGB-backlit playbacks with RGB-backlit keys and a full dashboard display, it seamlessly integrates with all consoles in the Hog family, including HPU and Hog PC.

SKU: ETC6114A1001 Categories: , , ,

Description

Full-featured playback hardware is always in demand. When additional faders are needed, the Tour Wing brings professional quality, motorized playback control to your Hog system. Featuring ten motorized, RGB-backlit playbacks with RGB-backlit keys and a full dashboard display, it seamlessly integrates with all consoles in the Hog family, including HPU and Hog PC.

Customize your workflow with intuitive controls and a modular design, making the Tour Wing the ideal choice for productions of any size that require precision, versatility, and seamless integration with your system.

Features

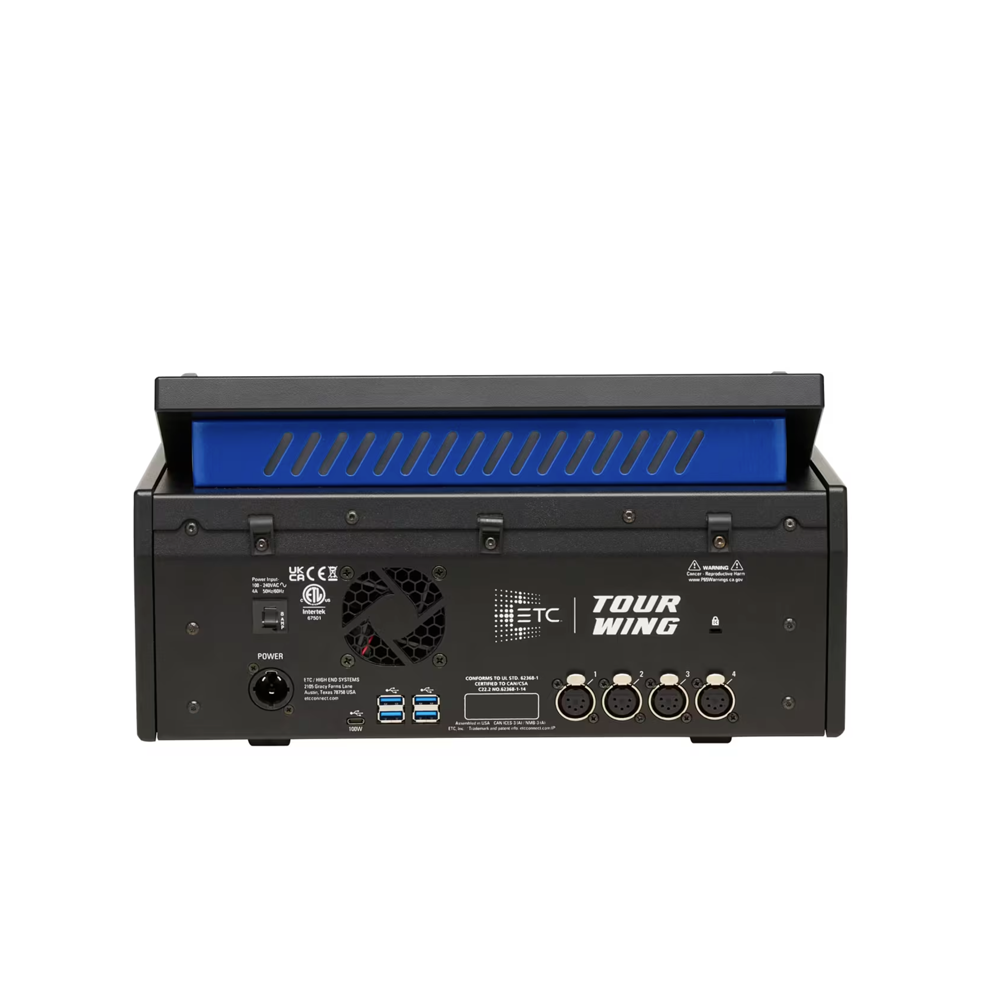

  • Neutrik powerCON® TRUE1 power input
  • USB 3.0 type A (4) and type C (1) connectors
  • Four DMX outputs (5-pin XLR)
  • 100 W power supply via USB-C to laptop
  • Tour Wing unlocks 12 universes (6,144 addresses) when connected to Hog PC (an ETCnomad USB key is NOT necessary).
  • Whenconnected to HPU, the output capacity of the HPU is used (64 universes / 32,768 addresses).

Additional information

System Capacity

Tour Wing unlocks 12 universes (6,144 addresses) when connected to Hog PC (an ETCnomad USB key is NOT necessary). When connected to HPU, the output capacity of the HPU is used (64 universes / 32,768 addresses).
Playback Controls

Playback Dashboard display for playback bar display, master ranges, and additional playback tools

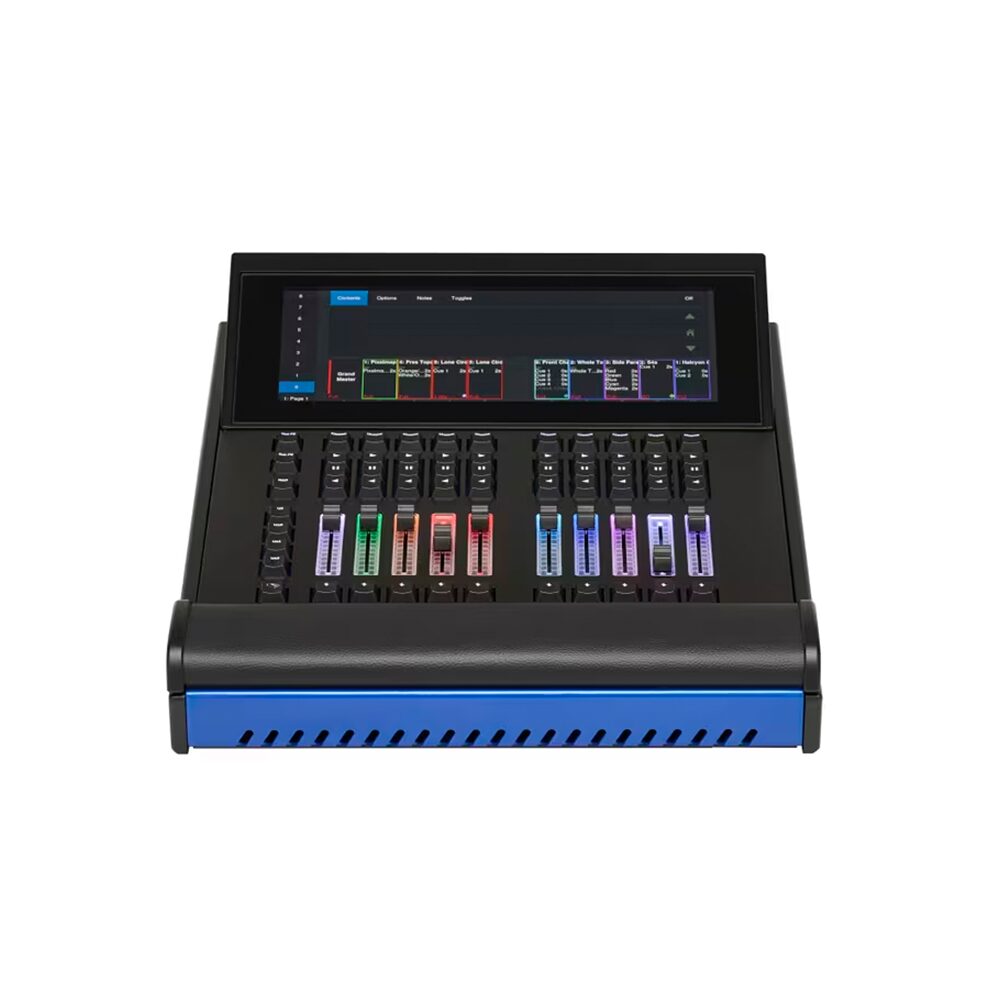

10 pageable, motorized RGB-backlit master playbacks with customizable faders, flash, go, halt, back and choose keys
Master Ranges for quick reassignment of playback masters content
Unlimited fader Pages
Comment macros and keystroke macros
Paging keys
Virtual masters
Scenes
Batch controllers
Group masters
Triggering via Command keys
Interfaces and Accessories

Tour, Stage, and Flex Hog consoles
Gig Hog programming wing
HPU hybrid processing unit
Response network gateways and interfaces
Hog PC and ETCnomad
Electrical and Environmental

ETL, CETL and CE compliance
Mains power: 100–250 VAC, 50/60 Hz, max 80 W
Mains connector: Neutrik PowerCON® TRUE1
Breaker: 4 A

Downloads

Data Sheet Download
