ETC – Hog HPU

ETC

The HPU is a hybrid processor for Hog lighting systems, delivering 64 universes, 8 DMX outputs, and flexible operation as a console or DMX processor. It features a built-in 8″ multitouch display, Hog OS, sACN, Art-Net support, and ports for two external touchscreens—ideal for fixed installs or as a scalable part of larger setups.

SKU: ETC6204A1001 Categories: , , , ,

Description

The HPU is the hybrid processor unit for the Hog family. One HPU can act as a rack-mounted console, designed for use as a rack-mounted server/backup or for those applications where permanent hardware front-panel interfaces are not necessary, or serve as a DMX Processor connected to another Hog console product, expanding the system output by an additional 64 universes. Whether as a standalone solution or part of a larger setup, the HPU delivers exceptional performance and flexibility.

Features

  • 64 universes of onboard processing
  • 8 local DMX512-A outputs
  • Two external touchscreen ports

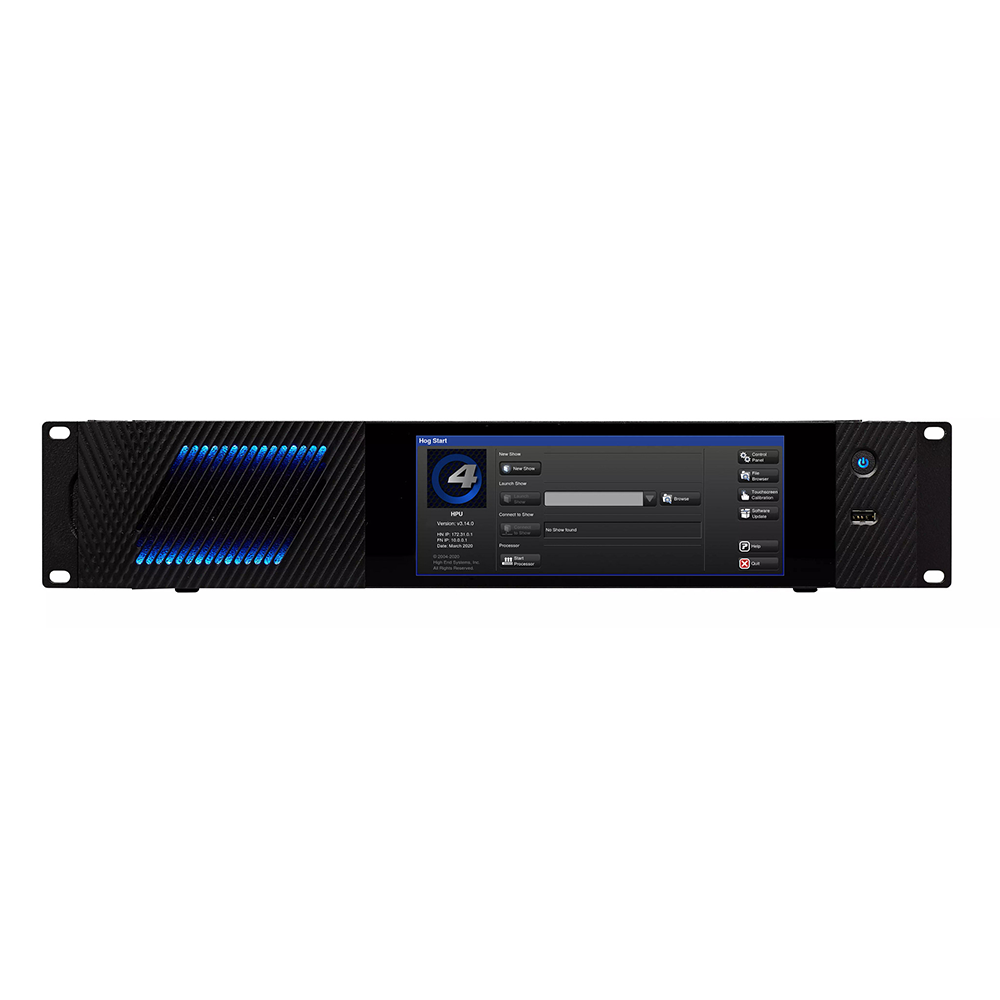

  • Built-in 8” full color multitouch display
  • Robust Hog OS operating system
  • 8 Neutrik XLR-5 DMX outputs
  • sACN and Art-Net

Additional information

System Capacity

32,768 parameters (64 universes) in Console mode via local processing, expandable total outputs using additional HPU units
32,768 parameters (64 universes) in DMX Processor mode
Solid-state hard drive
7 USB ports for flashdrives, pointing devices, keyboards
Display Functions

User configurable displays with recordable views
Dedicated views to access most-used items quickly
Palette, list, views, scenes, batches, effects directories
Programmer window
Plot views
Output window
Fixture Schedule and Patch windows, sortable by fixture or by Universe
Three color schemes for daylight use, regular use or dark environment use
Programming

Command-line interface
Programmer window displays selected and adjusted fixtures
Lists constructed with +, -, and Thru or selection softkeys,
Next, Back and All commands
Intensity set with command keypad, full key, intensity palettes
Ordered groups
Comprehensive fanning using segments and buddying
Media picker window
Hog Color System
Programmer window
Groups for simplified fixture selection
Palettes: intensity, position, colour, beam, effects
Effects Engine
Pixelmapping Effects
Park
Undo command
Delete, Move and Copy commands
Highlight, lowlight and rem dim commands
Cue level and parameter level timing
Record, Update and Merge commands
Knockout and Clear commands
Set command for text labels and data entry
Playback Controls

Unlimited fader Pages
Comment macros and keystroke macros
Virtual masters
Scenes
Batch controllers
Group masters
Triggering via Commands
Playback expansion via Gig Hog
OSC input/output
MIDI messages, MIDI Show Conrol, MIDI/LTC timecode via USB MIDI/LTC Widgets
Interfaces and Accessories

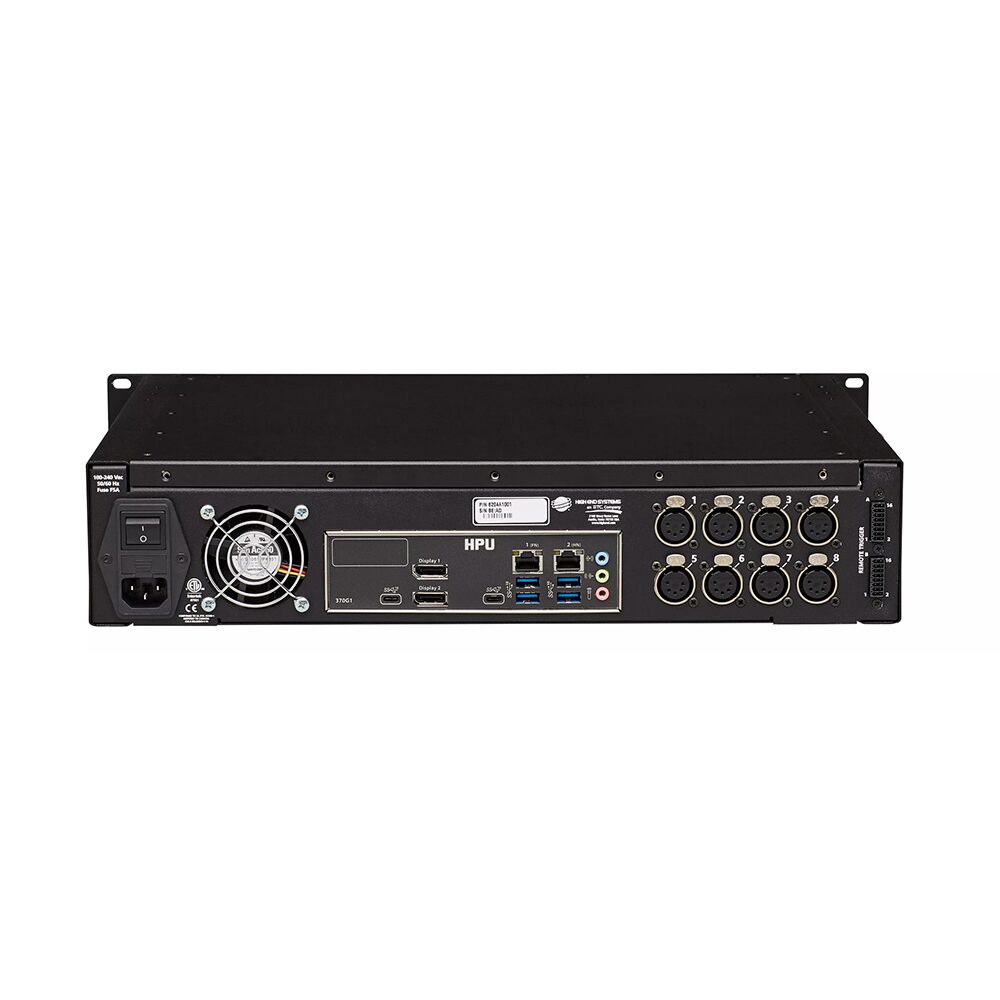

Local DMX-512 outputs: 8x Neutrik 5-pin XLR
Expandable DMX-512 outputs via Response Network Gateways
Local Art-Net and E1.31/sACN outputs: 1x 1GB/s Ethernet port
Local HogNet 1GB/s Ethernet port
Unlimited DMX-512, Art-Net and E1.31/sACN universes via additional HPU units
MIDI and LTC inputs via Response Network Gateways and Interfaces
Connectivity with visualizers via Fixture-Net (Art-Net or E1.31/ sACN, unrestricted by local output capacity)
OSC (Open Sound Control) for remote control and integration
USB 3.0 ports: 6 rear, 1 front
Electrical and Enviromental

ETL, CETL and CE compliance
Mains power: 100–250 VAC, 50/60 Hz, max 120 W
Mains connector: IEC320 C13
Fuse: 1x5x20 mm 5AT fuse

Downloads

Data Sheet Download
