ETC – High End Systems Zeo

ETC

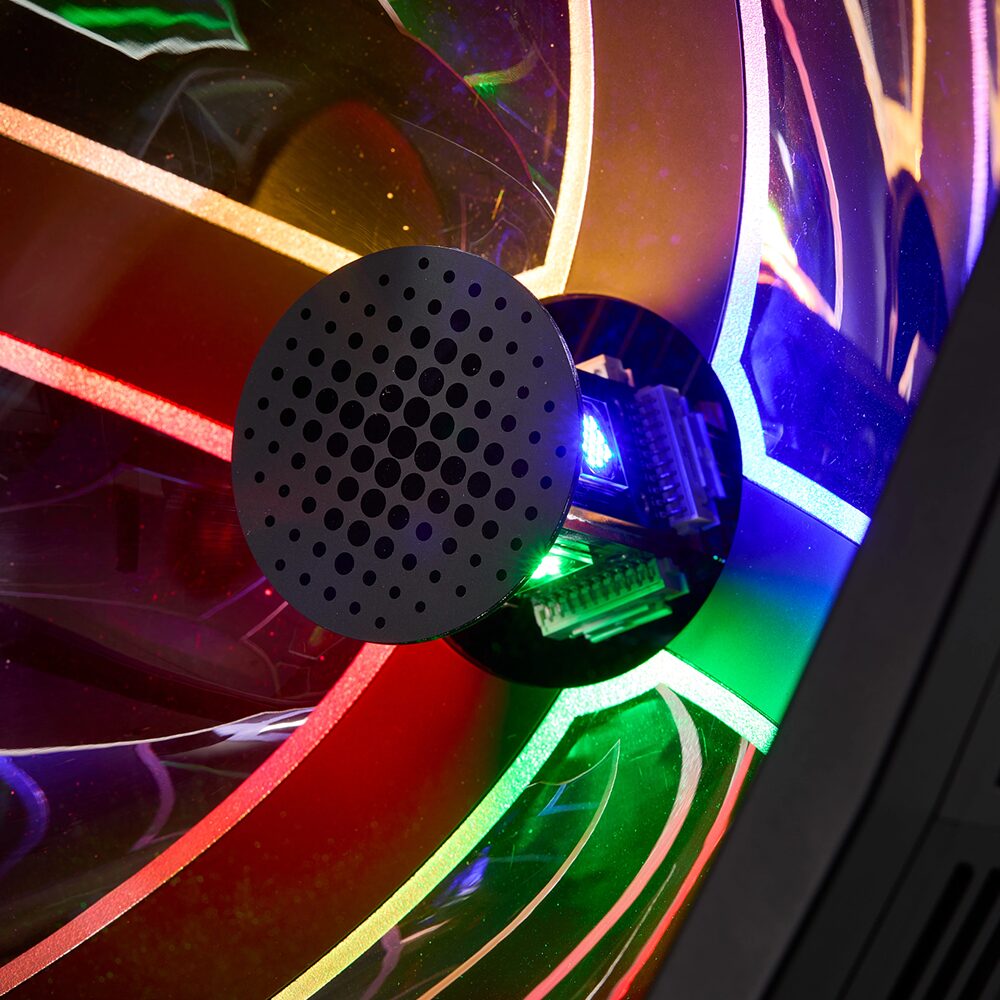

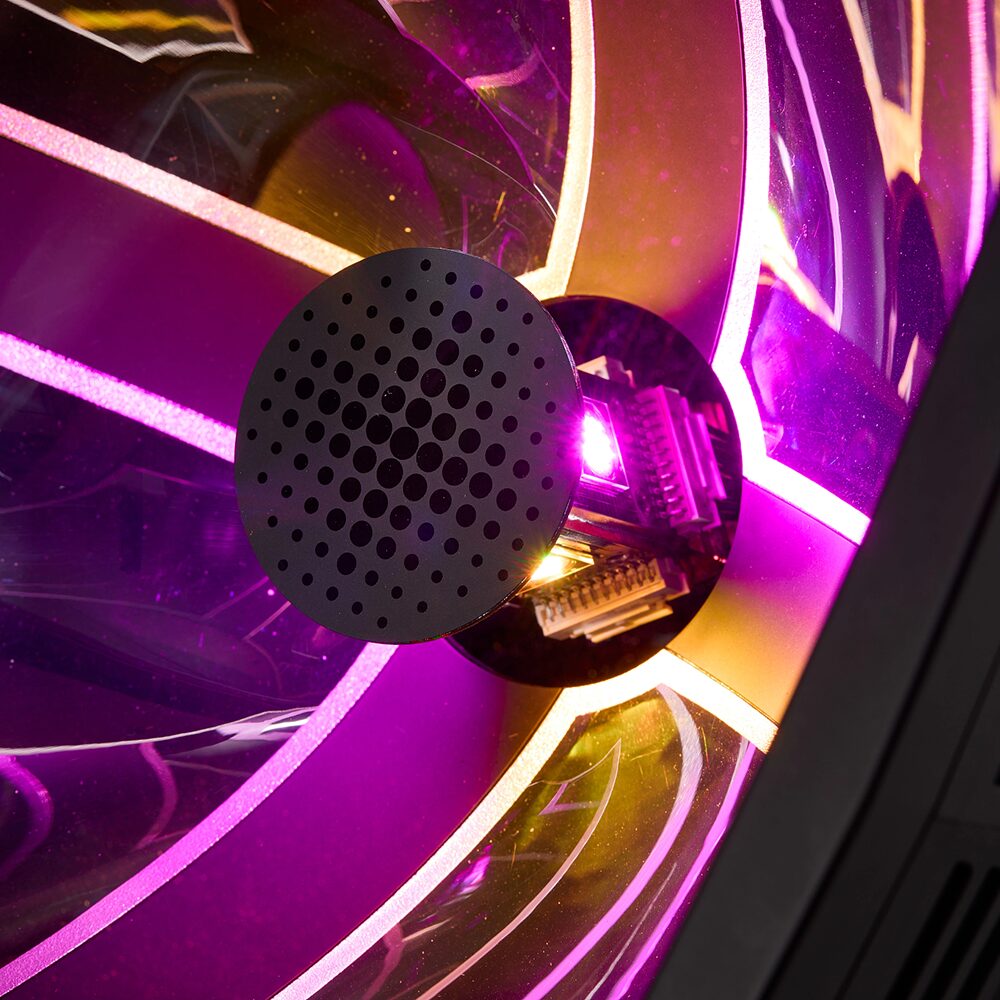

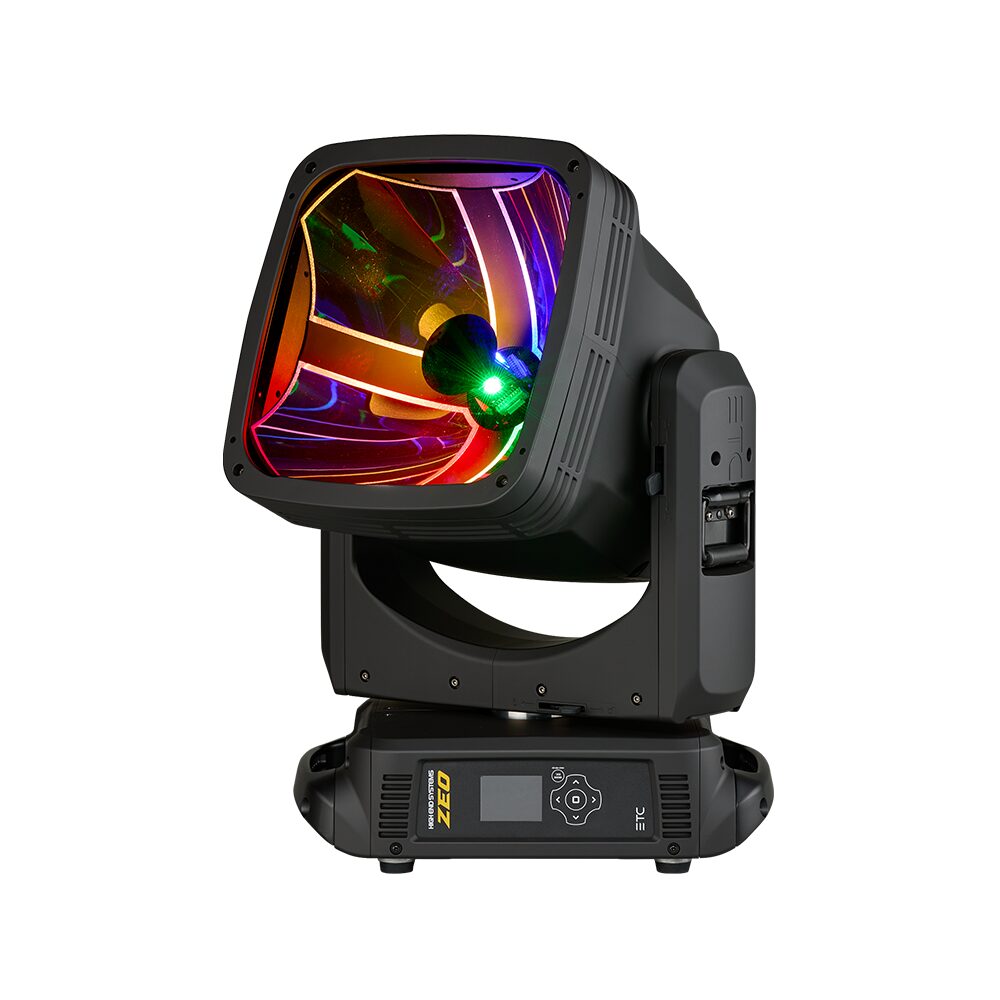

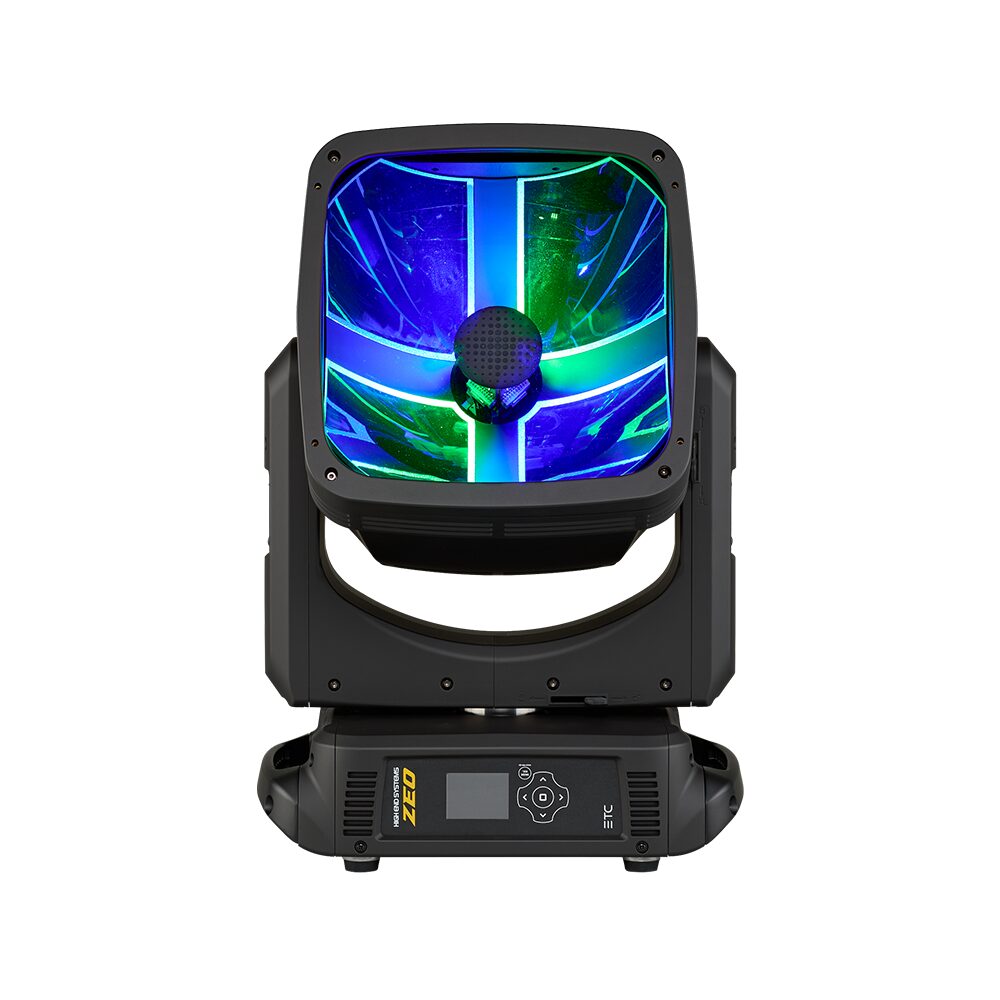

Bring a totally unique look to your show with the High End Systems Zeo, while having all the versatility to make it your own. This RGBW effects fixture captivates a crowd whether used for beams and washes or as a strobe or blinder. The Zeo’s distinctive design comes from its center LED monolith surrounded by four defined reflectors, which can shine brightly as a wash or be separated into beams.

Categories: , , ,

Description

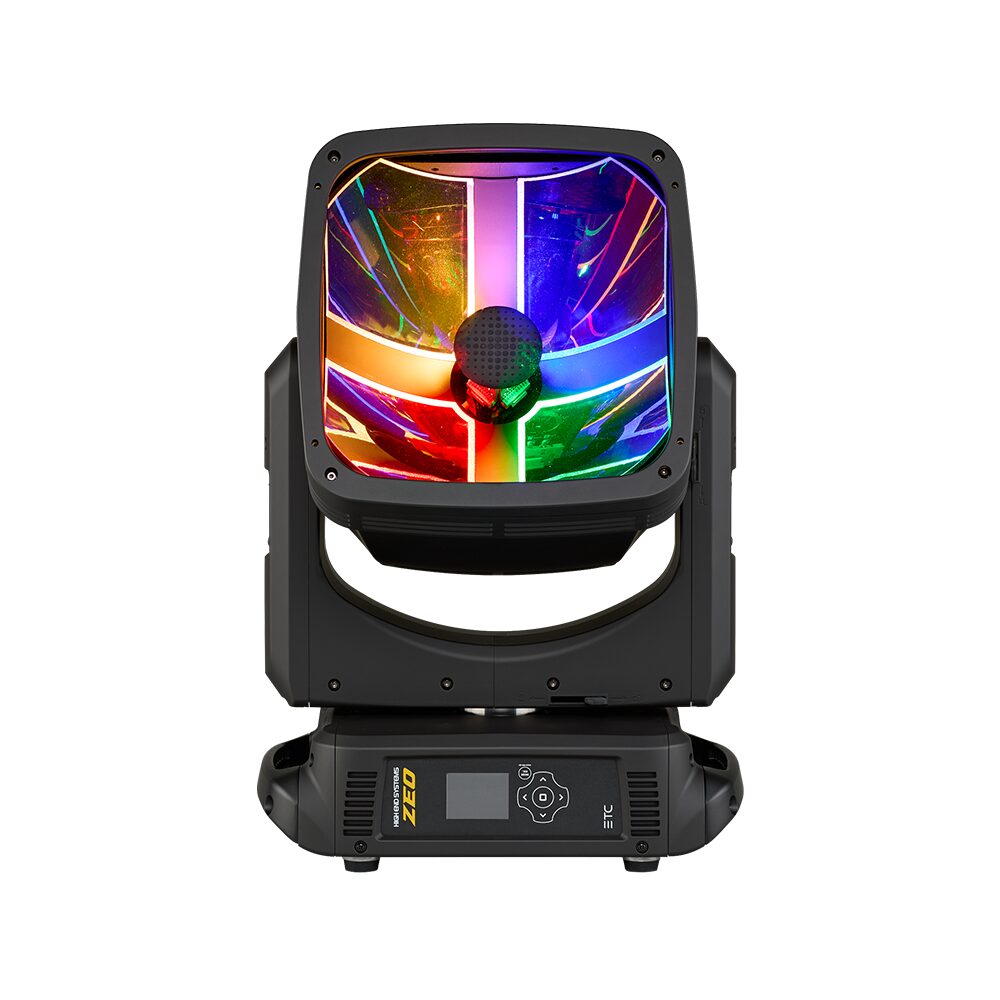

The High End Systems Zeo is a genre-defying fixture. Packing ultimate brightness, the Zeo can be used as a strobe or blinder to heighten the energy at any show. Create captivating looks with Zeo’s unique face design, highlighted by a central LED monolith, four reflectors, and four powerful RGBW engines. Zeo’s focus concentrates the light throughout the fixture’s 55° field angle. And the many looks of Zeo are easily accessible with an abundance of macros to choose from.

Features

  • LED monolith with four 300 W RGBW LED cells
  • Individual cell control
  • Fixture output exceeding 30,000 lumens
  • Patented Quad Reflector system
  • HaloGraphic Pixel Definition technology
  • Motorized Light Concentration system
  • Optional accessory beam homogenizer for enhanced color mixing
  • Strobe and inclusive macros with separate background levels to enhance shows at all programming levels

Video

ETC Zeo

Delivering ultimate brightness and unique looks, Zeo’s distinct face design is defined by a central LED monolith and four reflectors, backed by four RGBW engines. As a blinder or strobe, Zeo promises powerful impact with 30,000+ lumens. With its sheer brilliance and playful effects, Zeo is ready to amplify the energy on any stage.

Additional information

Source

Engine: Quantity four, each 300 W RGBW COB
LED Details: 1,200 W
Field Lumens: See photometrics on page 3
Max Integrating Sphere Lumens: 30,000 lumens
LPW: 25
LED Life: 50,000 hours
Native: CCT None
Color

Color Mixing: Red, Green, Blue, White, CTO
Color Temperature: 2,200 K to 10,000 K
Optical

Light Concentration Control: Motorized, beam from 13° to 55°
Aperture Size: 285 x 285 mm
Diffusion Optional: beam homogenizer accessory
Flicker Control/Hz Range: 2.4 kHz and 16 kHz
Control

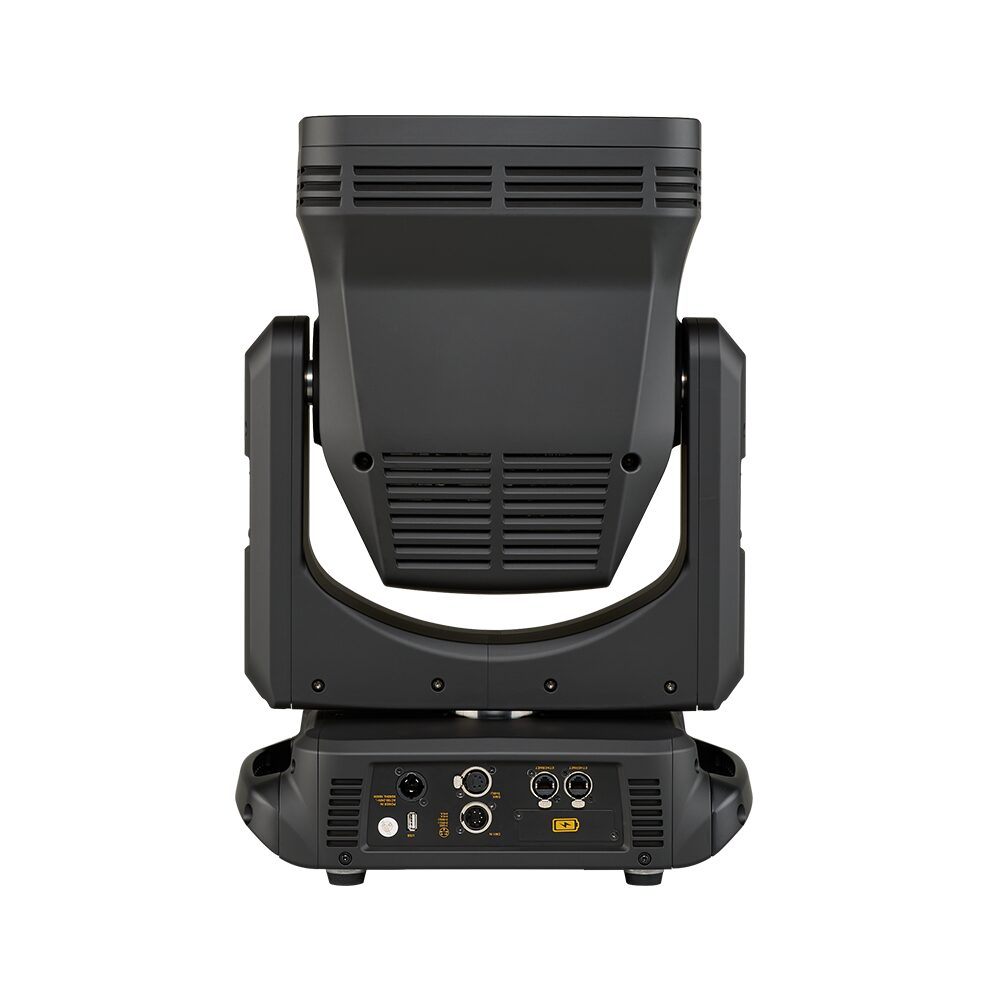

Input Method: DMX (5-pin) or Ethernet
Protocols:
DMX via RS-485
Art-Net or sACN via Ethernet
Ethernet Pass-Thru: Passive Ethernet in and thru with and without power
Data Conversion: Patented data conversion system for Ethernet to DMX
Modes (Footprint):
Standard (50 channels)
Reduced (23 channels)
Wash (15 channels)
Effects Capabilities:
Inclusive macros
Strobe macros
Individual cell mapping
RDM Functions: Yes

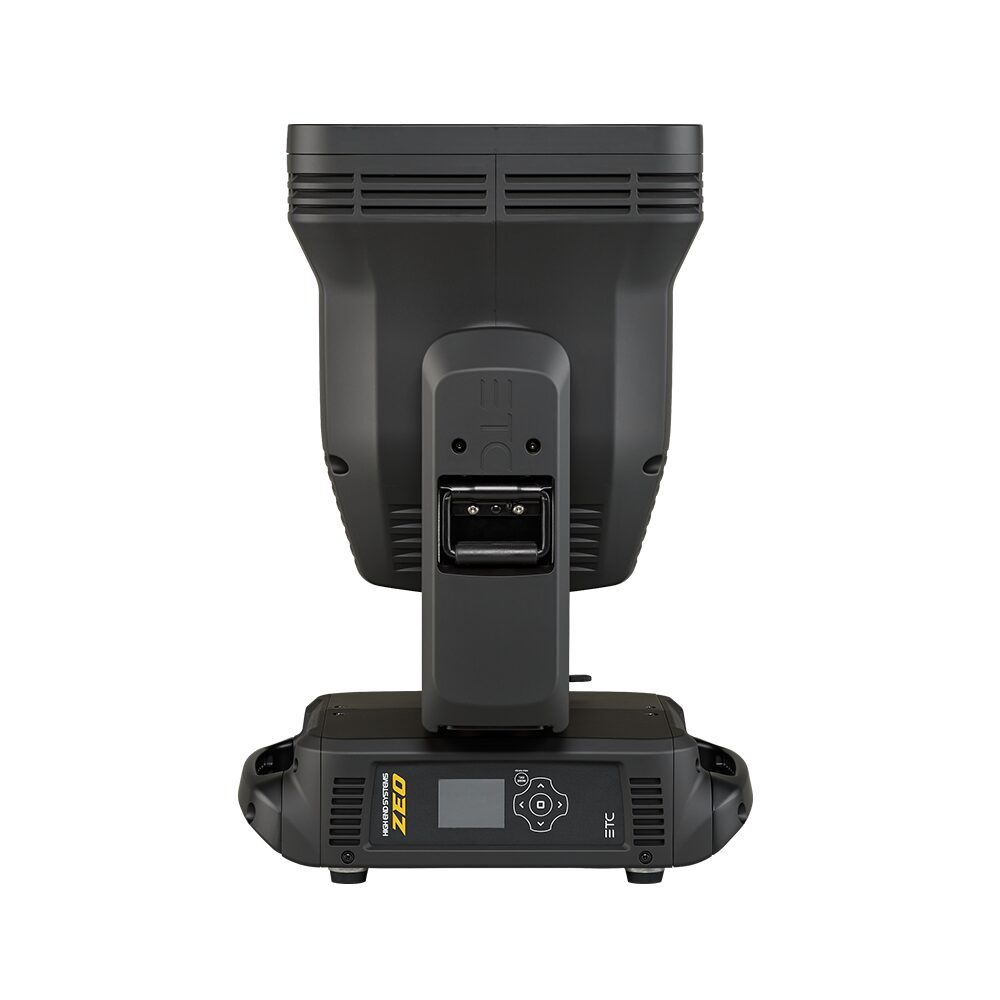

UI Type: Full-color graphical UI and 5-button navigational control
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled
Electrical

Voltage Range: 100–240 V 50–60 Hz
Input Method: powerCON TRUE1 TOP
Wattage: 1,670 W
Current (Max):
16.8 A @ 100 V
6.5 A @ 240 V
Inrush (First Half Cycle):
120 V: 69 A
230 V: 123 A
Fixtures per Circuit:
1 fixture (R20 module or similar)
Note: TRUE1 TOP connector rated for
20 A (120 V/60 Hz) and
16 A (240 V/50 Hz)
Thermal

Ambient Operating Temp: -10°–40°C (14°–104°F)
Cooling System: Fan-cooled closed-loop liquid cooling system
Fan Mode: Standard, Studio, and Linear Continuous control channel
Physical

Pan and Tilt Range: 540° pan, 205° tilt
Max Pan/Tilt Speed: 360° in 2.39 s/180° in 1.92 s
Materials: Steel and aluminum frame with molded plastic covers
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP20
Weight: 20 kg (44 lb)
Included Accessories:
powerCON TRUE1 TOP to bare end fixture tail
Two (2) 107 mm three-hole Omega brackets
Safety cable
