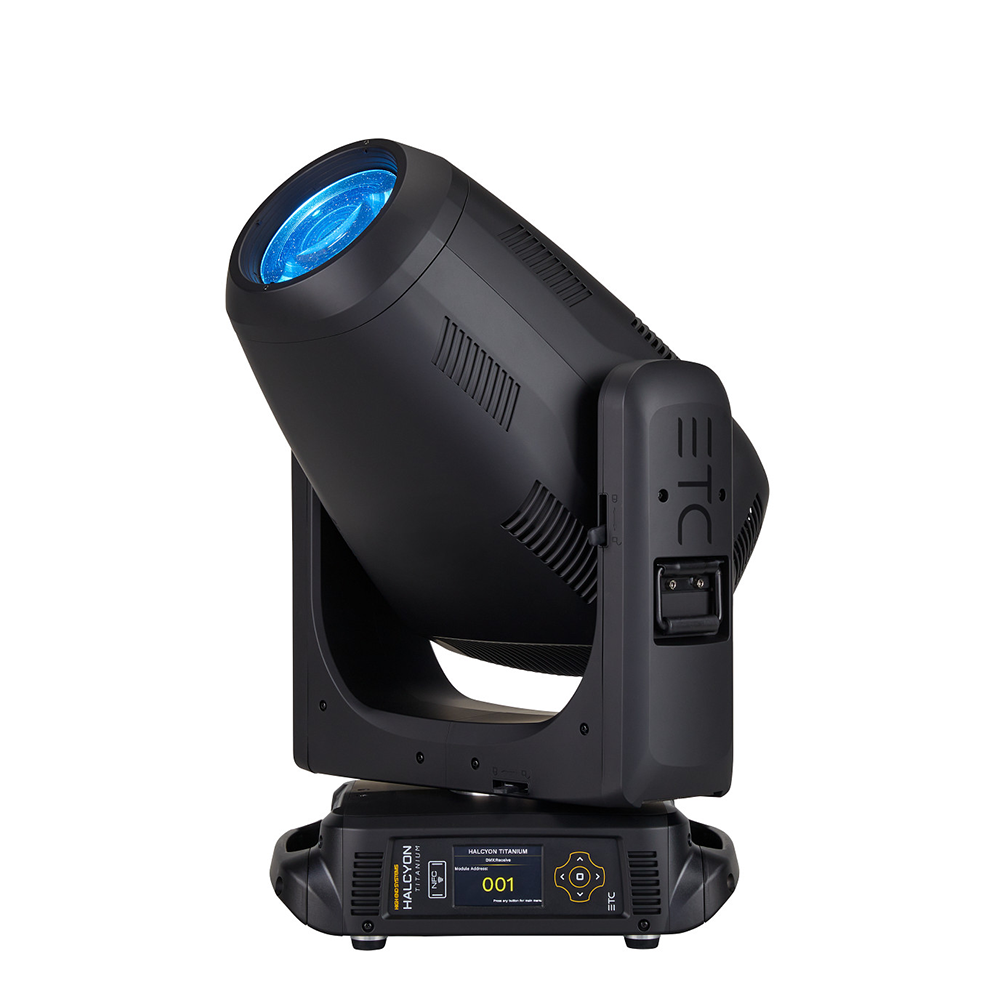

ETC_Halcyon-Titanium_Front-right-tilt-up-on-blueETC_Halcyon-Titanium_Front-right-tilt-up-on-blue

ETC – Halcyon Titanium

ETC

The middle product in the Halcyon Framing family of fixtures, is an earth shattering luminaire with over 40,000 lumens of output in a 76 lb frame.

SKU: N/A Categories: , , ,
Clear

Description

ETC, the market leader in automated luminaire innovation, brings you the next generation hallmark of white light framing fixtures. High End Systems Halcyon Titanium, the middle product in the Halcyon Framing family of fixtures, is an earth shattering luminaire with over 40,000 lumens of output in a 76 lb frame. Outperforming fixtures of the past by 15,000 lumens and 20 lb, Halcyon Titanium also has an extreme feature set with everything a user needs to light shows of all shapes and sizes.

Features

  • Bright white LED engine
  • 600 W Ultra-Bright engine
  • Fixture output exceeding 40,000 lumens
  • High quality 13-lens optic system
  • Extremely powerful 6°–60° zoom
  • Optimized CMY and CTO color mixing for even hue control
  • Six position plus open color wheel
  • Full-curtain framing system for total control of beam shaping
  • 16-blade iris for extremely tight beam effects
  • Trifusion frost system with linear insertion from light to heavy and everything in between
  • Two, 7 position plus open Rotating Gobo Wheels
  • Dual prisms for compound beam and projection effects
  • Rotating Animation Wheel with linear positioning and angular control

Applications

  • Houses of worship
  • Small to medium-sized performance venues
  • Cruise ships and themed entertainment
  • Production rental companies
  • Trade show and ballroom AV
  • Studio and film

Additional information

Source

Engine LED Details:
Ultra-Bright: 600 W
High Fidelity: 600 W
Field Lumens: See data sheet page 4
Max Integrating Sphere Lumens:
Ultra-Bright: 40,000
High Fidelity: 24,000
LPW:
Ultra-Bright: 66
High Fidelity: 40
LED Life:
Ultra-Bright: 50,000 hours
High Fidelity: 50,000 hours
Native CCT:
Ultra-Bright: 6700 K
High Fidelity: 6000 K
Color

Color Mixing: Cyan, magenta, yellow, CTO
Color Temperature: Variable down to 2200 K
Color Wheel: Six (6) dichroic colors plus open
Optical

Beam Angle Range: 6°–60°
Gate Size: 26 mm
Aperture Size: 144 mm
Pattern Projection:
Two rotating and indexable wheels with seven (7) interchangeable patterns plus open on
each
Animation
– Bi-directional rotating animation wheel with linear insertion, and variable angle
– LED Animation
Prism:
Five facet star and four facet linear rotating prism with simultaneous insertion
Diffusion: Light, Medium, and Heavy frost seemlessly controlled with Trifusion control.
Iris: 16-blade iris
Framing: Four-plane, full-curtain framing system with 180° module rotation
Flicker Control/Hz Range: 2.4 kHz and 16 kHz
Control

Input Method: DMX (5-pin) or Ethernet
Protocols:
DMX via RS-485
Art-Net or sACN via Ethernet
Ethernet Pass-Thru: Passive Ethernet in and thru with and without power
Data Conversion: Patented data conversion system for Ethernet to DMX
Modes (Footprint): Standard (60 channels)
RDM Functions: Yes
UI Type:
Full-color graphical UI with touch screen and
5-button navigational control
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled
Electrical

Voltage Range: 100–240 V 50–60 Hz
Input Method: powerCON TRUE1 TOP
Wattage (Standard): 1126 W
Current (Max): 11.3 A @ 100 V
Inrush (First Half Cycle):
120 V: 69 A
230 V: 123 A
Fixtures per Circuit:
1 fixture (15 A power thru connector)
1 fixture (R20 module or similar)
Note: TRUE1 TOP connector rated for
20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)
Thermal

Ambient Operating Temp: -10°–40°C (14°–104°F)
Fan Mode: Standard, Studio, and Linear Continuous control channel
Physical

Pan and Tilt Range: 542° pan, 258° tilt
Max Pan/Tilt Speed: 360° in 2.54 s / 180° in 1.67 s
Materials: Steel and aluminum frame with molded plastic covers
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP20
Weight: 34.5 kg (76 lb)
Included Accessories:
powerCON TRUE1 TOP to bare end fixture tail
Two (2) clamp brackets
Safety cable
Warranty

Fixture Warranty:
Five (5) years for light engine
Two (2) years for complete fixture
