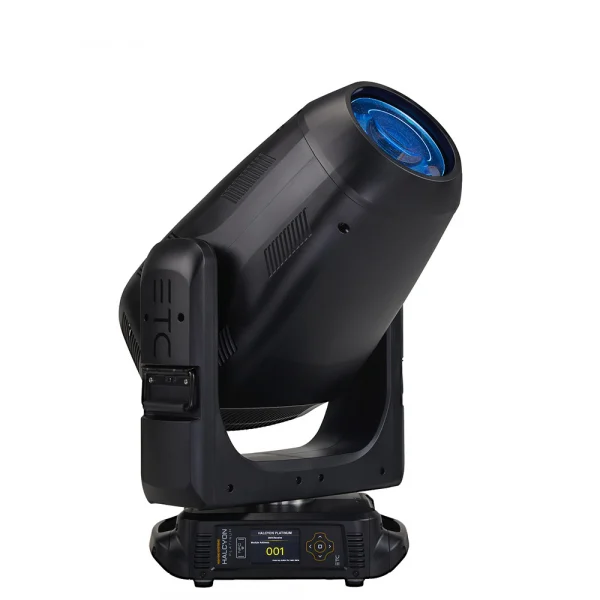

ETC_Halcyon-Platinum_Front-right-tilit-up-on-blueETC_Halcyon-Platinum_Front-right-tilit-up-on-blue

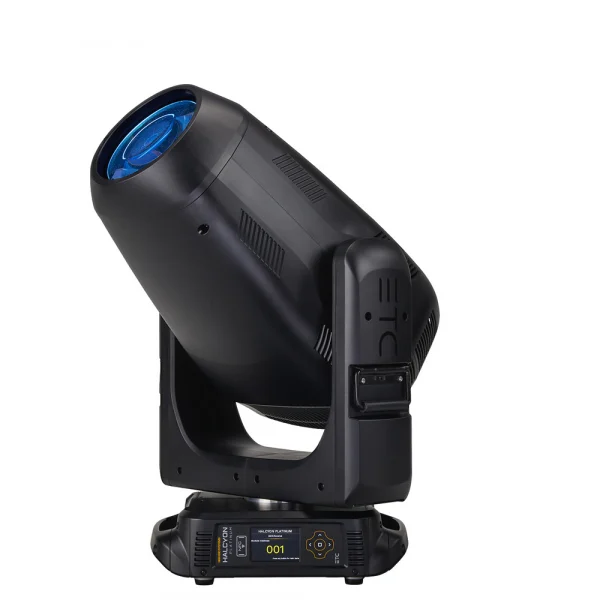

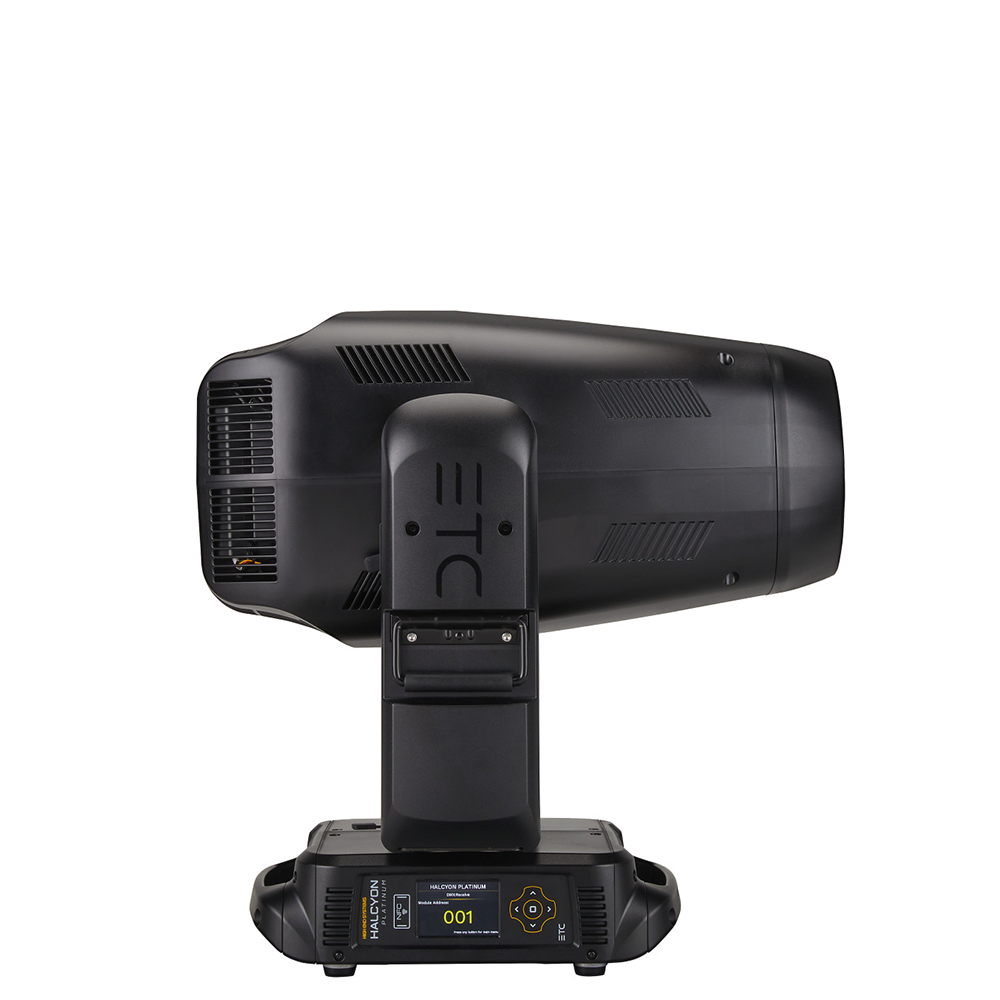

ETC – Halcyon Platinum

ETC

The next generation hallmark of white light Framing fixtures.

SKU: N/A Categories: , ,
Clear

Description

ETC, the market leader in automated luminaire innovation, brings you the next generation hallmark of white light Framing fixtures. High End Systems Halcyon Platinum, the flagship product in the Halcyon Framing family of fixtures, has 54,000 lumens of output and a boost mode with over 70,000 lumens of output in a 99 lb frame. Outperforming fixtures of the past by as much as 20,000 lumens, Halcyon Platinum also has an extreme feature set with everything a user needs to light shows of shapes and sizes.

Features

  • Bright white LED engine
  • 1200 W LED engine
  • Standard mode output exceeds 54,000 lumens
  • Boost mode exceeding 70,000 lumens
  • High quality 13-lens optic system
  • Extremely powerful 6°–64° zoom
  • Optimized CMY and CTO color mixing for even hue control
  • Six position plus open color wheel
  • Full-curtain framing system for total control of beam shaping
  • 16-blade iris for extremely tight beam effects
  • Trifusion frost system with linear insertion from light to heavy and everything in between
  • Two, 7 position plus open Rotating Gobo Wheels
  • Dual prisms for compound beam and projection effects
  • Rotating Animation Wheel with linear positioning and angular control

Applications

  • Houses of worship
  • Arenas and stadiums
  • Medium to large-sized performance venues
  • Cruise ships and themed entertainment
  • Production rental companies
  • Trade show and ballroom AV
  • Film

Additional information

Source

Engine LED Details:
Ultra-Bright: 1200 W Hot-Spot Engine
High Fidelity: 1200 W Flat Field Engine
Field Lumens See data sheet page 4
Max Integrating Sphere Lumens:
Ultra-Bright:
54,000 lm (standard)
70,000 lm (boost)
High Fidelity:
38,000 lm (standard)
46,000 lm (boost)
LPW
Ultra-Bright: 45
High Fidelity: 31
LED Life:
Ultra-Bright: 50,000 hours
High Fidelity: 50,000 hours
Native CCT:
Ultra-Bright: 6500 K
High Fidelity: 6000 K
Color

Color Mixing: Cyan, magenta, yellow, CTO
Color Temperature: Variable down to 2200 K
Color Wheel: Six (6) dichroic colors plus open
Optical

Beam Angle Range: 6°–64°
Gate Size: 30 mm
Aperture Size: 180 mm
Pattern Projection:
Two rotating and indexable wheels with seven
(7) interchangeable patterns plus open on each
Animation:
– Bi-directional rotating animation wheel with linear insertion, and variable angle
– LED Animation
Prism: Five-facet star and four-facet linear rotating prism with simultaneous insertion
Diffusion: Light, Medium, and Heavy frost seamlessly controlled with Trifusion control.
Iris: 16-blade iris
Framing:
Four-plane, full-curtain framing system with
180° module rotation
Flicker Control/Hz Range: 2.4 kHz and 16 kHz
Control

Input Method: DMX (5-pin) or Ethernet
Protocols:
DMX via RS-485
Art-Net or sACN via Ethernet
Ethernet Pass-Thru: Passive Ethernet in and thru with and without power
Data Conversion: Patented data conversion system for Ethernet to DMX
Modes (Footprint): Standard (60 channels)
RDM Functions: Yes
UI Type:
Full-color graphical UI with touch screen and
5-button navigational control
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled
Electrical

Voltage Range: 120–240 V 50–60 Hz
Input Method: powerCON TRUE1 TOP
Wattage (Max): 1820 W
Current (Max): 15.3 A @ 120 V
Inrush (First Half Cycle):
120 V: 69 A
230 V: 91 A
Fixtures per Circuit:
1 fixture (15 A power thru connector)
1 fixture (R20 module or similar)
Note: TRUE1 TOP connector rated for
20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)
Thermal

Ambient Operating Temp: -10°–40°C (14°–104°F)
Fan Mode: Standard, Studio, and Linear Continuous control channel
Physical

Pan and Tilt Range: 540° pan, 261° tilt
Max Pan/Tilt Speed: 360° in 2.83 s / 180° in 1.97 s
Materials: Steel and aluminum frame with molded plastic covers
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP20
Weight: 45 kg (99 lb)
Included Accessories:
powerCON TRUE1 TOP to bare end fixture tail
Two (2) clamp brackets
Safety cable
Warranty

Fixture Warranty
Five (5) years for light engine
Two (2) years for complete fixture
