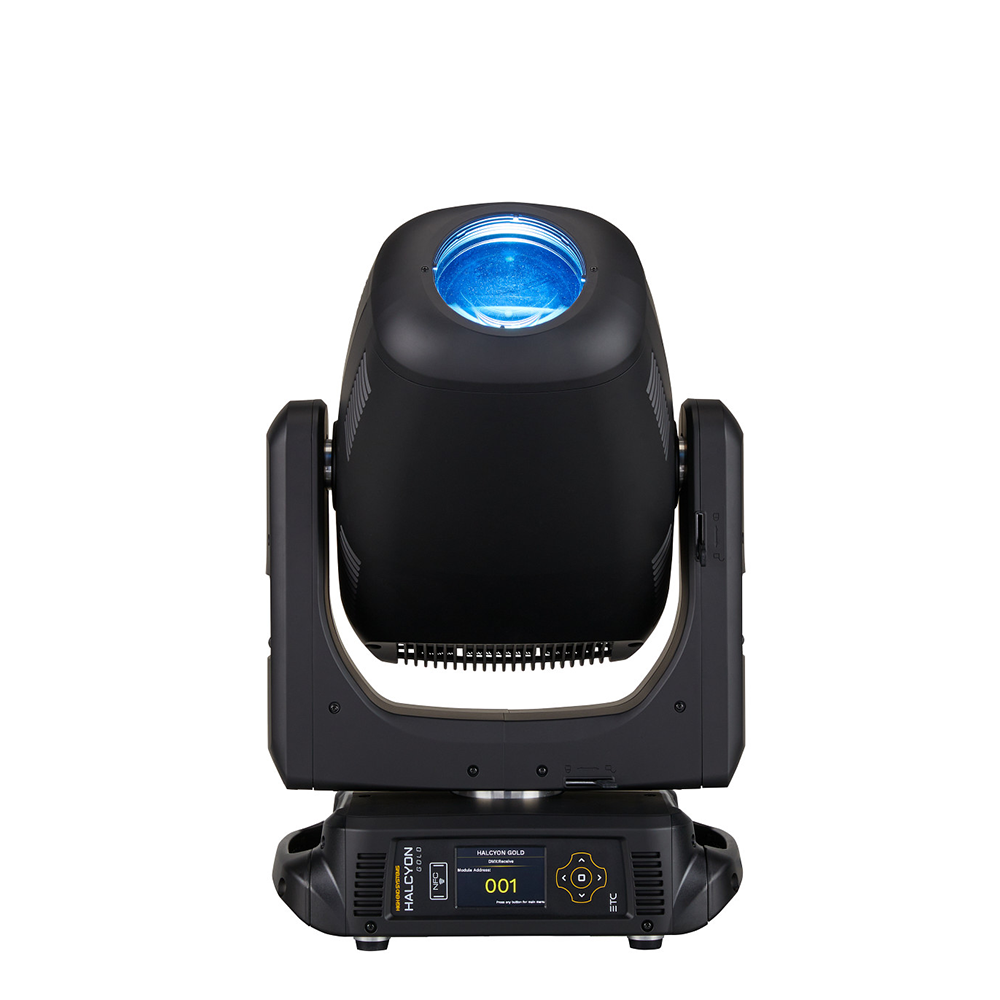

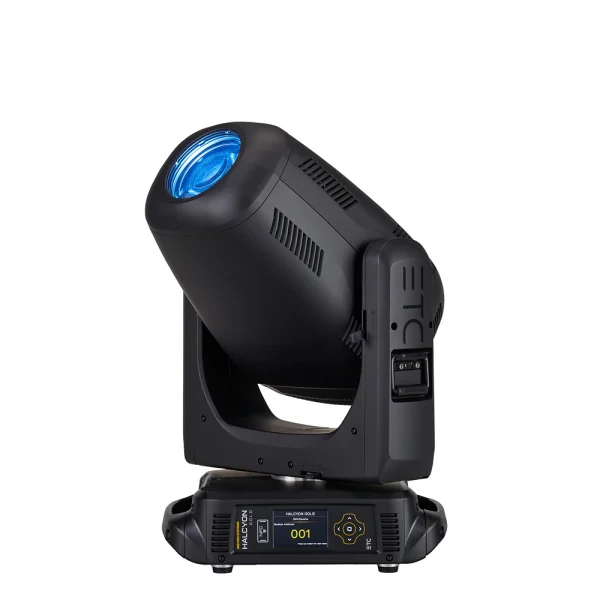

ETC – Halcyon Gold

ETC

The next generation hallmark of white light framing fixtures.

SKU: N/A Categories: , , ,
Clear

Description

ETC, the market leader in automated luminaire innovation, brings you the next generation hallmark of white light framing fixtures. High End Systems Halcyon Gold, the smallest product in the Halcyon Framing family of fixtures, is a compact luminaire with over 31,000 lumens of output in a 62 lb frame. Easily outperforming fixtures of the past in size and weight, Halcyon Gold has an extreme feature set with everything a user needs to light shows of all shapes and sizes.

Features

  • Bright white LED engine
  • 430 W Ultra-Bright engine
  • Fixture output exceeding 31,000 lumens
  • High quality 13-lens optic system
  • Extremely versatile 6°–57° field angle zoom
  • Optimized CMY and CTO color mixing for even hue control
  • Seven position plus open color wheel
  • Full-curtain framing system for total control of beam shaping
  • 16-blade iris for extremely tight beam effects
  • Beautifully linear Trifusion frost system
  • Seven position plus open Rotating Gobo Wheel
  • Eight position plus open Fixed Gobo Wheel
  • Dual prisms for compound beam and projection effects
  • Rotating Animation Wheel with linear positioning and angular control

Video

ETC Halcyon Fixtures

The High End Systems Halcyon family of automated luminaires is comprised of Halcyon Gold, Halcyon Titanium, and Halcyon Platinum.

Applications

  • Houses of worship
  • Small to medium-sized performance venues
  • Cruise ships and themed entertainment
  • Production rental companies
  • Trade show and ballroom AV
  • Studio and film

Additional information

Source

Engine
Ultra-Bright LED Details: 430 W
High Fidelity LED Details: 430 W
Field Lumens See data sheet page 4
Max Integrating Sphere Lumens:
Ultra-Bright: 31,000 lumens
High Fidelity: 19,000 lumens
LPW
Ultra-Bright: 72
High Fidelity: 44
LED Life:
Ultra-Bright: 50,000 hours
High Fidelity: 50,000 hours
Native CCT:
Ultra-Bright: 6500 K
High Fidelity: 6000 K
Color

Color Mixing: Cyan, magenta, yellow, CTO
Color Temperature: Variable down to 3000 K
Color Wheel Seven: (7) dichroic colors plus open
Optical

Beam Angle Range: 6°–57°
Gate Size: 22 mm
Aperture Size: 124 mm
Pattern Projection:
– Rotating and indexable wheel with seven (7) interchangeable patterns plus open
– Fixed wheel with eight (8) interchangeable patterns plus open
Animation:
– Bi-directional rotating animation wheel with linear insertion, and variable angle
– LED Animation
Prism:
Five-facet star and four-facet linear rotating prism with simultaneous insertion
Diffusion: Light, Medium, and Heavy frost seamlessly controlled with Trifusion control.
Iris: 16-blade iris
Framing:
Four-plane, full-curtain framing system with
180° module rotation
Flicker Control/Hz Range: 2.4 kHz and 16 kHz
Control

Input Method: DMX (5-pin) or Ethernet
Protocols:
DMX via RS-485
Art-Net or sACN via Ethernet
Ethernet Pass-Thru:
Passive Ethernet in and thru with and without power
Data Conversion: Patented data conversion system for Ethernet to DMX
Modes (Footprint): Standard (57 channels)
RDM Functions: Yes

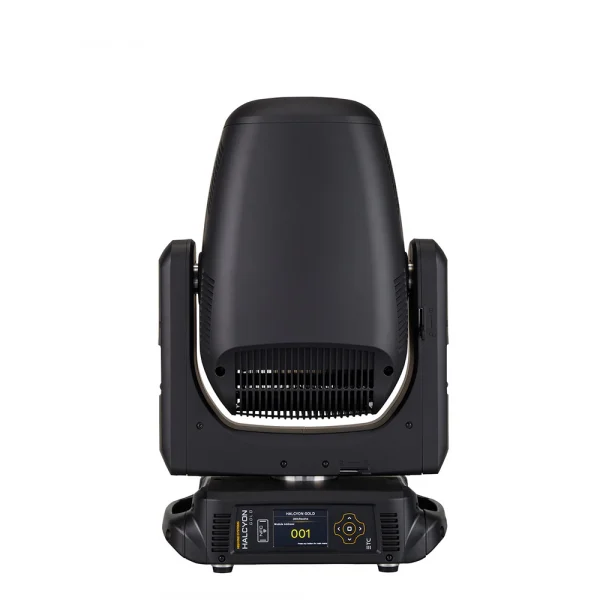

UI Type:
Full-color graphical UI with touch screen and
5-button navigational control
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled
Electrical

Voltage Range: 100–240 V 50–60 Hz
Input Method: powerCON TRUE1 TOP
Wattage (Standard): 684 W
Current (Max): 6.9 A @ 100 V
Inrush (First Half Cycle):
120 V: 47 A
230 V: 87 A
Fixtures per Circuit:
2 fixtures (15 A power thru connector)
3 fixtures (R20 module or similar)
Note: TRUE1 TOP connector rated for
20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)
Thermal

Ambient Operating Temp: -10°–40°C (14°–104°F)
Fan Mode: Standard, Studio, and Linear Continuous control channel
Physical

Pan and Tilt Range: 542° pan, 259° tilt
Max Pan/Tilt Speed: 360° in 2.52 s / 180° in 1.65 s
Materials: Steel and aluminum frame with molded plastic covers
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP20
Weight: 28.1 kg (62 lb)
Included Accessories:
powerCON TRUE1 TOP to bare end fixture tail
Two (2) clamp brackets
Safety cable
Warranty

Fixture Warranty:
Five (5) years for light engine
Two (2) years for complete fixture
