ETC – Gio @5

ETC

Gio @5™ brings the high-end control of the larger Eos® family consoles to venues with tighter spaces – or tighter budgets.

SKU: ETC4390A1014-EU Categories: , , ,
Clear

Description

Looking for a console that saves space in control rooms while delivering professional-grade programming power? With motorized playbacks and built-in touchscreen access to all your favorite Eos programming tools, the Gio @5 is an on-the-go road warrior or a versatile in-house desk that can handle shows of any size with ease. Where will Gio @5 take you?

Features

  • Approachable yet powerful syntax for programmers of every level
  • Industry-leading color control tools
  • Magic Sheets for custom programming and displays
  • Augment3d 3D programming and visualization environment
  • Virtual Media Server function for pixel-mapping
  • Multi-user and multi-programmer working environment



Video

Meet the Gio @5

Introducing Gio @5™ from ETC. A professional, Eos® family console, scaled just right.

Additional information

Weight 23.6 kg
Hardware & Interfaces

One 18.5-inch multi-touch LCD touchscreen for display, direct selection and context-sensitive control
Supports two external display port monitors (1920×1080 minimum, 3840×2160 maximum), with optional single-touch or multi-touch screen control and DDC/CI support
Five 60mm faders, dedicated 4.3-inch color LCD display, 100 10-fader pages configurable as channels, submasters, palettes/presets, timing and effect rate/speed playback control
Main Playback with two 60mm motorized faders
Four force-feedback encoders for non-intensity parameter control
Dedicated high-resolution intensity level wheel
Backlit Eos keypad

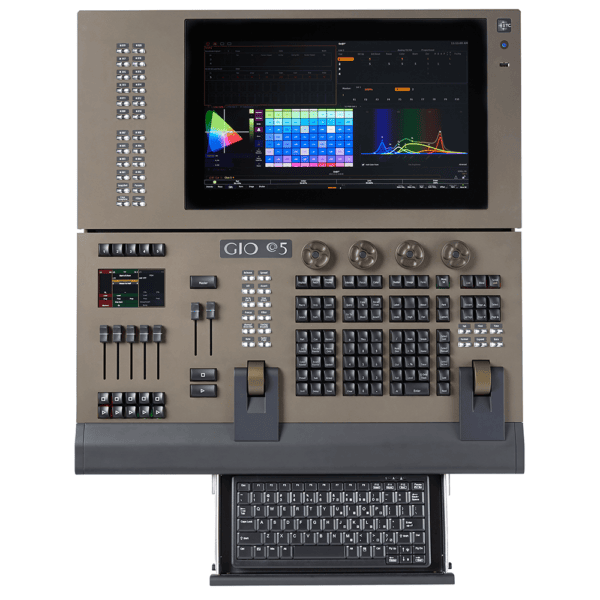

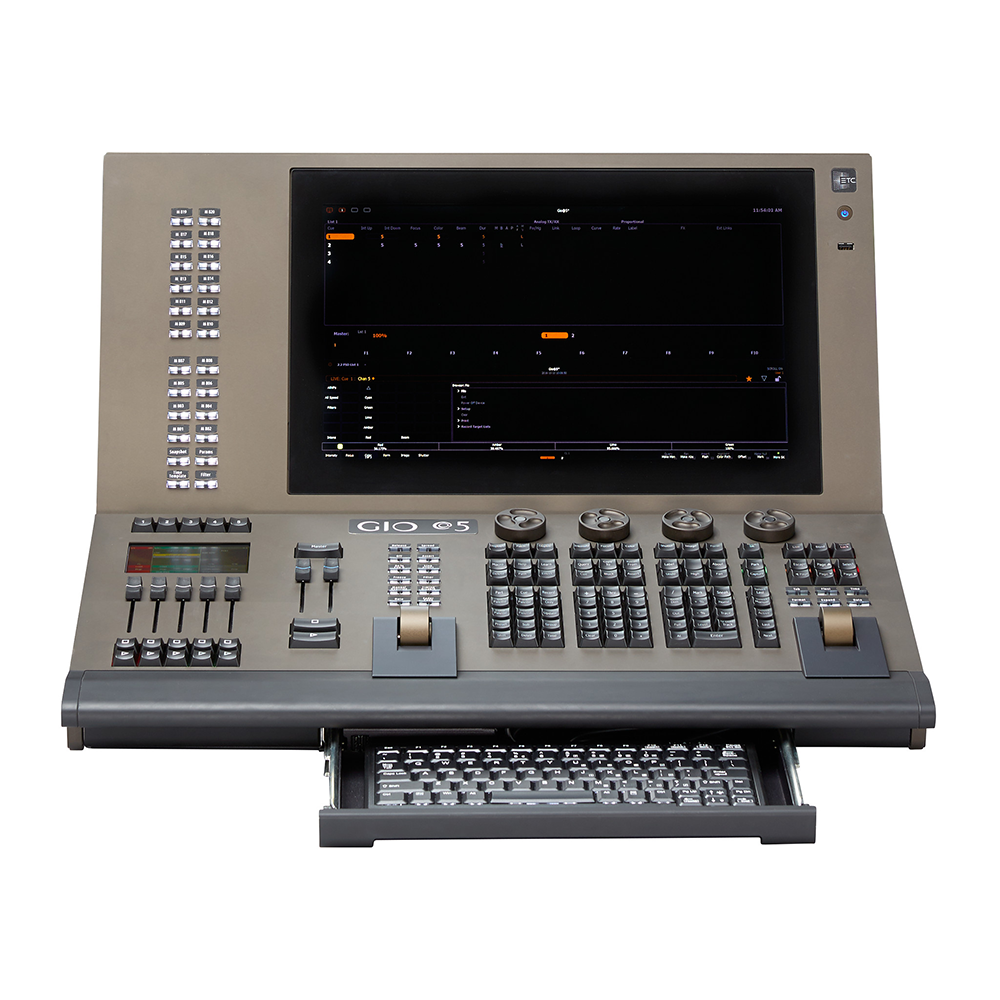

Built-in keyboard tray
Dedicated macro buttons
Solid-state hard drive

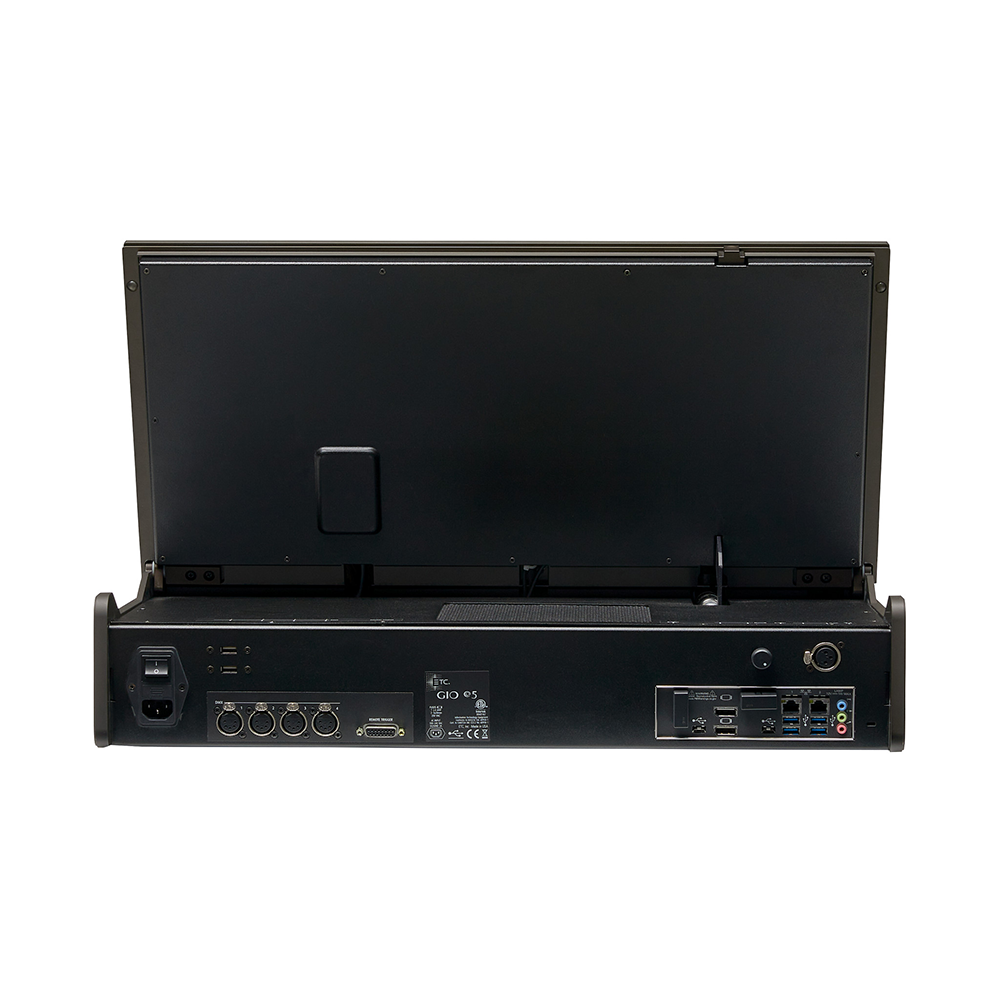

IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
Two individually configurable Gigabit Ethernet ports, RJ45 connectors
One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
sACN and Art-Net network output protocols
Four DMX-512 / RDM 5-pin XLR ports
Contact closure triggers via D-Sub connector
USB 3.1 ports, for flash drives, pointing devices, keyboards (9 USB-A ports, 2 USB-C ports)
One Littlite XLR port
One Kensington lock port
Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
Electrical & Thermal

Power consumption approximately 2 amps at 120V or 230/240V
Ambient room temperature 0°-35° C (32°-95° F)
Ambient humidity up to 90% non-condensing
Regulatory & Compliance

CE Compliant
cETLus listed
UKCA marked
FCC compliant
RoHS compliant
WEEE
Dimensions

Height: 364mm
Width: 641mm
Depth: 667mm

Downloads

Data Sheet Download
