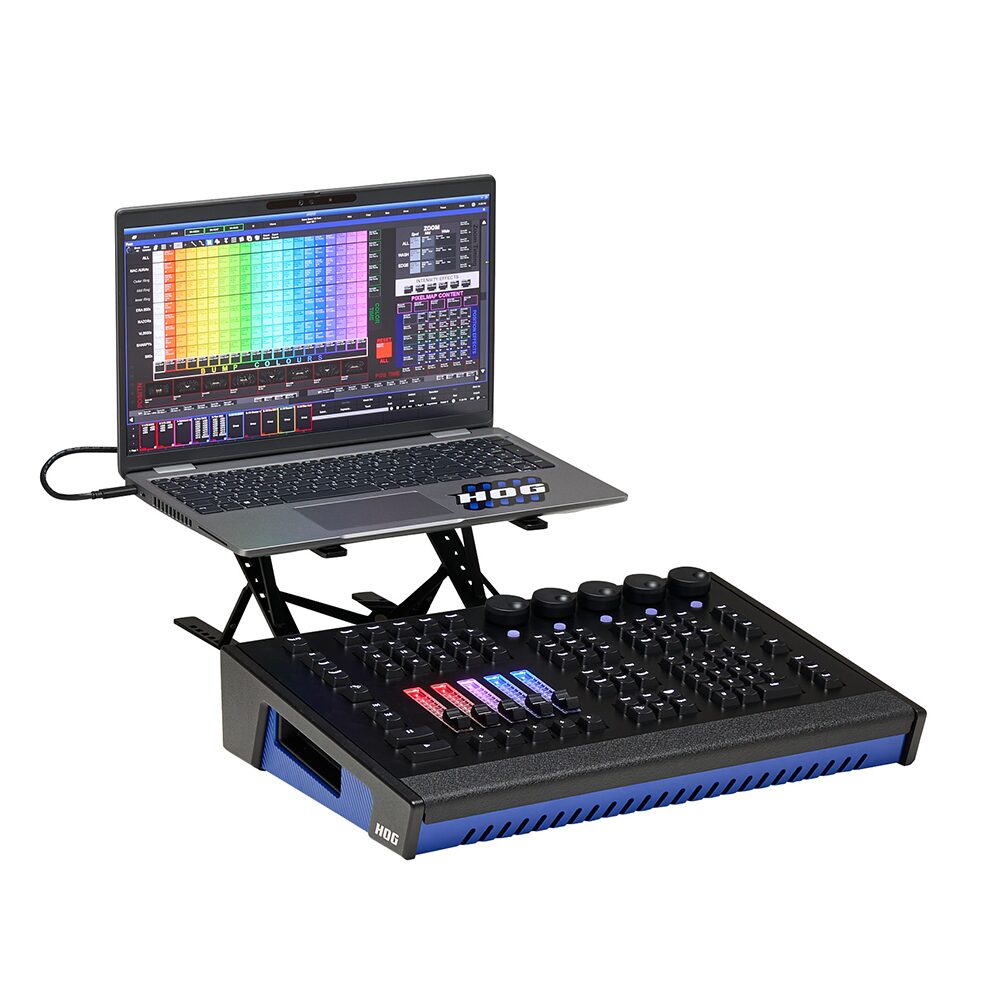

ETC - Gig Hog Front of console with laptopETC - Gig Hog Front of console with laptop

ETC – Gig Hog

ETC

The Gig Hog programming wing integrates with any setup, providing connectivity options like USB-C and Ethernet while reducing cable clutter. When paired with Hog PC, it unlocks 12 universes of output directly. When used with HPU, it controls up to 64 universes.

Categories: , , ,

Description

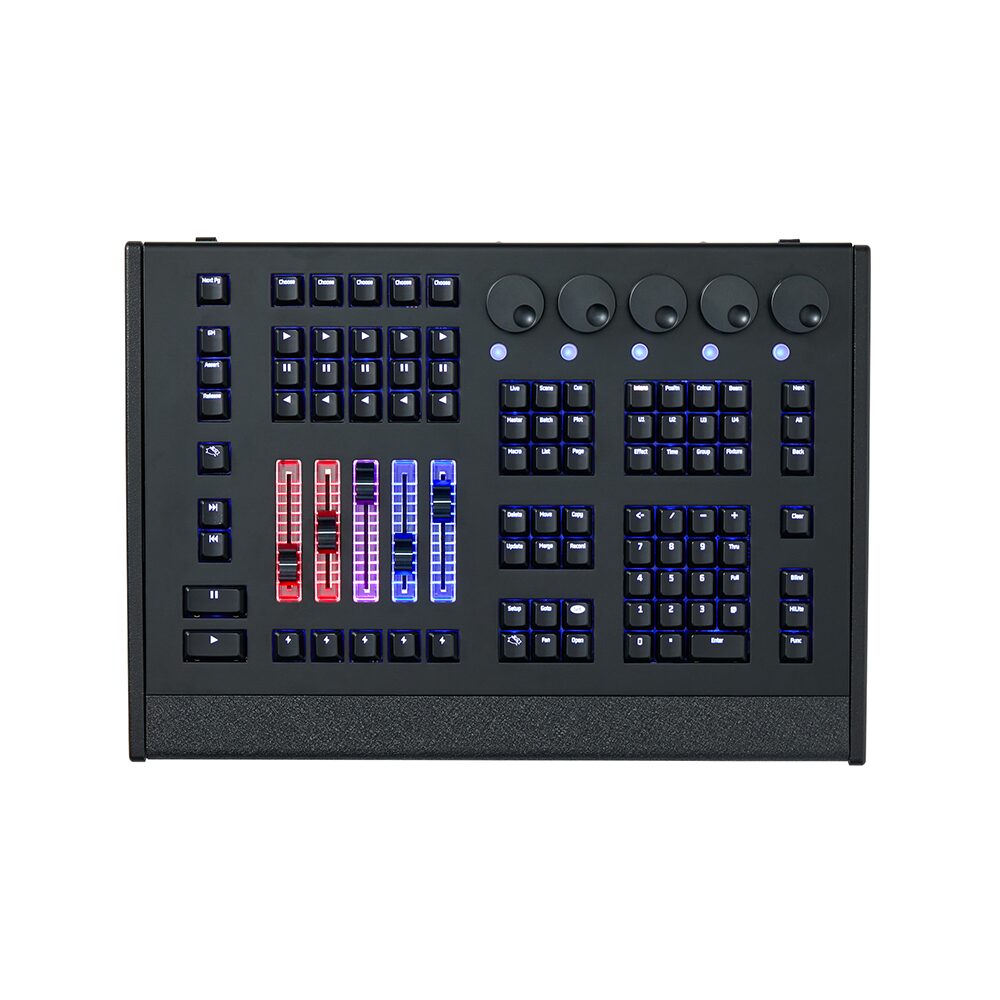

The Gig Hog Programming Wing is the ultimate portable solution for programming and playback. It connects seamlessly to any member of the Hog family, as well as to the 64-universe HPU or Hog PC, where the Gig Hog unlocks 12 universes directly. With intuitive tools and the trusted Hog interface, it’s an indispensable tool in studio environments or portable setups.

Features

  • USB-C connectivity with 100 W power delivery to laptops
  • Neutrik powerCON TRUE1 TOP power input
  • Neutrik etherCON connections for HogNet and FixtureNet
  • 2 local DMX512-A outputs
  • Local LTC/SMPTE 3-pin XLR
  • Optional rack ears allow for mounting in standard 19-inch racks
  • Gig Hog packaging foam is designed to drop into an empty Pelican 1560 case directly

Video

Introducing the Next Generation of Hog

The next generation of Hog consoles offers a road tested solution for every production.

Additional information

Connectivity and Transfer

Gig Hog unlocks 12 universes (6,144 addresses) when connected to Hog PC (an ETCnomad USB key is NOT necessary). When connected to HPU, the output capacity of the HPU is used (64 universes / 32,768 addresses)
Neutrik powerCON® TRUE1 power input
Two Neutrik EtherCON® Ethernet connections
USB 3.0 type A (4) and type C (1) connectors
Two DMX outputs (5-pin XLR)
SMPTE input (3-pin XLR)
USB C Dock functionality – 100 W power supply via USB C to laptop
Display Functions

Supports two external display port monitors at 1280×1024 minimum resolution, with optional touch or multi-touch control
User configurable displays with recordable views
Dedicated views to access most-used items quickly
Palette, list, views, scenes, batches, effects directories
Programmer window
Plot views
Output window
Fixture Schedule and Patch windows, sortable by fixture or by universe
Three color schemes for daylight use, regular use or dark environment use
Programming

Compact RGB backlit command keypad for quick programming
Command-line interface
Programmer window displays selected and adjusted fixtures
Lists constructed with +, -, and Thru or selection softkeys, Next, Back and All commands
Intensity set with command keypad, full key, intensity palettes
Ordered groups
Comprehensive fanning using segments and buddying
Dedicated kind keys and five high-resolution parameter encoders, with two keys per encoder
Four user “U-Keys” for user defined functions
Media picker window
Hog Color System
Programmer window
Groups for simplified fixture selection
Palettes: intensity, position, colour, beam, effects
Effects Engine
Pixelmapping Effects
Park
Undo command
Delete, Move and Copy commands
Highlight, lowlight and rem dim commands
Cue level and parameter level timing
Record, Update and Merge commands
Knockout and Clear commands
Set command for text labels and data entry
Playback Controls

Playback Dashboard display for playback bar display, master ranges, and additional playback tools
10 pageable, motorized RGB-backlit master playbacks with customizable faders, flash, go, halt, back and choose keys
Main playback stack including GM, Restart, Assert, Release, Pig, Skip Forward, Skip Backward, Master Pause, and Master Play keys
Master Ranges for quick reassignment of playback masters content
Unlimited fader Pages
Comment macros and keystroke macros
Paging keys
Virtual masters
Scenes
Batch controllers
Group masters
Triggering via Command keys
Playback expansion via Tour Wing
OSC input/output, MIDI messages, MIDI Show Conrol, MIDI/LTC timecode
Interface and Accessories

Tour Wing playback wing
Gig Hog programming wing
HPU hybrid processing unit
Response network gateways and interfaces ETCnomad
Electrical and Environmental

ETL, CETL and CE compliance
Mains power: 100–250 VAC, 50/60 Hz, max 80 W
Mains connector: Neutrik PowerCON® TRUE1
Breaker: 7.5 A
Acoustical rating: TBD dbA
