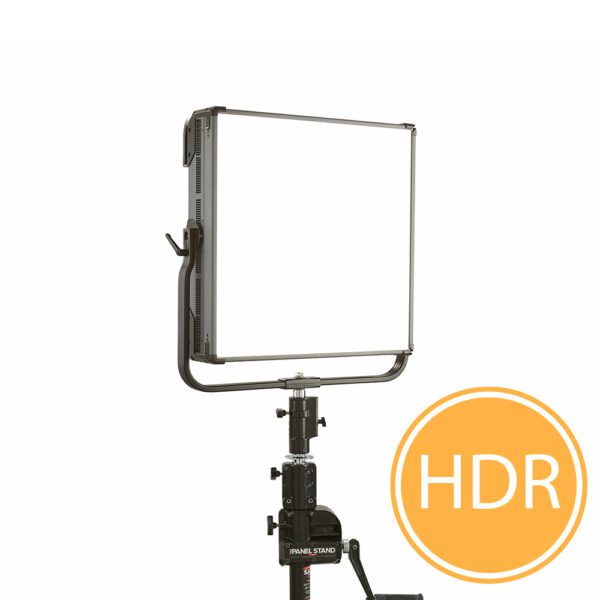

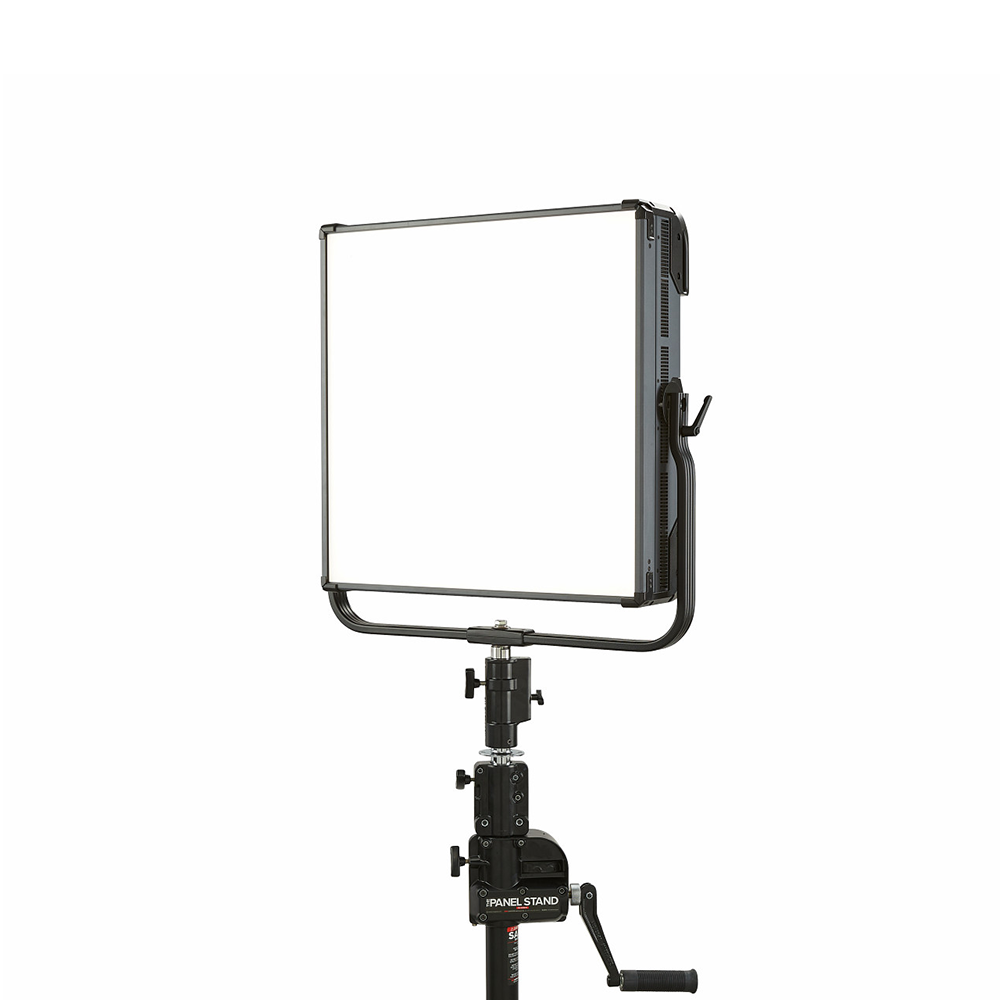

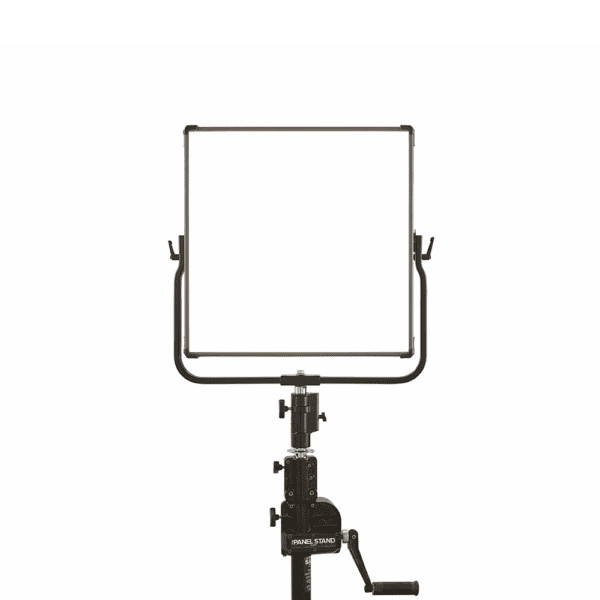

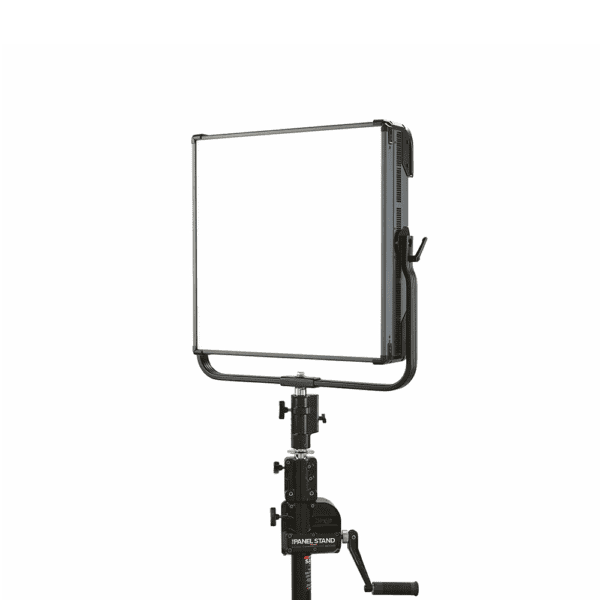

ETC – fos/4 panel Daylight HDR Large

ETC

Over a decade of research is realized in the fos/4 Panel. Whether on set or on location, fos/4 delivers intense light output without sacrificing color quality.

SKU: ETC7471A1221 Categories: , , ,
Clear

Description

Over a decade of color research comes together in the fos/4 Panel. These fixtures were designed specifically for the studio and film industry, and take predictably nuanced color from reality to the camera to the screen.

With the fos/4 Panel available in three sizes and two arrays, you’ll never find yourself wishing for anything more. The fos/4 Panels are shockingly bright, but don’t sacrifice color quality. And with the addition of Deep Red LEDs, the Lustr X8 array pushes the boundaries of color rendering possibilities while the tunable Daylight HDR array gives new depth to your white light. The fos/4 series fixtures are made in the USA and backed by a 24/7/365 phone support guarantee – ETC will be there when you need them, regardless of time or day.

Features

  • Intuitive UI with color picker
  • Up to 62,000 lumens
  • Select CCT between 1900–10450 K
  • NFC configuration
  • Multiverse® wireless control
  • Standard 5/10 year LED fixture warranty

Two array choices:

  • Lustr X8 full color array
  • Daylight HDR tunable white array

Three sizes available

  • Small (8×24 in)
  • Medium (16×24 in)
  • Large (24×24 in)

Video

ETC fos/4 Panel

Over a decade of research is realized in the fos/4 Panel. Whether on set or on location, fos/4 delivers intense light output without sacrificing color quality.

Applications

  • Television studios
  • Location shoots
  • Film sets

Additional information

Source

LED details: Lumileds LUXEON® C
Max lumens (5600 K): 20,569 / 41,058 / 61,587
Lumens per watt (5600 K): 52.5 / 52.4 / 52.0
L70 rating (hours to 70% output): 54,000 hours

Colour

Colours used: Lustr X8: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
Daylight HDR: Deep Red, Red, Mint,
Cyan, Blue, Indigo
Color temperature range: 1900–10450 K
Calibrated array: Yes
Red shift: Yes (selectable)

Optical

Beam angle range: 108° native with standard diffusion
Gate size: N/A
Aperture size:
203×610 mm (8×24 in)
406×610 mm (16×24 in)
610×610 mm (24×24 in)
Pattern projection: No
Pattern size: N/A
Camera flicker
control/Hz range: Flicker-free 20,000 Hz

Control

Input method: 5-Pin XLR, Multiverse wireless and NFC
Protocols: DMX-512, RDM, City Theatrical
Multiverse, NFC
Modes (footprint): 5 modes (1–12 channels)
RDM configuration: Yes
UI type: Full color display
Local control: Yes
Onboard presets: Yes (12)
Onboard sequences: Yes
Onboard effects: Yes (12)
Fixture-to-fixture control: Yes

Wireless

Band: 2.400–2.480 GHz
Range: 100 m indoors, 500 m line of sight
(subject to conditions)
Max receivers:
DMX: No limit
RDM: Varies by transmitter used
Multiverse SHoW Baby®: 585
Multiverse Transmitter: 5,000
Broadcast power: 100 mW

Electrical

Voltage range:
100–240 VAC
24–36 VDC (battery input for the small and medium only)
Input method: AC via Neutrik TRUE1 TOP
DC via 4-pin XLR
Inrush (first half-cycle) (Small / Medium / Large):
120 V: 33.4 / 51.0 / 67.8 A
240 V: 57.0 / 94.4 / 155.0 A
Fixtures per circuit on standard R20 breaker (Small / Medium / Large):
4 / 2 / 1
Note: TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
Wattage (Typical) (Small / Medium / Large):
120 V: 475 / 955 / 1,475 W
230 V: 465 / 935 / 1,430 W
Current draw (Small / Medium / Large):
120 V: 4.0 / 8.2 / 12.4 A
230 V: 2.1 / 4.2 / 6.3 A

Thermal

Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable): Yes (yes)
Droop compensation: Yes
dB range: 22.4 / 24.5 / 26.5 dBA
BTUs/hour (120 V): 1,620 / 3,257 / 5,030

Physical

Materials: Cast and extruded aluminum
Color options: Two-tone (black and studio gray
Mounting options: Yoke or Griprail (M6 standard T-nut)
IP rating: IP20
Weight:
Small: 14.5 kg (32 lb)
Medium: 25.4 kg (56 lb)
Large: 35.8 kg (79 lb)
Included accessories:
Yoke, standard diffusion, laminated quick card, power cable and junior (28 mm) pin

Warranty

Fixture: 5 years
LED array: 10 years

Regulatory and Compliance

Approved regulatory standards:
cETLus Listed
CE Compliant
