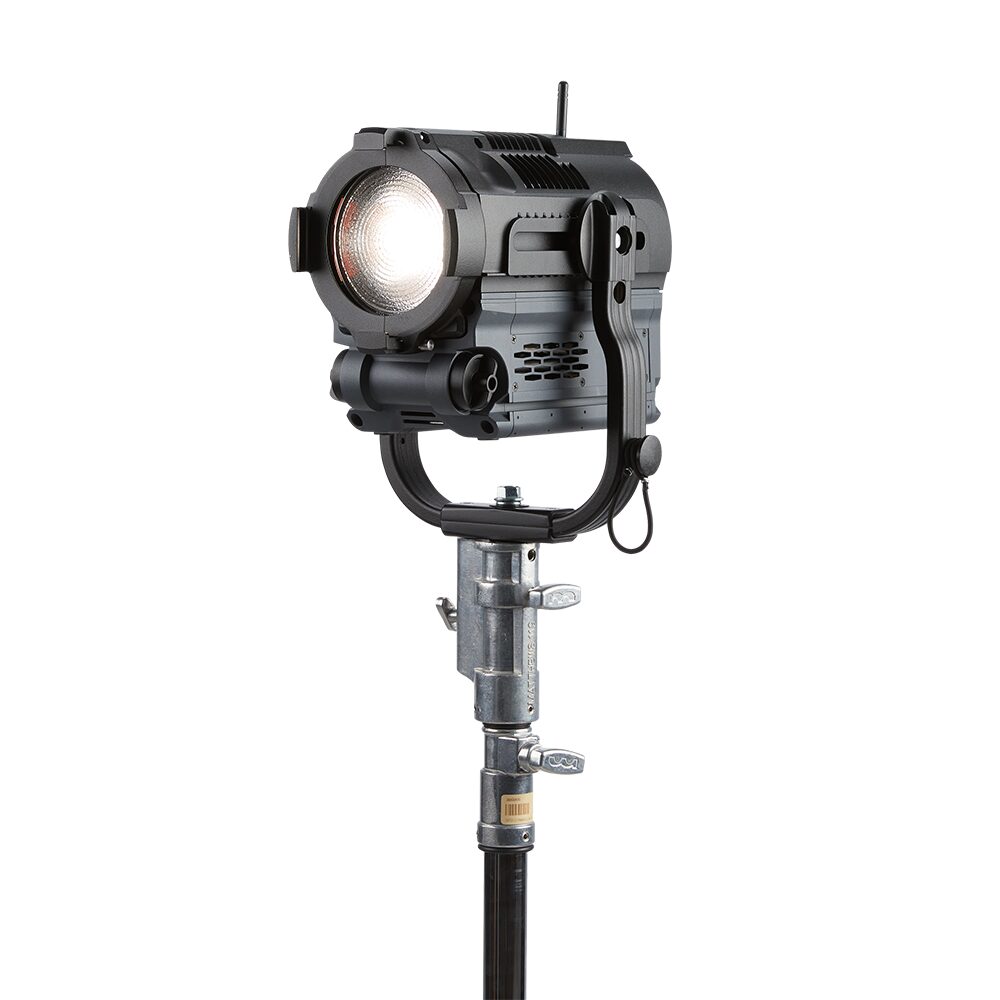

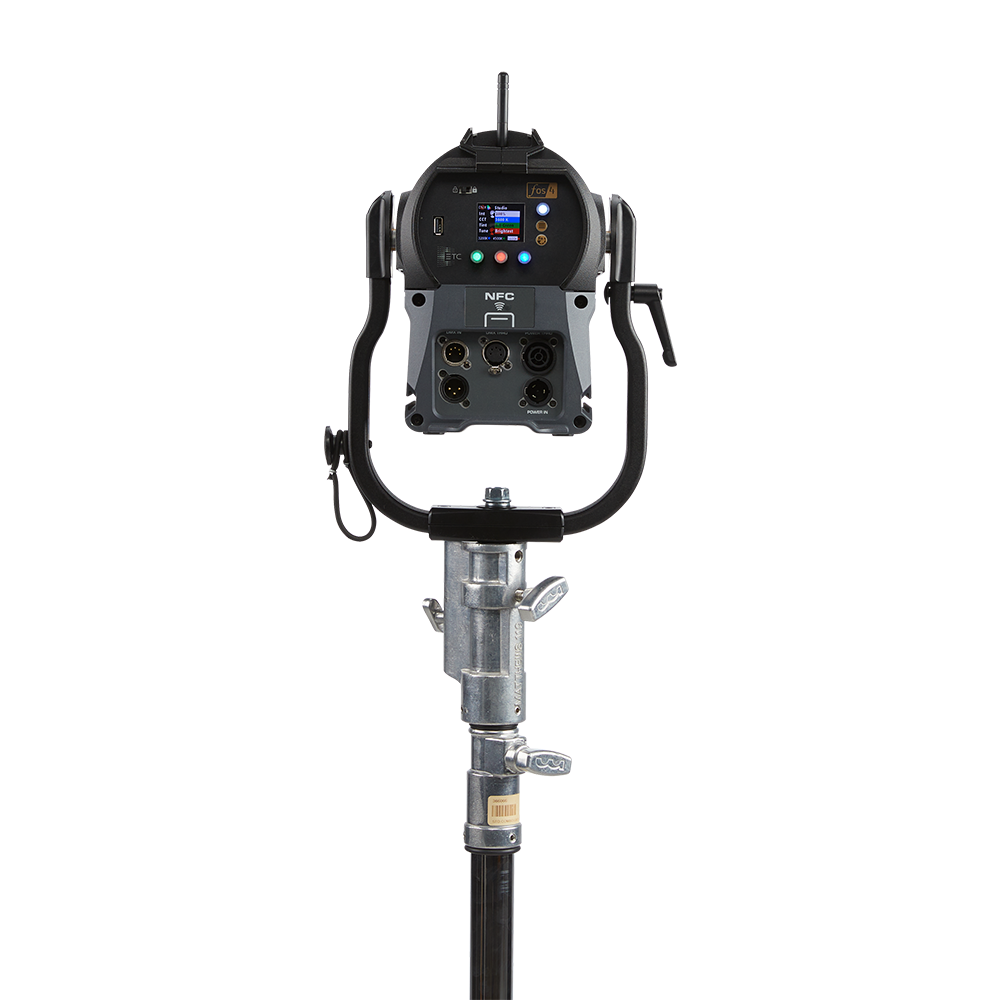

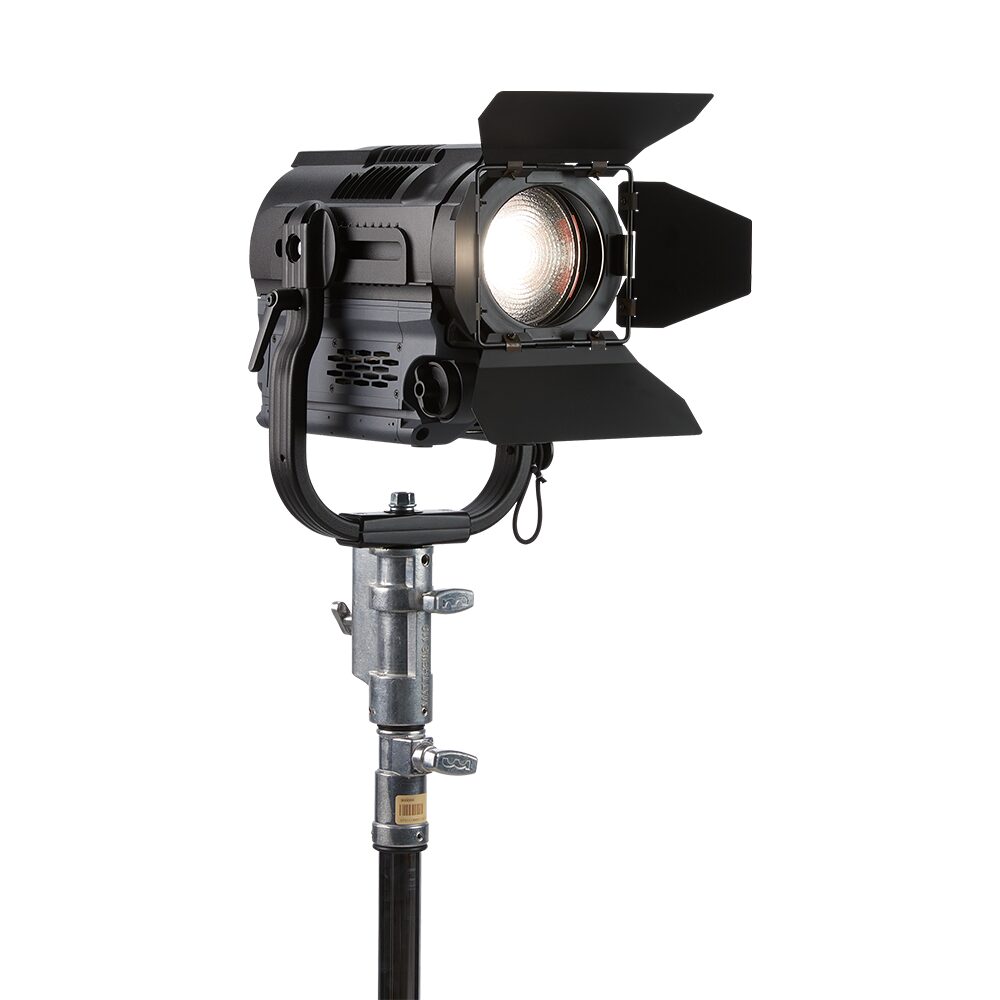

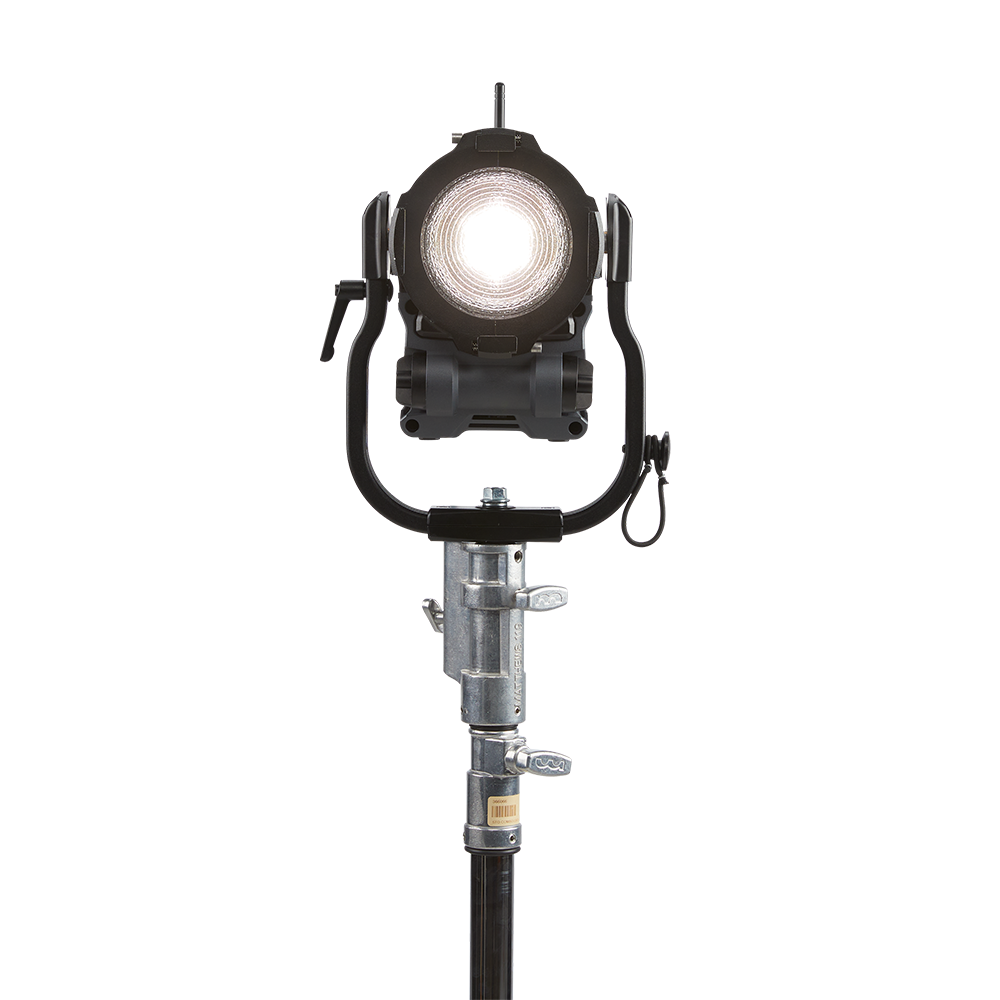

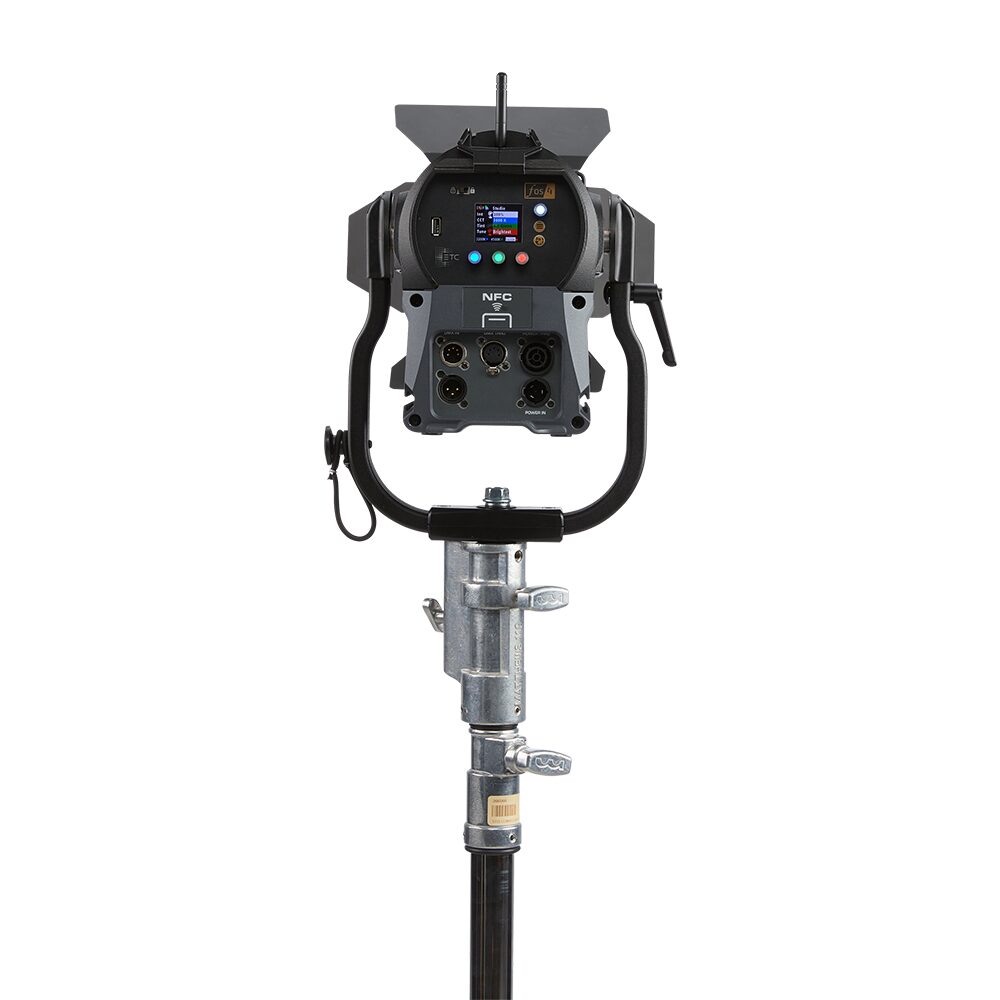

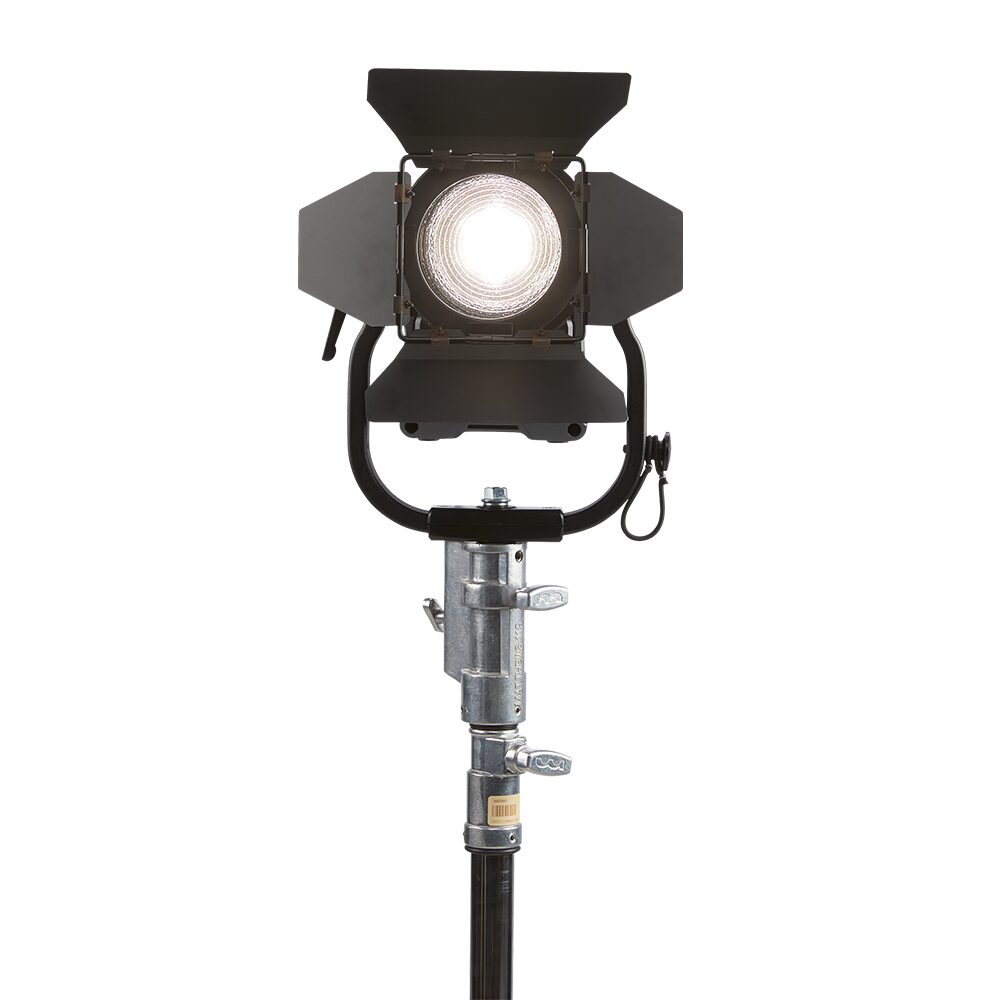

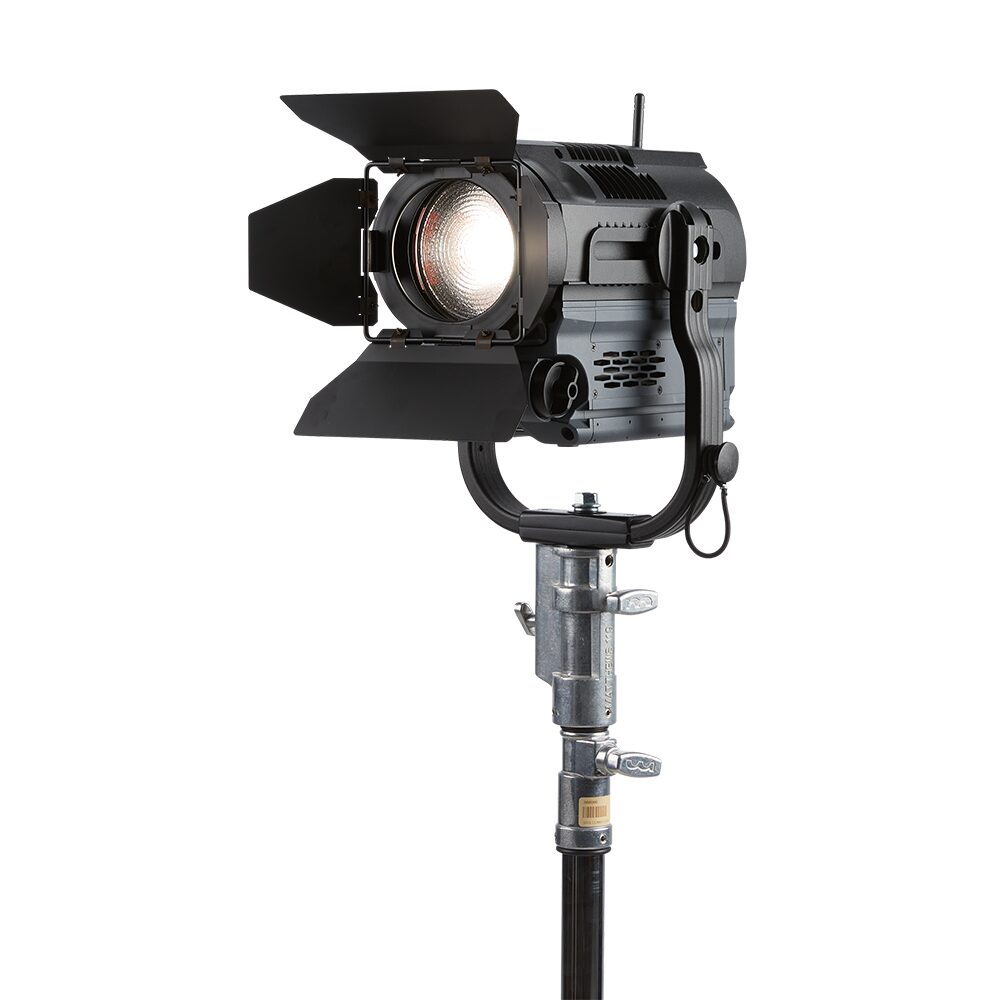

ETC – fos/4 Fresnel 5in

ETC

fos/4 takes the most desired features of a standard incandescent Fresnel and adds in the nuanced color mixing, smooth fades, and LED technology of ETC’s other professional grade fixtures.

SKU: N/A Categories: , , ,
Clear

Description

Designed for the studio and film industry, fos/4 takes the most desired features of a standard incandescent Fresnel and adds in the nuanced color mixing, smooth fades, and LED technology of ETC’s other professional grade fixtures. With fos/4, you get a true Fresnel with an LED engine, available in a variety of apertures. With a wide zoom range, remarkable quality of light and impressive output, you get the feature set and brightness you need for your shoot. With the addition of Deep Red LEDs, the Lustr X8 array pushes the boundaries of color rendering possibilities while the tunable Daylight HDR array gives new depth to your white light.

Features

  • Two array choices:
    • Lustr X8 full color array
    • Daylight HDR tunable white array
  • 5, 7 or 10 inch glass Fresnel lens aperture options
  • Intuitive UI with color picker
  • Tunable CCT between 1900–10450 K
  • NFC configuration
  • Multiverse® wireless control
  • Standard 5/10 year LED fixture warranty

Applications

  • Television studios
  • Location shoots
  • Film sets

Additional information

Source

LED details: Lumileds LUXEON® C
Max lumens (5/7/10 inch):
Lustr X8: TBD/7,406/9,974
Daylight HDR: TBD/9,703/12,331
Lumens per watt (5/7/10 inch):
Lustr X8: TBD/41.7/35.5
Daylight HDR: TBD/44.1/40.6
L70 rating (hours to 70% output)*: >54,000 hours
Colour

Colors used:
Lustr X8: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
Daylight HDR: Deep Red, Red, Mint, Cyan, Blue, Indigo
Color temperature range: 1900–10450 K
Calibrated array: Yes
Red shift: Yes (selectable)
Optical

Beam angle range: TBD/13-55°/14-58°
Gate size: N/A
Aperture size (5/7/10 inch):
127 mm (5 in)/178 mm (7 in)/254 mm (10 in)
Pattern projection: No
Pattern size: N/A
Camera flicker control/Hz range: Yes: 5 kHz, 25 kHz
Control

Input method: 5-Pin XLR, Multiverse wireless, NFC
Protocols: DMX-512, RDM, Multiverse, NFC
Modes (footprint): 7 modes (1–12 channels)
RDM configuration: Yes
UI type: Full color display
Local control: Yes
Onboard presets: Yes (12)
Onboard sequences: Yes
Onboard effects: Yes (12)
FixtureLink: Yes
Wireless

Band: 2.400–2.480 GHz
Range: 100 m indoors, 500 m line of sight (subject to conditions)
Max receivers:
DMX: No limit
RDM: Varies by transmitter used
Multiverse Show Baby®: 585
Multiverse Transmitter: 5,000
Broadcast power: 100 mW
Electrical

Voltage range:
100–240 VAC
24–36 VDC
Input method:
AC via Neutrik TRUE1® TOP
DC via 3-pin XLR
Inrush (first half-cycle) (5/7/10 inch):
120 V: TBD A/46.6 A/46.6 A
240 V: TBD A/110.2 A/110.2 A
Fixtures per circuit on standard R20 breaker* (5/7/10 inch):
TBD/7/5 (link up to x/6/4 via Power Thru connector)
Note: TRUE1 connector rated for
20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)
Wattage (Typical) (5/7/10 inch):
Lustr X8:
120 V: TBD W/177.7 W/280.9 W
240 V: TBD W/172.9 W/275.6 W
Daylight HDR:
120 V: TBD W/219.8 W/303.9 W
240 V: TBD W/219.9 W/298.5 W
Current draw (5/7/10 inch):
Lustr X8:
120 V: TBD A/1.51 A/2.38 A
240 V: TBD A/0.7 A/1.23 A
Daylight HDR:
120 V: TBD A/1.87 A/2.57 A
240 V: TBD A/0.99 A/1.33 A
Note Maximum fixture output may be reduced when powered by battery
Thermal

Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable): Yes (yes)
Droop compensation: Yes
dB range: 8.4–37.7 dBA
BTUs/hour (120 V) (5/7/10 in): TBD/606/955
Physical

Materials: Cast and extruded aluminum
Color options: Two-tone (black and studio gray)
Mounting options: Yoke
IP rating: IP20
Weight (5/7/10 in): 13.4 kg (29.5 lb)
Included accessories Yoke, laminated quick card, power cable and junior (28 mm) pin
Warranty

Fixture: 5 years
LED array: 10 years
Regulatory and Compliance

Approved regulatory standards (5 inch listing pending):
cETLus Listed
Conforms to UL 1573
Certified to CSA C22.2 No. 166
CE Compliant
FCC Compliant
