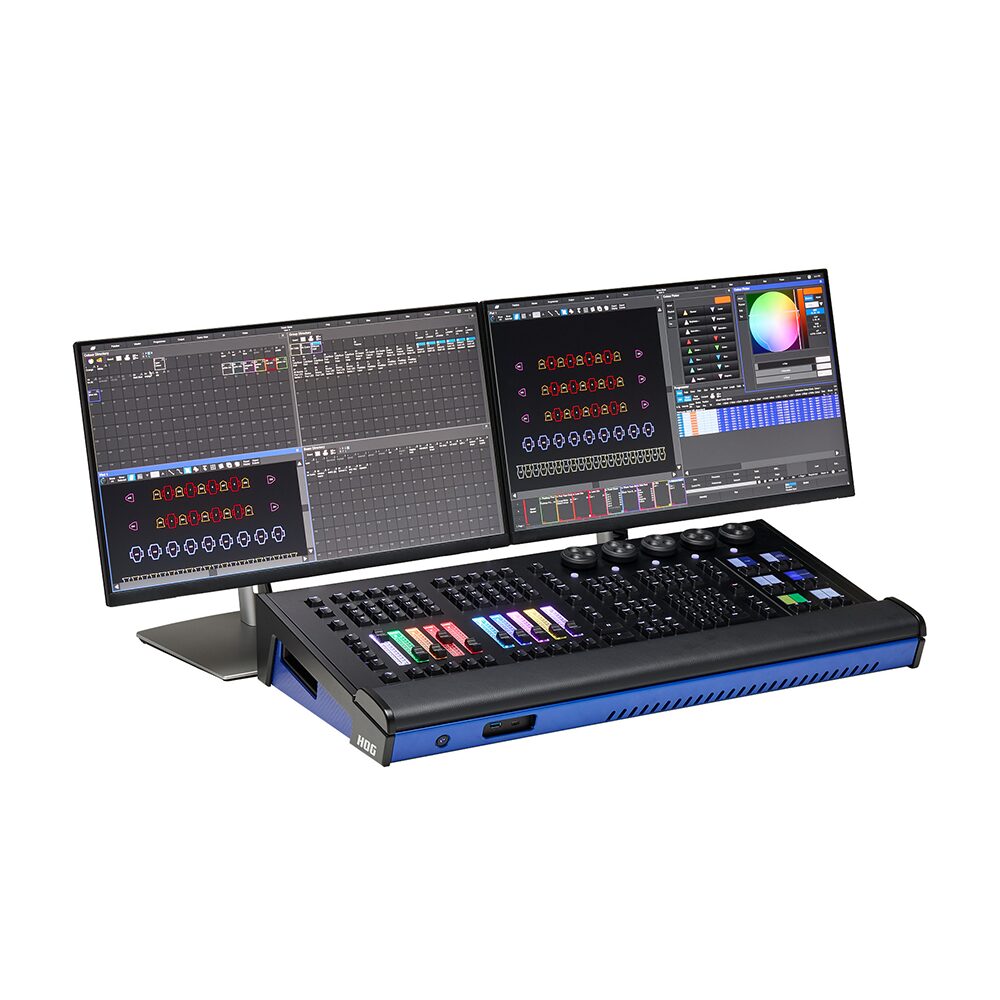

ETC - Flex Hog Shown with external displaysETC - Flex Hog Shown with external displays

ETC – Flex Hog

ETC

The Flex Hog console is designed for smaller venues and tech positions, removing the dashboard displays and keyboard drawer but retaining the core features of the larger consoles.

Categories: , , ,

Description

The Flex Hog console delivers streamlined simplicity while maintaining top-tier efficiency. Featuring the same reliable interface as the Tour Hog, minus the dashboard displays and keyboard drawer, the Flex Hog is the perfect console for productions that prioritize precision in a compact footprint.

Features

  • RGB-backlit keys and motorized faders
  • Encoders with assignable function keys
  • Up to two external multi-touch displays
  • Neutrik powerCON TRUE1 TOP power input and thru connectors
  • Neutrik etherCON connections for HogNet and FixtureNet
  • 4 local DMX512-A outputs
  • Local LTC/SMPTE 3-Pin XLR

Video

Introducing the Next Generation of Hog

The next generation of Hog consoles offers a road tested solution for every production.

Additional information

Connectivity and Transfer

64 Universes
Neutrik powerCON® TRUE1 power input and thru
Two Neutrik EtherCON® Ethernet connections
USB 3.0 type A (4) and type C (2) connectors
Wi-Fi and Bluetooth antennas
Four DMX outputs (5-pin XLR)
SMPTE input (3-pin XLR)
Desk Light (3-pin XLR, standard point)
Display Functions

Six full color function key displays
Supports two external display port monitors at 1280×1024 minimum resolution, with optional touch or multi-touch control
User configurable displays with recordable views
Dedicated views to access most-used items quickly
Palette, list, views, scenes, batches, effects directories
Programmer window
Plot views
Output window
Fixture Schedule and Patch windows, sortable by fixture or by universe
Three color schemes for daylight use, regular use or dark environment use
Programming

Compact RGB backlit command keypad for quick programming
Command-line interface
Programmer window displays selected and adjusted fixtures
Lists constructed with +, -, and Thru or selection softkeys, Next, Back and All commands
Intensity set with command keypad, full key, intensity palettes
Ordered groups
Comprehensive fanning using segments and buddying
12 Function keys for user kinds and commands
Dedicated kind keys and five high-resolution parameter encoders, with two keys per encoder
Eight user “U-Keys” for user defined functions
Media picker window
Hog Color System
Programmer window
Groups for simplified fixture selection
Palettes: intensity, position, colour, beam, effects
Effects Engine
Pixelmapping Effects
Park
Undo command
Delete, Move and Copy commands
Highlight, lowlight and rem dim commands
Cue level and parameter level timing
Record, Update and Merge commands
Knockout and Clear commands
Set command for text labels and data entry
Playback Controls

10 pageable, motorized RGB-backlit master playbacks with customizable faders, flash, go, halt, back and choose keys
Main playback stack including GM, Restart, Assert, Release, Pig, Skip Forward, Skip Backward, Master Pause, and Master Play keys
Master Ranges for quick reassignment of playback masters content
Unlimited fader Pages
Comment macros and keystroke macros
Paging keys
Virtual masters
Scenes
Batch controllers
Group masters
Triggering via Command keys
Playback expansion via Tour Wing
OSC input/output, MIDI messages, MIDI Show Conrol, MIDI/LTC timecode (MIDI via optional external MIDI interface)
Interface and Accessories

Tour Wing playback wing
Gig Hog programming wing
HPU hybrid processing unit
Response network gateways and interfaces
ETCnomad
Electrical and Environmental

ETL, CETL and CE compliance
Mains power: 100–250 VAC, 50/60 Hz, max 80 W
Mains connector: Neutrik PowerCON® TRUE1
Breaker: 7.5 A
Acoustical rating: TBD dbA

Downloads

Data Sheet Download
