Description
The Eos fader wings may be used to provide extended playbacks for Eos Ti, Gio, Gio @5, Ion, Ion Xe, Ion Xe 20, Eos/Ion/Ion Xe RPUs, RVIs, ETCnomad (PC or Mac native) and ETCnomad Puck.

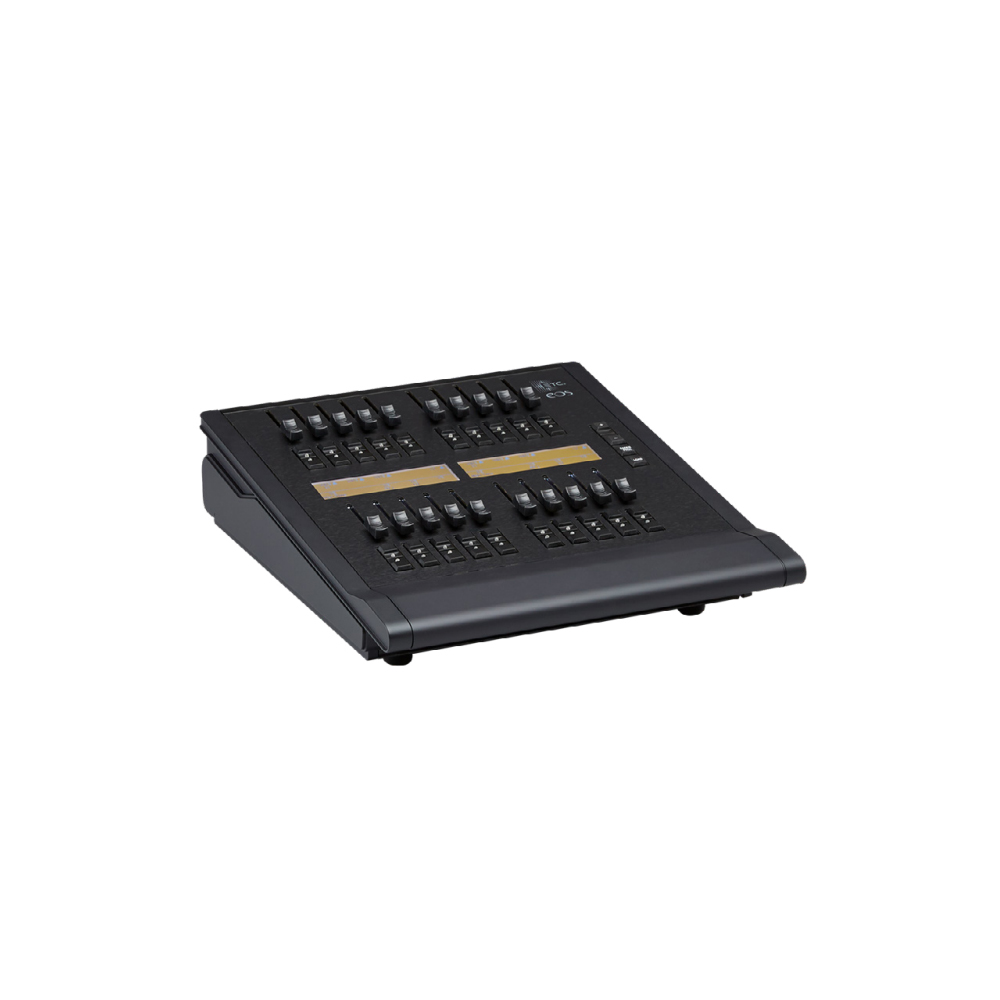

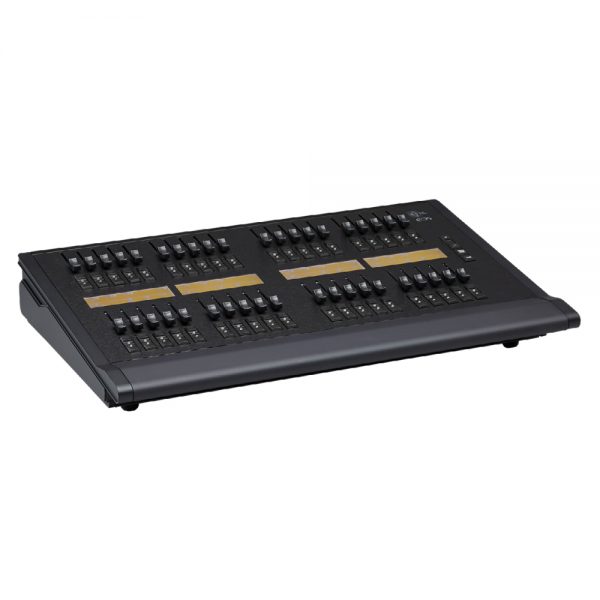

Up to three wings may be attached to any of these devices. There are two wings – a x40 and x20. The x40 has 40 45mm faders, four 4.2” high-resolution monochrome LCDs and two control buttons. The x20 includes 20 faders, two displays and two control buttons per fader. The wing provides power sensing and automatically turns on when both an active USB data connection and mains power are provided via the external 12V power supply.
Connected devices must be running Microsoft Windows 7 or higher or Mac OSX 10.11 (El Capitan) or later. These wings are NOT compatible with Windows XP.
Features
- Pageable playbacks (100 pages are supported)
- Paging/bank conventions are determined in a setup menu
- Button/fader and configuration mapping displayed via highresolution displays.
- Two powered USB ports
- VESA 100x100mm mountable
- Kensington Lock compatible locking point
