ETC – Eos Apex 20

ETC

The ultimate hands-on programming experience.

SKU: ETC4450A1001-EU Categories: , , ,

Description

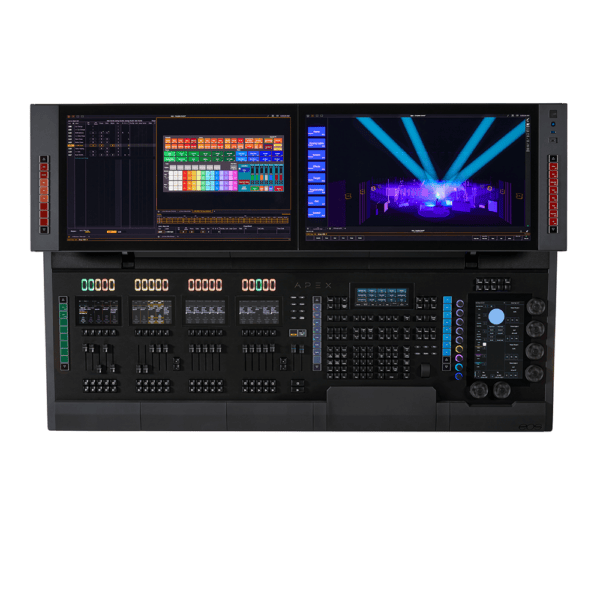

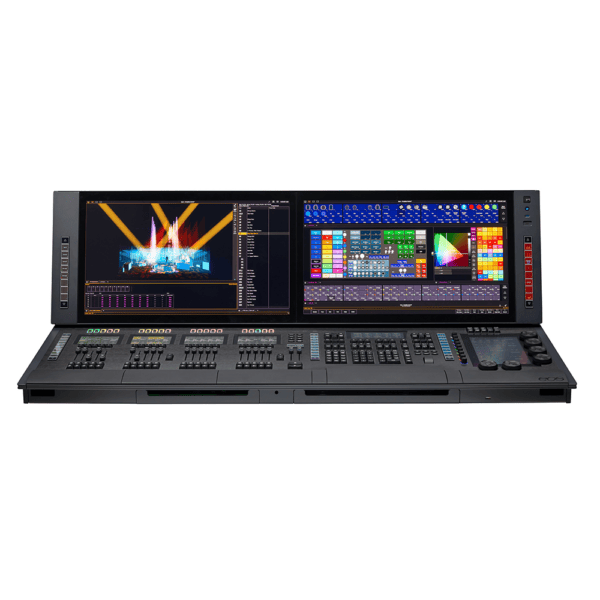

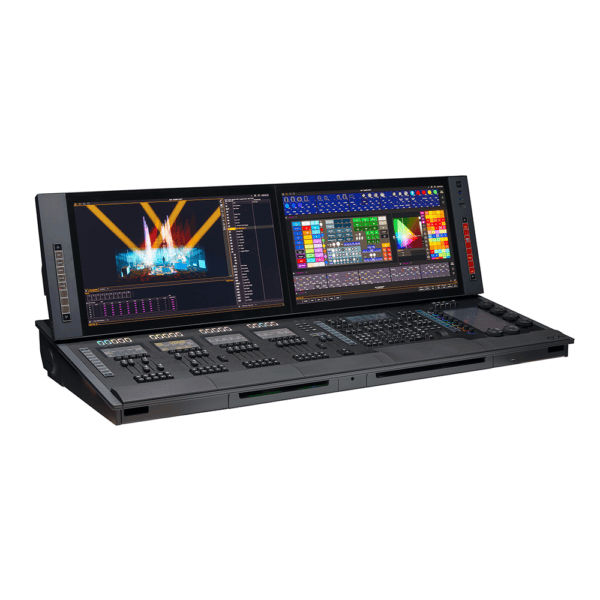

The Eos Apex 20 console is engineered for comfort and customization, with generous programming surfaces and the power to run complex lighting and media rigs. As the largest and most luxurious of ETC’s flagship lighting control line, the Eos Apex 20 is the ultimate hands-on, professional workspace – powered by the award-winning Eos control software.

Apex hardware is designed to remain state-of-the-art for years to come. Top-of-the-line features include customizable Target keys for Direct Selects, a built-in soft keypad, book lights for paperwork, drawers for accessories, dual-axis folding displays, and generous encoder tools for LEDs, moving lights, and media control. The Eos Apex 20 offers more playbacks than any other Eos Family console, providing tactile rig control for even the largest venues and productions.

Features

  • Approachable yet powerful syntax for programmers of every level
  • Industry-leading color control tools
  • Magic Sheets for custom programming and displays
  • Augment3d 3D programming and visualization environment
  • Virtual Media Server function for pixel-mapping
  • Timecode and automation integration
  • Multi-user and multi-programmer working environment

Video

Eos Apex Hardware Overview

Explore the features of ETC’s flagship Eos Family lighting control consoles.

Additional information

Weight 66.68 kg
Dimensions 49.9 × 142.2 × 64.8 cm
Hardware and Interfaces

Two 27-inch 4K multi-touch LCD touchscreens, in an articulating dual-axis display panel
Supports three external display port monitors (1920×1080 minimum, 3840×2160 maximum), with optional single-touch or multi-touch screen control and DDC/CI support
20 60 mm motorized faders, 100 10-fader pages for configurable faders, for channel, submaster and palette/preset, timing and effect rate/speed playback control
Twenty backlit scroll wheel faders with button, 100 10-fader pages for configurable faders, for channel, submaster and palette/preset, timing and effect rate/speed playback control
Four 5-inch high-resolution fader displays, with multi-touch and haptic touch feedback
Main Playback with two 60 mm motorized faders, and display load buttons
Five banks of 10-button user-definable Target Keys
Six force-feedback encoders for non-intensity parameter control
Eight backlit mini encoders for non-intensity parameter control, plus one mini encoder for navigation
Dedicated 10.1-inch high-resolution encoder display
Dedicated high-resolution intensity level wheel
Backlit expanded Eos keypad
6.3-inch keypad touchscreen, with haptic touch feedback, servicing softkeys and custom user layouts
Built-in keyboard tray, with USB A & C ports
Built-in accessory tray, with USB A & C ports and dedicated 5-volt/2-amp USB-A charging port
One front-facing 5-volt/2-amp USB-A dedicated charging port
Two independently dimmable warm-white LED booklights to illuminate adjacent surfaces
Solid-state hard drive
Dedicated graphics processing
IEC power input (100–240 VAC at 50/60 Hz), inset power switch with integrated breaker, locking regionalized power cable included
Four individually configurable Gigabit Ethernet ports, etherCON connectors, PoE++ (802.3bt compliant PSE)
Two individually configurable 10-Gigabit SFP+ ports, which accept modules for copper, single-mode fiber, or multi-mode fiber connections
One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
sACN and Art-Net network output protocols
USB 3.1 ports, for flash drives, pointing devices, keyboards (12
USB-A ports, 8 USB-C ports)
Two Littlite XLR ports
Two Kensington lock ports
I/O Garage with four bays, which accept Response backpackstyle show control gateways, or Gadget II DMX output modules
Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
Electrical and Thermal

Power consumption approximately 6 A at 120 V or 230/240 V
Ambient room temperature 0°–35°C (32°–95°F)
Ambient humidity up to 90% non-condensing
Regulatory and Compliance

CE compliant
cETLus listed
UKCA marked
FCC compliant
RoHS compliant
• WEEE
