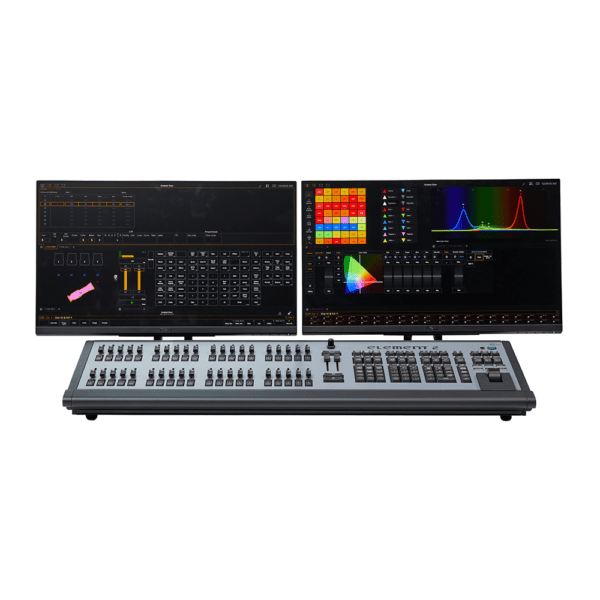

ETC – Element 2

ETC

The Element 2™ console adapts the award-winning Eos family control platform for venues with modest rigs and maximum hands-on fader control needs.

SKU: ETC4331A1011-EU Categories: , , ,
Clear

Description

Designed for venues using primarily conventional lighting, the Element 2 control console provides the powerful features of the Eos system in an economical and simplified package. In addition to keypad commands, true LTP Channel Faders provide hands-on control of intensity and can be used to set manual levels and edit recorded cues and submasters. Virtual moving light controls are available to facilitate the use of conventional accessories like moving mirror heads, color scrollers or gobo rotators, or to make controlling small numbers of moving lights simple and direct. Element 2 can be backed up by another Element 2, ETCnomad 6,144 or ETC Puck 6,144 mini-computer.

Features

  • Approachable yet powerful syntax for programmers of every level
  • Industry-leading color control tools
  • Magic Sheets for custom programming and displays
  • Augment3d 3D programming and visualization environment
  • Virtual Media Server function for pixel-mapping
  • Timecode and automation integration

Video

ETC Element 2™

Hands-on programming, accessible price point, and powerful Eos family control: Element™ gets an upgrade with new hardware, a professional keyboard layout, and more DMX ports. Because there’s no such thing as a small show.

Additional information

Weight 7.3 kg
Hardware & Interfaces

Supports two external display port monitors (1920×1080 minimum, 3840×2160 maximum), with optional single-touch or multi-touch screen control and DDC/CI support
40 45mm standard faders, 100 10-fader pages configurable as channels, submasters, palettes/presets, timing and effect rate/speed playback control
Dedicated fader paging knob, with backlit selection labels
Main Playback with two 45mm standard faders
On-Demand moving light and LED virtual encoders on connected display monitor
Dedicated high-resolution intensity level wheel
Eos keypad
Included USB keyboard
Solid-state hard drive
IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
Two individually configurable Gigabit Ethernet ports, RJ45 connectors
One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
sACN and Art-Net network output protocols
Four DMX-512 / RDM 5-pin XLR ports
Contact closure triggers via D-Sub connector
USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
One Littlite XLR port
One Kensington lock port
Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways

Electrical and Thermal

Power consumption approximately 1.2 amps at 120V or 230/240V
Ambient room temperature 0°-35° C (32°-95° F)
Ambient humidity up to 90% non-condensing

Regulatory and Compliance

CE compliant
cETLus listed
UKCA marked
FCC compliant
RoHS compliant
WEEE
