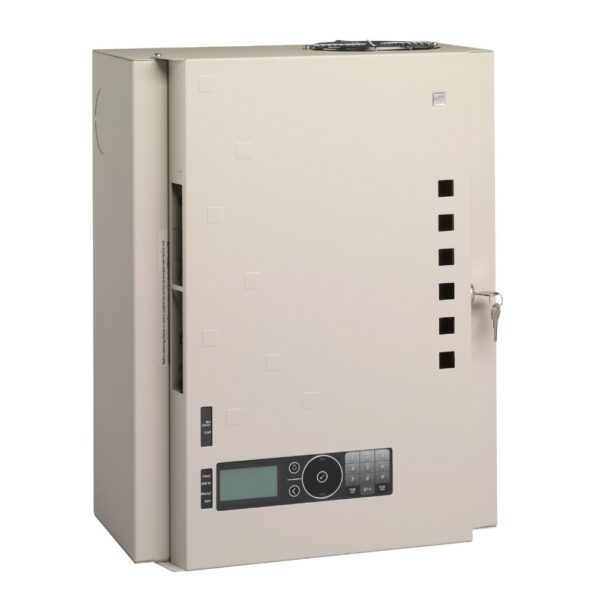

ETC – Unison DRd Power Control (with Echo)

ETC

A member of ETC’s Echo family of lighting control and power control products, the Echo Architectural Control Processor (E-ACP) brings Echo control to the Unison DRd power control family. The Echo Processor works with any Unison DRd to provide the flexibility of a modular power-control rack to any installation. With support for control stations, DMX input, and Ethernet, the Echo Processor can be easily adapted to your needs.

Categories: , , , , ,

Description

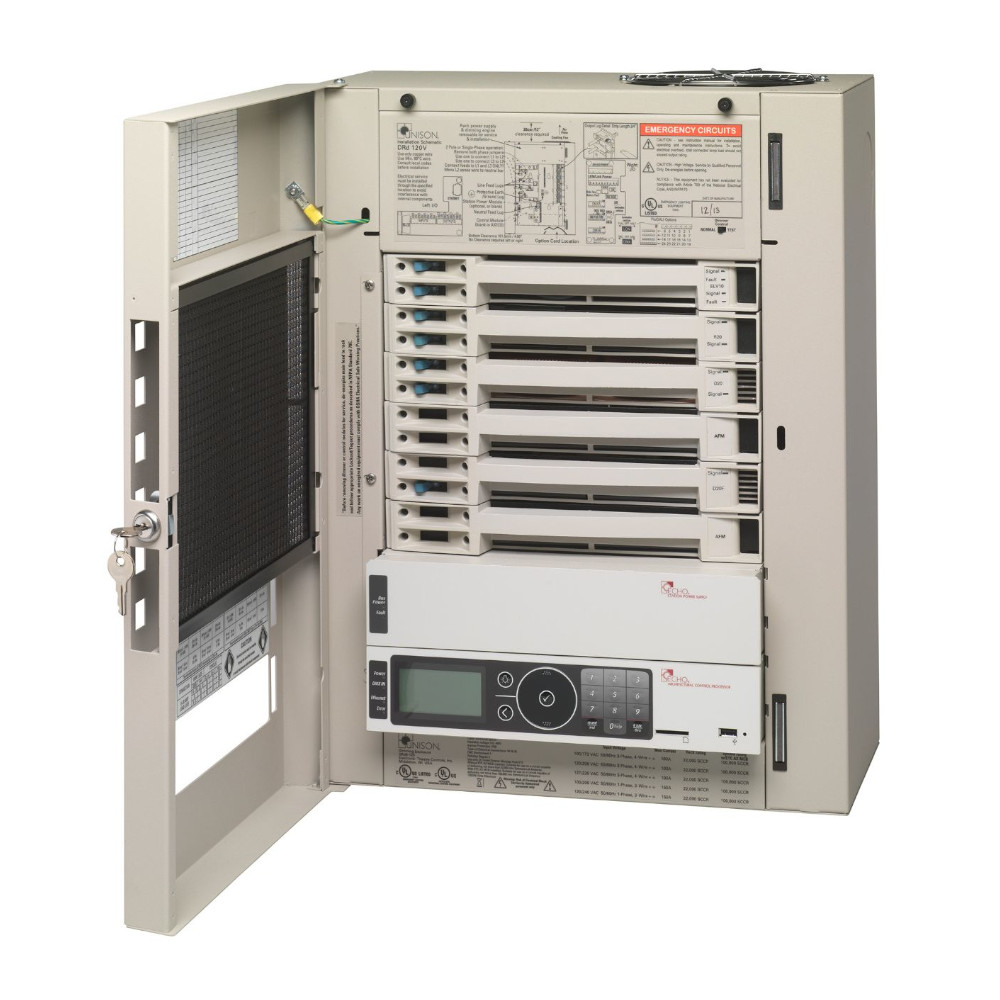

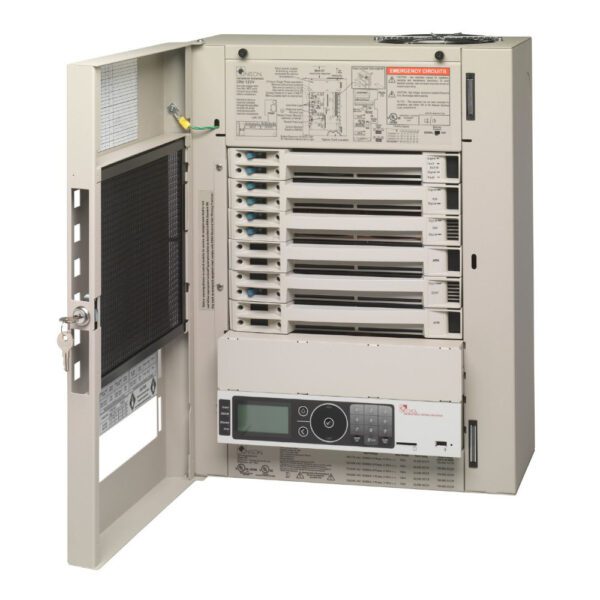

Simply smart power control. The Unison® DRd Power Control enclosure with Echo provides and routes modular power for 16 control stations and 16 power controllers or panels. The enclosure can house up to 48 circuits of dimming and on/off relay control. Broadcast DALI and 0-10V outputs, combined with line-voltage dimming and switching capabilities make DRd Power Control with Echo an incredibly flexible and powerful tool.

Powerful peace of mind. We ensure that your system stays reliable, even when the power goes out. DRd Power Control’s built-in power supply protects your system, providing you with uninterrupted service — even in emergency situations. In the event of a power outage, optional RideThru technology will keep processors energized for up to ten seconds, while power is transferred to an emergency source. For additional security, the optional BatteryPack module keeps your system functional for up to 90 minutes following a power disruption, so your system is ready to respond as soon as power returns.

It’s easy being green. The Unison® Echo™ system was specifically developed with your energy concerns in mind. Keeping green has never been easier – Echo’s complete line of products gives you maximum energy savings while adhering to the growing number of industry energy codes, such as ASHRAE 90.1, CA Title 20/24 and IECC, all without breaking the bank.

Features

  • Designed for use with any EchoConnect-enabled station, sensor, or power controller
  • Snapshot: connect a DMX input, or set levels locally and then save to a Preset with the touch of a button
  • Plug and Play: ready to go out of the box, no software or external programming required
  • Secure-It User Access: multiple levels of secure user access at the interface
  • EchoConnect: Two-wire, topology-free system provides the freedom to put stations where you need them
  • NetConnect: low-cost, easy-to-install Ethernet for data input from Net3 and sACN products
  • USBConnect: support for USB flash drives for configuration upload and download
  • QuickLoad: media support for upload and backup of processor and DRd rack configuration data
  • Support for up to 64 presets and 16 spaces

Applications

  • Houses of worship
  • Education
  • Hospitality
  • Healthcare facilities
  • Office buildings
  • Conference rooms
  • Meeting rooms
  • Retail

Additional information

Mechanical

Designed for use in Unison DRd enclosures
Microprocessor-based, solid-state technology to provide multi-scene lighting
Fully-contained plug-in assembly with no discrete wire connections
Front-panel user interface with backlit LCD
Support for Secure Digital (SD) and Universal Serial Bus (USB) media on the front panel
Functional

Capacity
– Supports 512 zones of control
– Supports one physical DMX port for data input and one DMX thru port for DMX data through to other devices
– Supports sACN data input for level control, up to four universes and six simultaneous sources (requires option card)
Configuration Data
– Stored in non-volatile flash memory
– Ability to load to and from removable media (SD and USB)
Local user interface
– Access to Dimming Setup and Status
– Control for channels, presets, and sequence
Stations and Sensors
– Connects to an Echo Processor via topology-free EchoConnect control network
– Supports up to 16 Echo control products, including stations and sensors
– Supports up to 15 additional Echo output products, including distributed relays and dimmers
Operation
– Support for 16-bit DMX attributes
– Supports ETC Dimmer Doubling
– Activate/Deactivate presets
– Preset fade up, fade down, and hold times up to 60 minutes and 59 seconds
– Synchronized control of up to 16 Echo output products (distributed power controllers/panel products)
Electrical

No discrete wiring connections required
One ESTA DMX512A input and thru port
Supports ANSI E1.31 (streaming ACN)
EchoConnect communication bus
– Topology-free station wiring, utilizing Belden 8471 or equivalent, and one 2.5 mm2
(14 AWG) ESD drain wire
System configuration and programming information stored in non-volatile flash memory
Thermal

Ambient room temperature: 0°–40°C (32°–104°F)
Ambient humidity: 10%–90%, non-condensing
