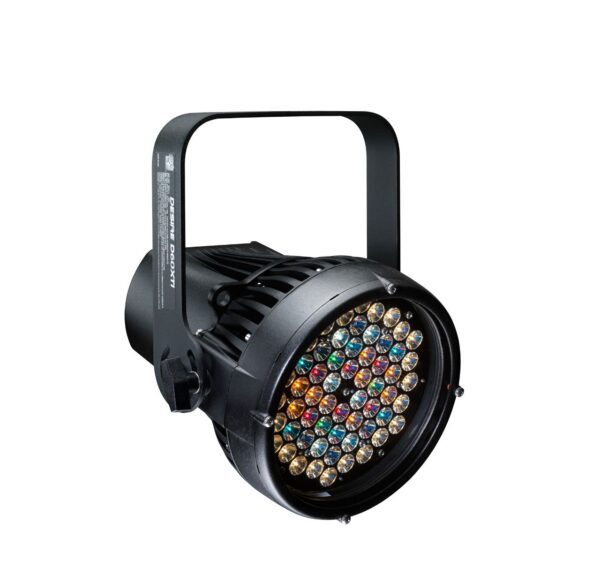

D60XTI_BlackD60XTI_Black

ETC – Desire D60XTI

ETC

The x7 color System™ and the throw of a D60 for permanent installation.

SKU: N/A Categories: , , ,
Clear

Description

ETC’s Desire Series D60XTI brings the amazing control of the x7 Color System and the long throw of a D60 to your facility for permanent installation. With its IP66 rating, this luminaire is ready for mounting inside or outside–wherever you need it. The x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available. The D60XTI offers a rugged die-cast enclosure, noiseless fanfree operation and multiple lens options that can be changed on site.

D60XTI LED ARRAY OPTIONS

D60XTI luminaires are based on the x7 color system that uses seven different LED colours to achieve true, usable broad spectrum colour.

The D60XTI luminaire is available with any one of the following x7 colour arrays to best suit the intended application:

  • D60XTI Vivid™ – the x7 color system array balanced for best all-around use as a colour-changing wash luminaire
  • D60XTI Lustr+™ – optimised with six colours plus highintensity white LEDs to create an ideal front-light wash fixture.
  • Full-range colour, with an emphasis on lighter colours and white
  • D60XTI Studio HD™ – Studio HD combines warm white and cool white LEDs for variable colour temperature mixing.
  • Added to this are five carefully chosen LED colours from the Selador x7 color system to fill in the white LED spectral gaps.
  • D60XTI Studio HD provides the richest variable white light possible in an LED luminaire

Additional information

Source

LED details: 60 Lumileds LUXEON® Rebel LED
Max lumens:
Vivid: 3,760
Lustr+: 4,317
Studio HD: 4,532
Lumens per watt:
Vivid: 31.9
Lustr+: 34.9
Studio HD: 33.4
L70 rating (hours to 70% output): 50,000 hours
Color

Colors used:
Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
Vivid: Red, Red-Orange, Amber, Green, Cyan, Blue, Indigo
Studio HD: Red, Amber, Green/Cyan, Blue, Warm White, Cool White
Color temperature range: 2,700–6,500K
Calibrated array:
Vivid: Yes
Lustr+: Yes
Studio HD: Yes
Red shift: Yes (not available on static white)
Optical

Beam angle range: 8°–17°
Aperture size: 9 in
Pattern projection: No
Pattern size: N/A
Camera flicker control/Hz range: Yes: 900–25,000 Hz
Notes: Secondary lenses available for multiple beam-spread options
Control

Input method: DMX512 via termination board
Protocols: DMX512/RDM
Modes (footprint): See page 6 of data sheet
RDM configuration: Yes
UI type: None (configure via RDM)
Local control: No
Onboard presets: Yes
Onboard sequences: No
Onboard effects: No
Onboard sequences: Yes
Onboard effects: No
Fixture-to-fixture control: Yes
Notes: 15-bit virtual dimming engine
Electrical

Voltage range: 100 VAC–240 VAC 50/60 Hz
Input method:
Waterproof, 39 in power lead
Requires power from non-dim source
Inrush:
46 A at 120 V (First half-cycle)
77 A at 240 V (First half-cycle)
Fixtures per circuit* 10 (15 A may be fed on same circuit)
Wattage typical: 124
Current draw: 1 A
Thermal

Ambient operating temp: -20°–40° C (-4°–104° F)
Fan (controllable): No
Droop compensation: Yes
dB range: N/A
BTUs/hour: 423.088
Physical

Materials: Die-cast, all metal housing
Color options: Black, white, silver, or custom color
IP rating: IP66 for exterior wet-location
Weight: 10.43 kg (23 lb)
Included accessories: Hanging yoke
Warranty

Fixture: 5 years
LED array: 10 years
Regulatory and Compliance

Approved regulatory standards:
cETLus Listed
Conforms to UL1598
Certified to CSA C22.2 No. 250.0
CE Compliant
