ETC – Desire D60

ETC

Brightest variant in the Desire™ LED luminaire family.

SKU: N/A Categories: , , ,
Clear

Description

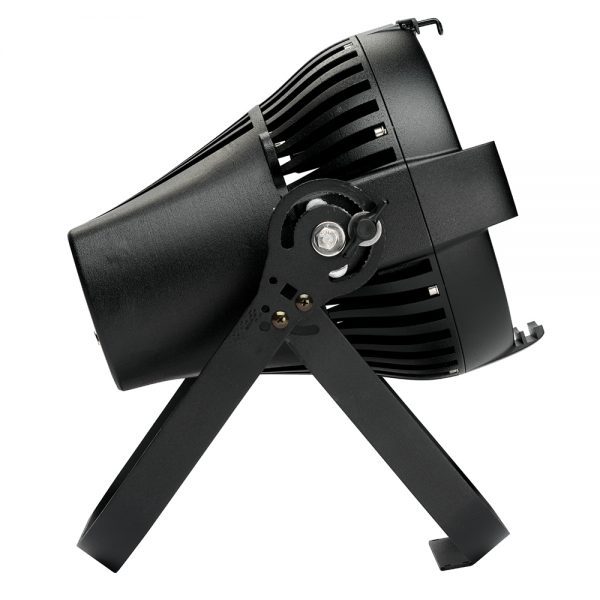

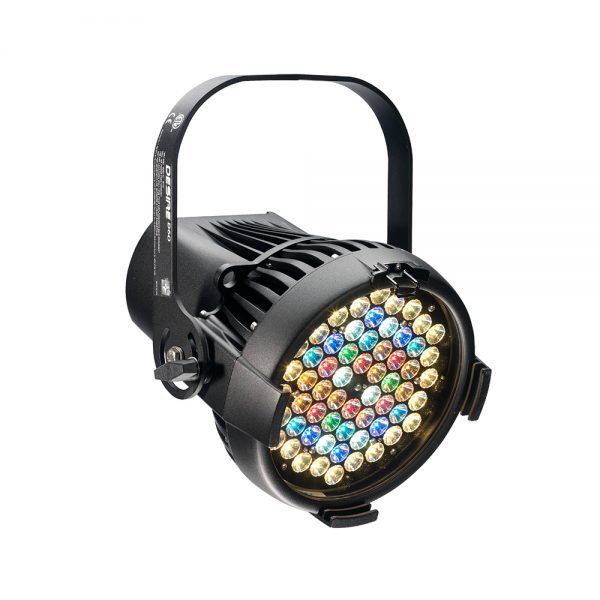

The D60 fixture is the brightest variant in the Desire™ LED luminaire family. Sixty energy-saving LED emitters are combined onto each D60 fixture to provide powerful, high-intensity output. This round, PAR-shaped washlight is ideal for the stage, studio and anywhere brightness and color flexibility are required.

Designed with the user experience in mind, the D60 luminaire features a user interface with Quick Setup options to simplify work. You can choose from Stage, High-Impact, XT (Exterior)/Architectural, General and Studio settings to customize the luminaire to your specific task. And you can further tailor the fixture to your needs by choosing profile and performance settings via the user interface. The D60 luminaire can be controlled from a DMX-enabled controller – like an ETC lighting control console – or run on its own by selecting the Stand Alone Mode on the unit.

Additional information

Weight 8.7 kg
Source

LED details: 60 Lumileds LUXEON® Rebel LED
Max lumens:
Vivid: 3,760
Lustr+: 4,317
Lumens per watt:
Vivid: 28.8
Lustr+: 33.33
L70 rating (hours to 70% output): 50,000 hours
Color

Colors used:
Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
Vivid: Red, Red-Orange, Amber, Green, Cyan, Blue, Indigo
Color temperature range: 2700–6500 K
Calibrated array: Yes
Red shift: Yes
Optical

Beam angle range: 8°–71°
Aperture size: 9 in
Pattern projection: No
Pattern size: N/A
Camera flicker control/Hz range: Yes: 900–25,000 Hz
Notes Secondary lenses available for multiple beam-spread options
Control

Input method: DMX512 via 5-pin XLR
Protocols: DMX512/RDM
Modes (footprint): See page 6 Data Sheet
RDM configuration: Yes
UI type: LCD
Local control: Yes
Onboard presets: Yes
Onboard sequences: Yes
Onboard effects: No
Fixture-to-fixture control: Yes
Notes: 15-bit virtual dimming engine
Electrical

Voltage range: 100–240 VAC 50/60 Hz
Input method: Neutrik powerCON® in and thru Requires power from non-dimmable source
Inrush:
15 A at 120 V (First half-cycle)
40 A at 240 V (First half-cycle)
Fixtures per circuit:
9 (15 A via power thru)
10 (R20 via module or similar)
Wattage typical: 161 W
Current draw:
1.21 A at 120 V
0.57 A at 240 V
Thermal

Ambient operating temp: -20°–40°C (-4°–104°F)
Fan (controllable): Yes (yes)
Droop compensation: Yes
dB range: 25 dBa average at 1 m (more details on page 8 of data sheet)
BTUs/hour: 549
Physical

Materials: Die-cast, all metal housing
Color options: Black, white, silver, or custom color
Mounting options: Yoke
IP rating: IP20
Weight: 8.7 kg (19.1 lb)
Included accessories: Very Narrow Round diffuser, power cable (see page 7 of Data Sheet), optional yoke/floor stand
Warranty

Fixture: 5 years
LED array: 10 years

Downloads

Data Sheet Download
User Guide Download
