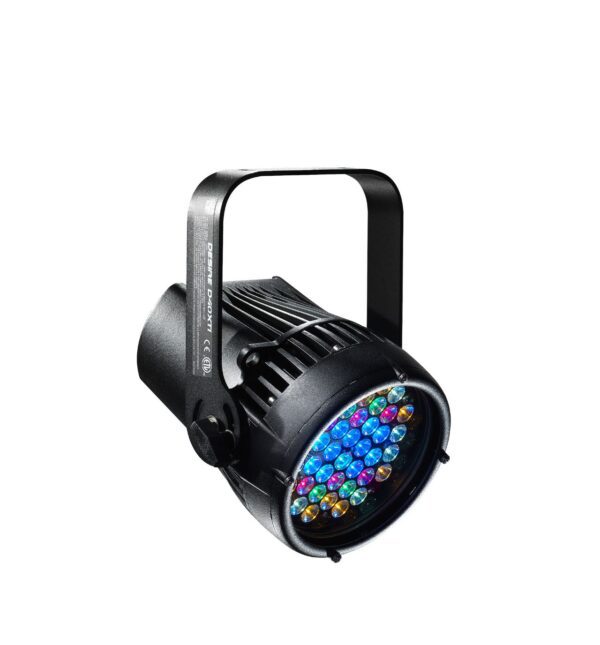

D40XTI_Lustr+_FrontD40XTI_Lustr+_Front

ETC – Desire D40XTI

ETC

x7 color for permanent installations – indoors or out

SKU: N/A Categories: , , ,
Clear

Description

The ETC Selador Desire D40XTI™ LED luminaire gives you the most flexible color mixing for your building. Featuring the x7 Color System™ – which combines up to seven colors at the source for the broadest color range available from an LED – the D40XTI is a rugged, durable fixture ETL 1598-rated for permanent indoor use and IP66-rated for long-term outdoor use.

Smooth dimming, all the way down to zero. The D40XTI features Selador Desire®-quality dimming capabilities, transitioning its intensity like a conventional fixture, without noticeable steps.

The Studio Daylight array produces cool white light that looks just like natural sunlight. This array contains 5600K LEDs for high-intensity, non-variable cool-white output

The Studio Tungsten array creates warm white light that mimics the performance of tungsten fixtures. This array contains 3000K LEDs for high-intensity, non-variable warm-white output. They look great in person and on camera.

The Studio HD array combines warm white and cool white LEDs for variable-color-temperature mixing. Added to the mix are carefully chosen colors from the Selador x7 Color System to allow for tint adjustment (+/- green) while also filling in the white LED spectral gaps. This provides a high quality and tunable white-light source.

Additional information

Source

LED details: 40 Lumileds LUXEON® Rebel LED
Max lumens:
Vivid: 2,252
Lustr+: 2,593
Studio HD: 3,194
Studio Daylight: 4,332
Studio Tungsten: 5,023
Lumens per watt:
Vivid: 23.6
Lustr: 25.2
Studio HD: 33.2
Studio Daylight: 43.1
Studio Tungsten: 52.8
L70 rating (hours to 70% output):
50,000 hours

Color

Colors used:
Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
Vivid: Red, Red-Orange, Amber, Green, Cyan, Blue, Indigo
Studio HD: Red, Amber, Green/Cyan, Blue, Warm White, Cool White
Studio Daylight: White
Studio Tungsten: White
Color temperature range: 2,700–6,500 K
Calibrated array:
Vivid: Yes
Lustr: Yes
Studio HD: Yes
Studio Daylight: No
Studio Tungsten: No
Red shift: Yes (not available on static-white)

Optical

Beam angle range: 8°–17°
Gate size: N/A
Aperture size: 7.5 in
Pattern projection: No
Pattern size: N/A
Camera flicker control/Hz range: Yes: 900–25,000 Hz
Notes: Secondary lenses available for multiple beam-spread options

Control

Input method: DMX512 via termination board
Protocols: DMX512/RDM
Modes (footprint): See page 8
RDM configuration: Yes
UI type: None (configure via RDM)
Local control: No
Onboard presets: Yes
Onboard sequences: Yes
Onboard effects: No
Fixture-to-fixture control: No
Notes: 15-bit virtual dimming engine

Electrical

Voltage range: 100–240 VAC 50/60 Hz
Input method:
Waterproof, 72 in power lead
Requires power from non-dimmable source
Inrush:
15 A at 120 V (First half-cycle)
40 A at 240 V (First half-cycle)
Fixtures per circuit*:
10 (15 A may be fed on same circuit)
*All measurements are for 120 V, 60 Hz. Results may vary in different regions.
Wattage typical: 110
Current draw: 1/0.5 A

Thermal

Ambient operating temp: -20°–40° C (-4°–104° F)
Fan (controllable): No
Droop compensation: Yes
dB range: N/A
BTUs/hour: 375.32

Physical

Materials: Die-cast, all metal housing
Color options: Black, white, silver, or custom color
Mounting options: Single-pole mount, wall or square pole mount, twin fixture pole mount
IP rating: IP66 for exterior, wet location use
Weight: 6.8 kg (15 lb)
Included accessories: Hanging yoke, termination board, accessory ring for installation of secondary lenses
Notes: Cable diameter: Power 0.36 in / Data 0.34 in
Effective projected area (EPA): 0.74

Warranty

Fixture: 5 years
LED array: 10 years

Regulatory and Compliance

Approved regulatory standards:
cETLus Listed
Conforms to UL1598
Certified to CSA C22.2 No. 250.0
CE Compliant

Downloads

Data Sheet Download
User Guide Download
