ETC – Desire D40

ETC

The Desire™ Series of luminaires produces such brilliant, high-quality light. And with technology not found in other LED fixtures, you won’t believe how feature-rich and user-friendly they are.

SKU: N/A Categories: , , ,
Clear

Description

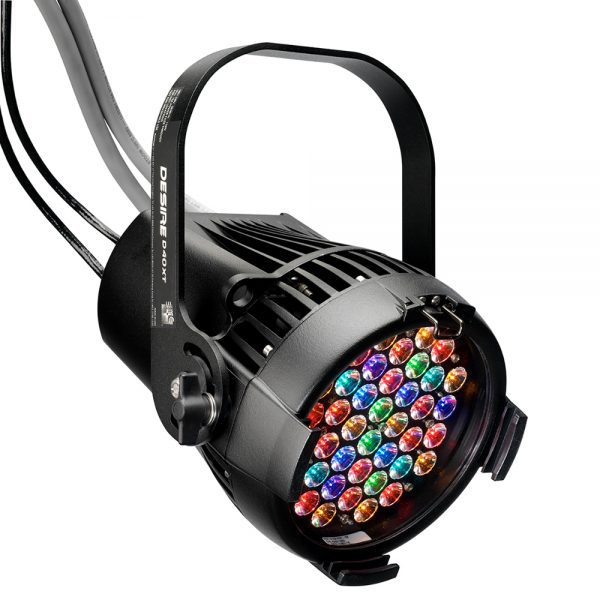

The ETC Desire D40 fixture puts the seven-color x7 system into a round theatrical washlight. Highly efficient primary lenses and careful color choices make the D40 fixture ideal for stage, studio and anywhere strong color and high-intensity are requirements. The x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available. D40’s rugged die-cast enclosure, noiseless fan- free operation, multiple lens options and advanced user interface make it ideal for multiple applications.

D40 LED Array Options

D40 fixtures are based on the x7 Color System, which uses seven different LED colors to achieve true, usable broad-spectrum color. The D40 luminaire is available with any one of the following x7 color arrays (not interchangeable) to best suit the intended application:

  • D40 Vivid – the x7 Color System array balanced for best all-around use as a high-intensity color-changing wash fixture.
  • D40 Lustr+ – optimized array with six colors plus high-intensity white LEDs to create an ideal frontlight wash fixture for full-range color, with an emphasis on lighter colors and white. It naturally lights skin tones.

Additional information

Weight 6.4 kg
Source

LED details: 40 Lumileds LUXEON® Rebel LED
Max lumens:
Lustr+: 2,593
Vivid: 2,252
Lumens per watt:
Lustr+: 25.2
Vivid: 21.9
L70 rating (hours to 70% output):
50,000 hours
Color

Colors used:
Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
Vivid: Red, Red-Orange, Amber, Green, Cyan, Blue, Indigo
Color temperature range: 2,700–6,500 K
Calibrated array: Yes
Red shift: Yes
Optical

Beam angle range: 10°–71°*
Aperture size: 7.5 in
Pattern projection: No
Pattern size: N/A
Camera flicker control/Hz range: Yes: 900–25,000 Hz
Notes: *Secondary lenses available for multiple beam-spread options
Control

Input method: DMX512 via 5-pin XLR
Protocols: DMX-512/RDM
Modes (footprint): See page 5 of data sheet
RDM configuration: Yes

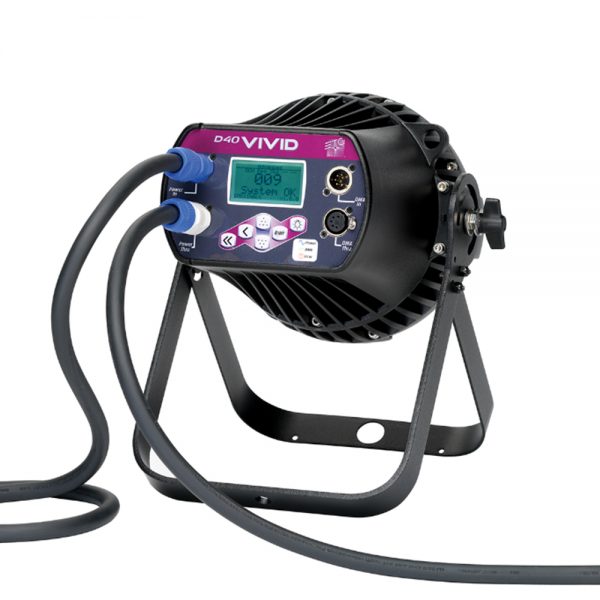

UI type: LCD
Local control: Yes
Onboard presets: Yes
Onboard sequences: Yes
Onboard effects: No
Fixture-to-fixture control: Yes
Notes: 15-bit virtual dimming engine
Electrical

Voltage range: 100–240 VAC 50/60 Hz
Input method: Neutrik powerCON in and thru
Inrush:
15 A at 120 V (First half-cycle)
40 A at 240 V (First half-cycle)
Fixtures per circuit*:
9 (15 A power thru connector)
10 (R20 module or similar)
*All measurements are for 120 V, 60 Hz. Results may vary in different regions.
Wattage typical: 103
Current draw:
0.82 A at 120 V
0.40 A at 240 V
Thermal

Ambient operating temp: -20°–40°C (-4°–104°F)
Fan (controllable): No (N/A)
Droop compensation: Yes
dB range: N/A
BTUs/hour: 351
Physical

Materials: Die-cast, all metal housing
Color options: Black, white, silver, or custom color
Mounting options: Yoke
IP rating: IP20
Weight: 6.4 kg (14 lb)
Included accessories: Hanging yoke, 5 ft power cord, media holder
Notes: Easy access slots for secondary lenses and standard 7.5 inch PAR acessories
Warranty

Fixture: 5 years
LED array: 10 years
Regulatory and Compliance

Approved regulatory standards:
UL 1573
CSA C22.2 No. 166
CE Compliant
EAC Compliant
