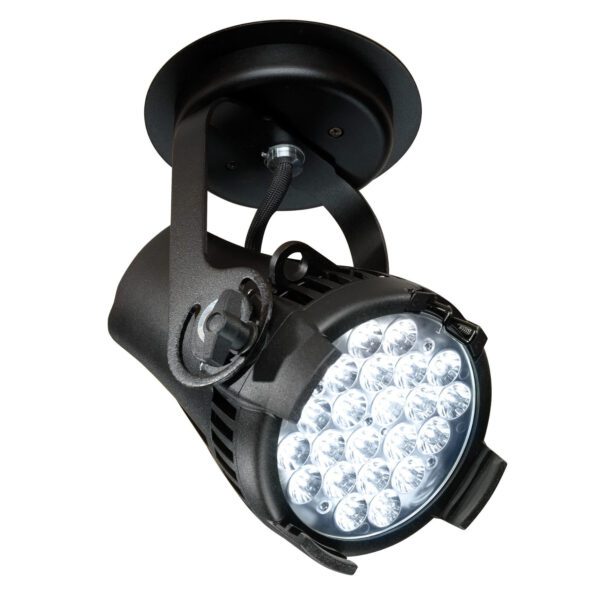

ETC Desire D22ETC Desire D22

ETC – Desire D22

ETC

Don’t let the size of the Selador Desire D22™ LED luminaire fool you. It may be small, but it packs a punch. With 22 Luxeon® Rebel LED emitters, the budget-friendly D22 offers efficient ETC Desire®-quality lighting in a small eight-inch footprint weighing less than seven pounds.

SKU: N/A Categories: , , ,
Clear

Description

Tapping into the power of the x7 Color System™, which combines up to seven LED colors onto one unit, the D22 comes in four arrays: Studio Daylight, Studio Tungsten, Studio HD and Lustr®+. Using cool-white LED emitters, the Daylight version emulates natural sunlight, with a color temperature of 5,600K. At 3,000K, the Tungsten model can replace less-efficient conventional fixtures for warm-white light. Studio HD creates high-definition white light with variable color temperatures. Lustr+ is the most flexible array, providing nearly limitless color possibilities, from adjustable whites and subtle tints to vibrant, bold colors sure to make an impact in any installation.

The Desire D22 is also designed to work perfectly with DataTrack, ETC’s DMX-ready track lighting solution. With the D22 and DataTrack, architectural installs can take advantage of the same high-quality dimming, superior color rendering, and even beam field ETC is known for.

The Studio Daylight array produces cool white light that looks just like natural sunlight. This array contains 5600K LEDs for high-intensity, non-variable cool-white output

The Studio Tungsten array creates warm white light that mimics the performance of tungsten fixtures. This array contains 3000K LEDs for high-intensity, non-variable warm-white output. They look great in person and on camera.

The Studio HD array combines warm white and cool white LEDs for variable-color-temperature mixing. Added to the mix are carefully chosen colors from the Selador x7 Color System to allow for tint adjustment (+/- green) while also filling in the white LED spectral gaps. This provides a high quality and tunable white-light source.

Additional information

Source

LED details: 22 Lumileds LUXEON® Rebel LED
Max lumens:
Lustr+: 1,499
Studio Daylight: 2,533
Studio Tungsten: 2,096
Studio HD: 1,247
Lumens per watt:
Lustr+: 31
Studio Daylight: 50
Studio Tungsten: 41
Studio HD: 31
L70 rating (hours to 70% output): 50,000 hours

Colour

Colors used:
Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
Vivid: Red, Red-Orange, Amber, Green, Cyan, Blue, Indigo
Studio HD: Red, Amber, Green/Cyan, Blue, Warm White, Cool White
Studio Daylight: White
Studio Tungsten: White
Color temperature range: 2,700–6,500 K
Calibrated array:
Lustr+: Yes
Studio Daylight: No
Studio Tungsten: No
Studio HD: Yes
Red shift: Yes

Optical

Beam angle: 8°–71°
Aperture size: 6 in
Pattern projection: No
Camera flicker control/Hz range: Yes: 900–25,000 Hz
Notes: Secondary lenses available for multiple beam-spread options

Control

Input method: DMX512 via 5-pin XLR (portable only) Permanent power input cable
Protocols: DMX-512/RDM
Modes (footprint): See page 5 on data sheet
RDM configuration: Yes
UI type: LCD
Local control: Yes
Onboard presets: Yes
Onboard sequences: Yes
Onboard effects: No
Fixture-to-fixture control: Yes
Notes: 15-bit virtual dimming engine

Electrical

Voltage range: 100–240 VAC 50/60 Hz
Input method:
Requires power from a non-dimmable source
Portable: Edison, Schuko or UK13A connector
Inrush (over first half-cycle):
17 A at 120 V
25 A at 240 V
Fixtures per circuit*: 20 (R20 module or similar)
*All measurements are for 120 V, 60 Hz. Results may vary in different regions.
Wattage typical: 56.5
Current draw:
0.00 A at 110 V
0.48 A at 120 V
0.00 A at 230 V
0.288 A at 240 V

Thermal

Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable): No
Droop compensation: Yes
dB range: N/A
BTUs/hour: 192.778

Physical

Materials: Die-cast, all metal housing
Color options: Black, white, silver, or custom color
Mounting options: Portable, install canopy, or track-yoke
IP rating:
IP20 for portable and canopy versions
IP40 for track version
Weight: 3.13 kg (6.9 lb)
Included accessories: Hanging yoke

Warranty

Fixture: 5 years
LED array: 10 years

Regulatory and Compliance

Approved regulatory standards:
UL 1573
CSA C22.2 No. 166
CE Compliant
EAC Compliant
