ETC – Data Flash 5000

ETC

Dynamic, high-power strobes are at your fingertips with the High End Systems Dataflash 5000. ETC has leveled up the iconic Dataflash luminaire with 52,000+ lumens of intense brightness.

Feautres

  • High-Impact 3200-7500 K strobe LED

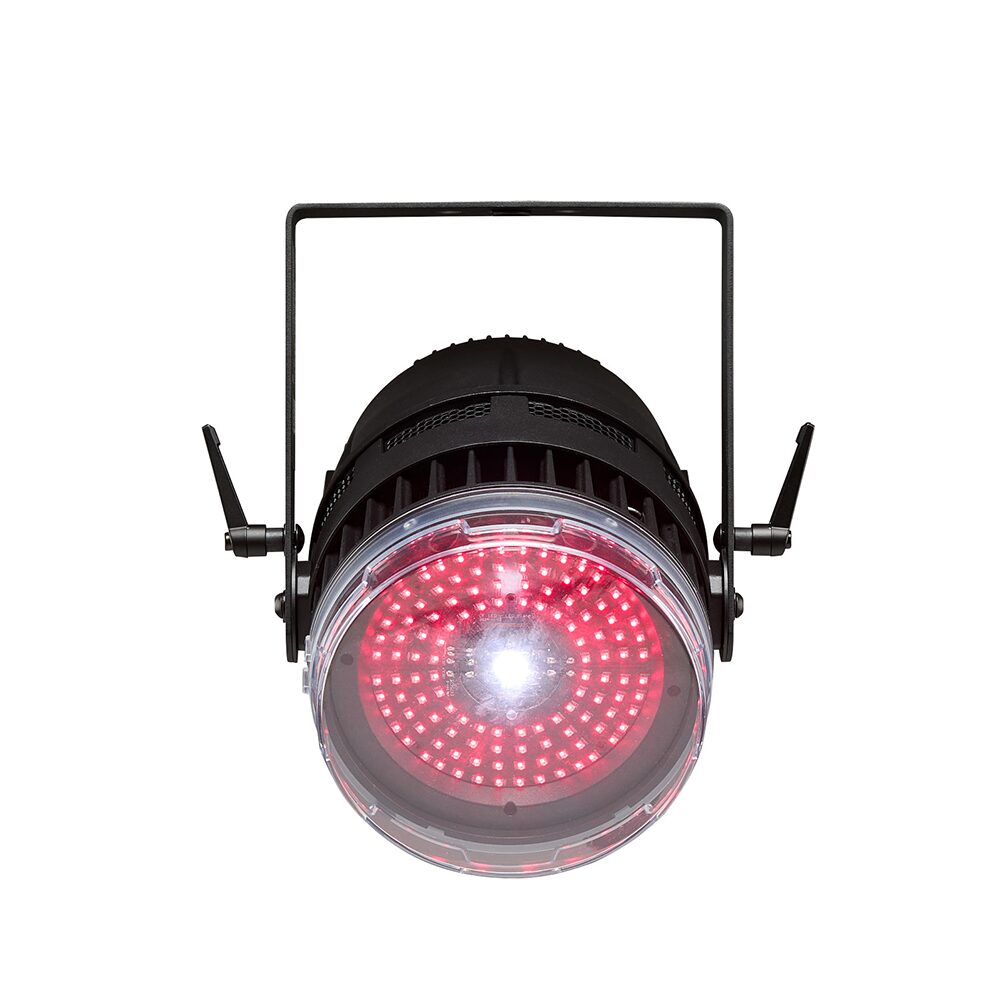

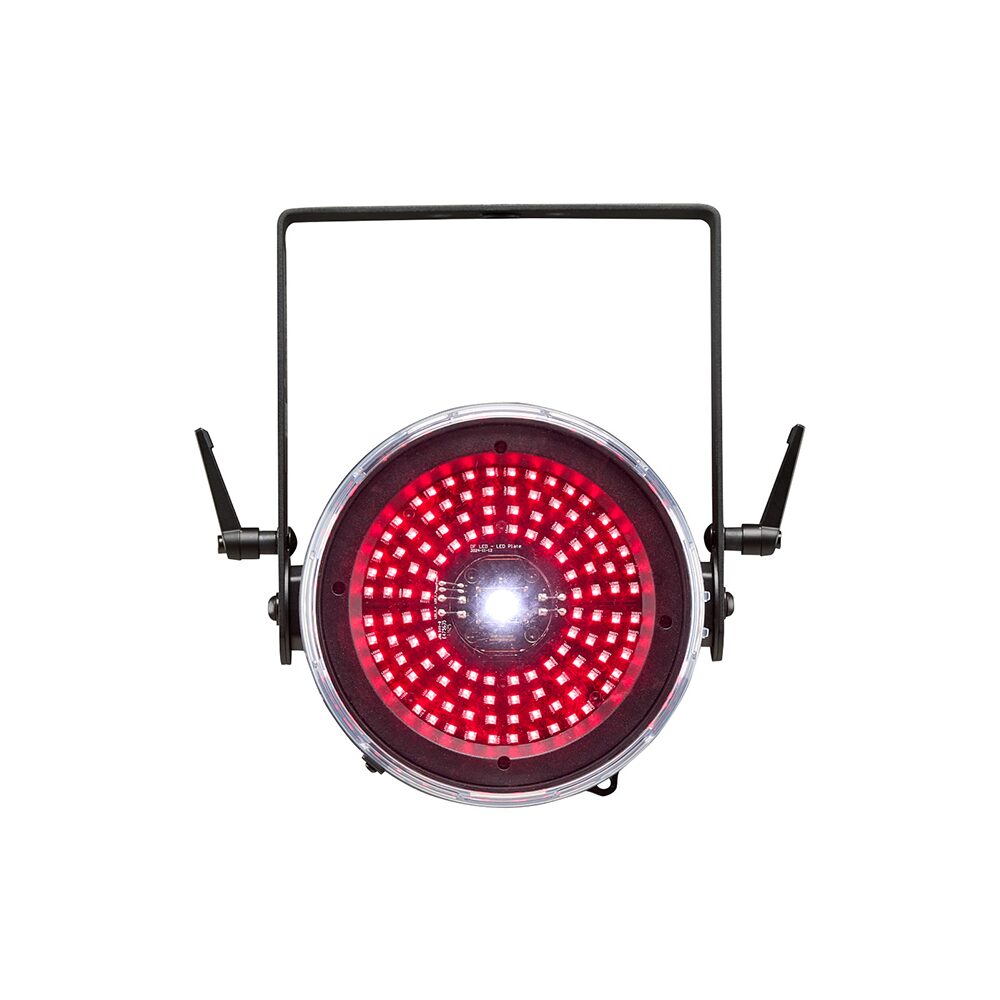

  • 120 RGB LEDs controllable in eight macro-and pixelcontrolled segments
  • 1000 W total LED power
  • Fixture output exceeding 50,000 lumens
  • Weatherproof (IP65)

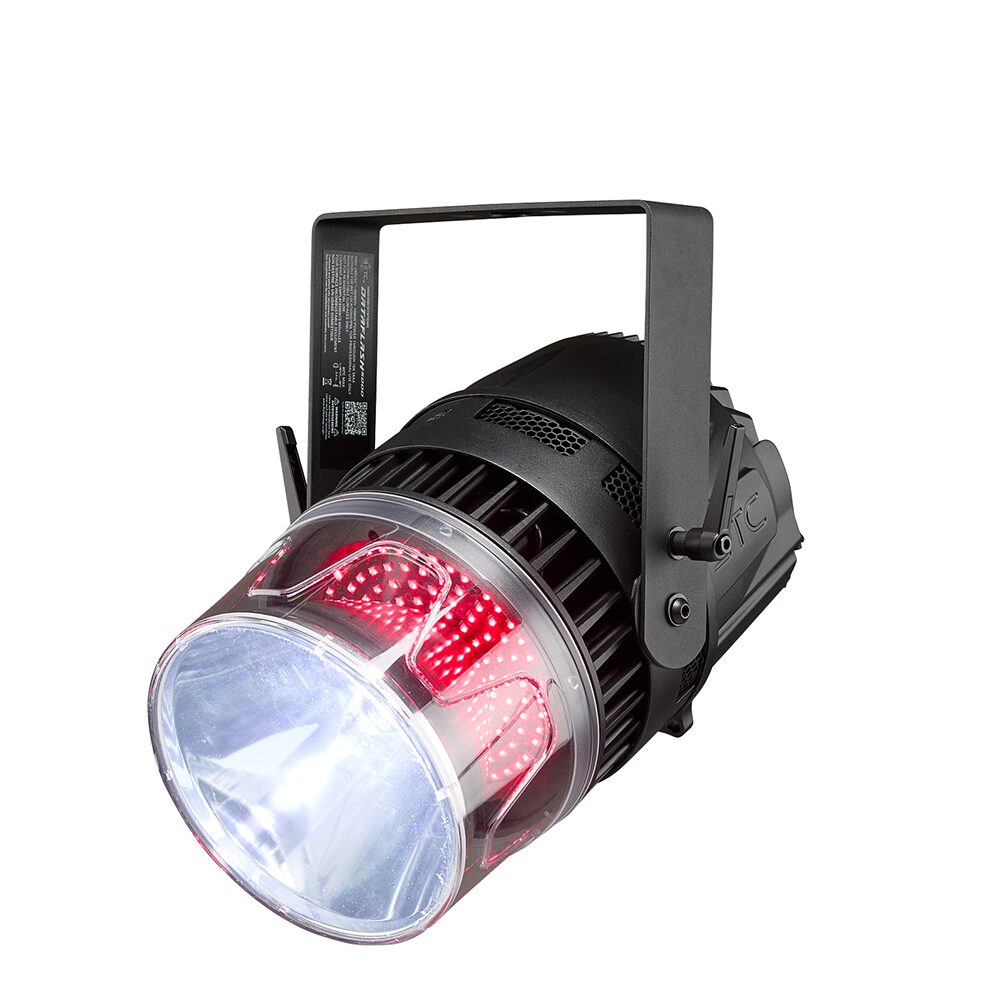

  • Controlled high-impact strobes at 60 degrees with the distinctive Reflector Dome (included)
  • Unleash blazing strobe and eye candy power with alternative “EC” Dome (included)
  • Patented HazeFree™ coatings keep domes clean and bright

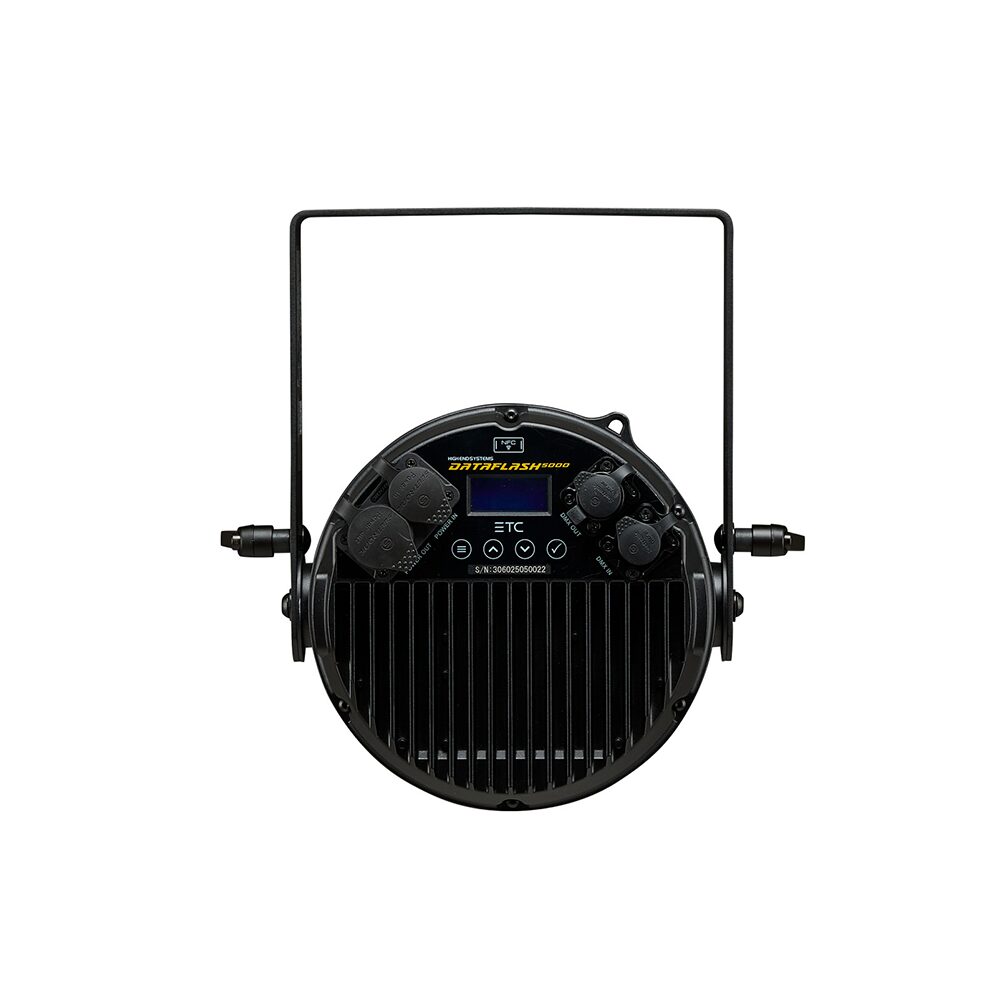

  • Back-lit UI with four-button navigation
SKU: ETCDF-5000 Categories: , , ,

Description

Surprisingly compact and impressively bright, the Dataflash 5000 brings a dynamic strobe and blinder solution to any stage. Designers can make the look their own with the ability to go from a warm 3200 K strobe to a cool 7500 K strobe, plus eight segment RGB Pixel control all backed by more than 50,000 lumens of powerful light. The included Reflector Dome and EC Dome make the design even
more customizable, whether designers want high-impact strobes or eye-catching effects. With an IP65 rating, Dataflash 5000 shines brightly at indoor and outdoor gigs

Video

ETC Dataflash 5000

OHigh End Systems Dataflash 5000 breathes new life into a long-time favorite. Exceptionally bright, Dataflash 5000 is capable of 52,000+ lumens for high-energy strobing. The RGB LED engine delivers bold, vivid colors, while the 3200-7500 K white light center brings the intensity.

Applications

  • Live entertainment
  • Concerts
  • Theatres
  • Corporate events
  • TV studios

Additional information

Source

LED Engine (Center): Dual White LED COB
LED Engine (Eye Candy): 120 x Custom RGB LEDs
Max Integrating Sphere Lumens: 52,000
LPW: 52
LED Life: 50,000 hours
Color

Color Mixing: RGB color mixing in eight (8) segments across fixture face
Color Temperature: Variable from 3200 K to 7500 K via CT
channel
Optical

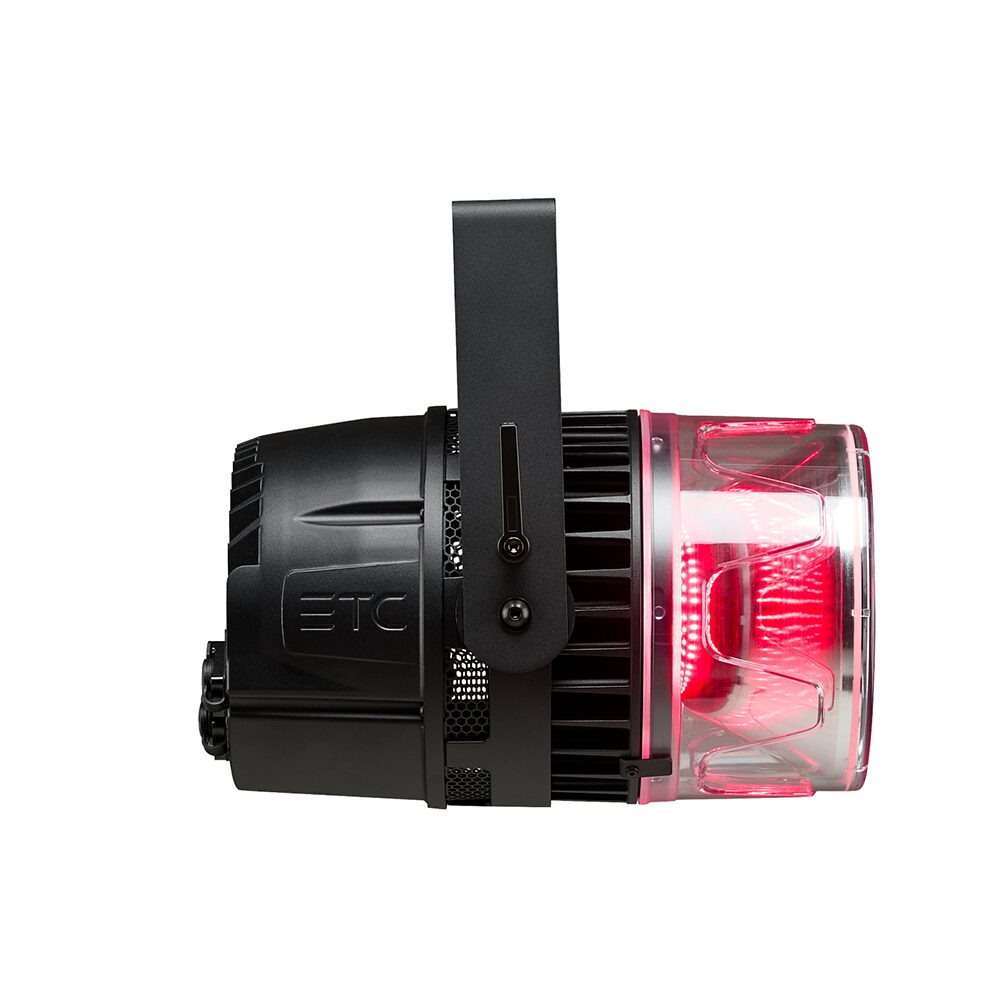

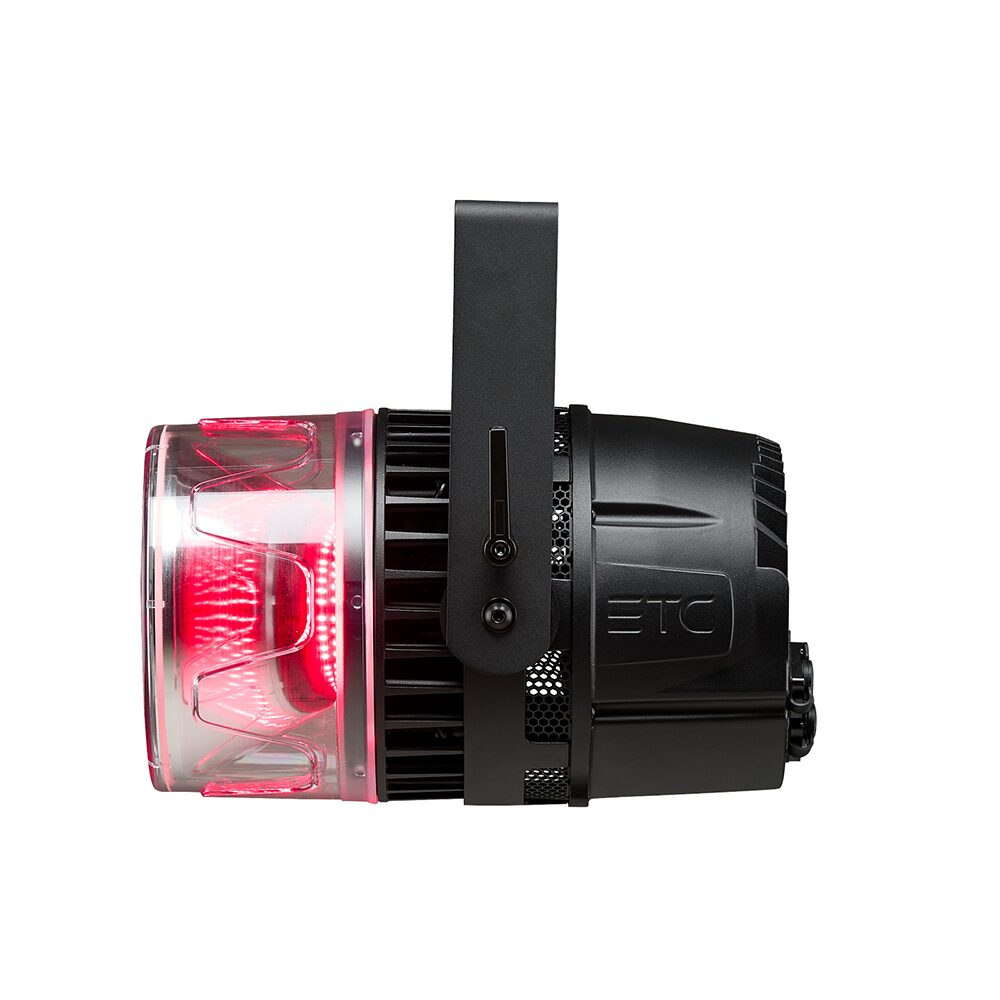

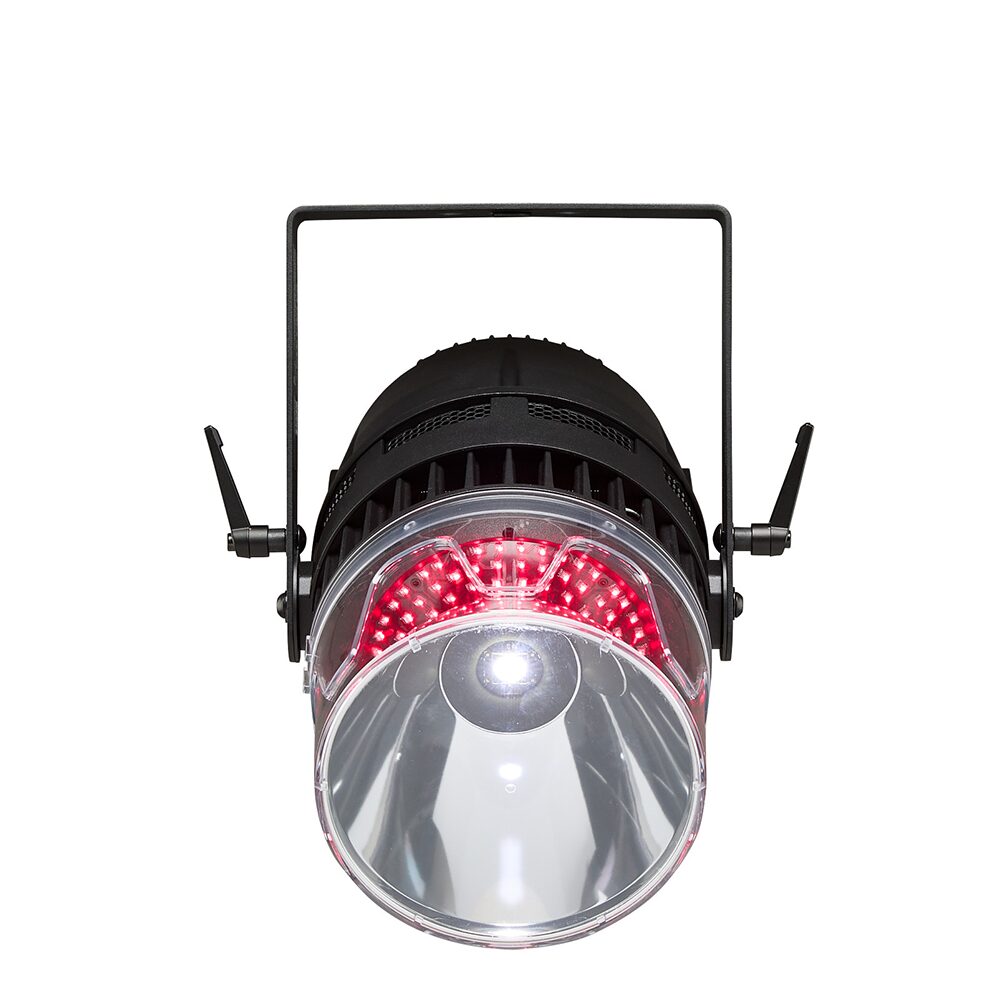

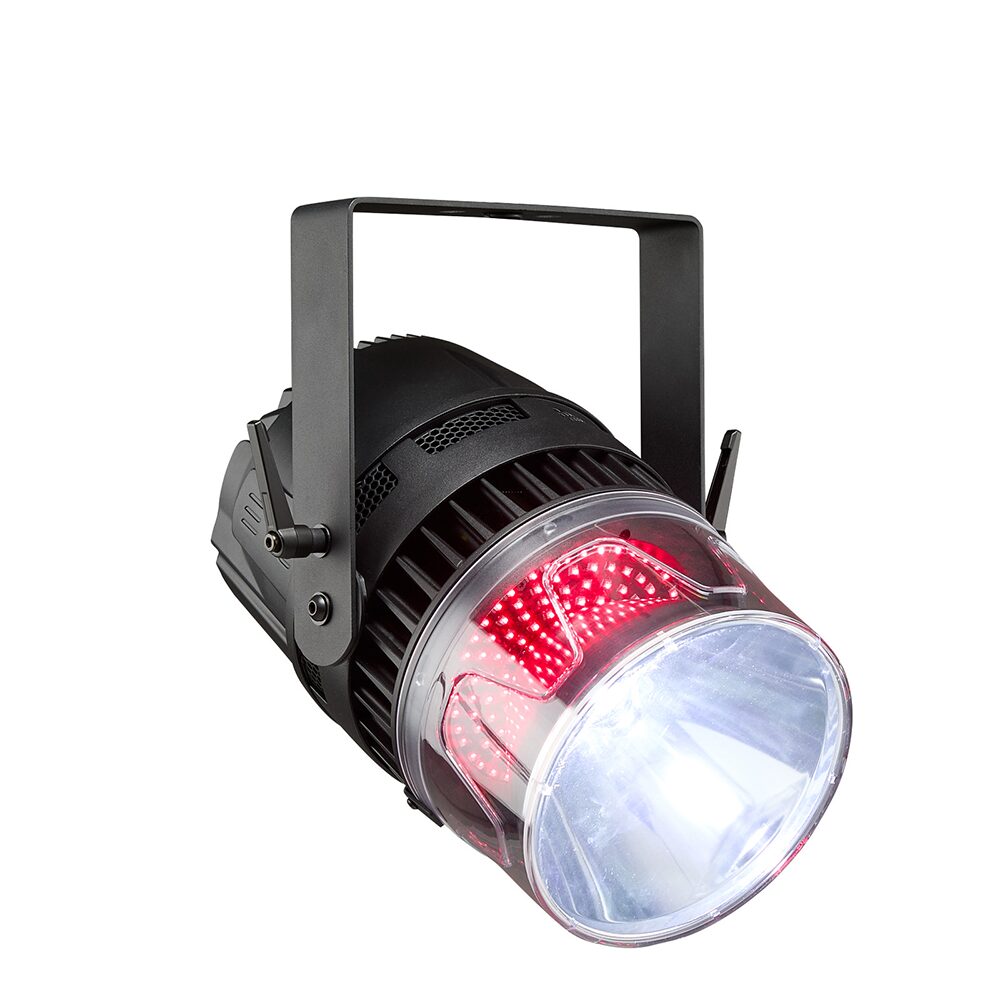

Light Dispersion (with Reflector Dome):
60° central blinder/strobe
Wide area and haze color light distribution
Light Dispersion (with EC Dome): 120° degree color and white distribution
Aperture Size: 216 mm
Flicker Control/Hz Range: 2.4 kHz and 16.6 kHz
Control

Input Method: DMX (5-pin)
Protocols: DMX via RS-485
Modes (Channel Footprint): Reduced (7), Standard (19), or Expanded (54)
RDM Functions: Yes
Strobe Functions: Yes
Macro Functions: Yes
Pixel Control: Eight (8) pixel segment control
UI Type:
Black and white display with
4-button navigational control
NFC configuration
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled
Electrical

Voltage Range: 100–240 V 50–60 Hz
Input Method: Seetronic X Series IP65 input or PowerCON
TRUE1 TOP
Wattage: 1000 W
Current (Max):
9.54 A @ 100 V
3.62 A @ 240 V
Inrush (First Half Cycle):
120 V: 25 A
230 V: 101 A
Fixtures per Circuit:
2 fixtures (R20 module or similar)
Note: X Series IP65 connector rated for
20 A (120 V/60 Hz) and
16 A (240 V/50 Hz)
Thermal

Ambient Operating Temp: -10°C to 40°C (14°F to 104°F)
Continuous Operation: Yes
Fan Mode:
Three fan modes:
Standard, Silent, Studio
Physical

Materials: Aluminum with acrylic dome
Color Options: Black
Mounting Options: Any orientation
IP Rating: IP65
Weight (with Reflector Dome): 7.0 kg (15.5 lb)
Included Accessories:
Reflector Dome
EC Dome
X Series IP65 to bare end fixture tail
Yoke
Safety cable
Warranty

Fixture Warranty Five (5) years for light engine
Two (2) years for complete fixture
Warranty Details etcconnect.com/Support/Warranty.aspx
Regulatory & Compliance

Approved Regulatory Standards:
cETLus Listed
Listed to UL 1573
Certified to CSA STD. C22.2 No: 166
CE Compliant
UKCA Compliant
Complies to the ROHS Directive: Yes
