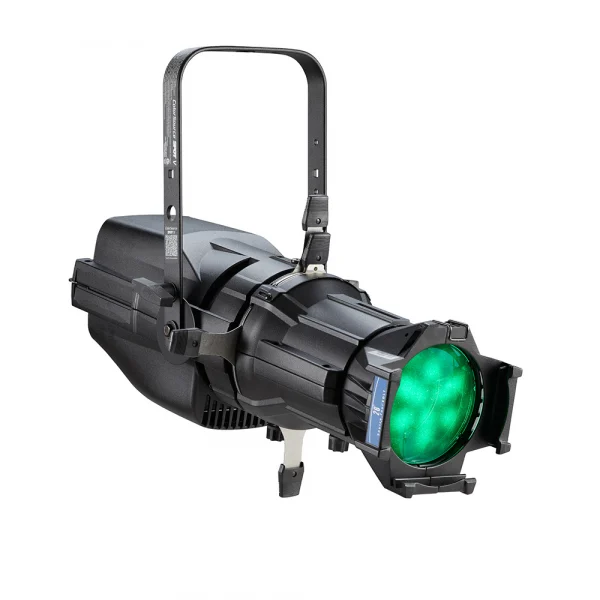

ETC – ColorSource Spot V

ETC

Brings a richness of color, increased brightness, and leading technology at a price point you’ll love.

Features

  • Five-color array (red, green, blue, indigo, and lime)
  • Simple user interface with seven-segment display
  • powerCON® TRUE1® TOP connector
  • DMX/RDM in and thru (5-pin XLR)
  • Multiverse wireless DMX/RDM
  • NFC (near field communication) configuration
  • LED droop compensation
  • Optically calibrated
  • Tour-ready, aluminum housing
  • Combine with available adapters to transform your fixture
  • into a fully functional Fresnel or CYC light
SKU: N/A Categories: , , ,
Clear

Description

An LED luminaire crafted by lighting experts with a proven history of quality spot fixtures, ColorSource Spot V brings a richness of color, increased brightness, and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Spot V provides soft pastels and bold saturated colors from a single fixture. Featuring wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, ColorSource Spot V is the ultimate in versatility.

Video

ETC ColorSource Spot V

ColorSource Spot V is the next generation of affordable entertainment lighting for schools, houses of worship and theatres around the world. Including features from premium ETC fixtures, ColorSource Spot V boasts an impressive five-color array, wireless configuration, increased brightness, an impressive industry-leading warranty, and 24/7/365 phone support.

Stories

Harlow Playhouse Lights Up with Sustainable Upgrades

Emily and her team had specific lighting solutions in mind but were also keen to explore alternative options in collaboration with WL’s Senior Business Development Manager, Jonathan Haynes… Read more

Additional information

Source

LED details:
60 Lumileds LUXEON® C and
LUXEON Rebel LEDs
Max lumens: 9,498
Lumens per watt: 48
L70 rating (hours to 70% output)*: 54,000 hours
Color

Colors used: Red, green, blue, indigo, lime
Color temperature range: Color mixing
Calibrated array: Yes
Red shift: NoColors used Red, green, blue, indigo, lime
Color temperature range Color mixing
Calibrated array: Yes
Red shift: No
Optical

Beam angle range: Swappable lens tubes, 5–90 degrees
Gate size: 80 mm
Aperture size: 6.25–14 in (depending on lens tube)
Pattern projection: Yes
Pattern size: A or B
Camera flicker control/Hz range: 5,000 Hz (default) and 25,000 Hz (via RDM)
Notes: Can be used with LED CYC and Fresnel adapters
Control

Input method: DMX512 via 5-pin XLR connector
Protocols: DMX512/RDM
Modes (footprint): 9 modes, see page 5
RDM configuration: Yes
UI type: Seven-segment, three-button interface
Local control: Yes
Onboard presets: Yes (12)
Onboard sequences: Yes (5)
Onboard effects: No
FixtureLink: Yes
Notes: 15-bit virtual dimming engine
Wireless

Band: 2.400–2.480 GHz
Range: 100 m indoors, 500 m line of sight (subject to conditions)
Max receivers DMX: No limit
RDM: Varies by transmitter used
Multiverse SHoW Baby®: 585
Multiverse Transmitter: 5,000
Broadcast power: 100 mW
Electrical

Voltage range: 100–240 VAC 50/60 Hz
Input method: powerCON TRUE1 power in and thru
Inrush:
55 A at 120 V (First half-cycle)
59 A at 240 V (First half-cycle)
Fixtures per circuit*: 8 fixtures (R20 module or similar)
Wattage typical / standby:
199 W / 2 W at 100 V
197 W / 2 W at 120 V
194 W / 2 W at 240 V
Current draw typical / standby:
2 A / 0.07 A at 100 V
1.65 A / 0.08 A at 120 V
0.90 A / 0.10 A at 240 V
Thermal

Ambient operating temp: 0°C to 40°C (32°F to 104°F)
Fan: (controllable) Yes (yes)
Droop compensation: Yes
dB range: 24.4 dBA average at 1 m
BTUs/hour: 672
Physical

Materials: Die-cast, all metal housing
Color options: Black, white, silver, or custom color
Mounting options: Yoke
IP rating: IP20
Weight: 7.7 kg (17 lb) (without lens)
Included accessories: Hanging yoke, 1.5 m power cable, soft-focus diffuser in an A-size gobo
holder
Notes: See page 6 for power cable options
Warranty

Fixture: 5 years
LED array: 10 years
Regulatory and Compliance

Approved regulatory standards:
cETLus Listed
Conforms to UL 1598 Listed
Conforms to UL 924 Listed
Certified to CSA C22.2 No. 250 Listed
Certified to CSA C22.2 No. 141 Listed
CE, UKCA, RCM, and CCC Compliant
Footnotes

*Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.
