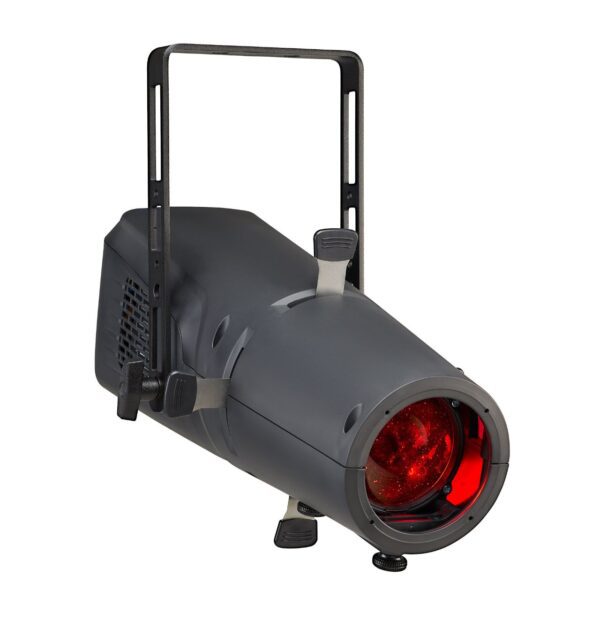

ColorSource_Spot_jr_RightColorSource_Spot_jr_Right

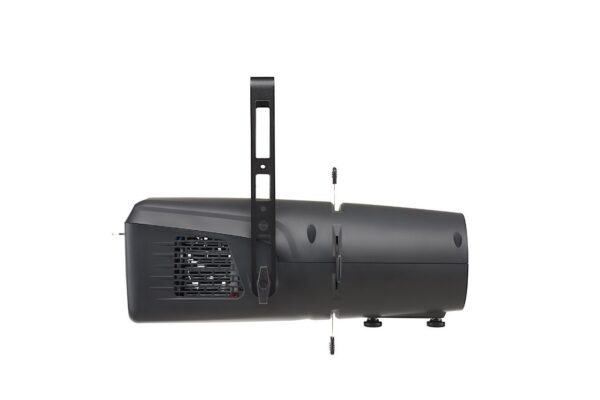

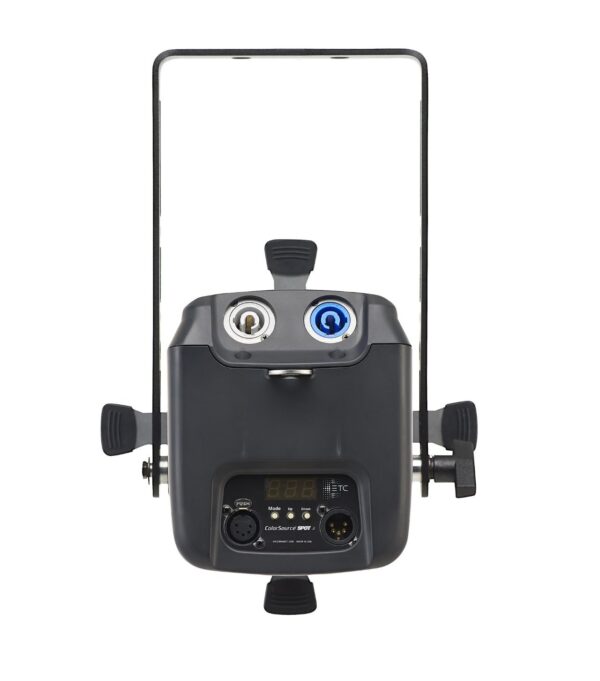

ETC – Colorsource Spot Jr.

ETC

Small size. Small price tag. Big performance.

SKU: N/A Categories: , , ,
Clear

Description

ColorSource Spot jr gives you more of what you love at a fraction of the cost AND a fraction of the size. This fixture uses the same color technology as other ETC fixtures including droop compensation, extensive third-party lifetime testing, and comprehensive factory color calibration.

ColorSource Spot jr is available in both original and Deep Blue arrays. With 5,700 lumens of brightness coming out of this light-weight fixture, ColorSource Spot jr fits any need.

Built in zoom

ColorSource Spot jr has built-in zoom capability, great for small stages, club spaces, and retail. Longer throws and short trim heights make this an all-purpose luminaire. Highlight a performer with a special in one show and add texture with a breakup pattern in another.

Color Integrity

ColorSource luminaires are factory-calibrated to ensure consistency. They feature a four-color mixing system offering bright, vibrant colors and perfectly-mixed pastels.

The thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colors you get during the show.

Video

ETC ColorSource Spot jr

Marketing Product Manager, Jim Uphoff gives an overview of the ColorSource Spot jr. This versatile fixture gives you more of what you love at a fraction of the cost AND a fraction of the size. This fixture uses the same color integrity technologies as other ETC fixtures including droop compensation, extensive third-party lifetime testing, and comprehensive factory color calibration.

Additional information

Source

LED details: 52 Lumileds LUXEON® C LED
Max lumens Standard: 5,708
Deep Blue: 5,426
Max lumens per watt: 44.8

Optical

Beam angle range: Built in 25-50 degree zoom
Gate size: 50 mm
Aperture size: 6.25”-14”
Pattern projection: Yes
Pattern size: M (OD 66 mm, ID 48 mm), up to 2.03 mm (0.080 in) thick
Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)

Control

Input method: DMX512 via 5-pin XLR
Protocols: DMX512/RDM
Modes (footprint): 4 modes, see page 10
RDM configuration: Yes
UI type: Seven-segment, three-button interface
Local control: Yes
Onboard presets: Yes (12)
Onboard sequences: Yes (5)
Onboard effects: No
Fixture-to-fixture control: Yes
Notes: 15-bit virtual dimming engine

Electrical

Voltage range: 100–240 VAC 50/60 Hz
Input method: powerCON power in and thru
Inrush:
35 A at 120 V (First half-cycle)
45 A at 240 V (First half-cycle)
Fixtures per circuit: 7 fixtures (15 A power thru connector) or 8 fixtures (R20 module or similar)
Wattage typical/standby:
166 W / 2.6 W at 120 V
162 W / 2.0 W at 240 V
Current draw:
1.59 A at 120 V
0.87 A at 240 V

Thermal

Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable): Yes (no)
Droop compensation: Yes
dB range: 20.2 dBa
BTUs/hour: 549

Physical

Materials: ABS plastic
Color options: Black or white
Mounting options: Yoke
IP rating: IP20
Weight: 5.4 kg (12 lb)
Included accessories: Hanging yoke, 1.5 m power cable
Notes: See page 9 on data sheet for power cable options

Warranty

Fixture: 5 years
LED array: 10 years

Regulatory and Compliance

Approved regulatory standards:
cETLus Listed
Conforms to UL 1598 Listed
Certified to CSA
