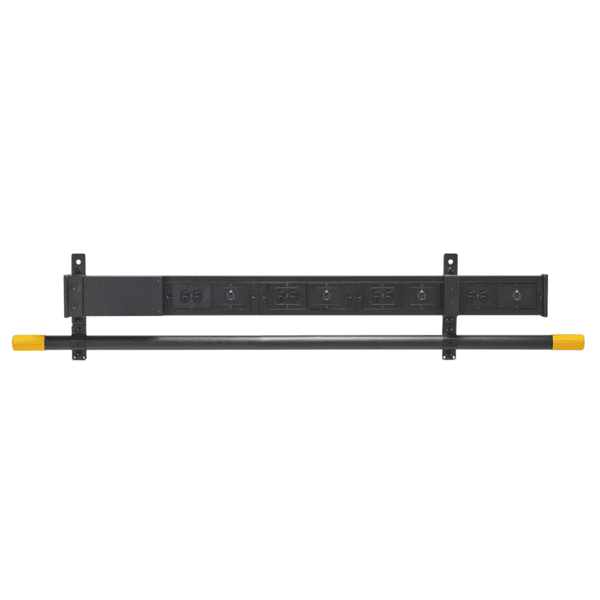

ETC_ColorSource-Raceway_1ETC_ColorSource-Raceway_1

ETC – ColorSource Raceway

ETC

LED stage lights draw less power and require fewer dedicated circuits than traditional incandescent sources – but are data-hungry. ColorSource Raceway is a purpose-built, configurable power and data distribution solution for LED rigs in a lightweight, economical package. Add this to your wish list and one of our team will be in touch to discuss our requirements in detail.

Categories: , , , ,

Description

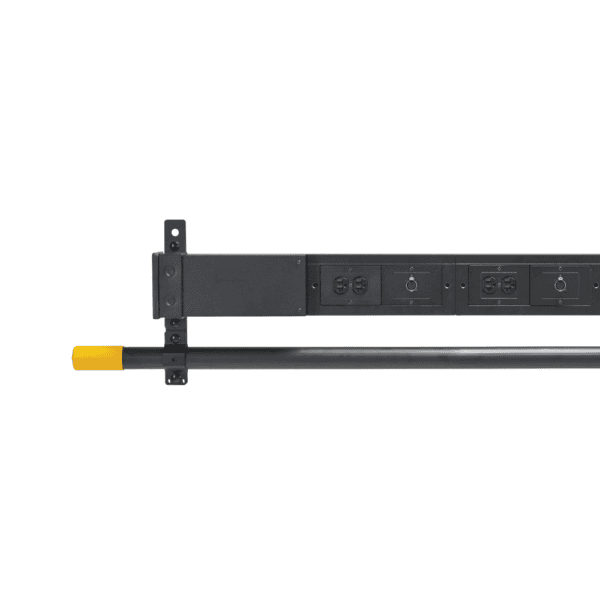

ColorSource Raceway meets the needs of LED lighting installations with reduced rigging requirements for stage electrics. Its lightweight aluminum construction makes ColorSource Raceway a perfect companion to ETC’s lower capacity hoists and was designed with data distribution, LED loads and flexible installation in mind.

Applicaiton

  • Educational theatres
  • Town halls
  • Community theatres
  • Mixed use spaces
  • Black box theatres
  • Houses of worship
  • Convention centers
  • Hotel ballrooms

Features

  • Extruded aluminum raceway with die cast aluminum connector plates;
  • Available in lengths up to 72 feet (2195cm), in 1-foot (30.5cm) increments
  • Extruded aluminum fixture hanging pipe with internal webbing
  • Lightweight with raceway and pipe combined weight of 4lb/ft (6kg/m)
  • Pipe finished with black or clear hard coat anodization
  • Ships fully wired and folded in 6-foot lengths with all splicing hardware
  • Supports a wide range of plug connectors and Ethernet or DMX data distribution
  • Optional LED work lights integrate into hanger brackets
  • Wide variety of mounting and hanger brackets available
  • Includes brackets suitable for mounting to rigging, catwalks, vertical positions, pipe grids, walls and ceilings

Additional information

Functional

• Raceway available in lengths from 2 feet to 72 feet (61cm-2195cm) in 1foot (30.5cm) increments, lengths include 1-foot terminal box
• Terminal box can be configured for hard wired or pluggable power and data input
• Each 1-foot section supports two connector plates that can contain power, data or blank connectors
• Active DMX pass-thru, supports up to 32 DMX/RDM devices connected to a single Raceway
• Supports USITT DMX512-A (ANSI E1.11) and RDM (ANSI E1.20-Remote Device Management)
• Supports 48.3mm outside-diameter aluminum pipe batten by ETC or standard schedule 40 iron pipe batten
• Available mounting hardware for suspension, wall, ceiling, pipe grid, and catwalk mounting applications
Mechanical

Raceway:
– Available in lengths from 2-feet to 72-feet (61cm-2195cm)
in 1-foot (30.5cm) increments; lengths include 1-foot
terminal box
– Raceway constructed of 1.6mm extruded aluminum
– Connector plates and frames constructed of 3mm diecast
aluminum
– Hanger brackets are constructed of ASTM A5008 steel
conforming to ISO 898-1 class 8.8 and available for
attachment to rigging, catwalks, vertical positions, pipe
grids, walls, and ceilings
– All parts are finished in fine-textured, black, white, or silver
powder coat paint (custom colors available)
– Circuits are labeled above each connector with 15mm
reverse silk screened lexan labels.
– 127mm H x 45mm D outside dimensions, terminal box is
127 mm H x 77.7mm
– Weighs 2.5lb/ft (3.7kg/m) when wired
– Ships fully wired and folded in 6-foot lengths with all
splicing hardware
• Optional Aluminum Pipe Batten:
– 1-1/2” (48.3mm) outside diameter extruded aluminum
pipe with vertical web
– Pipe wall and web constructed of 3.8mm aluminum
finished in black or clear hard coat anodization
– Weighs 1.5lb/ft (2.2kg/m)
– Supports a maximum distributed load of 150lb (68kg) over
a 10 ft (305cm) span
– Supports a maximum point load of 65lb (29kg) on a 10 ft
(305cm) span
– Designed to a 10:1 safety factor
Electrical

• Connector strips support 120V -240VAC 50/60Hz branch
circuit power inputs with support for multiple outputs per
input
• Wire entry utilizes a terminal box with support for up to eight
20A inputs utilized for:
– Up to six circuits for power distribution along the length of
the connector strip for performance lighting
– One circuit dedicated for work lights.
– One circuit dedicated for DMX Active Pass-thru connectors
(Pass-thru connectors can also be powered off of one of
the six performance lighting circuit terminals if necessary)
• Screwless tension clamp terminals for power input accept
20-8 AWG (0.5mm2
-6mm2
) wire for lighting circuits, 20-12
AWG (0.5mm2
-4mm2
) for optional work light and DMX
Active Pass-thru circuits
• Support for Belden 9729 (or equal) or standard Category
cable DMX/RDM input
• Power output receptacles available in any combination of
connectors on a single strip using the following receptacles:
– 20A Edison and duplex Edison
– 20A grounded stage pin
– 20A Twist-lock®
– powerCON TRUE1
• Available data outlets support one of the following options
per raceway:
– One RJ45 Ethernet output
– One to 24 5-pin XLR style DMX Active Pass-thru with RDM
• Optional worklight integrates via driver mounted in a
connector plate and attaches directly to compatible hanger
brackets
– 1,600 lumen, 3000K CCT LED at 90 CRI, 60° beam angle
– 25W power consumption
DMX Connections

• Withstands fault voltages of up to 250VAC
• Up to 24 DMX Active Pass-thru connectors supported on a
single Raceway
• DMX/RDM device connections
– Support up to 32 RDM devices connected on a single
Raceway
– DMX Active Pass-Thru connectors self-terminate
