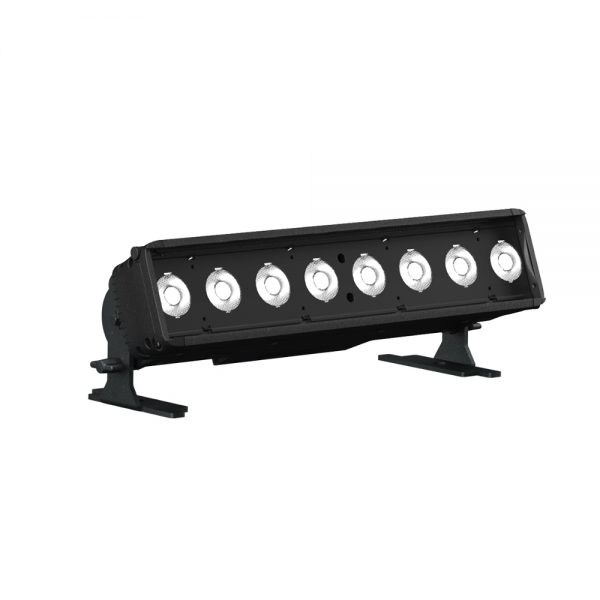

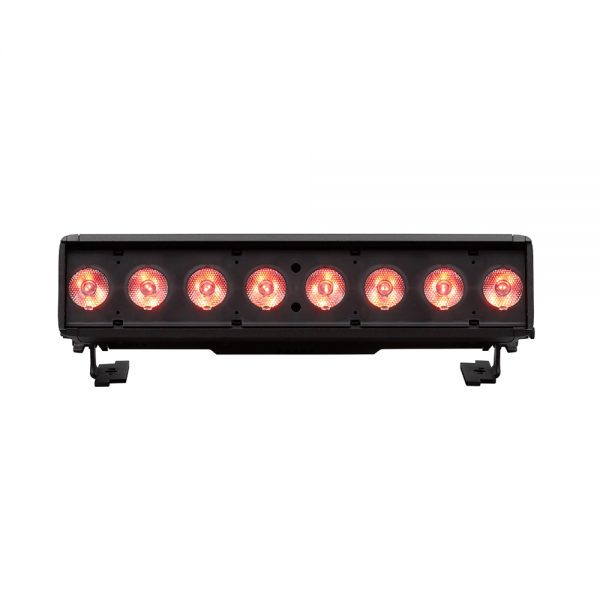

ETC – ColorSource Linear

ETC

High-output, low profile strip light featuring the proven recipe of dual red, green, blue, and lime LEDs.

SKU: N/A Categories: , , ,
Clear

Description

A long lineage of quality colour

ColorSource Linear is a high-output, low profile strip light featuring the proven recipe of dual red, green, blue, and lime LEDs – the same mix as found in ColorSource PAR and ColorSource Spot. Unlike many effect-focused batten fixtures on the market, ColorSource Linear is designed for high-quality, high-output theatre-grade stage lighting.

Available in 0.5 meter, 1 meter, and 2 meter lengths, ColorSource Linear enables multiple fixtures to be mounted end to end with even spacing of their homogenized optics.

ColorSource luminaires are factory-calibrated to ensure consistency. They feature a four-color mixing system offering bright, vibrant colours and perfectly-mixed pastels.

The thermal management algorithms built into every ColorSource fixture ensure that the colours you choose in rehearsal are the colours you get during the show.

ColorSource Linear has been independently tested using the LM-84 standard. These tests have confirmed what we knew from the beginning: it is built to last! 55,000 hours. The math: if you ran a ColorSource Linear for three hours a day, seven days a week, all year long – we are talking about 50 years of light.

That’s a lot of beautifully-lit shows.

Features

  • 2700 K to 6500 K variable white light
  • Homogenized optics
  • Simple user interface with seven-segment display
  • PowerCON® in and thru power connections
  • DMX in and thru (5-pin XLR or RJ45)
  • RDM or local configuration
  • LED droop compensation for consistent output
  • Optically calibrated
  • Tour-ready, aluminum housing

Additional information

Weight 2.9 kg
Source

40 Lumileds LUXEON® Z LEDs (per segment)
Linear 1: 3,039 Max lumens
Linear 1 DB: 2,978 Max lumens
Linear 1: 28.1 Lumens per watt
Linear 1 DB: 27.6 Lumens per watt
L70 rating (hours to 70% output): 55,000 hours
Colour

Linear 1: red, green, blue, lime
Linear 1 Deep Blue: red, green, indigo, lime
Color mixing fixture
Calibrated array
No red shift
Optical

14.5° (secondary lenses available for multiple beam-spread options)
Gate size: N/A
7.5 in / 190 mm aperture size
No pattern projection
No pattern size
1,200 Hz (default) and 25,000 Hz (via RDM)
Electrical

100-240 VAC 50/60 Hz
powerCON power in and thru
35 A / 35.6 A / 67.5 A at 120 V (First half-cycle)
49 A / 85.6 A / 153 A at 240 V (First half-cycle)
9 cells (15 A power thru connector)
10 cells (R20 module or similar)
Linear 1: 115 W at 120 V / 112 W at 240 V
Linear 2: 218 W at 120 V / 213 W at 240 V
Linear 4: 438 W at 120 V / 426 W at 240 V
Linear 1 DB: 110 W at 120 V / 108 W at 240 V
Linear 2 DB: 218 W at 120 V / 214 W at 240 V
Linear 4 DB: 440 W at 120 V / 428 W at 240 V
Linear 1: 0.95 A at 120 V / 0.48 A at 240 V
Linear 2: 1.82 A at 120 V / 0.91 A at 240 V
Linear 4: 3.68 A at 120 V / 1.82 A at 240 V
Linear 1 DB: 0.92 A at 120 V / 0.46 A at 240 V
Linear 2 DB: 1.82 A at 120 V / 0.91 A at 240 V
Linear 4 DB: 3.70 A at 120 V / 1.83 A at 240 V
Thermal

Ambient operating temp: 0°–40° C (32°–104° F)
non-controllable fan
Droop compensation
24.8 dBa average at 1 m (each cell)
Linear 1: 392.38/ 382.14 BTUs/hour (120 V / 240 V)
Linear 2: 743.82/ 726.76 BTUs/hour (120 V / 240 V)
Linear 4: 1,494.46/ 1,453.51 BTUs/hour (120 V / 240 V)
Linear 1 DB: 375.32/ 368.50 BTUs/hour (120 V / 240 V)
Linear 2 DB: 743.82/ 730.19 BTUs/hour (120 V / 240 V)
Linear 4 DB: 1,501.28/ 1,460.34 BTUs/hour (120 V / 240 V)
Controls

DMX512 via 5-pin XLR or RJ45 connector
DMX512/RDM
4 modes for footprint
RDM configuration
UI type: Seven-segment, three-button interface
Local control
12 Onboard presets
5 Onboard sequences
No onboard effects
Fixture-to-fixture control
15-bit virtual dimming engine
