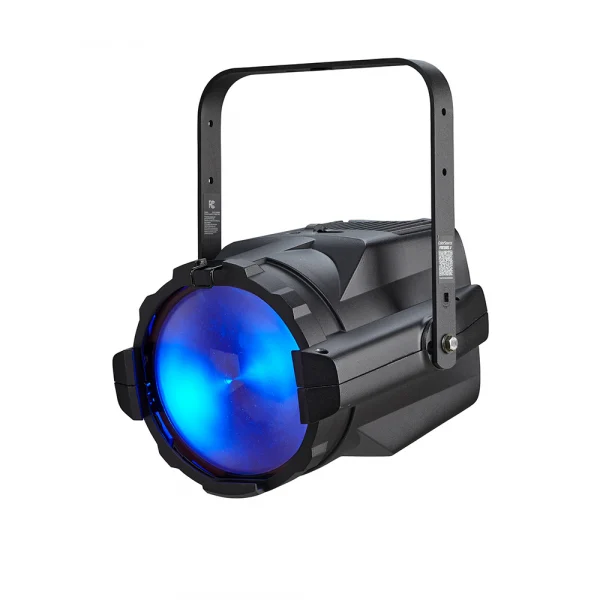

ETC_ColorSource-Fresnel-V_On-BlueETC_ColorSource-Fresnel-V_On-Blue

ETC – ColorSource Fresnel V

ETC

Brings a richness of color, increased brightness, and leading technology at a price point you’ll love.

Read more about the ColorSource Fresnel V in, Harlow Playhouse Lights Up with Sustainable Upgrades here.

SKU: ETC7417A1211 Categories: , , ,

Description

An LED luminaire crafted by lighting experts with a proven history of quality fixtures, ColorSource Fresnel V brings a richness of color, increased brightness, and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Fresnel V provides soft pastels and bold saturated colors from a single fixture. Control the motorized 13°–44° zoom using DMX or manually from the rear of the fixture. ColorSource Fresnel V also features wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, making it the ultimate in affordable wash light technology.

Features

  • Five-color array (red, green, blue, indigo, and lime)
  • Motorized 13–44 degree zoom with DMX and local control
  • Simple user interface with seven-segment display
  • powerCON® TRUE1® TOP connector
  • DMX/RDM in and thru (5-pin XLR)
  • Multiverse wireless DMX/RDM
  • NFC (near field communication) configuration
  • LED droop compensation
  • Optically calibrated
  • Tour-ready, aluminum housing

Video

ETC ColorSource Fresnel V

ColorSource Fresnel V is the next generation of affordable wash lighting for schools and theatres around the world. ColorSource Fresnel V boasts an impressive five-color array, motorized 13-44 degree zoom, wireless configuration, an impressive industry-leading warranty, and 24/7/365 phone support.

Additional information

Source

LED details: 44 Lumileds LUXEON® C LEDs
Max lumens: 5330
Lumens per watt: 36
L70 rating (hours to 70% output)*: 54,000 hours
Colour

Colours used: Red, Green, Blue, Indigo , Lime
Colour temperature range: Colour mixing
Calibrated array: Yes
Red shift: No
Optical

Beam angle range: 13°–44°
Gate size: N/A
Aperture size: 190 mm (7.48 in)
Pattern projection: No
Pattern size: N/A
Camera flicker control/Hz range: 5,000 Hz (default) and 25,000 Hz (via RDM)
Control

Input method: 5-Pin XLR, Multiverse wireless (optional), and NFC
Protocols: DMX-512, RDM, City Theatrical Multiverse (optional), NFC
Modes (footprint): 4 modes, see page 6
RDM: configuration Yes
UI type: Seven-segment display, three-button interface, Focus encoder
Local control: Yes
Onboard presets: Yes (12)
Onboard sequences: Yes (5)
Onboard effects: No
FixtureLink: Yes
Notes: 15-bit virtual dimming engine
Wireless

Band: 2.400–2.480 GHz
Range: 100 m indoors, 500 m line of sight (subject to conditions)
Max receivers:
DMX: No limit
RDM: Varies by transmitter used
Multiverse SHoW Baby®: 585
Multiverse Transmitter: 5,000
Broadcast power: 100 mW
Electrical

Voltage range: 100–240 VAC 50/60 Hz
Input method: powerCON TRUE1 TOP power in and thru
Inrush (first half-cycle):
120 V: 36 A
240 V: 57 A
Fixtures per circuit on standard R20 breaker:
9 (link up to 8 via Power Thru connector)*
Note: TRUE1 connector rated for
20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)
Wattage (typical):
120 V: 148.4 W
230 V: 147.0 W
Current draw:
120 V: 1.28 A
230 V: 0.70 A
Thermal

Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable): Yes (yes)
Droop compensation: Yes
dB range: TBD
BTUs/hour (120 V): 508
Physical

Materials: Cast and extruded aluminum
Color options: Black, white, silver, or custom color
Mounting options: Yoke
IP rating: IP20
Weight: 6.24 kg (13.75 lb)
Included accessories: Yoke, power cable
Warranty

Fixture: 5 years
LED array: 10 years
