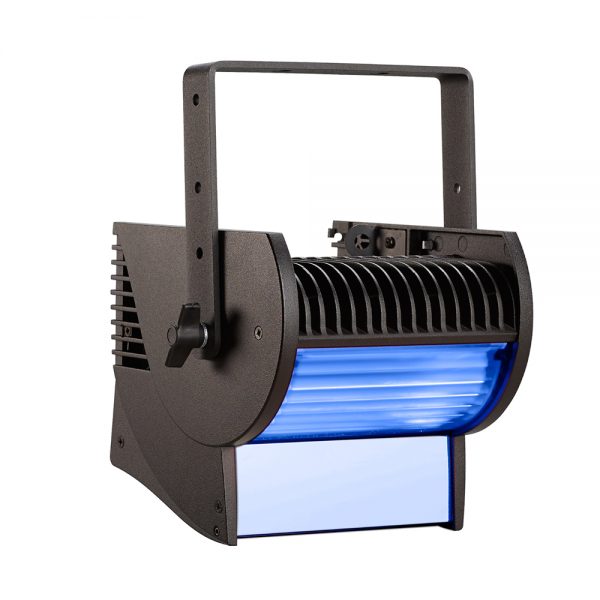

ETC – ColorSource CYC

ETC

Compact, fan-free design features a unique five-color mix of red, green, blue, indigo, and lime.

SKU: ETC7415A1200 Categories: , , ,

Description

The ColorSource CYC is a dedicated cyclorama fixture designed with the sole purpose of creating beautiful, smooth washes of light on a cyclorama or wall. And it delivers! This is the first ETC fixture to use this innovative five-color mix of red, green, blue, lime, and indigo for expanded range and color control.

Features

  • All LED (RGBI-L)
  • Rich, bright light
  • Fanless operation
  • Stand-alone presets and sequences
  • Simple setup and user interface

Video

ETC ColorSource® CYC

ETC’s ColorSource® CYC is a dedicated cyclorama fixture designed with the sole purpose of creating beautiful, smooth washes of light on a cyclorama or wall. Watch as fixture product manager, Jim Uphoff, walks us through the features of this compact, affordable fixture.

Additional information

Weight 4.6 kg
Source

LED details: 42 Lumileds LUXEON® C LEDs
Max lumens: 4,117
Lumens per watt: 31
L70 rating (hours to 70% output): 50,000 hours (estimate pending LM84 test data)
Colour

Colors used: Red, green, blue, indigo and lime
Color temperature range: Variable
Calibrated array: Yes
Red shift: No
Optical

Beam angle range: N/A (asymmetrical)
Gate size: N/A
Aperture size: N/A
Pattern projection: No
Pattern size: N/A
Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)
Notes: The ColorSource CYC has a built in accessory for spill control
Controls

Input method: DMX-512 via 5-pin XLR connector
Protocols: DMX
Modes (Footprint):
5 channel- IRGBS (5)
Direct- IRGBILS (7)
1 channel- I (1)
RGB- RGB (3)
RDM configuration: Yes
UI type: 7-segment address display
Local control: Yes
Onboard presets: Yes (12)
Onboard sequences: Yes (5)
Onboard effects: No
Fixture-to-fixture control: Yes
Notes: Local level control via UI
Electrical

Voltage range: 100–230 VAC, 50/60 Hz
Input method: powerCON in and thru
Inrush:
39 A (first half-cycle) at 120 V
74 A (first half-cycle) at 230 V
Fixtures per circuit*: 9 using power thru connector (or 10 per 20 A switched circuit, R20 module or similar)
*Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions
Wattage Typical/Standby:
133 W / 1.4 W at 120 V
116 W / 1.2 W at 230 V
Current draw:
1.11 A at 120 V
0.59 A at 230 V
Thermal

Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable): No (N/A)
Droop compensation: Yes
dB range: 18.5 dBA average at 1 m
BTUs/hour: 453
Physical

Materials: Die-cast aluminum and plastic
Color options: Black, white, silver or custom color
Mounting options: Yoke and floor
IP rating: IP20
Weight: 10.3 lb (4.67 kg)
Included accessories: Hanging yoke, power cable
Notes: See accessories list for power cable options
Warranty

Fixture: 5 years
LED array: 10 years
Regulatory and Compliance

Approved regulatory standards:
cETLus to UL 1573
CSA C22.2 No. 166
CE Compliant
EAC Compliant

Downloads

Data Sheet Download
User Guide Download
