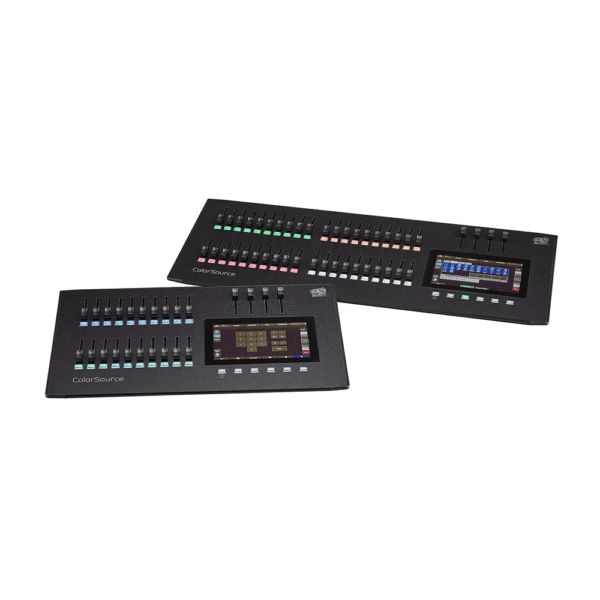

ETC – ColorSource Consoles

ETC

Available in two sizes with optional audiovisual and ethernet capabilities, ColorSource consoles provide hands-on control designed for the latest technology.

SKU: N/A Categories: , , ,
Clear

Description

With ColorSource consoles, setup and programming is a breeze! From patching to performance, ColorSource consoles enable you to navigate and program quickly. The multi-function onboard touchscreen provides not only a customizable stage map but also color and parameter controls, a full palette system, effects manipulation, and the Playback Toy live busking controls.

The onboard faders can be used as direct channel controls or as playback faders. For preprogrammed shows, ColorSource consoles include comprehensive cue stack functionality. Assign additional faders as submasters, group masters, or a grandmaster.

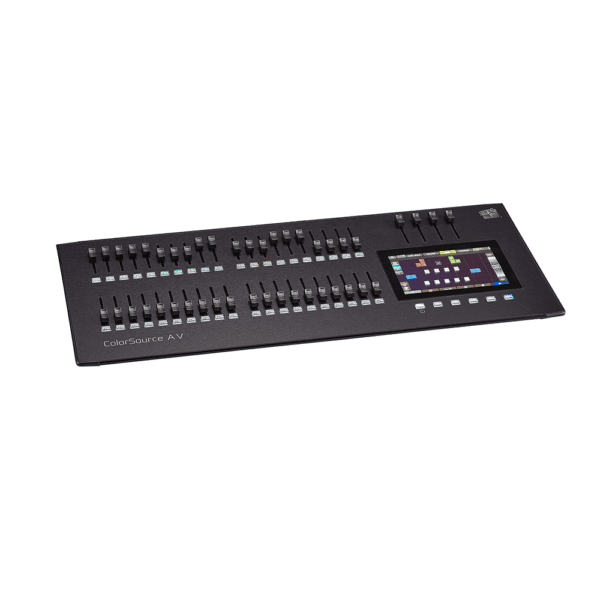

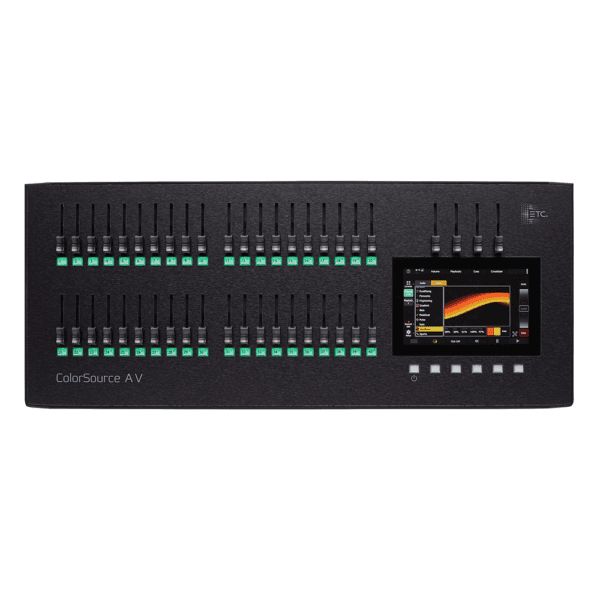

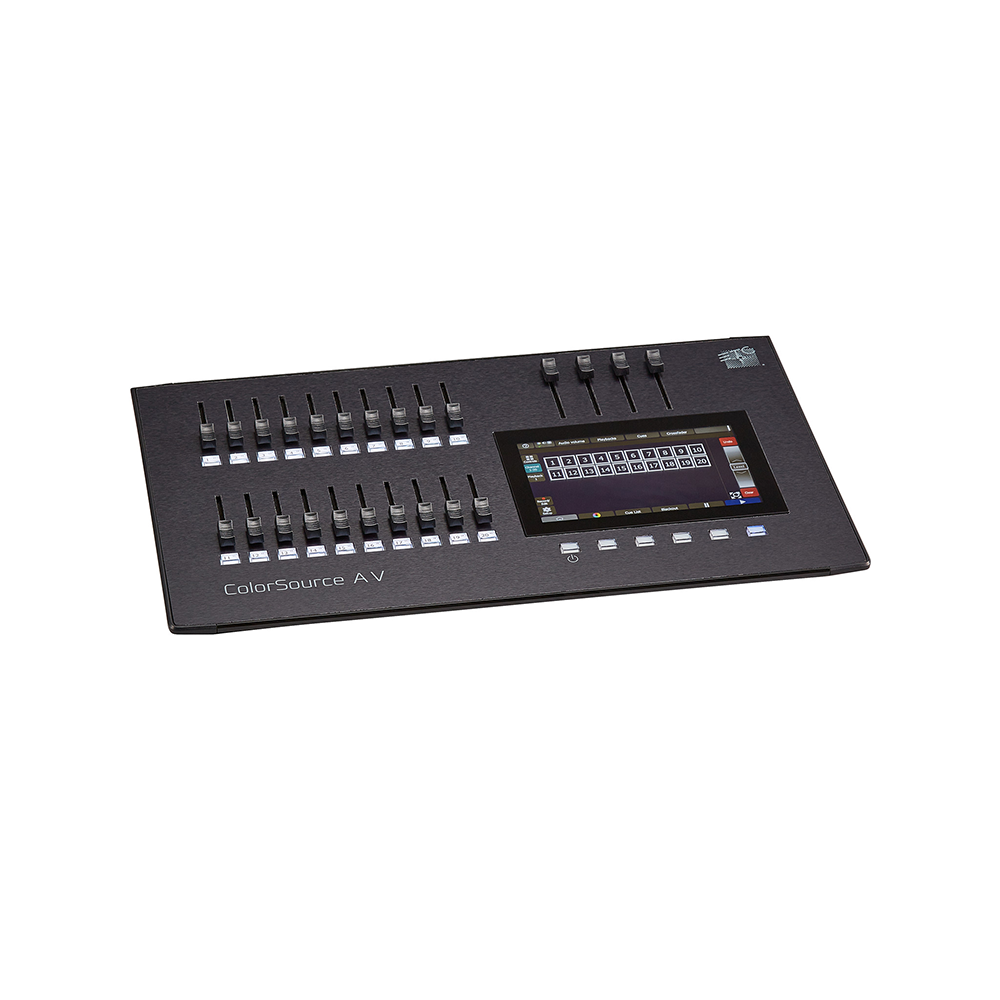

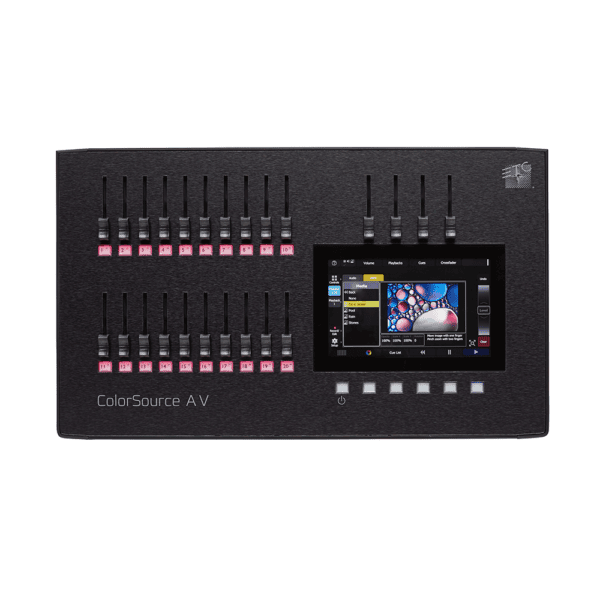

ColorSource AV

ColorSource AV consoles retain all standard ColorSource features, but add sACN and Art-Net networking, OSC, audio input/output and an HDMI video connection.

Use the video output for an external status display monitor or as part of an integrated AV setup with sound and image cues. Use the groundbreaking Video Toy for immersive live media effects – busk along with the band, or let the sound-to-light feature take over!

ColorSource AV consoles also support Amigo, a web-based remote focus tool.

Feature Quick View

  • 80 control channels/devices
  • 7″ integrated multi-touch display
  • 4 user-definable master faders
  • 5 user-definable buttons for common commands
  • Virtual level/rate paddle
  • Cue list record and playback functions
  • Non-intensity parameter control
  • Console lockout
  • Color, Position and Beam Pallettes
  • Color, intensity, position and parameter effects
  • Intuitive color control of LEDs
  • RDM discovery & configuration
  • Onboard help system
  • “Simple Mode” operation for 4 looks
  • Playback Toy for live busking
  • Kensington Security Slot

Video

ETC ColorSource® Consoles

ETC’s Entertainment Market Manager Matt Kerr introduces the ColorSource® and ColorSource® AV consoles, which provide plug-and-play, hands-on control of LEDs, moving lights, playbacks, effects and AV content. ColorSource consoles can control any small rig – with style.

Additional information

Weight 3.1 kg
Mechanical

• One home and five configurable softkey buttons
• Four configurable function faders
• 7” color multi-touch touchscreen
Playback Control

• One cue list with 999 cues
• 10 pages of 20 or 40 playbacks
– Static memories or sequences
• Playback Toy for filtered and timed execution of playbacks
• Mulitple bump modes (Flash, Solo, Solo Change, Move/Go)
• Full-history rubberbanding for playbacks
• On-board help system
• Extensive library for controlling moving lights
Media

• Audio input type:
– 3.5 mm (1/8”) TRS, Stereo, unbalanced
– Line in -10 dBV (316 mV RMS)
– Input Impedance: 29k ohms
• Audio output type:
– 3.5 mm (1/8”) TRS, Stereo, unbalanced
– Line out -10 dBV (316 mV RMS) at 10k ohms “Line Level”
– Load Impedance : 10k – 200k ohms
• Supported media file formats:
– Audio: mp3, aac and wav files (44.1 kHz sample rate, 4 GB
maximum file size)
– Image: jpg, png, tiff, and bmp files (1280 x 720 maximum
resolution)
Please note: visual output is limited to still images and effects from the
VideoToy feature of the ColorSource AV console. Movie files are not
supported
Regulatory & Compliance

• cETLus Listed
• CE Compliant
Programming Tools

• Color and white pickers
• Reference based Position, Color and Beam palettes
• Innovative touch-based parameter controls
• Auto fixture selection on fader moves
• Virtual Level/Rate wheel
• Cutomizable Channel display using Stage Map
• Effects (intensity, color, shape, and parameter)
• Fixture Tags for Quick Selects
• 27 Quick Select groupings
• Two independent channels
• Virtual keypad for level entry
Unique Features

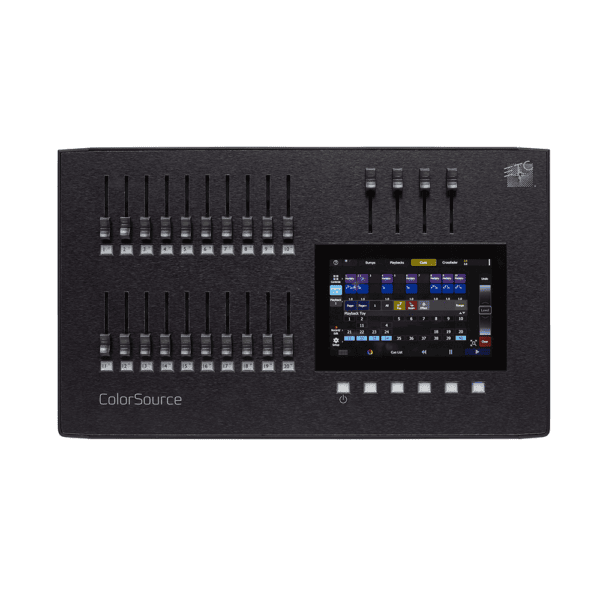

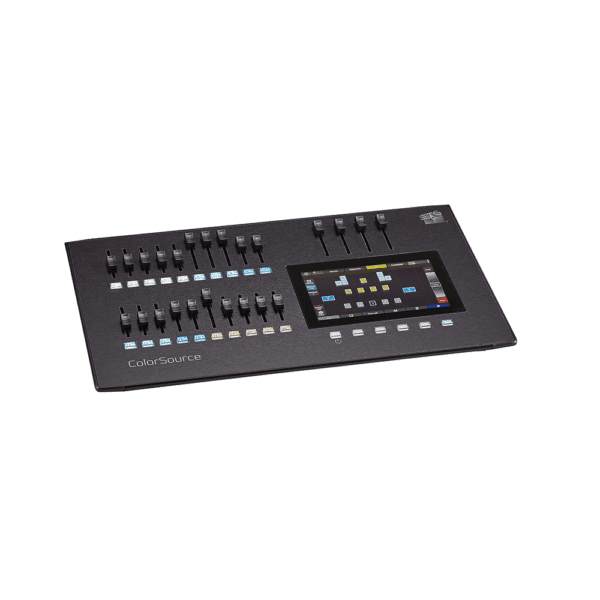

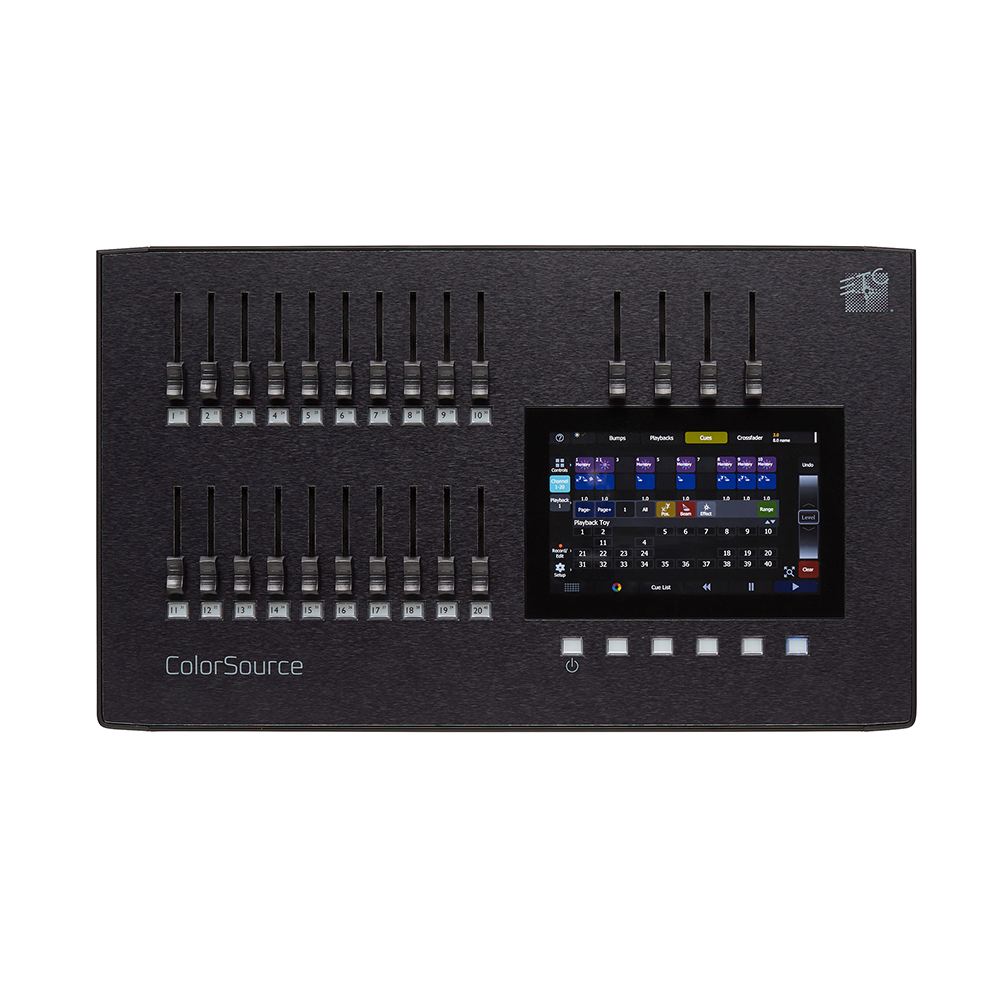

• COLORSOURCE 20
– 80 channels / multi-parameter devices
– 20 Channel / Playback faders with color indication
– One DMX/RDM port
– One USB port
– 2 GB onboard storage for show files

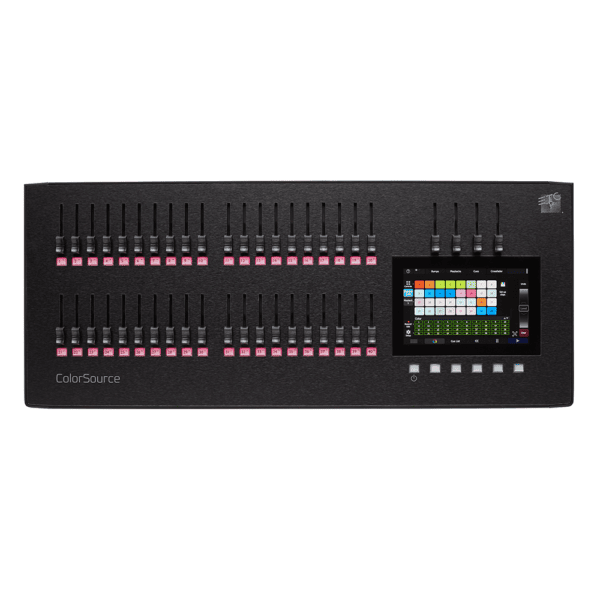

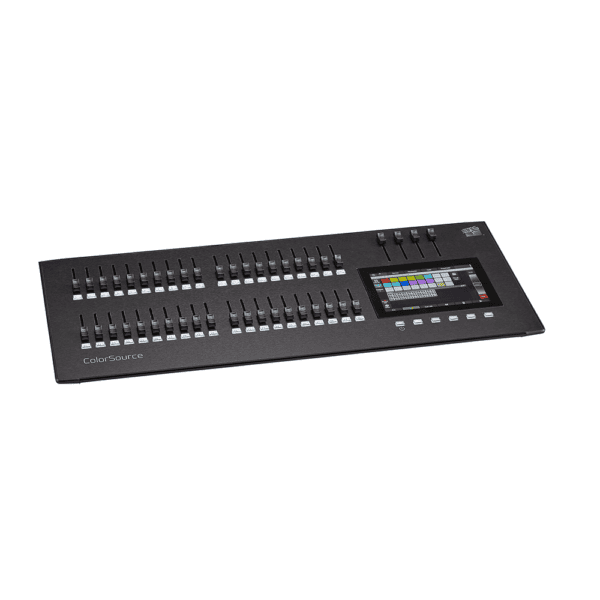

• COLORSOURCE 40
– 80 channels / multi-parameter devices

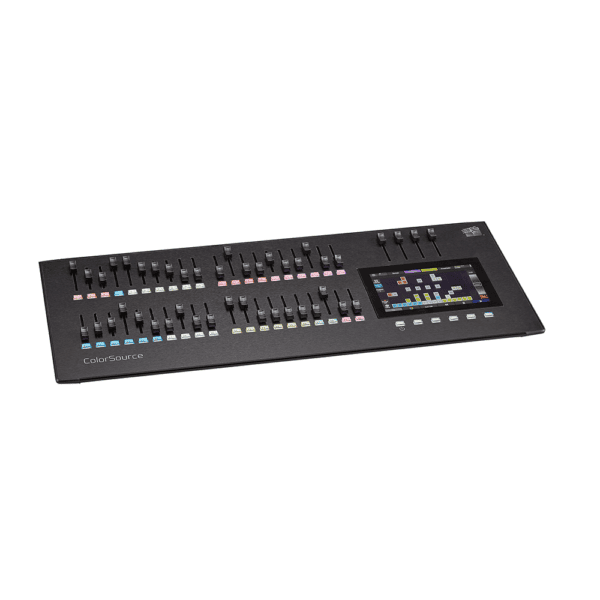

– 40 Channel / Playback faders with color indication
– One DMX/RDM port
– One USB port
– 2 GB onboard storage for show files
