| Technology |
Projection System: 3LCD Technology, RGB liquid crystal shutter
LCD Panel: 1.03 inch with C2 Fine
|
| Image |
Color Light Output: 10,000 Lumen- 7,000 Lumen (economy) In accordance with IDMS15.4
White Light Output: 10,000 Lumen – 7,000 Lumen (economy) In accordance with ISO 21118:2020
Portrait Colour Light Output: 10,000 lm
Portrait White Light Output: 10,000 lm
Resolution: WUXGA
Resolution Enhancement: 4K enhancement
Aspect Ratio: 16:10
On-Screen Pixel Count: 4,608,000 (1920×1200 x2)
Contrast Ratio: Over 5,000,000 : 1
Native Contrast: 2,000 : 1
Light source: Laser
Laser Light source: 20,000 hours Durability High, 30,000 hours Durability Eco: Keystone Correction
Manual vertical: ±45 °, Manual horizontal ±30 °
Colour Video Processing: 10 Bits
Colour Reproduction: Upto 1.07 billion colours
HDR support: HDR10, HLG
|
| Optical |
Throw Ratio: 0.35 – 7.41:1, Varies by lens
Zoom: Motorized, Varies by lens
Lens: Optical
Lens Shift: Varies by lens
Screen Size: Varies by lens
Projection Distance Wide: Varies by lens
Projection Distance Tele: Varies by lens
Projection Distance Wide/Tele: Varies by lens
Projection Lens F Number: Varies by lens
Projection Lens Focal Length: Varies by lens
Projection Lens Focus: Motorized
Offset: Varies by lens
Interchangeable Lens: Yes
Standard Lens: Not included
|
| Connectivity |

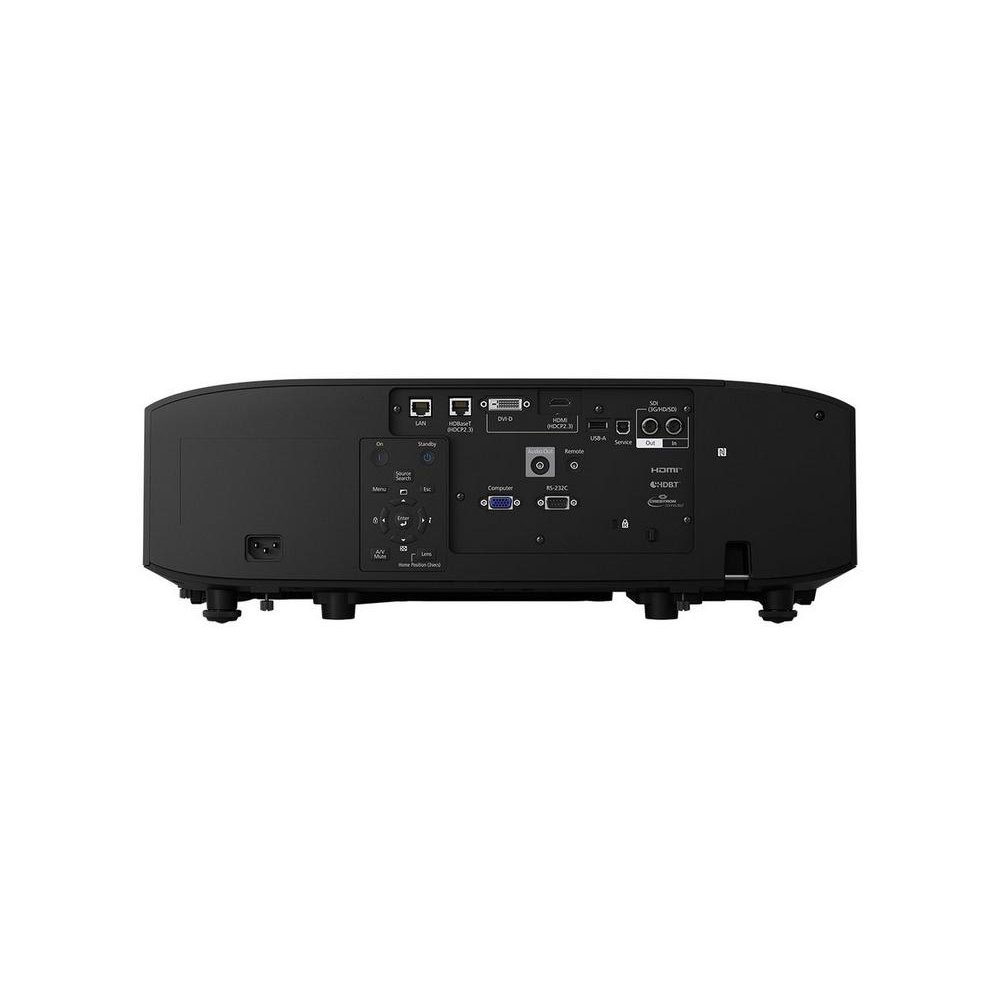

Interfaces: USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n (optional), VGA in, DVI in, HDBaseT, Jack plug out, HDMI (HDCP 2.3), 3G-SDI Input, 3G-SDI Output, Near Field Communication (NFC), USB content playback, Remote
Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
|
| Advanced Features |
Security: Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Other features: 21:9 aspect ratio support, 4K enhancement, A/V mute, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Horizontal and vertical keystone correction, Lens position memory, Long light source life, OSD copy function, Point correction, Power on button, Quick Corner, Schedule Function, Super resolution, Web Control, Web Remote, iProjection App
Video Color Modes: Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Projector control: via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery
|
| General |
Power consumption: 462 Watt (Normal On-Mode), 535 Watt (Normal Peak-mode), 452 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)
Heat Dissipation: 1,819 BTU/hour (max)
Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions: 545 x 436 x 189 mm (Width x Depth x Height)
Product weight: 16.8 kg
Noise Level: Normal:37 dB (A) – Economy:30 dB (A)
Supported Temperature: Storage -10° C – 60° C
Supported Humidity: Operation 20% – 80%, Storage 10% – 90%
Improper installation of the projector on a ceiling or wall may cause it to fall, leading to potential injury or damage. To prevent this, ensure the ceiling mount is securely fastened using all mounting points specified in the projector’s user guide which is available to download from our support website (www.epson.eu/support). We recommend the use of Epson-approved ceiling mounts that are compatible with the projector model. Additionally, attach a safety wire of adequate strength to secure the projector to the ceiling mount.
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
We recommend that the equipment be inspected on a regular basis, either by the user or by a qualified professional, to ensure continued safe operation.
If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Included Software
Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool
Options: Air filter, Camera module, Ceiling mount, Wireless LAN unit: Room Type / Application
Large Meeting Room/Boardroom, Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
Positioning: Ceiling Mounted, Desktop, Truss Mount
Colour: Black
|
| Other |
Warranty: 36 months Carry in
|
