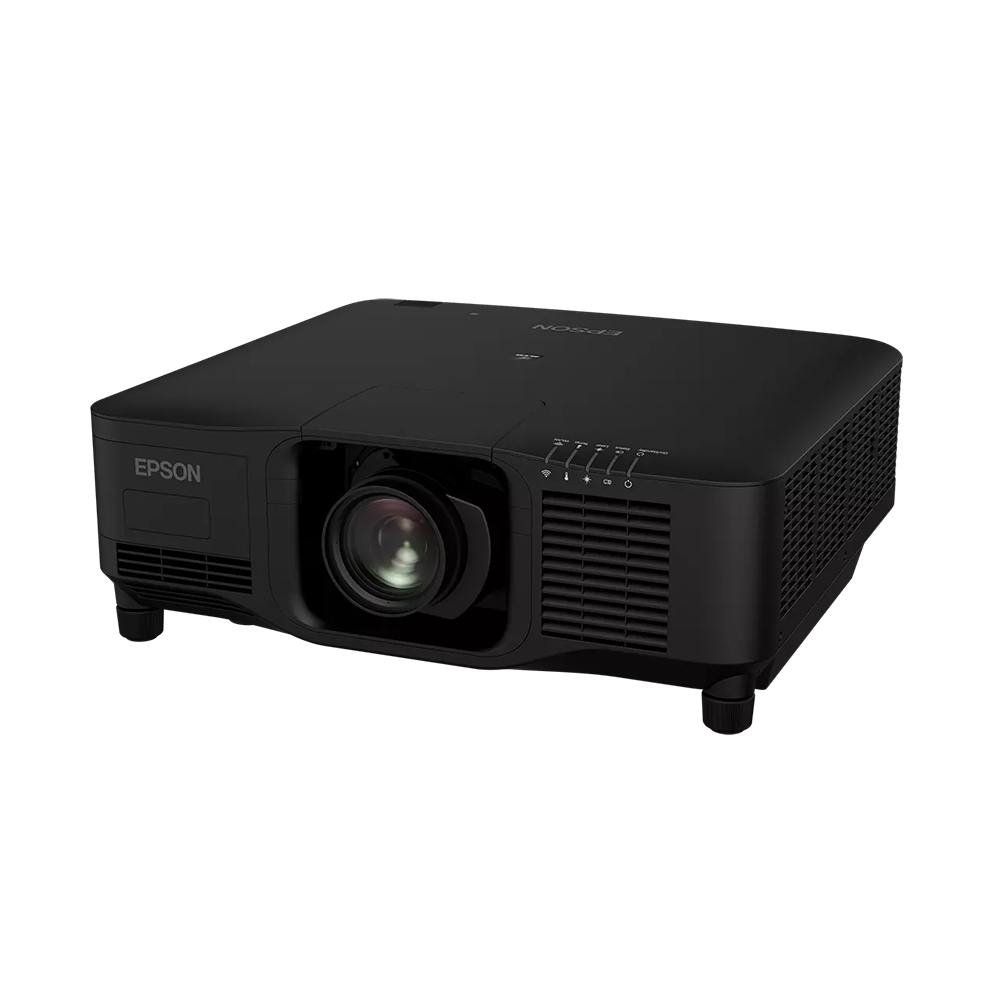

Epson - EB-PQ2213B 13,000lm 4K projector Front LeftEpson - EB-PQ2213B 13,000lm 4K projector Front Left

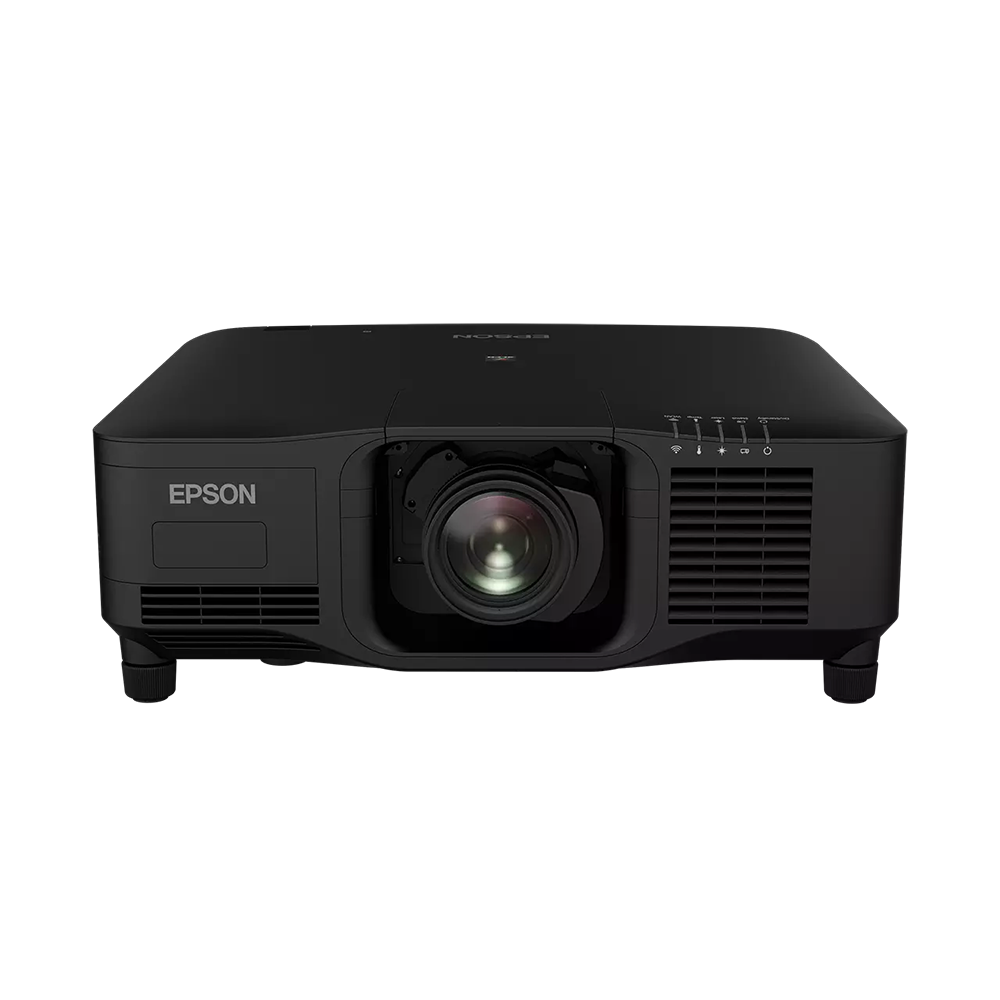

Epson – EB-PQ2213B 13,000lm 4K projector

Epson

Perfect for anyone needing an ultra-high resolution experience, the EB-PQ2213B is a powerful, compact 13,000lm 4K projector.

Features

  • Patented 4K and imaging technology Outstanding 4K image quality delivers superb immersivity
  • Ultra-compact and lightweight Small, powerful 13,000lm 4K projector
  • Cross-platform lens compatibility Lets you build the optimal projection solution for every requirement
  • Fit-and-forget reliability Filter-free design and IPX5 dust resistance1
  • Reduced environmental impact Energy-efficient with reduced requirements for packaging and transport
  • Legal Statement Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase.
SKU: V11HB03880 Categories: , , , ,

Description

Designed to engage and captivate audiences with ultra-high resolution, large format content, the EB-PQ2213B uses 3LCD technology to deliver outstanding colour reproduction, while Epson’s patented 4K Crystal Motion technology offers stunning image quality. Affordable and energy-efficient, the projector also features interchangeable lenses, a light and compact design and extensive connectivity.

Limitless creativity Building on the success of the EB-PU Series, the EB-PQ2213B is not only small and light, but is highly affordable, versatile, energy-efficient and packed with advanced features. Allowing you the freedom to create unforgettable immersive experiences.

Reliable Built for exceptional reliability, the EB-PQ2213B features IP5X rated dust resistance1 and up to 20,000 hours maintenance-free operation, or even longer in extended modes.

A revolutionary 4K experience Marvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion, panel thermo-control and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality.

Extensive software Compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Projector Config Tool for a wealth of calibration, assistance and control functionality.

Fantastically flexible Featuring a wide range of connectivity, including 12G SDI in/out and HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied ‘body-only’, allowing you to build the perfect solution for your installation.

What’s in the box

  • Cable cover
  • Document Pack
  • Information sheet
  • Lens connector cap
  • Main unit
  • Power cable
  • Quick Start Guide
  • Remote control incl. batteries

Compatible Lenses

Additional information

Technology

Projection System: 3LCD Technology, RGB liquid crystal shutter
LCD Panel: 1.04 inch with C2 Fine

Color Light Output:
13,000 Lumen- 9,100 Lumen (economy) In accordance with IDMS15.4
White Light Output:
13,000 Lumen – 9,100 Lumen (economy) In accordance with ISO 21118:2020
Portrait Colour Light Output: 13,000 lm
Portrait White Light Output: 13,000 lm
Resolution: 4K (3840 x 2160)
Aspect Ratio: 16:9
Contrast Ratio: Over 5,000,000 : 1
Native Contrast: 3,000 : 1
Light source: Laser
Laser Light source: 20,000 hours Durability High, 30,000 hours Durability Eco
Keystone Correction: Manual vertical: ±45 °, Manual horizontal ±30 °
Colour Video Processing: 10 Bits
Colour Reproduction: Upto 1.07 billion colours
HDR support: HDR10, HLG
Optical

Throw Ratio: 0.34 – 7.16:1, Varies by lens
Zoom: Motorized, Varies by lens
Lens: Optical
Lens Shift: Varies by lens
Screen Size: Varies by lens
Projection Distance Wide: Varies by lens
Projection Distance Tele: Varies by lens
Projection Distance Wide/Tele: Varies by lens
Projection Lens F Number: Varies by lens
Projection Lens Focal Length: Varies by lens
Projection Lens Focus: Motorized
Offset: Varies by lens
Interchangeable Lens: Yes
Standard Lens: Not included
Mechanical shutter: Yes
Connectivity

Interfaces:
USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n (optional), HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Near Field Communication (NFC), USB content playback, Remote, 12G SDI Input, 12G SDI Output
Network Protocol:
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features

Security:
Kensington lock, Control panel lock, Padlock, Wireless LAN unit lock, Wireless LAN security, Password protection
Other features:
21:9 aspect ratio support, A/V mute, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Frame interpolation, Freeze image, Horizontal and vertical keystone correction, Lens position memory, Long light source life, OSD copy function, Point correction, Quick Corner, Schedule Function, Web Control, Wireless LAN capable, iProjection App
Video Color Modes:
Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Projector control:
via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery
Sealed Light Source Module: Yes, IP5X rated
Sealed Optical Engine: Yes, IP5X rated
General

Power consumption:
809 Watt (Normal On-Mode), 925 Watt (Normal Peak-mode), 666 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)
Heat Dissipation:
3,145 BTU/hour (max)
Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions: 586‎ x 492 x 218 mm (Width x Depth x Height)
Product weight: 28.8 kg
Noise Level: Normal:37 dB (A) – Economy:34 dB (A)
Supported Temperature: Storage -10° C – 60° C
Supported Humidity: Operation 20% – 80%, Storage 10% – 90%
Improper installation of the projector on a ceiling or wall may cause it to fall, leading to potential injury or damage. To prevent this, ensure the ceiling mount is securely fastened using all mounting points specified in the projector’s user guide which is available to download from our support website (www.epson.eu/support). We recommend the use of Epson-approved ceiling mounts that are compatible with the projector model. Additionally, attach a safety wire of adequate strength to secure the projector to the ceiling mount.

If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

We recommend that the equipment be inspected on a regular basis, either by the user or by a qualified professional, to ensure continued safe operation.

If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Included Software:
Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool
Options:
Camera module, Ceiling mount, Wireless LAN unit
Room Type / Application:
Large Meeting Room/Boardroom, Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
Positioning:
Ceiling Mounted, Desktop, Floor, Truss Mount, Table Mounted, Wall Mounted
Colour: Black
Other

Warranty: 36 months Carry in

Downloads

Data Sheet Download
