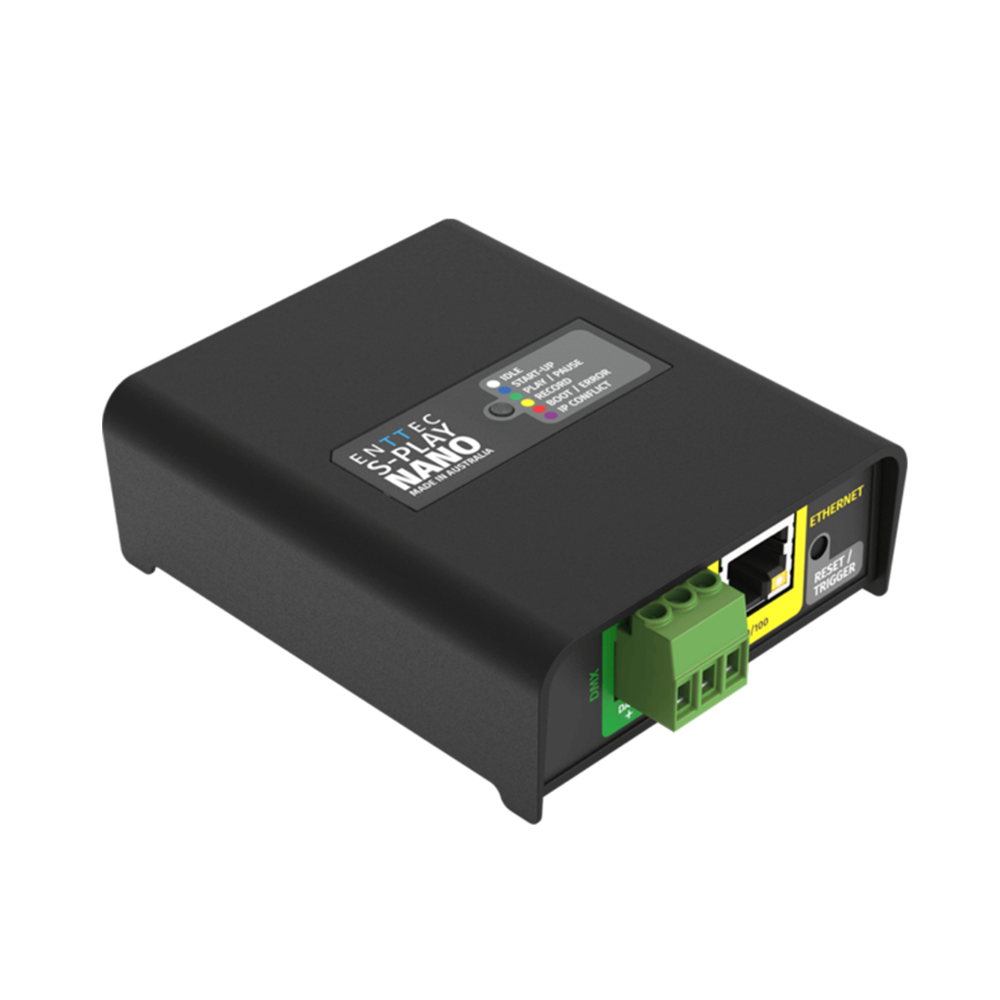

Enttec-S-Play-Nano-Front-Right-AngleEnttec-S-Play-Nano-Front-Right-Angle

Enttec – S-Play Nano

Enttec

DIN-rail-mountable DMX recorder + smart light show controller

1-Universe, DIN-rail-mountable solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.

Features

  • Supports DMX port live recording and playback for 1 full DMX universe of 512 channels.
  • Records cues from DMX sources with the added convenience of a DMX value monitor.
  • Creates gradient Effect Cues using the in-built effect generator.
  • Features user-friendly web interface providing easy configuration options for recording Cues and editing Events/Triggers.
  • Allows users to create up to 4 Playlists, that comprising a maximum of 4 Cues, including Static, Dynamic, and Effect Cues.
  • Sends up to 4 automated Events from options: Relays, UDP & OSC.
  • Supports up to 8 Triggers from options: Digital Inputs, UDP, OSC and a Trigger button on the device.
  • Offers upgradable firmware to S-PLAY MINI for enhanced capabilities.
SKU: ENT70095 Categories: , , , ,

Description

ENTTEC’s S-PLAY NANO is a compact show recorder and playback controller that simplifies professional lighting control. It records one complete Universe via DMX for up to 4 Static, Dynamic, or Effect Cues, or you can create gradient effects using the onboard pixel effects generator. The S-PLAY NANO integrates external devices like buttons, switches, or sensors for automated control via contact closures, UDP, or OSC. Its web interface allows drag-and-drop playlist design with customizable triggers, fades, and intensities. Playlists can be set to loop on power-up or triggered to run simultaneously with overlapping effects.

Cue: record + create effects

The S-PLAY NANO is a powerful, professional light show generation engine, featuring multiple ways of recording and creating content for your show.

Record light scenes into either static or dynamic cues from DMX using the physical port.

Use the internal web-based engine to generate gradient effect cues or simple light scenes by editing DMX values manually.

Playlist: design + integrate

Create playlists for DMX or pixel light shows using the intuitive timeline editor, and integrate both lighting and non-lighting equipment through multiple protocols and contact closures.

Use these components as building blocks in your playlists to initiate automation events using OSC and UDP.

Moreover, you can trigger playlists in real-time using external building automation software, iPad Apps, pressure pads, motion detectors, push buttons, and various other methods.

The S-PLAY NANO’s sophisticated and intuitive playlist creation tools include:

  • Drag and drop cues, events and triggers into the timeline
  • Adjust the duration for static cues and effects
  • Fade in/out for all cues
  • Control playlist intensity in real-time
  • Design your show with a combination of different cues, events and triggers
  • Edit, loop, prioritise and group playlists
  • Play single or multiple playlists
Playback: set + forget

Use the intuitive web-based creation tool to set up multiple playlists to play back on demand. The customised user interface simplifies commissioning to make playback easier than ever, with multiple installation options to secure your device with peace of mind.

Set up multiple playlists to playback simultaneously in various ways using real–time triggers or even custom user interface for different needs. The S-PLAY NANO optimises the intricate lighting setup within finger reach so you can set and forget.


Flexible installation options

The S-PLAY NANO offers versatile installation possibilities with both DIN-rail and surface-mount options, making it adaptable to a wide range of environments. Whether you’re working in a compact space or a large-scale venue, the S-PLAY NANO can seamlessly integrate into your setup.

Firmware updates, backup, restore and playlist management can be accessed easily on the web interface at the local network.

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

Additional information

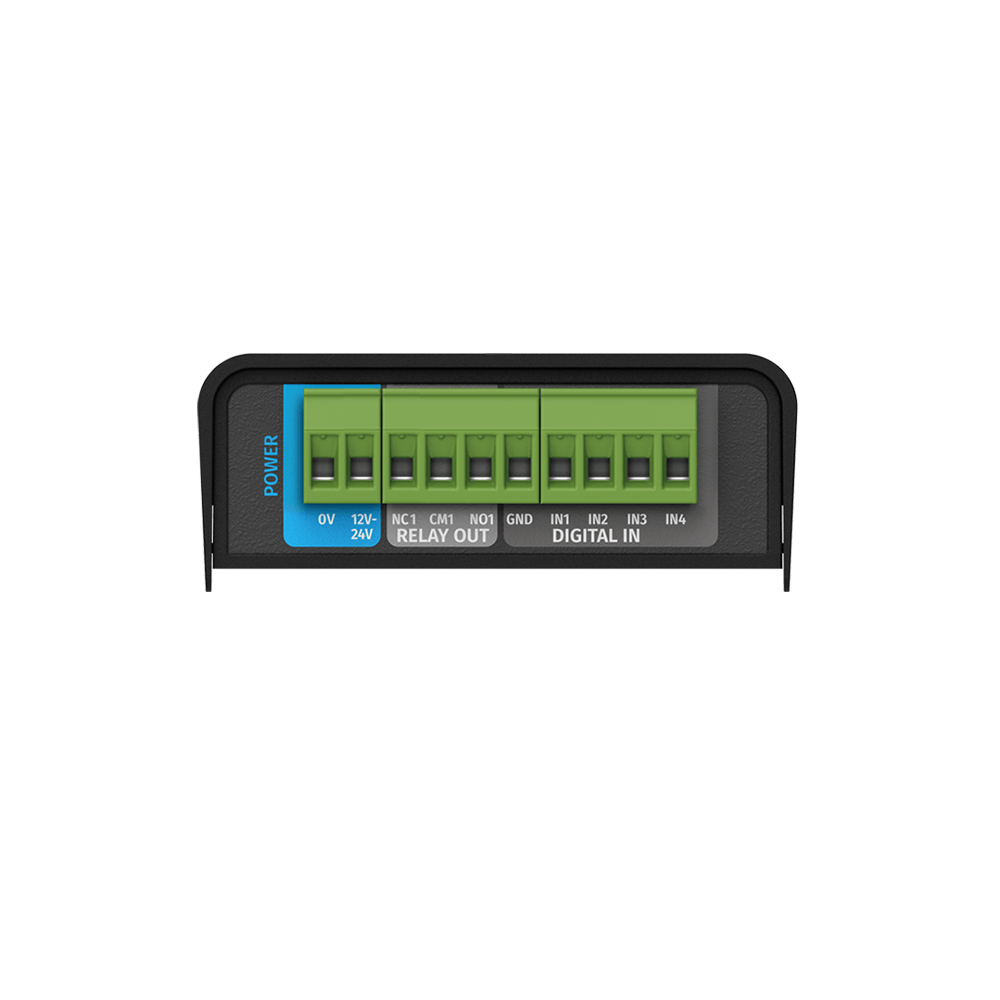

Connectors

1x Power Input (2-Pin Screw terminal)

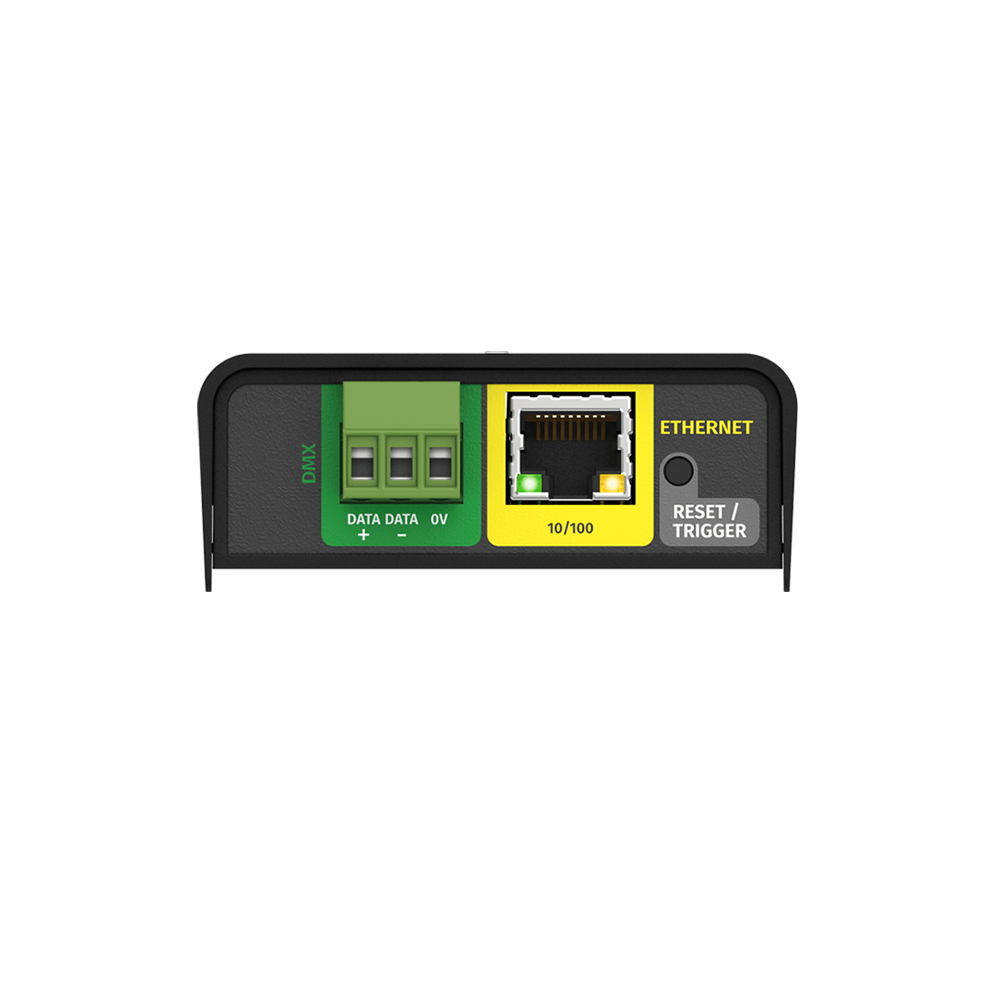

1x Ethernet (RJ45)
1x Relay (3-Pin Screw terminal)
4x Digital Input (5-Pin Screw terminal)
1x Bi-directional DMX Port (3-Pin Screw terminal)

Input Voltage

12-24V DC

Max. Power Draw

3W

IP rating

IP20

Max Universe

1 Universe (512 Channels)

Input / Output Protocol

USITT DMX512-A

Network Speed

10/100Base-T

IGMP Version

IGMPv2

Max Refresh Rate (FPS)

40 FPS

Relay Max Switching Power/Current

60W, 125VA/2A

Internal Storage

1GB

External Storage

No

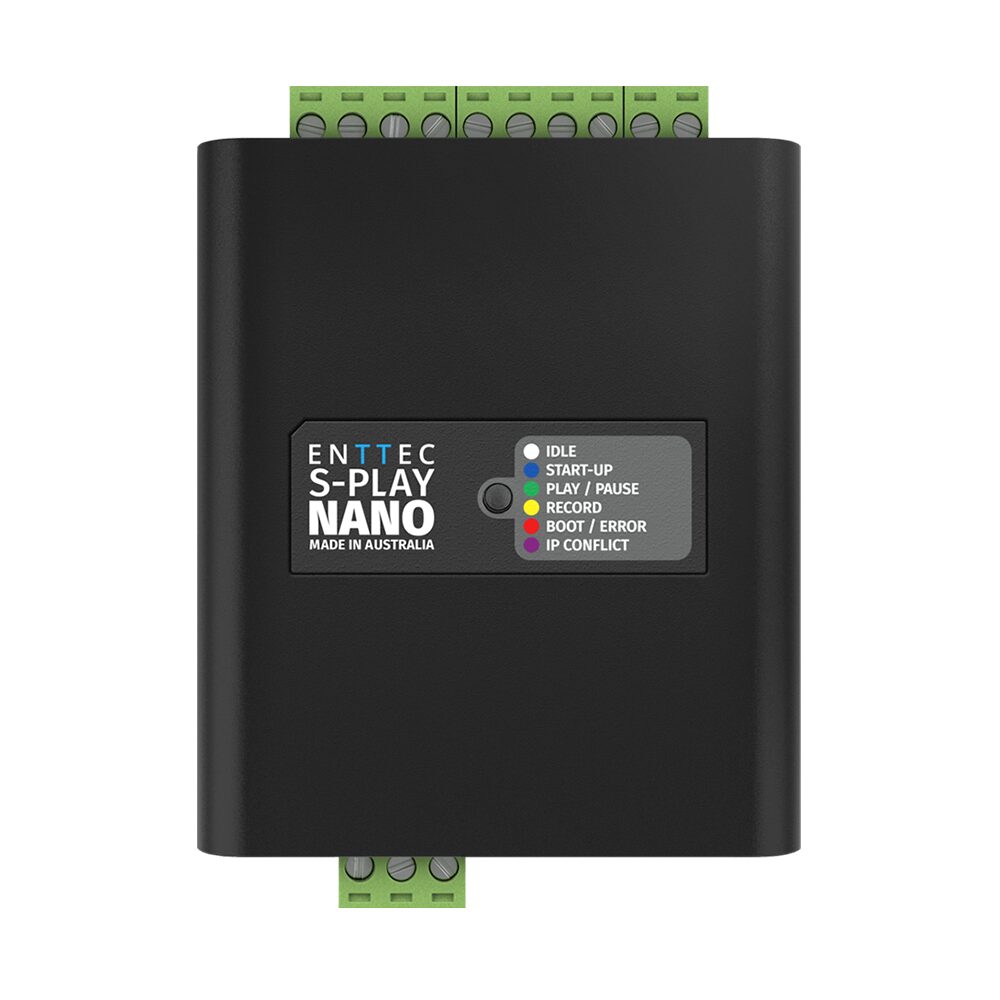

LED indicators

Forward facing LED indicator
Network link / activity (integrated into RJ45 ports)

Cooling Method

Convection

Environmental operating temperature

0°C to 50°C
32°F to 122°F

Environmental operating humidity

0 to 95% (non-condensing)

Body material

ABS Plastic

Mounting options

Surface & TS35 DIN Rail mount

Unit dimensions

100.5*72.25*34 mm

Unit weight

0.83kg / 0.18lbs

Shipping dimensions

160*140*40 mm

Shipping weight

0.16kg / 0.35lbs

Warranty

3-year return to base
manufacturer warranty

Downloads

Data Sheet Download
