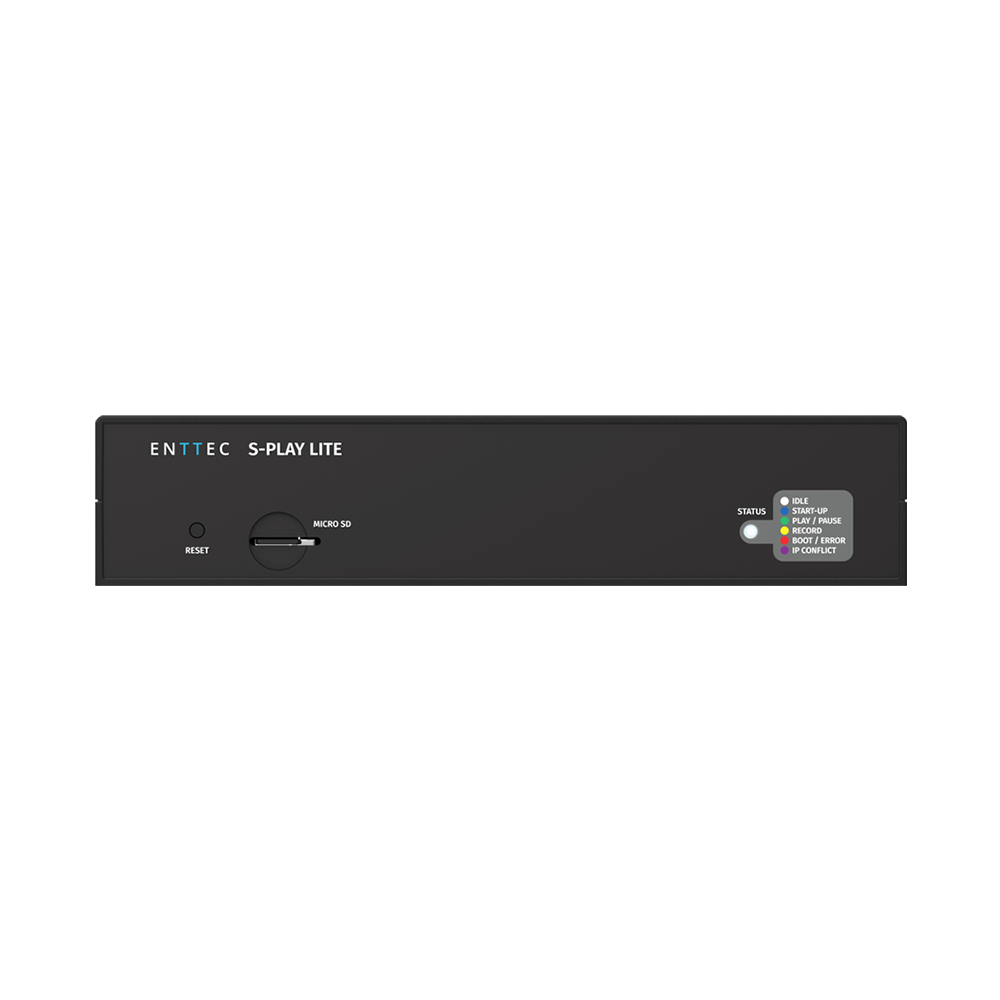

Enttec – S-Play Lite

Enttec

16-universe, all-in-one DMX recorder + smart light show controller

Engineered for projects that require precise automation, the S-PLAY LITE smart light show controller is your all-in-one solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.

Features

  • Supports recording and playback of up to 16 universes of Art-Net and sACN.
  • Equipped with two XLR DMX ports for flexible recording and playback.
  • Records cues from DMX sources with a built-in DMX value monitor.
  • Enables creation of gradient Effect Cues using the in-built effect generator.
  • Features an intuitive web interface for easy configuration.
  • Allows up to 100 playlists with Static, Dynamic, and Effect Cues.
  • Sends up to 150 automated events via RS232, Art-Net, sACN, DMX, Relays, UDP, and OSC.
  • Supports up to 150 remote triggers through RS232, Art-Net, sACN, DMX, Digital Inputs, UDP, and OSC.
  • Internal memory stores over 20 hours of 16-universe recording at 40FPS, expandable via Micro SD card.
  • Enables creation of custom user-facing web interfaces.
  • Allows scheduling of playlists for automated playback.
SKU: ETC70094 Categories: , , , ,

Description

ENTTEC’s S-PLAY LITE is a smart show recorder and playback controller designed for professional, hassle-free light shows and automation. It handles light shows, video, and machinery with precision, allowing for simultaneous playback and flexible mounting. Combining a scene creation engine, 16-universe DMX recorder, and multiple AV protocol host, it also supports custom web interfaces. With its built-in effects generator and intuitive controls, it makes creating impressive shows easy, even for those without extensive lighting experience. Now UL certified, it delivers the performance and safety compliance required for professional installations.

Cue: record + create effects

The S-PLAY LITE is a powerful, professional light show generation engine, featuring multiple ways of recording and creating content for your show.

Record light scenes into static/dynamic cues from external sources such as lighting software via sACN, Art-Net or from physical universes using the DMX port.

Use the internal web-based engine to generate gradient effect cues or simple light scenes by editing DMX values manually.

Playlist: design + integrate

Create playlists for DMX or pixel light shows using the intuitive timeline editor, and integrate both lighting and non-lighting equipment through multiple protocols and contact closures.

Use these components as building blocks in your playlists to initiate automation events through contact closure, RS232, or protocols like OSC, UDP, DMX, Art-Net, and sACN.

Moreover, you can trigger playlists in real-time using external building automation software, iPad Apps, pressure pads, motion detectors, push buttons, and various other methods.

The S-PLAY LITE’s sophisticated and intuitive playlist creation tools include:

  • Drag and drop cues, events and triggers into the timeline
  • Adjust the duration for static cues and effects
  • Fade in/out for all cues
  • Control playlist intensity in real-time
  • Design your show with a combination of different cues, events and triggers
  • Edit, loop, prioritise and group playlists
  • Play single or multiple playlists
Playback: set + forget

Simply set and forget for permanent installation and easy management. You can play back your show at any time and in any way you like through interactive control or scheduled timings.

Use the intuitive web-based creation tool to set up multiple playlists to play back on demand. The customised user interface simplifies commissioning to make playback easier than ever, with multiple installation options to secure your device with peace of mind.

Set up multiple playlists to playback simultaneously in various ways using real–time triggers, internal Schedules, or even custom user interface for different needs. The S-PLAY LITE optimises the intricate lighting setup within finger reach so you can set and forget.

Light show playlists can be set up to playback:

  • By pre-set triggers to create real-time interactive lighting control
  • By scheduler for an automatic long-term setting with perfect local time synchronisation via NTP
  • Customised user interface for hassle-free direct control
Architectural features

Advanced features elevate the S-PLAY LITE into the architectural sphere, bringing you borderless control.

Open API:
Flexible control system integration that allows external commission through text-based codes.

Multi-Sync:
Sync multiple S-PLAYs on the same network when you need more universes. S-PLAY SP1-1, LITE and Mini units discover each other for sync.
The leader S-PLAY can synchronise follower S-PLAYs to enable recording and playback with increased capacity.
Set playlist schedules that sync the playlist command across follower S-PLAYs.

Remote access:
Link one or multiple S-PLAYs to your ENTTEC account with a one-time auth code, then open each one from anywhere through a secure URL.

Management:
Firmware updates, backup, restore and playlist management can be accessed easily on the web interface at the local network.

Flexible installation options

The S-PLAY LITE offers versatile installation possibilities with both rack-mount and surface-mount options, making it adaptable to a wide range of environments. Whether you’re working in a compact space or a large-scale venue, the S-PLAY can seamlessly integrate into your setup.

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

International compliance

The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognised standards for sustainability and safety.

Video

S PLAY remote access tutorial 2026

Follow the tutorial and learn how to set up remote control for your S Play in a few easy steps.Allowing you to control your S-Play from anywhere in the world.

Additional information

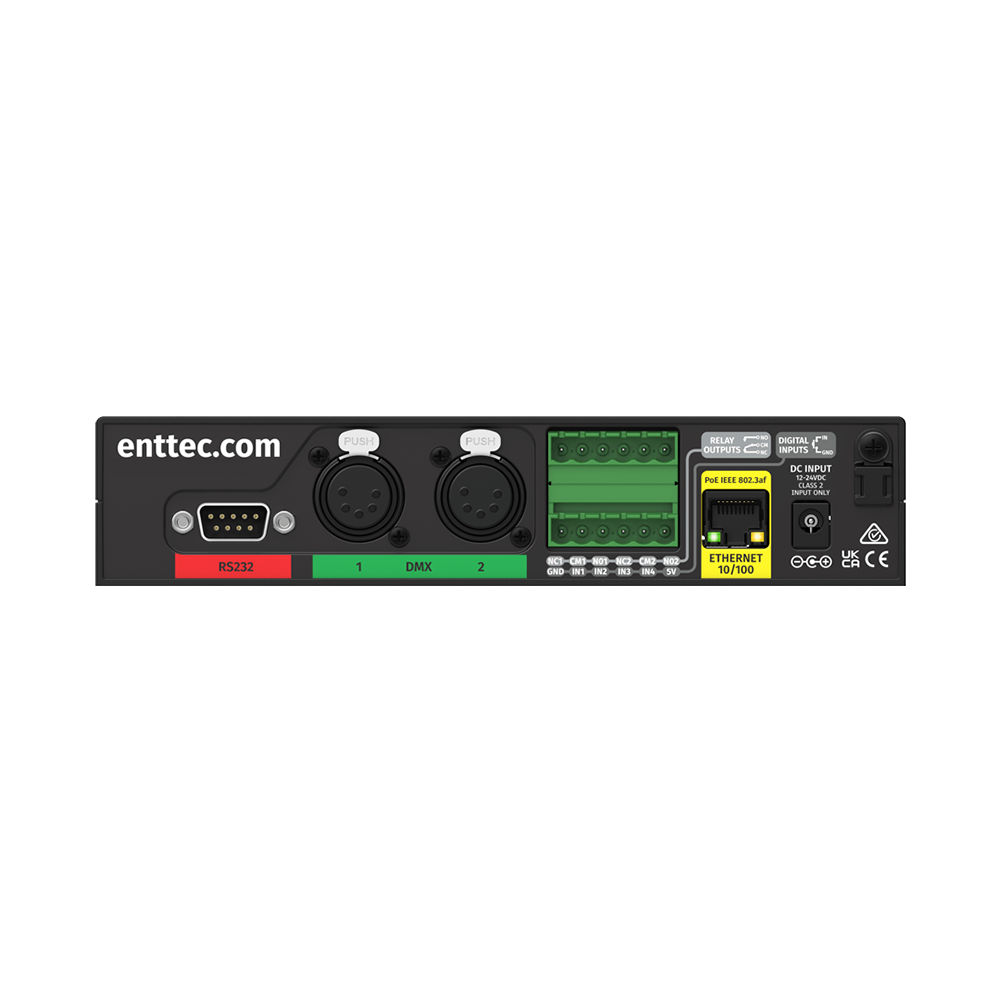

Connectors

1X Power Input (DC Jack)
2X DMX512 (Female XLR5)
1X Ethernet (RJ45)
1X RS232 (Male DB9)
4X Digital Input
(5-Pin Screw terminal)
2X Relay Output
(6-Pin Screw terminal)
1X Micro SD

Input Voltage

12V DC to 24V DC

Power Draw (W)

3W

Current Draw (mA)

110-250mA

IP rating

IP20

PoE

IEEE 802.3af

Network Speed

10/100Base-T

IGMP Version

IGMPv3 (backward compatible
with v1 and v2)

Number of Universes & Input / Output Protocol

2U: USITT DMX512-A
16U: Art-Net/sACN

DMX Refresh Rate (FPS)

Art-Net & sACN: 1 to 60
USITT DMX512-A: 1 to 40

Relay Max Switching Power/Current

60W, 125VA/2A

Internal Show Storage Capacity

8GB (~20 hours of 16
universes at 40fps)

Expandable storage

Yes (Micro SD)

Cooling Method

Convection

Environmental operating temperature

0°C to 50°C
32°F to 122°F

Environmental operating humidity

0 to 95%
(non-condensing)

Body material

ABS Plastic & Anodised
Aluminium

Unit dimensions

200*120*42 mm

Unit weight

0.47kg / 1.04lbs

Shipping dimensions

335*265*78 mm

Shipping weight

1.10kg / 2.42lbs

Warranty

3-year return to base
manufacturer warranty

Downloads

Data Sheet Download
