Enttec – Open DMX USB

Enttec

Maximum value from a minimum spend

The Open DMX USB is a no-frills, inexpensive way to get into the world of controlling DMX devices from your computer. Perfect for project work, small live music and amateur theatre applications.

Features

  • Compatible with a wide range of 3rd party software.
  • Designed to be powered from computer over USB.
  • One female 5 Pin XLR DMX port (output only).
  • Output up to 512 channels (software permitting).
  • Able to integrate into custom projects with reference to programming examples and guide.
SKU: ENT70303 Categories: , , ,

Description

The Open DMX USB features a robust USB type-B port to connect to your computer and a 5-pin DMX output to connect to your DMX lighting. With its folded metal construction you can be sure that it’s at home on a workshop test bench, long-term installation or ready to tour on the road.

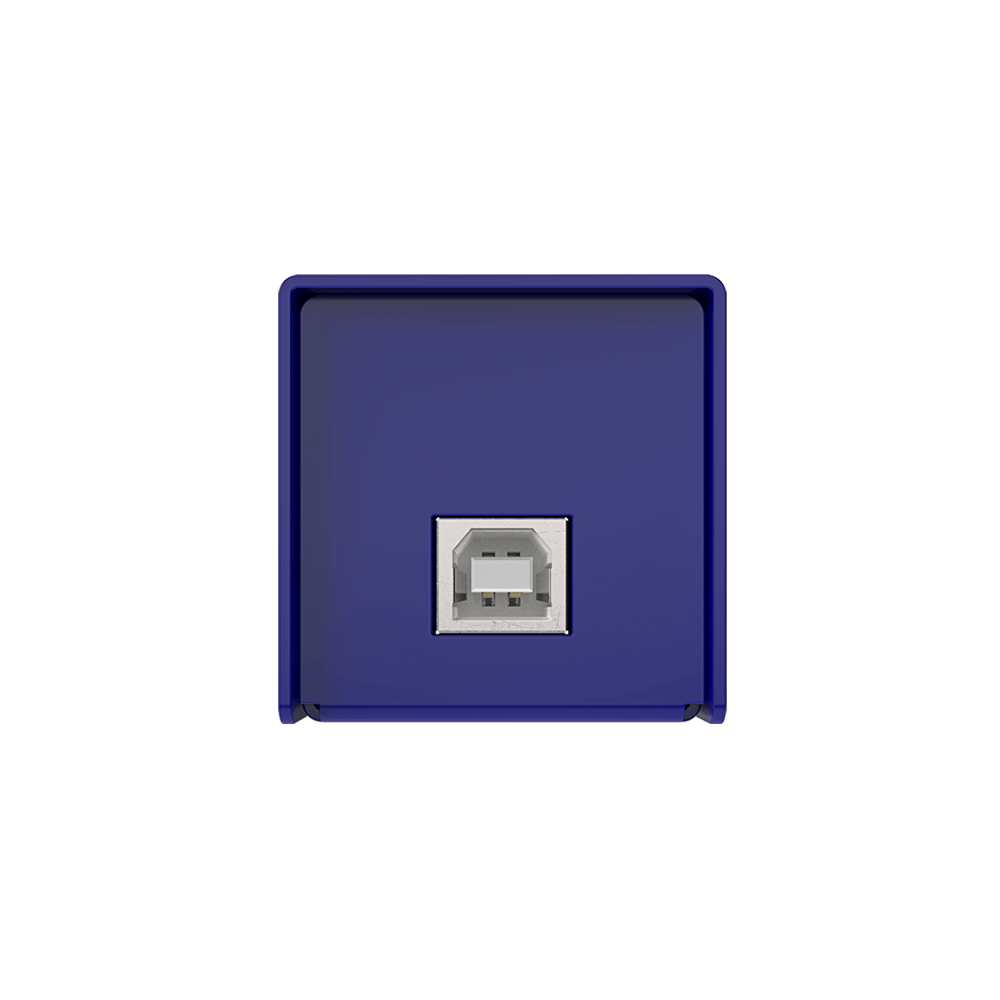

USB Type-B Port

The Open DMX USB features a reliable USB Type-B port, ensuring a strong connection between your computer and the device. This allows for seamless data transfer during operation.

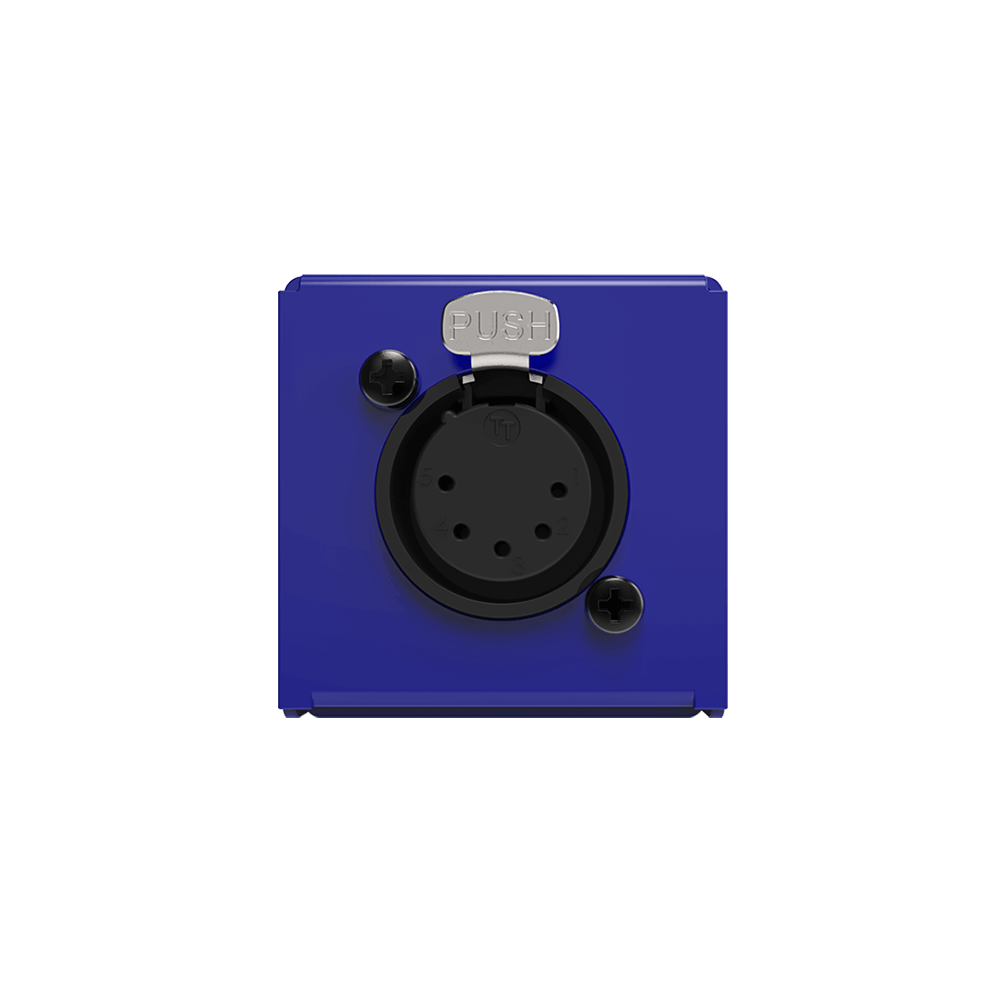

5-Pin DMX Output

Its 5-pin DMX output easily connects to your DMX lighting system, offering compatibility with industry-standard equipment.

Sturdy Build

With its folded metal construction you can be sure that it’s at home on a workshop test bench, long-term installation or ready to tour on the road.

512 DMX Channels

It supports control of 512 DMX channels and full compatibility with a wide range of 3rd party software, giving users substantial capacity for managing complex lighting setups.

Cross-Platform Compatibility

The widely compatible FTDI driver the Open DMX USB uses to communicate with your computer is compatible Windows, macOS and Linux operating systems, giving a wide scope for flexibility.

Manufactured at ENTTEC

Similarly to the rest of the ENTTEC product range, this widget is manufactured in ENTTEC’s Melbourne factory and undergoes the same level of inspection, quality control as the rest of our professional grade products.

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

Video

Open DMX USB vs. DMX USB Pro

Join Jordan from ENTTEC as he breaks down the differences between the Open DMX USB and DMX USB Pro. He’ll guide you through the features of each controller, helping you choose the one that best fits your project needs.

Additional information

Connectors

1* DMX Output (Female XLR5)
1* USB 2.0 Type-B

IP rating

IP20

LED indicators

No

Supported protocols

USITT DMX512-A

Standalone playback

No

MIDI

No

Maximum output channels

1 universe (512ch)

Configuration software

No

Firmware updates

No

Input voltage

5V DC (via USB)

Input current

300mA

Power draw

1.5W

Environmental Operating temperature

0°-50°C
32°-122°F

Environmental Operating humidity

5% – 95% (non-condensing)

Body material

Folded Aluminium

Mounting options

N/A

Unit dimensions

77x40x40 mm

Unit weight

61 g / 0.13lbs

Shipping dimensions

125x75x70 mm

Shipping weight

0.16kg / 0.35lbs

Warranty

3-year return to base manufacturer warranty

Downloads

Data Sheet Download
