Enttec – ODE Mk3

Enttec

The ultimate Power Over Ethernet DMX interface

With 2 Universes of Ethernet to DMX conversion featuring Art-RDM support, Power over Ethernet (PoE) or a flexible 12-24v DC input, the ODE MK3 allows for fast deployment of DMX systems compatible with a wide range of devices.

Features

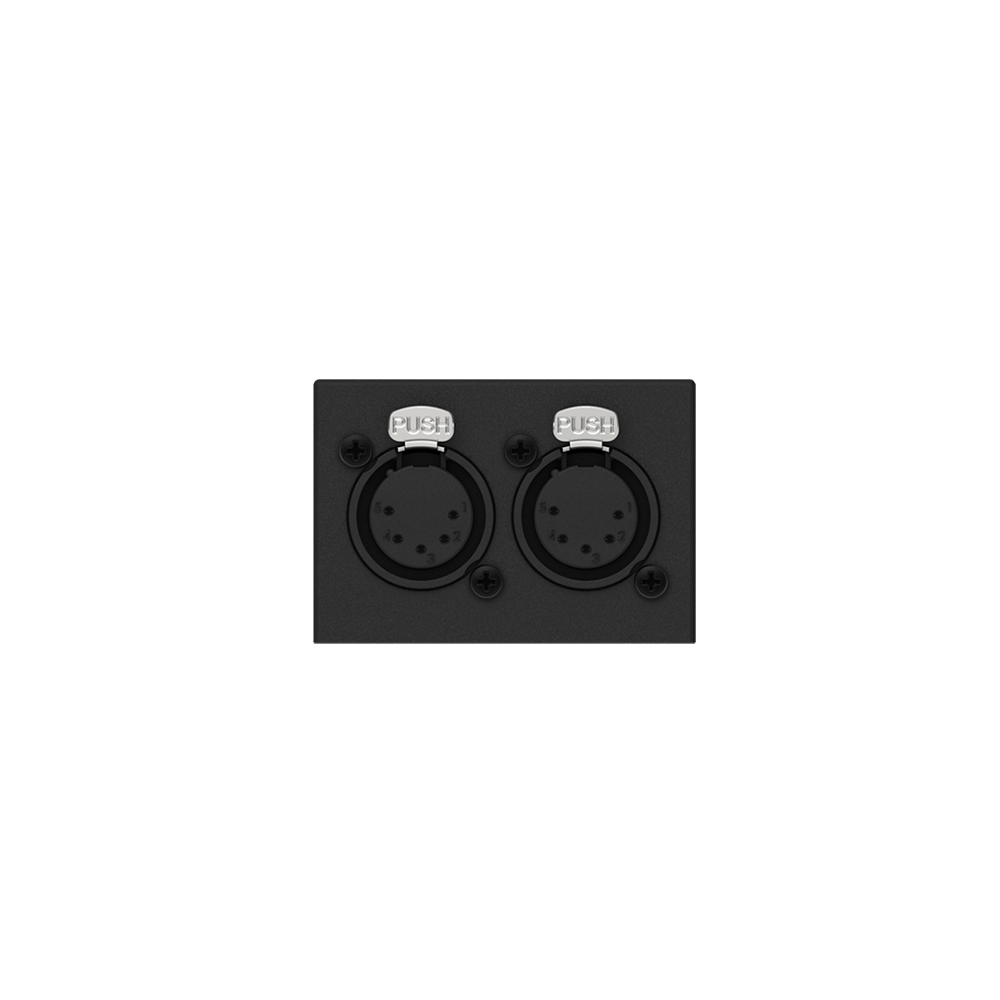

  • Two-Universe bi-directional DMX / E1.20 RDM female XLR5s.
  • One PoE (Power over Ethernet) RJ45 port supporting IEEE 802.3af (10/100 Mbps) plus an optional DC 12-24v power input.

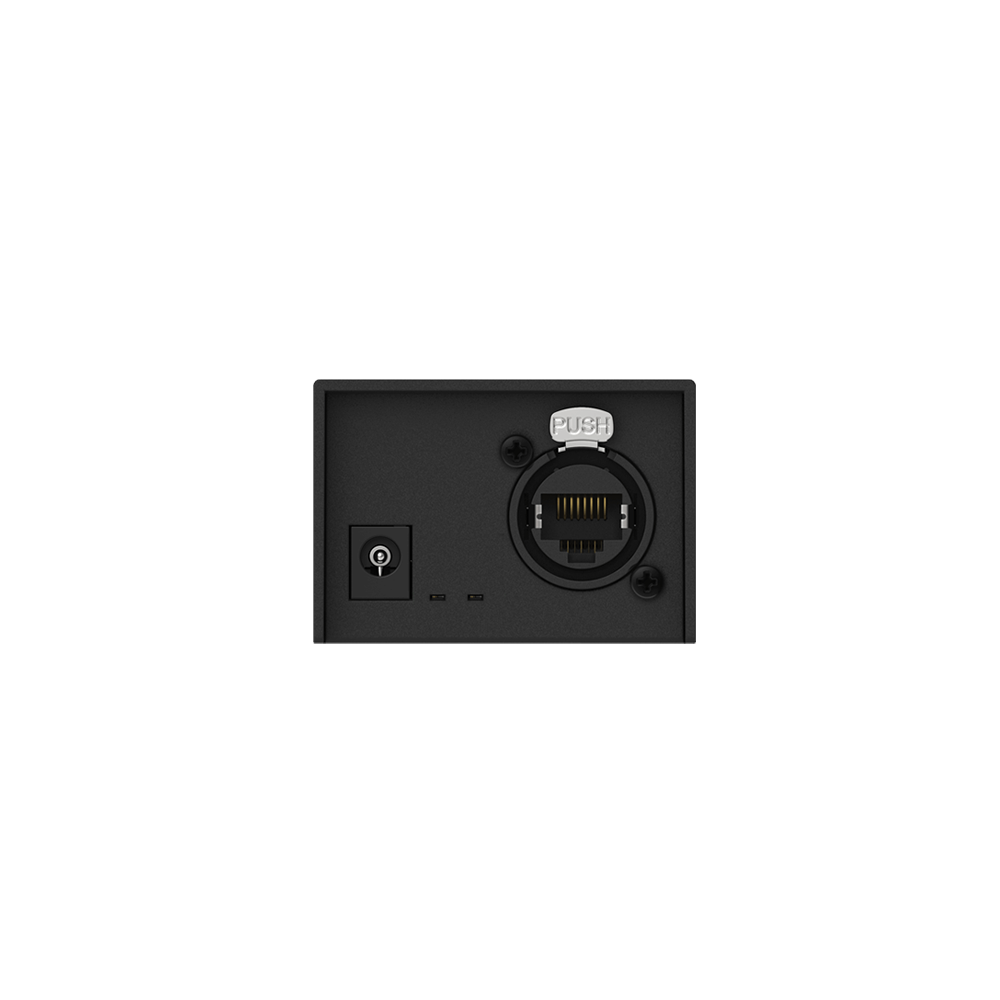

  • Secure ‘EtherCon’ connectors
  • Support RDM over Art-Net & RDM (E1.20).
  • Support for DMX -> Art-Net (Broadcast or Unicast) / DMX -> ESP (Broadcast or Unicast) / DMX -> sACN (Multicast or Unicast).
  • HTP/LTP Merging support for up to 2 DMX sources.
  • Configurable DMX output refresh rate.
  • Intuitive device configuration and updates through the inbuilt web interface.
  • ‘Current Port Buffer’ allows live DMX values to be viewed.

Description

The ODE MK3 is a robust, reliable, installation-grade, Ethernet to DMX converter engineered to connect DMX fixtures to your Ethernet network infrastructure. Now you can expand your lighting project to the next level.

With 2 Universes of bi-directional eDMX to DMX conversion and Art-RDM support, the ODE MK3 is compatible with a wide range of devices and allows for fast deployment of your DMX system. Simply connect, configure and take control!

Additionally, this Ethernet to DMX/RDM gateway is packed with installer-friendly features for a speedy installation and configuration, all managed through a web UI – and contained in a compact, portable form factor.

Easy web page configuration

Configuration is managed through the localhost web interface to simplify commissioning and updates. Consequently, the ODE MK3 to be configured from any computer on your network.

Flexible power options

Power the ODE MK3 using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input.

Sync mode

All ENTTEC Ethernet hardware accepts ArtSync to fully synchronise Art-Net data across your installation when receiving Art-Net from the same source to protect against content tearing and ensure a professional looking output across your rig.

Time-saving and installer-friendly

This Ethernet to DMX converter is packed with installer-friendly features including industry standard 5-pin XLR ports to simplify wiring.

Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the localhost web interface to troubleshoot your installation. Upon receiving power, the device is ready to for action within seconds.

Monitor activity

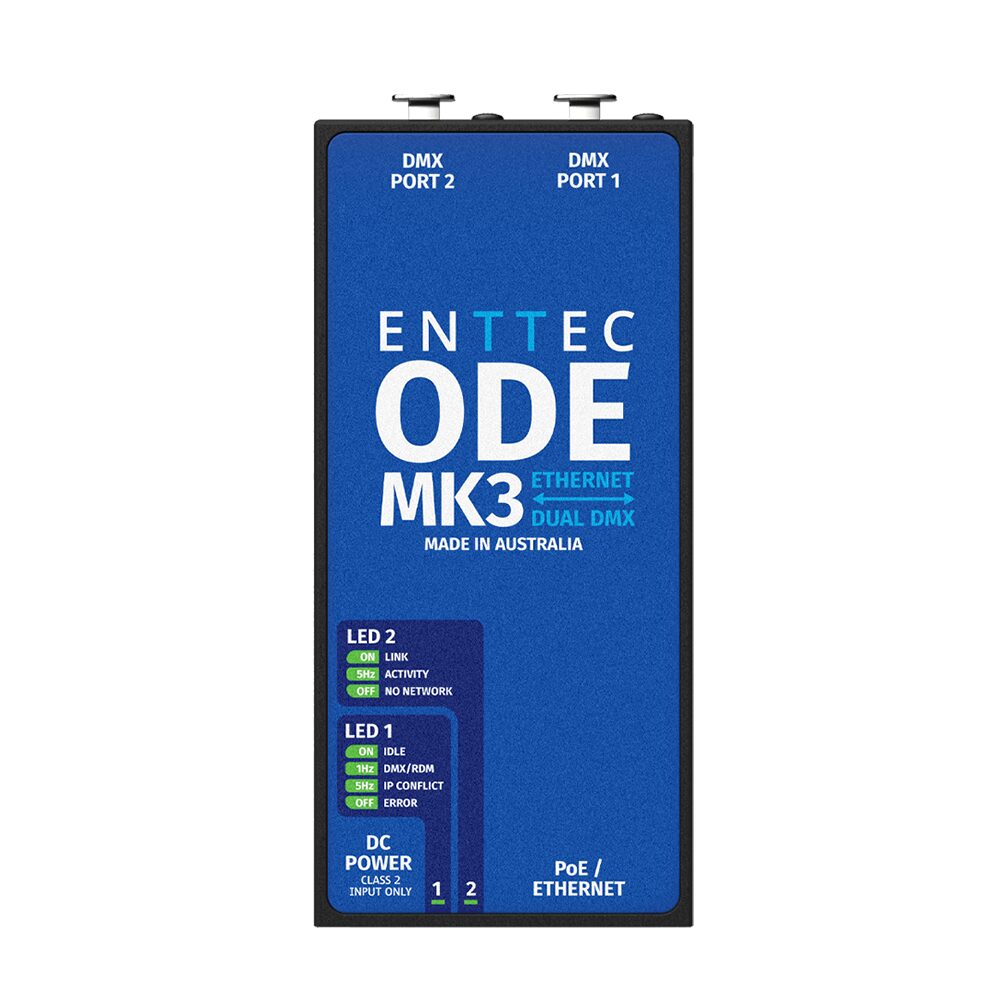

Two status LEDs sit beside the DC power socket, and the key printed on the lid tells you what each one means. LED 1 shows idle, DMX/RDM activity, IP conflicts and errors. LED 2 shows the network link and activity. Solid, flashing or off, you can read the device’s state at a glance.

Protocols

The ODE Mk3’s primary functionality is to convert between Ethernet-DMX protocols and USITT DMX512-A (DMX). The following conversions are available with the ODE Mk3: Art-Net – DMX (with/without RDM. ANSI E1.20 RDM supported) DMX – Art-Net (Broadcast or Unicast) sACN – DMX DMX – sACN (Multicast or Unicast) ESP – DMX DMX – ESP (Broadcast or Unicast)

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

International compliance

The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognised standards for sustainability and safety.

Additional information

Connectors

1* EtherCon Port (RJ45)
2* Bi-directional DMX
(Female XLR5)
1* Power Input (DC Jack)

IP rating

IP20

Input voltage

12-24V DC

Current draw

57-187mA

Max. power draw

2.3W

LED indicators

Status indicator
Network Link / Activity indicators

eDMX Protocols

Art-Net
Art-RDM
sACN
ESP

DMX Protocols

USITT DMX512-A
ANSI E1.20 RDM

DMX & RDM Timings

Break time: 300ms
Mark after Break (MAB): 15ms

Max. Channels

2 Universes (1024ch)

Max. Refresh Rate

44FPS

Art-Net Merging

2 Sources

Network Speed

10/100 Base-T

Power over Ethernet

IEEE 802.3af

IGMP Version

IGMPv2

Network Configuration

DHCP/Static (default 192.168.0.10)

Configuration Software

Web Browser

Firmware Updates

Web Browser

Environmental operating temperature

0°-50°C / 32°-122°F

Environmental operating humidity

5- 95% (non-condensing)

Body material

ABS Plastic

Unit dimensions

129mm x 58mm x 40mm

Unit weight

0.10kg / 0.22lbs

Shipping dimensions

235mm x 159mm x 69mm

Shipping weight

0.45kg / 0.99lbs

Warranty

3-year return to base manufacturer warranty

Downloads

Data Sheet Download
