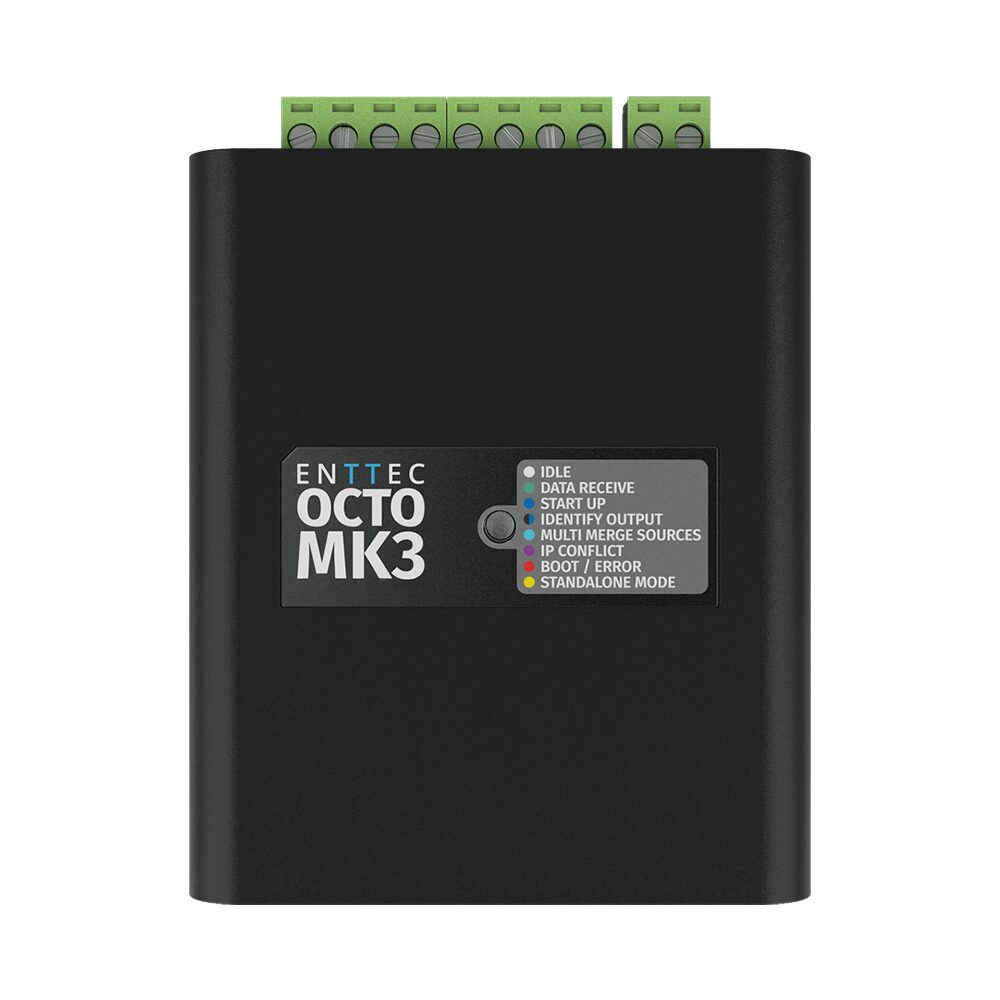

Enttec – OCTO MK3

Enttec

Unleash unprecedented power with 32 universe capacity and flexible port configuration

eDMX to SPI pixel controller with Standalone Mode & Overdrive feature capable of transmitting up to 32 universes of SPI data in a compact 4-module DIN-rail form factor.

  • Flexible pixel output configuration – Supports data and clock signals or can repurpose clock for additional data output.
  • Supports up to 32 universes of Art-Net, sACN, Kinet and ESP with overdrive mode.
  • Extensive protocol support, including both data and clock-based configurations.
  • Custom pixel protocol creation for specialised applications.
  • Daisy-chain networking for efficient data distribution.
  • Supports DHCP and Static IP addressing.
  • Grouping functionality reduces input channel count for streamlined configuration.
  • Surface or TS35 DIN rail mounting options.
  • Identify/Reset button for quick wiring verification without a network connection.
  • Port Sync ensures all ports stay synchronised, preventing inconsistencies and ensuring
    smooth operation.
  • User-friendly web interface for intuitive device configuration and firmware updates.
  • Inbuilt FX engine for standalone gradient effects without requiring an external DMX
    source.
SKU: ENT71522 Categories: , , , , ,

Description

Unleash unprecedented power with 32 universe capacity and flexible port configuration

The OCTO MK3 is a powerful quad-output eDMX to LED pixel converter with overdrive mode, transmitting up to 32 universes. Robust and reliable, it connects directly to LED lights, elevating architectural, commercial, and entertainment projects. Designed for fast deployment, it supports Art-Net, sACN, ESP, and KiNet protocols, and works with over 20 industry-standard SPI LED strips.

It features flexible output configuration with up to 8 universes per port: 2 outputs with Clock support or up to 4 outputs when repurposing Clock as additional data ports. The intuitive localhost web interface enables easy gradient effects via the inbuilt FX engine, with standalone shows on power-up, no DMX needed.

With installer-friendly features like Port Sync for synchronized output, network daisy-chaining, custom protocol creation, and flexible mounting options, the OCTO MK3 delivers professional LED pixel control for demanding installations.

Note: The OCTO Mk3 does not require or use PLink Injectors.

OCTO MK2 (discontinued) vs OCTO MK3

The OCTO MK3 delivers double the capacity with 32 universes (vs 16U in MK2) and introduces NEW Port Sync technology for perfectly synchronized multi-port output. It offers flexible configuration with up to 4 data outputs via split port mode (vs 2 fixed in MK2), enhanced standalone FX with real-time preview, all in the same compact, DIN-rail form factor.

32 Universe Powerhouse

The OCTO MK3 delivers up to 32 universes of output, double the capacity of its predecessor. Supporting up to 5,440 RGB or 4,096 RGBW pixels, it’s the ideal solution for large-scale installations demanding maximum data throughput and performance.

Flexible Port Configuration

Configure your outputs exactly how you need them. Each port supports up to 6U + 2U in overdrive mode, and when you don’t need Clock-compatible fixtures, simply enable “split port” to convert Clock outputs to additional Data ports, expanding your data output capacity. Mix and match configurations across individual ports to perfectly match your project requirements.

Port Sync Technology

When using multiple ports with different protocols or DMX universes, timing mismatches can create visual inconsistencies. The OCTO MK3’s Port Sync feature ensures all ports stay synchronised, preventing inconsistencies and ensuring smooth operation across your entire installation.

Standalone FX Engine

Create stunning gradient effects without any external DMX source. The OCTO MK3’s inbuilt FX engine allows users to create gradient effects with real-time previews directly through the web interface. Configure the device to run standalone upon power-up, perfect for permanent installations or testing outputs on-site without requiring a dedicated DMX source.

Powered by your pixels

With an industry-leading 5-60V DC input range, the OCTO MK3 can be powered directly from your LED pixel strips or dots via either port. This eliminates the need for additional power supplies and cabling, streamlining installations and reducing installation time and costs.

Installer-friendly design

Every aspect has been engineered for ease of installation. The Identify/Reset button enables quick wiring verification without a network connection. When pressed, all 8 output universes are set to output the highest value (255) for 10 seconds. Dual RJ45 Ethernet connectors support efficient daisy-chaining (chains of up to 8 devices give optimum synchronisation between outputs). Choose between surface mounting or TS35 DIN rail installation with included accessories.

The user-friendly web interface provides intuitive device configuration, firmware updates, real-time universe buffer inspection, and comprehensive network statistics, making troubleshooting effortless.

Custom protocol creation

The OCTO MK3 supports over 20 industry-standard pixel protocols including APA-102, WS2812B, SK6812, TM1814, and many more. Can’t find your pixel protocol in the pre-listed library? The OCTO MK3 enables custom pixel protocol creation for specialised applications (refer to the Custom Protocol Creation Guide for eligibility requirements).

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

International compliance

This ENTTEC product conforms to the following international compliance and safety standards:

Video

OCTO Mk3 Explained: What’s New, What’s Better & Why It Matters

The wait is over. Introducing the ENTTEC OCTO Mk3: the next evolution of our compact eDMX-to-pixel controller, delivering double the universes, double the outputs, and a massive leap in creative flexibility.

Additional information

Connectors

2 x Network (RJ45)
2 x Multifunctional Data Port (4Pin Screw Terminal)
1 x Power Port (2Pin Screw Terminal)

IP Rating

IP20

Input Voltage

5-60V DC

Max. Power Draw

5W

Max. Heat Dissipation

4.5 W

Max. Output Voltage

5V

Max. Output Current

50mA

eDMX Input Protocol

Art-Net
sACN
ESP
KiNet

Network Speed

10/100Base-T

Network Discovery

ENTTEC’s EMU software

Network Configuration

Static (Default 192.168.0.10) /
DHCP

Data Output Type

SPI (NZR)

Max. eDMX -> Pixel Conversion Per Device

32 Universes (16,384 channels)

Max. Pixels Controllable Per Device

RGB: 5,440 (1,360 per port)
RGBW: 4,096 (1,024 per port)

Max Frame Rate

100fps

Firmware Updates

Web Interface

LED Indicators

Forward-facing LED indicator
Network link/activity (integrated into RJ45 ports)

Cooling Method

Convection

Operating Temperature

-20°C to 50°C /-4°F to 122°F

Operating Humidity

5 to 95% (non-condensing)

Body Material

ABS plastic

Mounting Options

Surface & TS35 DIN Rail mount

Unit Dimensions

100.5*77.9*31 mm

Unit Weight

0.08kg / 0.18lbs

Shipping Dimensions

165*145*43 mm

Shipping Weight

0.18kg / 0.39lbs

Warranty

3-year return to the base
manufacturer warranty

Downloads

Data Sheet Download
