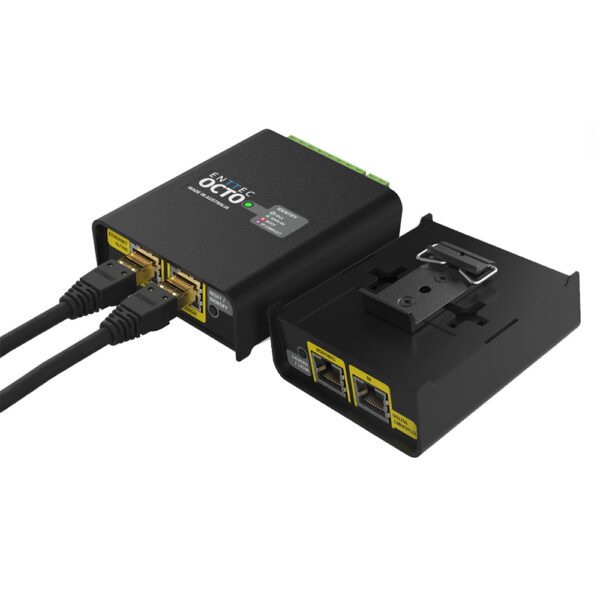

Enttec - Pixel Octo 8 Universe Din Rail LED Pixel ControllerEnttec - Pixel Octo 8 Universe Din Rail LED Pixel Controller

Enttec – Octo MK2 dual-output eDMX to LED pixel

Enttec

8-Universe DIN rail LED pixel controller The OCTO is a NextGen DIN rail LED pixel controller-> a pixel data converter & controller capable of controlling up to 1360 RGB LED pixels. The OCTO is a robust and reliable installation-grade device that connects directly to your pixels. Take any architectural, commercial, or entertainment project to the next level.

SKU: ENT71521 Categories: , , , , ,

Description

Take your projects to the next level with the ENTTEC OCTO MK2. This robust SPI LED controller efficiently converts up to 16 universes of DMX over Ethernet to pixel data (8U per output), with auto activation of Overdrive mode when configured to output more than 4U per port.

Make LED strip and pixel dot system deployment a breeze with the OCTO MK2. With network chaining and direct power from the LED pixel source, fast installation has never been easier.

The user-friendly OCTO MK2 comes equipped with convenient features such as an identity button for wiring checks and a wide input voltage range (4-60VDC) all packed into a slim 4 DIN form factor.

The OCTO MK2 supports over 20 pre-listed pixel output protocols and supports immediate custom pixel protocol creation (criteria apply, see user manual).

With the inbuilt Fx engine, the OCTO MK2 allows you to create and edit gradient effects with real-time preview effortlessly. The device’s web interface offers a seamless editing experience and can be configured to run standalone upon power-up, eliminating the need for a DMX source.

Features

  • Supports up to 16 universes of Art-Net, sACN, ESP and KiNet with overdrive mode.
  • Extensive protocol support, including both data and clock-based configurations.
  • Custom pixel protocol creation for specialised applications.
  • Daisy-chain networking for efficient data distribution.
  • Supports DHCP and Static IP addressing.
  • Grouping functionality reduces input channel count for streamlined configuration.
  • Surface or TS35 DIN rail mounting options.
  • Identify/Reset button for quick wiring verification without a network connection.
  • Intuitive device configuration and updates through the built-in web interface.
  • Inbuilt Fx engine allowing gradient effect in standalone operation without a DMX source



Video

Unboxing the NEW ENTTEC OCTO!

Meet the little box that packs a HUGE punch!

Additional information

Input voltage

4-60V DC (via 2-pin Phoenix or direct from LEDs via SPI ports)
Max. heat dissipation

4.5W
Data input

eDMX (Art-Net, sACN, ESP or KiNet protocols) via 2 x RJ45 ports
Max. eDMX -> pixel conversion per device

16 universes (8,192 channels)
eDMX (Art-Net, sACN, ESP or KiNet protocols) via 2 x RJ45 ports

16 universes (8,192 channels)
Network speed

10/100Base-T
Network configuration

static (default 192.168.0.10) / DHCP
Body material

ABS plastic
LED indicators

forward-facing status LED plus network link/activity (integrated into RJ45 ports)
Unit dimensions

100.5mm x 77.9mm x 31mm
Shipping dimensions

165mm x 145mm x 43mm
Warranty

3-year return to the base manufacturer warranty
Max. power draw

5W
Cooling method

convection
Operating humidity

5 to 95% (non-condensing)
Data output

SPI/NZR protocols (customizable) via 2 x 4-pin Phoenix ports
Max. pixels controllable per device

2720 x RGB (1360 per port) / 2048 x RGBW (1024 per port)
Network discovery

ENTTEC EMU software
Recommended network device quantity per chain

up to 8 devices for optimum synchronization between outputs
IP Rating

IP20
Mounting Options

surface & TS35 DIN Rail mount
Unit Weight

0.11kg / 0.24lbs
Shipping Weight

0.18kg / 0.39lbs
Compliance

UL / FCC (USA), UL (Canada), RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK)
