Description
The ENTTEC PLINK INJECTOR series is purposefully designed as an integral component of the ENTTEC PIXELATOR System, streamlining installation for efficient, cost-effective control of LED pixel strips or pixel dots over extended distances.

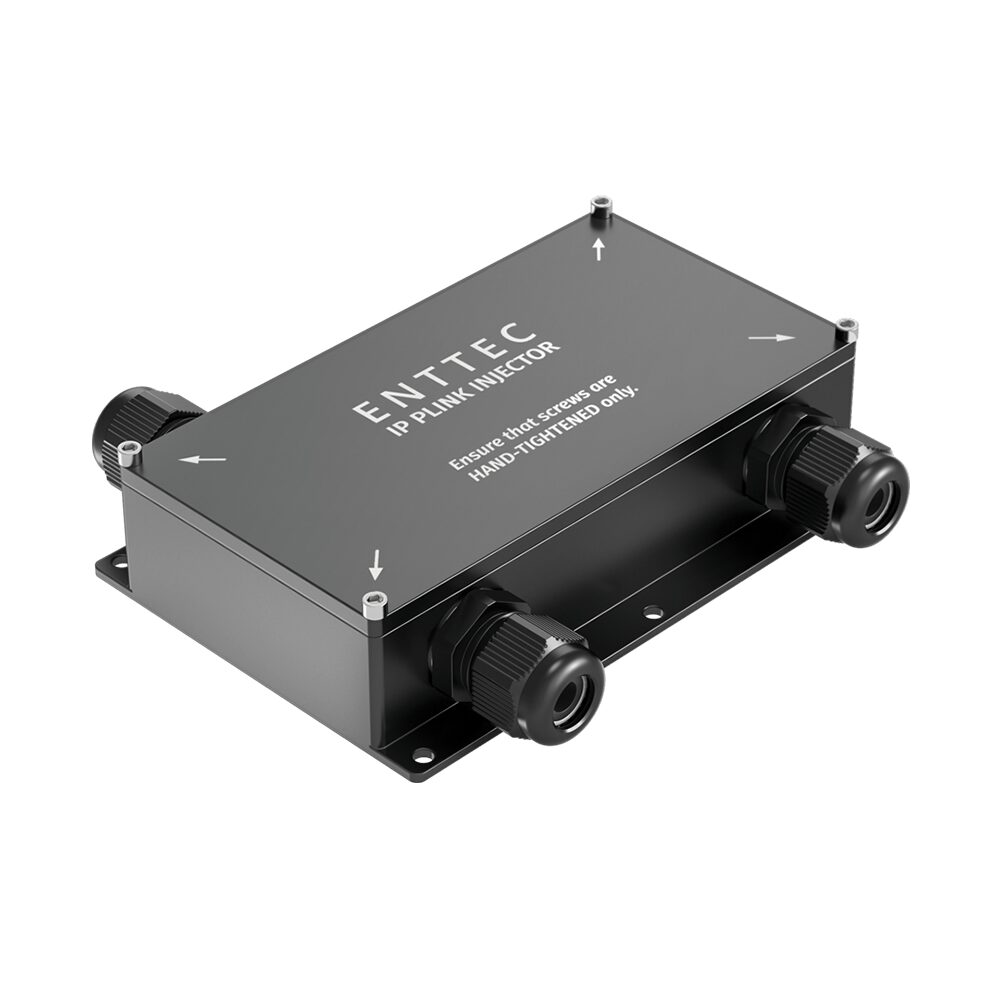

ENTTEC’s IP PLINK INJECTOR represents an enhanced version of the standard PLINK INJECTOR, suitable for seamless outdoor integration with IP66 rating. Encased in rugged and IP-rated aluminium housing, it provides excellent dust and water protection, complemented by a round-shaped cable gland suitable for widely available wiring cables.
The IP PLINK INJECTOR featuring DC power input terminal connectors and SPI Data, VCC, and GND connections is the ideal solution for LED Tape or dots accommodating up to 10Amps of power. It’s crucial to ensure that your power supply voltage matches the voltage of your pixel fixtures and is integrated with the PLINK controller.
For added flexibility, the PLINK INJECTOR allows voltage adjustment by swapping the voltage jumper position to align with your specific design requirements.
Features
- Designed as an integral component with PIXELATOR controllers in a PLINK System.
PLINK data extends up to 300 meters over Cat5e/Cat6 cable from PIXELATOR controllers.
Note: Only use CAT5/6 Straight-through cables, do not use crossover cables - Each IP PLINK INJECTOR converts PLINK data to SPI protocol and drives up to 3m distance connecting to an external DC power supply.
- Machined 6061 aluminium enclosure –lightweight, rugged, impact-resistant, longlasting, corrosion-resistant, UV-resistant.
- Premium nylon cable glands for installation flexibility.
- Breath seal (automatic pressure equalization, manages condensation to avoid electronic failures).
- IP66 enclosure (powerful water jets, highpressure washdown resistant).
- Adjustable voltage jumper position for 5V, 12V24V settings.
