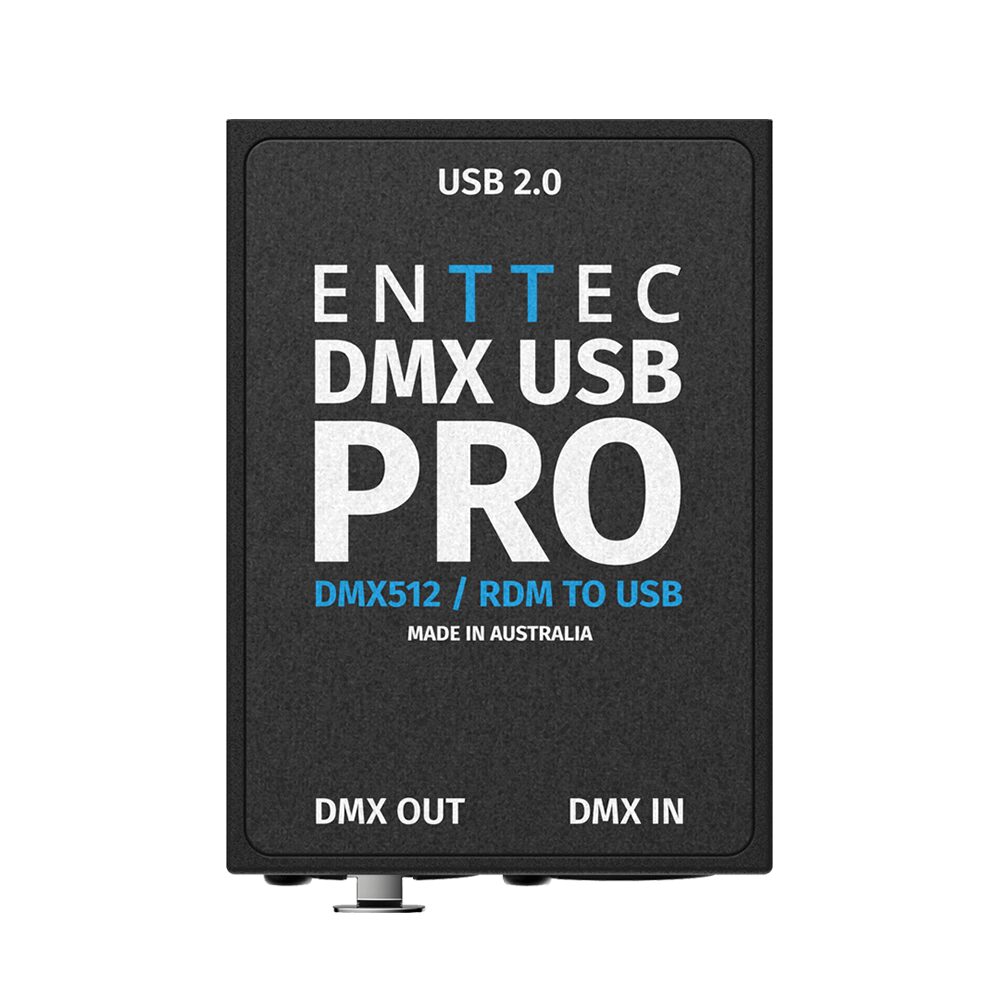

Enttec – DMX USB PRO

Enttec

The industry standard USB to DMX converter

The DMX USB Pro is the industry standard DMX USB converter for DMX/RDM. Control your lights from PC or MacOS software.

Features

  • Full 512 DMX channel (1 universe) of input or output.
  • Fully compliant with USITT DMX512-A.
  • Output refresh rate configurable from 1 to 40 FPS (Frames Per Second).
  • Configurable MAB and Break time using
  • ENTTEC’s EMU Software to accommodate nonstandard equipment.
  • Supported on Windows, MacOS & Linux.
  • 1500V full isolation (data & power lines to protect your computer from surges).
  • RDM enabled (ANSI E1.20 compliant).
  • Drivers for Windows, MacOS and Linux (drivers released and maintained by FTDI).
  • Compatible with various open-source and professional lighting control programs.
  • Developer API available to integrate into your own software.
SKU: ENT70304 Categories: , , ,

Description

Products don’t become an industry standard for no reason. Used on a daily basis by countless lighting designers and installers across the world, the DMX USB PRO converter has proven for many years that it’s a reliable and robust product that excels at so many fundamental applications.

Widely compatible

Designed for simple USB connections across Windows, Mac and Linux, this device is compatible with an enormous range of commercial and free software.

Input or output

The DMX USB converter supports either DMX Input or DMX Output mode and comes RDM-enabled and has an internal frame buffer for steady DMX generation.

Isolated to protect

With industry standard-5 pin input and output connections as well as 1500V full isolation for both data and power lines, you can rest assured that your computer will be protected.

Perfect timing

Features an internal frame buffer for consistent DMX generation, therefore isn’t dependent on your computer’s processor to regulate a steady, reliable flow of data.

Industry standard

Industry Standard USB 2.0 support on Windows PC and MacOS, and popular Linux flavours. Even Raspberry Pi is supported, for the hobbyist within you!

Flexible

Refresh rate is fully configurable from 1 to 40 fps. Break time is configurable from 96uS to 1.3mS, and MaB is configurable from 10.6uS to 1.3mS. You can even change the firmware to support your requirement.

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

Video

ENTTEC DMX USB Pro – 2022 Unboxing

The DMX USB pro retains the same great industry leading features to make controlling lights from your computer simple…

Additional information

Connectors

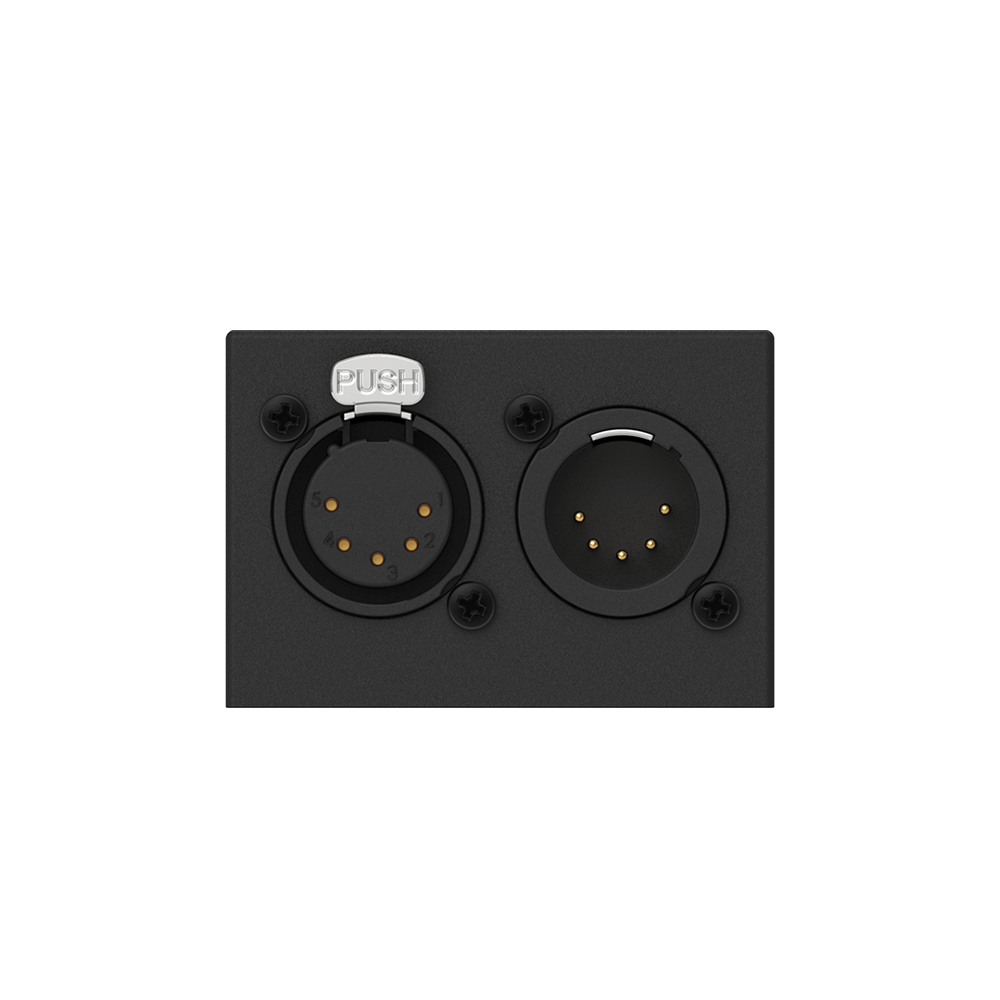

1* DMX Output
(Female XLR5)
1* DMX Input
(Male XLR5)

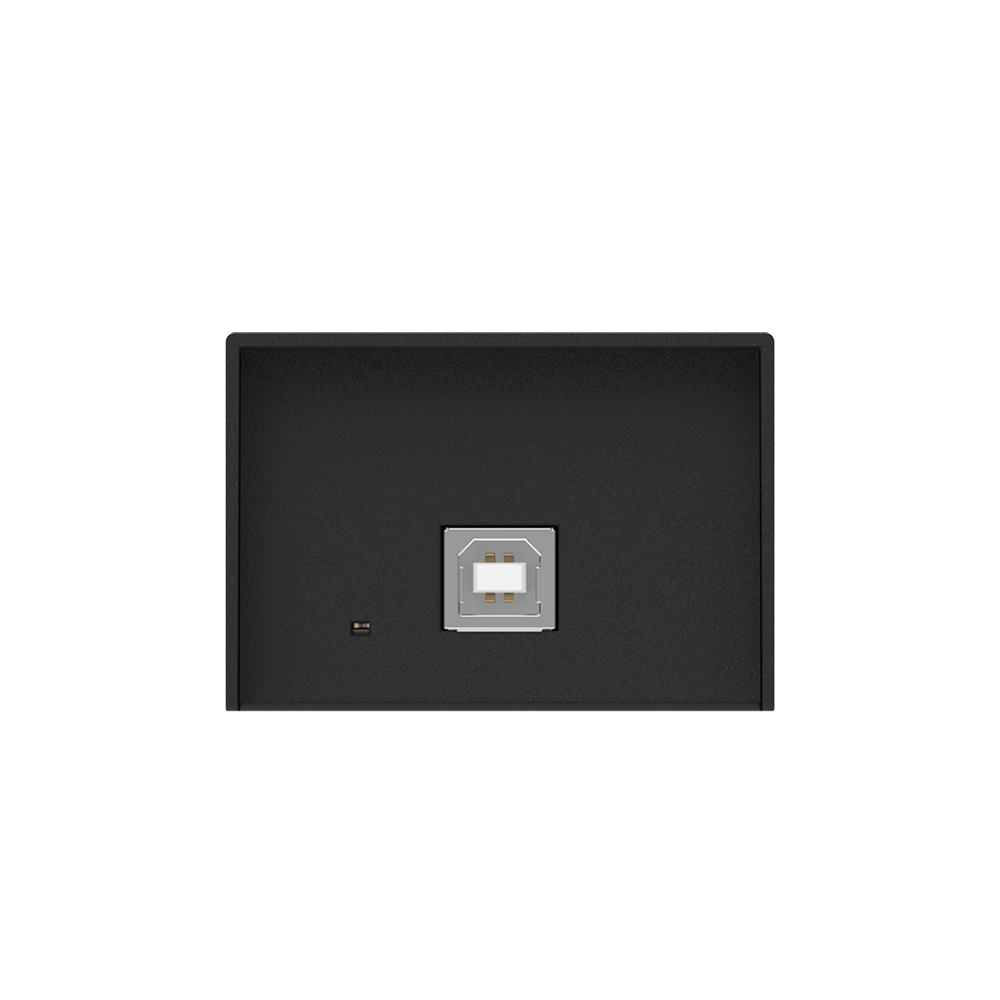

1* USB 2.0 Type-B

IP rating

IP20

LED indicators

Yes

Supported protocols

USITT DMX512-A
ANSI E1.20 RDM1

Standalone playback

No

MIDI

No

Maximum output channels

1 universe (512ch)

Max. output refresh rate

40FPS

Configuration software

EMU

Firmware updates

EMU

Input voltage

5V DC (via USB)

Input current

300mA

Power draw

1.5W

Environmental Operating temperature

0°-50°C
32°-122°F

Environmental Operating humidity

5- 95%
(non-condensing)

Body material

ABS plastic

Mounting options

N/A

Unit weight

80 g / 0.18lbs

Shipping dimensions

237x165x71 mm

Shipping weight

0.30kg / 0.66lbs

Warranty

3-year return to base
manufacturer warranty

Downloads

Data Sheet Download
