Enttec – DIN RDS4 Mk2

Enttec

Enttec’s compact, new professional DMX/RDM splitter

DIN RDS4 is the new installation grade 4-port DMX/RDM splitter in a compact, 4-module DIN-rail form factor.

Features

  • 1 DMX/RDM input & 4 DMX/RDM outputs.
  • Pluggable screw terminal connectors.
  • Forward facing LED status indicator to view current DMX/RDM traffic.
  • Support for DMX512-A and ANSI E1.20 RDM.
  • Output refresh rate mimics the input.
  • Electrically insulated case material.
  • Surface or TS35 DIN rail mount.
  • No configuration required.
  • 7V-24V DC power input.
  • 1500V Opto-isolation between each DMX port to protect against stray voltages on the DMX line.
  • Operating temp: -20°C to 50°C.
SKU: ENT72004 Categories: , , , ,

Description

ENTTEC’s DIN RDS4 is an installation grade, 4-port, DMX/RDM isolated splitter engineered to take any architectural, commercial or entertainment project to the next level.

Small yet powerful

Housed in a slim, electrically-insulated, 4-DIN-module enclosure, the DIN RDS4 is compatible with DMX512-A & RDM (E1.20). The DIN RDS4 actively changes its refresh rate to match your DMX input source.

Flexible mounting options

The DIN RDS4 features a DIN-rail clip enabling attachment to a TS35 DIN-rail alongside the option to wall mount the device in any orientation.

Protect your fixtures

1500V isolation between any individual DMX port protects your DMX source and lighting fixtures from power surges and stray voltages on the DMX line by blocking stray voltage from crossing to other DMX chains.

Monitor activity

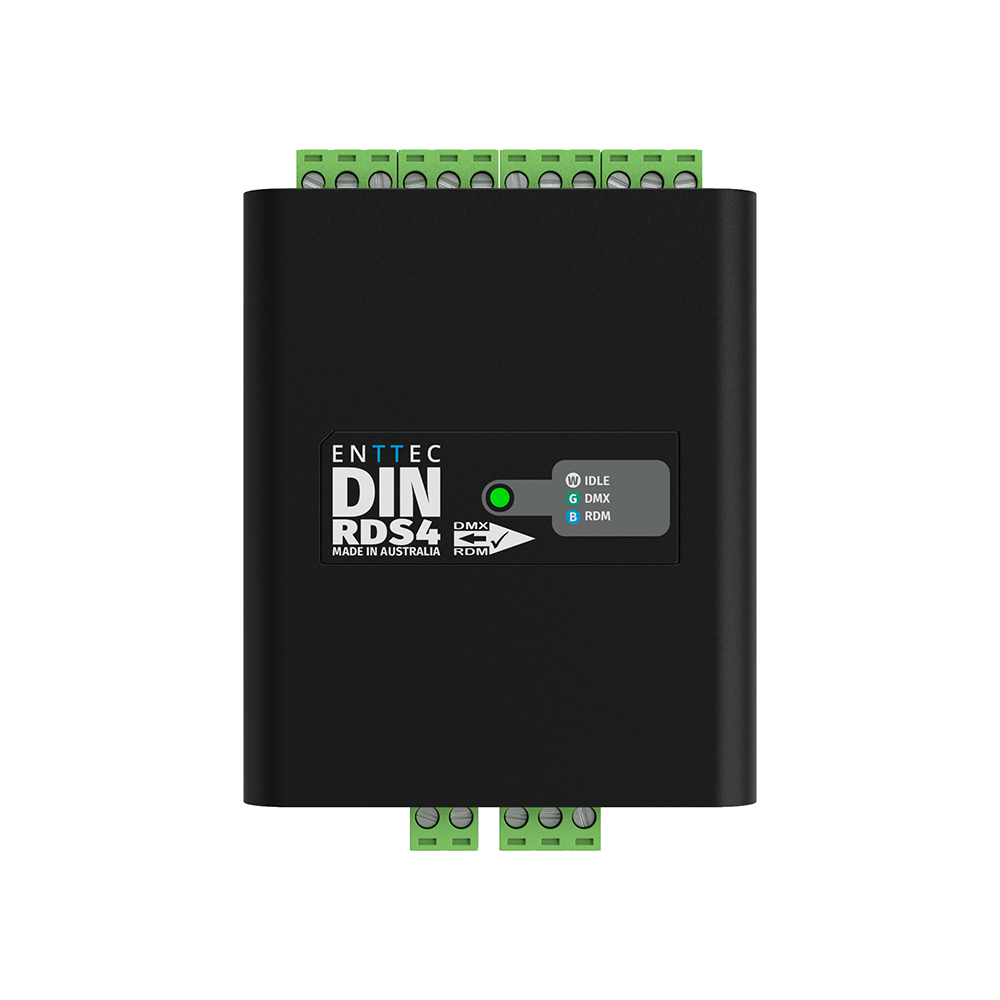

The forward-facing LED indicator allows DMX & RDM activity to be monitored quickly with just a glance.

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

Additional information

Connectors

1* DMX Input
(3 Pin Phoenix)
4* DMX Output
(3 Pin Phoenix)
1* Power Input
(2 Pin Phoenix)

IP rating

IP20

LED indicators

Yes

Supported protocols

USITT DMX512-A
ANSI E1.20 RDM

Bi-Directional

No

Max. output channels

1 universe (512ch)

Max. output refresh rate

43FPS

Firmware updates

No

Input voltage

7.5V to 24V DC

Max. power draw

5W

Max. heat dissipation

5W

Environmental operating temperature

-20°C to 50°C
-4°F to 122°F

Environmental operating humidity

5- 95%
(non-condensing)

Body material

ABS plastic

Mounting options

Surface mount
TS35 DIN Rail mount

Unit dimensions

100.5*72.25*34 mm

Unit weight

0.10kg / 0.22lbs

Shipping dimensions

140*140*40 mm

Shipping weight

0.16kg / 0.35lbs

Warranty

3 year return to base
manufacturer warranty

Downloads

Data Sheet Download
