Enttec – DIN Ethergate MK2

Enttec

Next-generation Ethernet to DMX/RDM gateway

With 2U bi-directional Ethernet to DMX conversion with Art-RDM, or up to 16U Overdrive Mode (500K/750K/1000K, compatible fixtures only), PoE or flexible 12-24v DC input, the DIN Ethergate Mk2 allows for fast deployment of DMX systems and is compatible with a wide range of devices.

Features

  • Two bi-directional DMX ports for standard DMX512-A featuring E1.20 RDM support.
  • Overdrive mode outputs at a higher data transmission rate 500Kbps (DMX500K) allowing control of up to 2 Universes per port for compatible fixtures1.
  • Expandable network with dual Ethernet ports for daisy-chain connections.
  • IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input.
  • Support for Art-Net, sACN, ESP and KiNet to DMX conversion.
  • HTP/LTP merging support for DMX sources.
  • Configurable DMX output refresh rate.
  • Intuitive device configuration and updates through the inbuilt web interface.
  • Surface or TS35 DIN rail mount.
  • 10/100 Mbps network speed.
  • ‘Current Port Buffer’ allows live DMX values to be viewed.
SKU: ENT71031 Categories: , , ,

Description

The DIN Ethergate Mk2 is a reliable DMX node designed for architectural, commercial, or entertainment projects. It supports 2 Universes of bi-directional DMX to DMX512-A conversion with ArtRDM support, and Overdrive Mode enables control of up to 4,096 channels per port at higher transmission speeds of 500K, 750K or 1000K (works only with Overdrive-compatible fixtures). Dual Ethernet ports, one with PoE, allow easy daisy-chaining, while configuration and firmware updates are managed via a localhost web interface. Its slim, 4 DIN-module housing offers flexible mounting options and user-friendly wiring with pluggable terminal blocks.

Easy web page configuration

The configuration is managed through the localhost web interface to simplify commissioning and updates as well as to allow the DIN Ethergate Mk2 to be configured from any computer on your network.

Sync mode

All ENTTEC Ethernet hardware accepts sACN Sync as well as ArtSync to fully synchronize Art-Net data for all output ports and across your installation when receiving Art-Net from the same source.

Flexible power options

Power the DIN Ethergate using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input. NOTE: when daisy-chained in series, only the first device will receive PoE. Subsequent devices require PoE injector individually to be powered via an Ethernet port.

Choice of mounting options

Featuring a 4-DIN-module electrically-insulated housing, the DIN Ethergate MK2’s slim form includes a DIN-rail clip enabling attachment to a TS35 DIN-rail alongside the option to wall mount the device in any orientation.

Time-saving + installer-friendly

Our Ethernet to DMX converter is packed with installer-friendly features including pluggable terminal connectors and inbuilt DMX termination to simplify wiring. Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the web interface to troubleshoot your installation. Upon receiving power, the device is ready to go within seconds.

Overdrive Mode

Output data at higher transmission rates, with selectable speeds of 500K (default), 750K and 1000K, to control up to 8 Universes per port for Overdrive-compatible fixtures. IMPORTANT: DMX500K, DMX750K and DMX1000K are incompatible with standard DMX512-A fixtures and does not conform to ANSI E1.11 – 2024. Do not use Overdrive Mode with unsupported fixtures. ENTTEC’s DMX Neon Flex is a compatible fixture supporting Overdrive Mode.

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

Video

How to connect ENTTEC gear to DMX Strip

This is a tutorial on how to connect the ENTTEC DIN Ethergate to a generic DMX strip

Additional information

Input voltage

12-24V DC

Max. power draw

7W

Max. heat dissipation

7W

Operating temperature

0°C to 50°C / 32°F to 122°F

Operating humidity

5 – 95% (non-condensing)

Data input

eDMX (Art-Net, sACN, ESP or KiNet protocols) via 2 x RJ45 ports

Data output

DMX512-A/RDM (250 Kbps) / DMX500K (500 Kbps) – via 2 x 4-pin Phoenix ports

Max. channels

DMX512-A: 1,024 (2U) / DMX500K: 2,048 (4U)

DMX & RDM timings

break time: 300ms / Mark after break (MAB): 15ms

Art-Net merging

2 sources

Max. refresh rate

44FPS

Network speed

10/100Base-T

Power over Ethernet

IEEE 802.3af

Network configuration

static (default 192.168.0.10) / DHCP

Firmware updates

via web interface

Body material

ABS plastic

IP rating

IP20

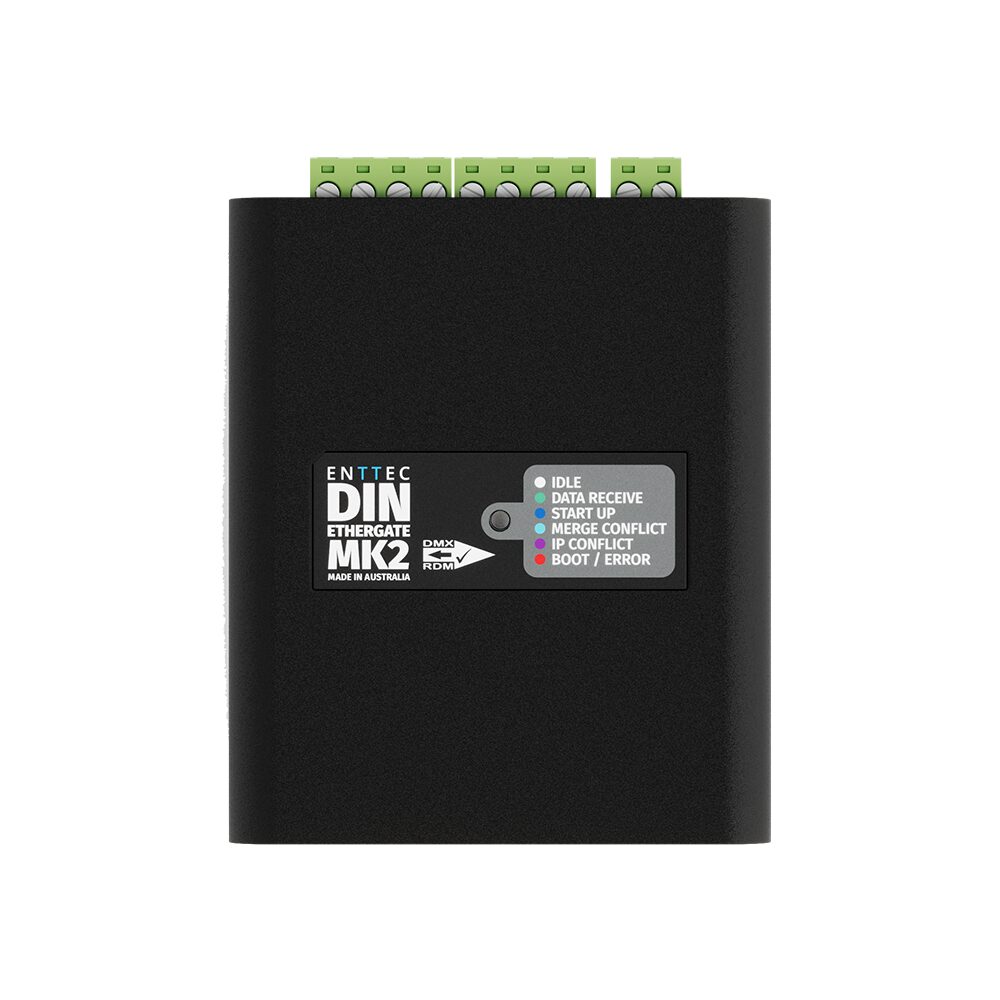

LED indicators

forward-facing status LED plus network link/activity (integrated into RJ45 ports)

Mounting options

surface & TS35 DIN-rail mount

Unit dimensions

100.5mm x 72.25mm x 34mm

Unit weight

0.11kg / 0.24lbs

Shipping dimensions

140mm x 140mm x 40mm

Shipping weight

0.16kg / 0.35lbs

Warranty

3-year return to the base manufacturer warranty

Compliance

RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)

Downloads

Data Sheet Download
