Enttec – D-Split

Enttec

Enjoy a world of flexibility with our reliable DMX Opto-Splitter

The D-Split is an optically-isolated DMX splitter and repeater for DMX512. With one input and four outputs, the D-Split gives you the ultimate flexibility to link up to 32 DMX fixtures.

Need more outputs? Simply add more D-Splits to your chain!

Features

  • Lightweight and portable.
  • 1 DMX input.
  • 4 DMX outputs (choose between 3 SKUs).
  • Available in 3-Pin (70574), 5-Pin (70579), or a combination of 3-Pin & 5-Pin (70578) connector configurations supporting one DMX universe output.
  • All outputs are optically isolated (protects against up to 1000V of stray voltage).
  • DMX512-1990 compatible.
  • Controls up to 512 channels.
  • Daisy chain via input ports without utilising any output ports.
  • LED indicators when powered.
  • External power supply (included).
Clear

Description

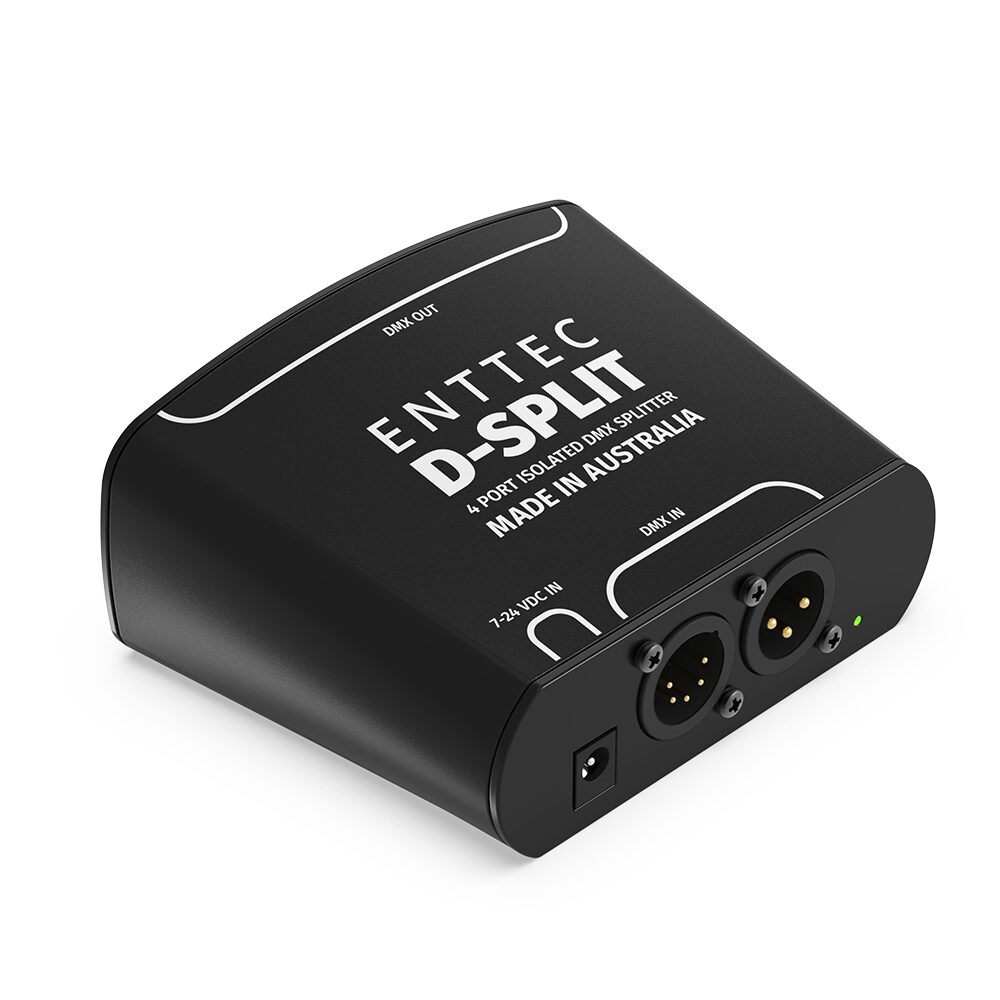

With its stylish black ABS body, designed and made in Australia, the D-Split DMX opto-splitter will make life easier with simplified DMX distribution. The D-Split is both an optical splitter/isolator and repeater for DMX512. It allows one DMX input (either 3-pin or 5-pin) to be replicated on to 4 isolated output ports.

Small yet powerful

The small, light and portable D-Split offers a great solution to extend your DMX chain, without sacrificing the quality.

ANSI E1.11 – USITT DMX512-A compatible. Each unit repeats and re-buffers all 512 channels of DMX from the input on each output.

1000V optical isolation

Each output port features protection up to 1000V of stray voltage, meaning any issues stay on the DMX line and don’t jump across into the rest of your system.

Using a D-Split between your DMX controller and lights is a smart way to help protect your precious gear from getting damaged by DMX cabling faults or stray voltage, all whilst making your DMX wiring scheme far more flexible.

Simply connect your fixtures and controls – let D-Split take care of the rest.

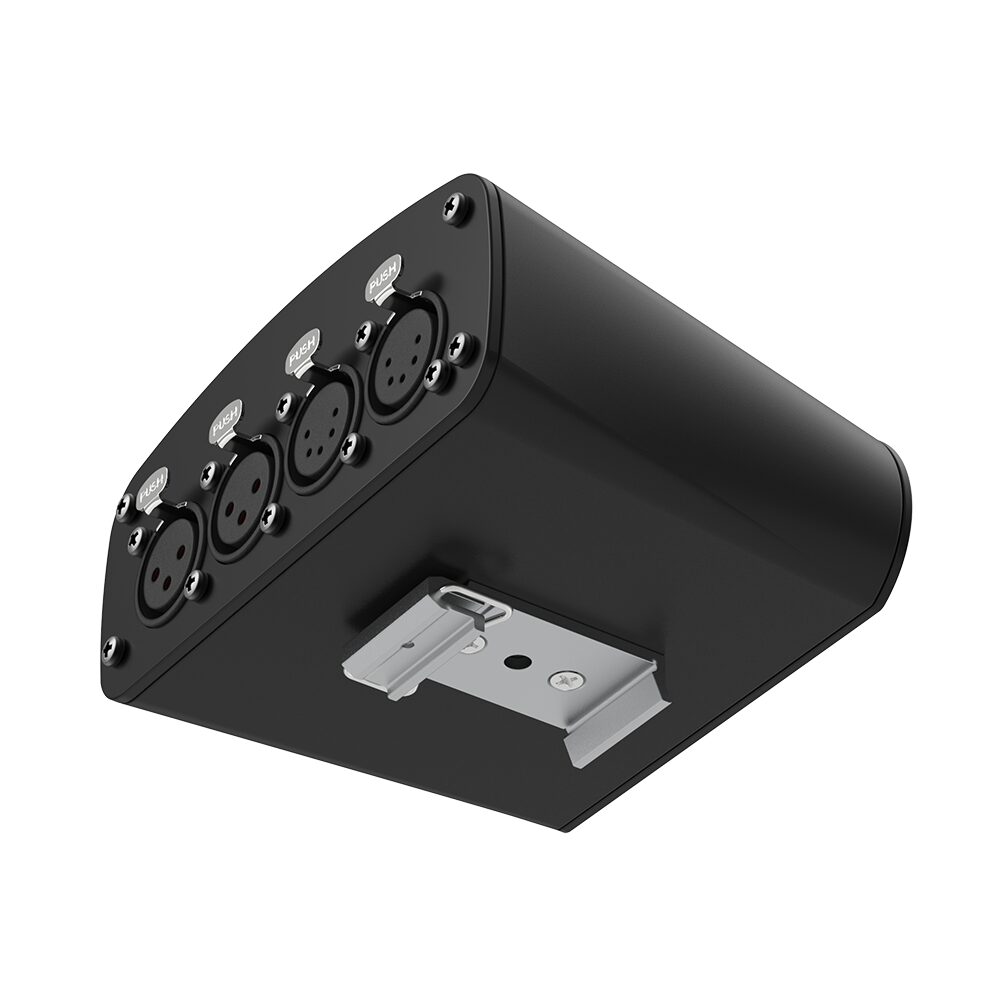

DIN rail mounting solution

The D-Split features built-in mounting points to attach an optional TS35 DIN rail clip (included in the box) to allow you to install it in control cabinets or on surfaces/walls with a DIN rail fitted.

Goodbye DMX adaptors!

We know that using DMX adaptors to convert between 3- and 5-pin is a pain. You either forget them, lose them, or they take up unnecessary space in your installation. It’s this attention to detail that we believe helps to make ENTTEC products stand out.

We have two D-Split variants that make this pin issue a thing of the past! Choose between:

70578: 2 x 3-pin + 2 x 5-pin outputs

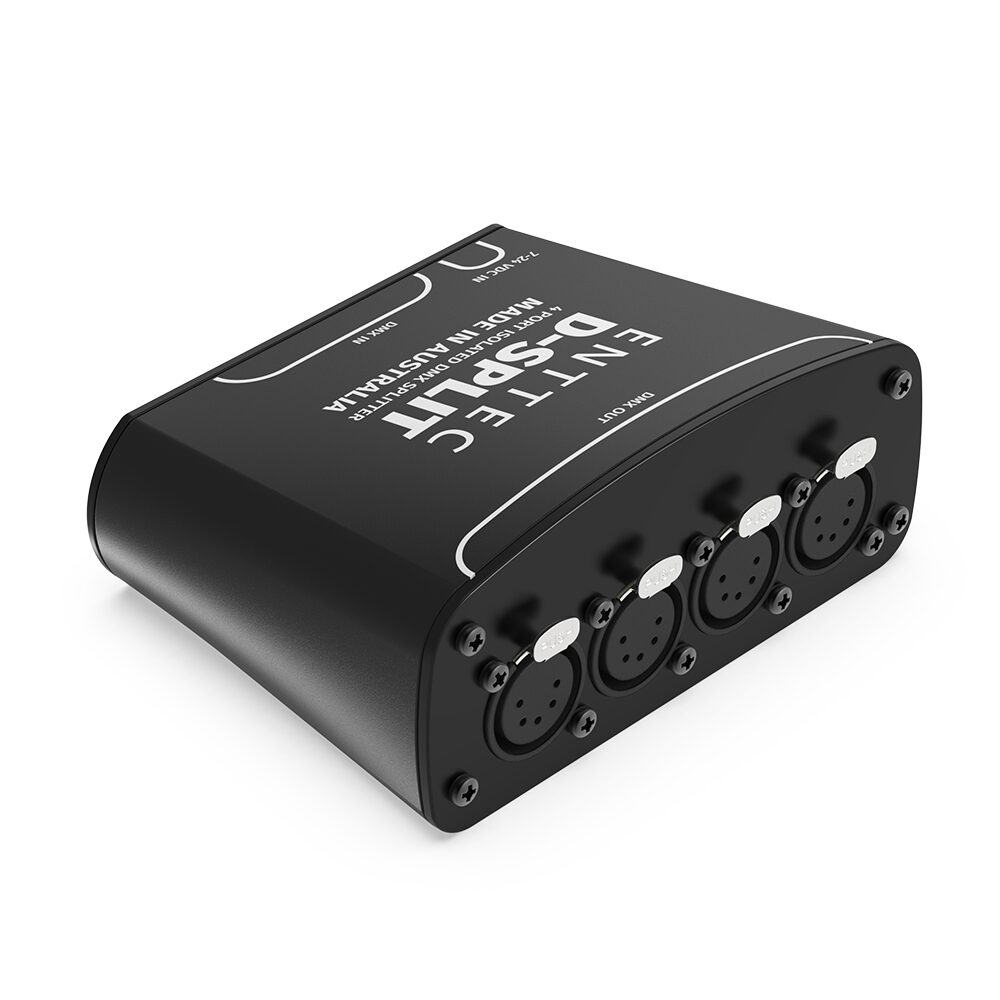

70579: 4 x 5-pin outputs
70574: 4 x 3-pin outputs

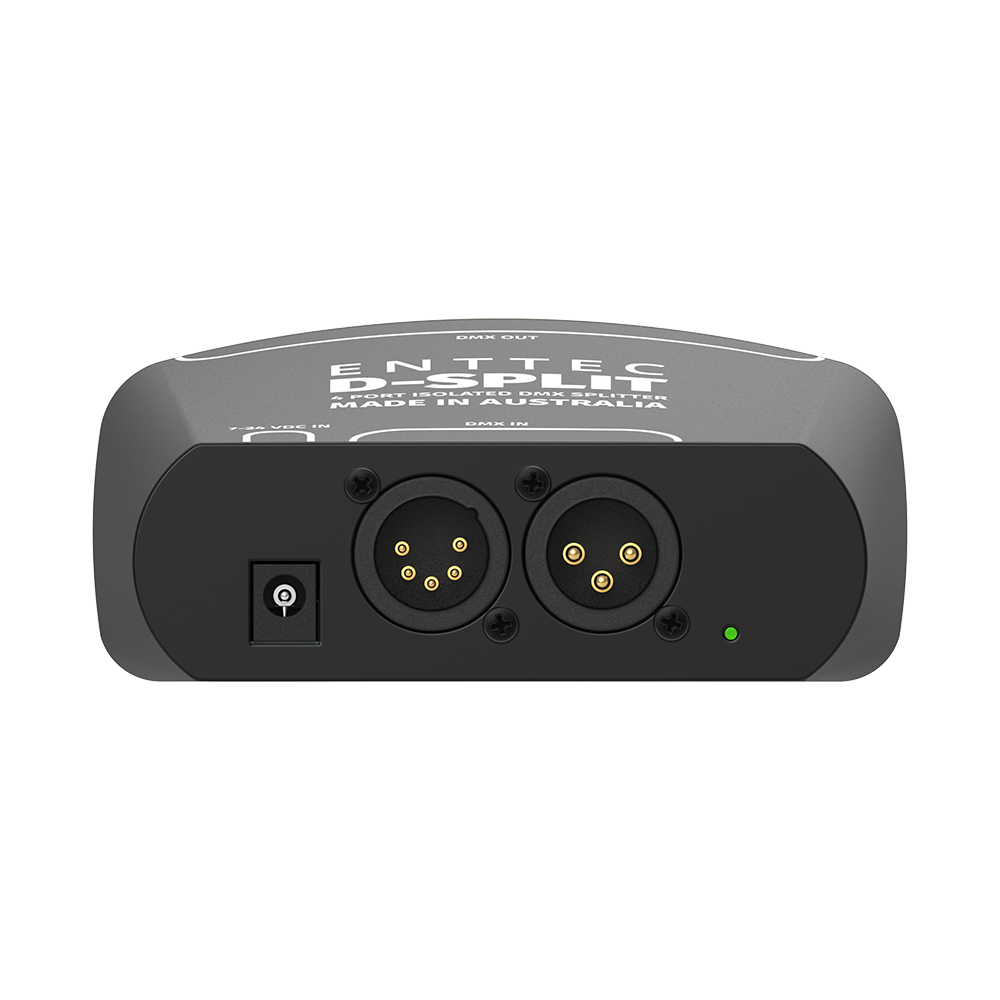

We’ve included both 3- and 5-pin DMX input connectors on both variants for you to connect the DMX input you need.

Wide voltage range

The D-Split is shipped with a universal DC power adaptor as standard. However, if space is tight and you want to share a single power supply between all of your devices (e.g. in a DIN Cabinet), it can accept 7-24V DC input.

Stealth design

The updated D-Split case design features a robust ABS construction with a single power LED, allowing it to blend into the background of your projects.

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

Additional information

Connectors

Input:
1x 5-Pin XLR
1x 3-Pin XLR

Output: 4x 3/5-Pin XLR

IP rating

IP20

LED indicators

Power & Data Output

Input Protocol

USITT DMX512-1990

Output Protocol

USITT DMX512-1990

RDM compatibility

No

Max channel

512 channels (1 Universe)

Input Voltage

7V-24VDC

Maximum Current

400mA

Environmental operating temperature

0°C to 50°C
32°F to 122°F

Environmental operating humidity

5- 95%
(non-condensing)

Body material

ABS plastic

Unit dimensions

116 x 87 x 52mm

Unit weight

0.16kg / 0.35lbs

Shipping dimensions

235 x 160 x 68mm

Shipping weight

0.5kg / 1.10lbs

Warranty

3 year return to base manufacturer warranty

Downloads

Data Sheet Download
