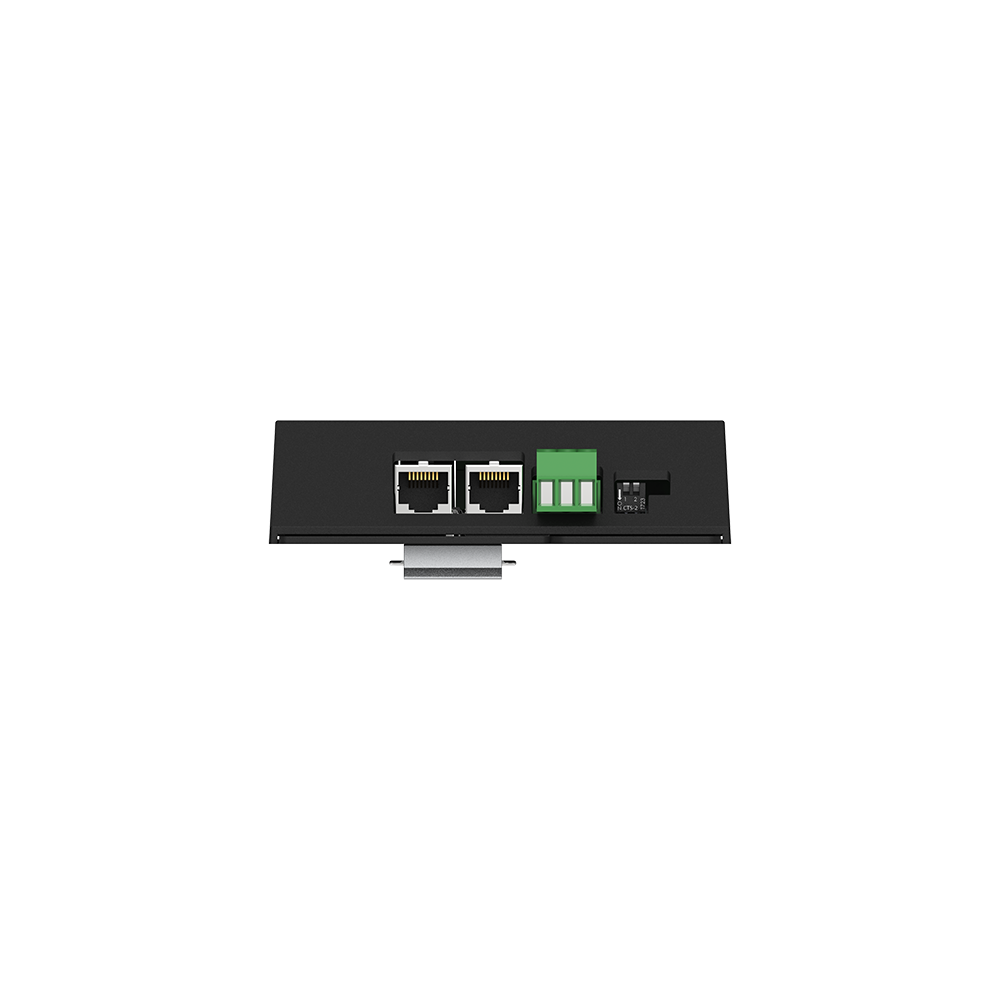

Enttec - CVC4 -Constant Voltage Angled terminal connection sideEnttec - CVC4 -Constant Voltage Angled terminal connection side

Enttec – CVC4 -Constant Voltage Dimmer

Enttec

ENTTEC’s CVC4 is the ultimate high fidelity, constant voltage (CV) LED dimmer

4-Channel, Installation-Grade, Constant Voltage LED dimmer. Robust and reliable, ENTTEC’s CVC4 is the ultimate high-precision, constant voltage (CV) LED dimmer. Prepare to take your CV projects to the next level!

Features

  • Dimming capacity of up to 5A per channel.
  • 12-24V input (max 20A total load).
  • 1kHz PWM refresh rate for smooth dimming.
  • Supports daisy-chaining via ENTTEC’s autoaddressing PLINK protocol over Cat6 cable.
  • DMX/RDM input through pluggable rising clamp connectors.
  • RDM identification and addressing functionality.
  • On board conversion from DMX to PLINK.
  • Attachable TS-35 Din Rail mounting clip.
  • Status LED and DIP switch to toggle between RGB/RGBW and 8-bit/16-bit operating modes.
  • User-serviceable blade fuse to protect against short circuits.
  • Passive cooling with internal overheating protection.
  • Compact design with integrated 4mm surface mounting holes.
SKU: ENT73926 Categories: , , ,

Description

The CVC4, designed and made in Australia, is ENTTEC’s state-of-the-art constant voltage LED dimmer. It controls up to 20A across four 5A channels with ultra-smooth dimming at 16- or 8-bit resolution. Featuring auto-addressing, simple mode selection, and a rugged ABS body with surface-mount tabs or a DIN rail adaptor, the CVC4 is easy to install. Its fanless design ensures quiet operation, while a user-serviceable fuse protects against short circuits, and temperature detection limits LED output to prevent overheating. Ideal for fast, flexible LED strip installations.

Auto-addressing

This priceless function speeds up installation time as well as working intuitively for installers, even if completely unfamiliar with DMX. Simply connect your CVC4s using the PLink protocol, add power, and the CVC4 LED dimmer will all auto-address themselves. More advanced users can also address and monitor each CVC4 using RDM.

If you’re using a DMX input, simply connect this to the CVC4’s input then link out of it using PLink.

Safety fuse

Installing fuses to ensure that a system is safe takes up a great deal of time on site and can add to the space required per dimmer. To combat this, the CVC4 integrates a user-serviceable 20A ATO blade fuse that can be sourced easily and inexpensively to protect against dead shorts. If your installation draws less than 20A you can downrate the fuse to an appropriate level to suit your installation. To learn how to replace the CVC4’s fuse, check out our short instructional video in the download section below.

DIN-rail mountable

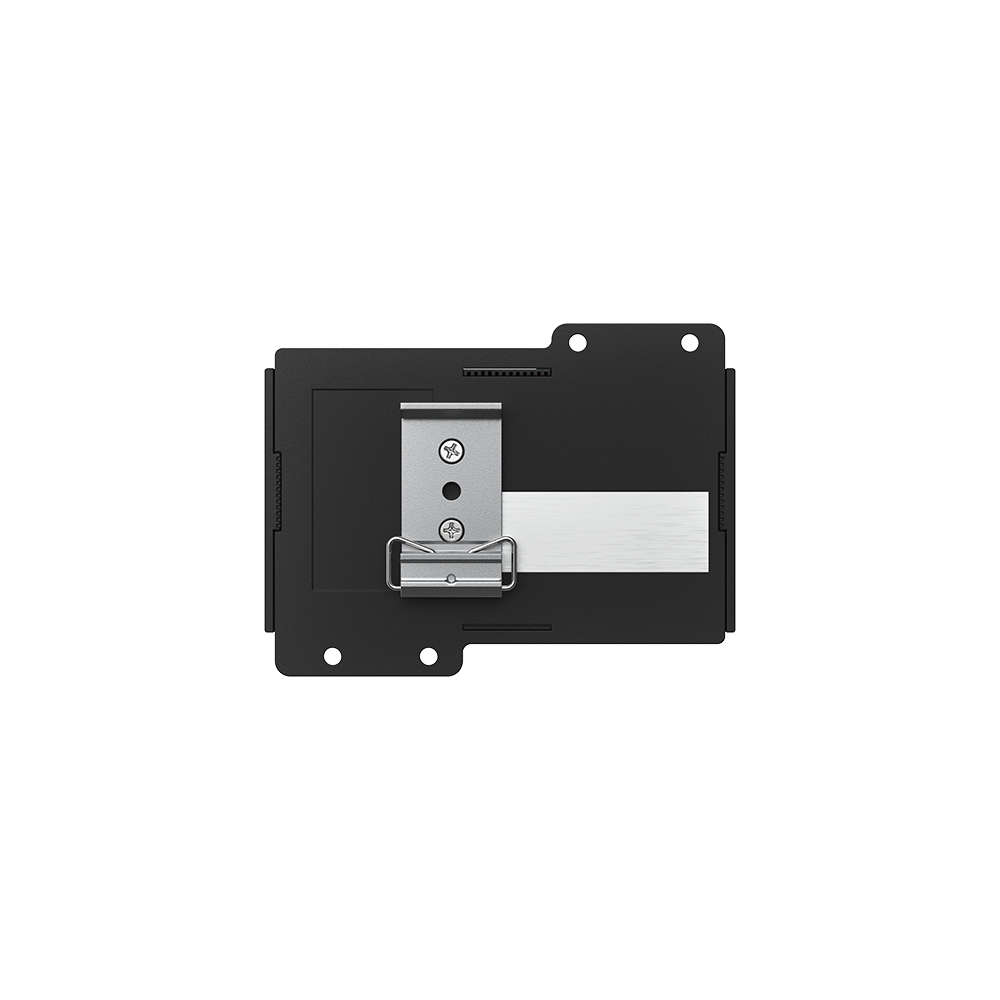

The CVC4 features built-in mounting points to attach an optional TS35 DIN rail clip (included in the box) to allow you to install it in control cabinets or on surfaces/walls with a DIN rail fitted.

Configurability

16-bit dimming is increasing in popularity and allows for users to have much finer control over their installation. The mode selection DIP switches allow users to choose between either 16 or 8-bit resolution. Simply pick your desired bitrate, select from either RGB or RGBW LED strip, then you’re all set!

Overtemperature protection

If the CVC4 ever reaches a high operating temperature, it will automatically reduce its output by 50% to prevent overheating and blink the LED Indicator red to notify the user until the device has sufficiently cooled.

Designed for longevity

MOSFETs are used to dim the LEDs wired to the CVC4’s output. During operation, it’s normal for these components to heat up.

So that this device can run safely at a sustained temperature, our engineers have ensured that all MOSFETs are directly bonded to a heat spreader to transfer heat to a larger area to dissipate better regulate its performance. Be wary of many cheap products that do not allow these components to dissipate heat, severely risking lifetime of your project.

Backwards compatible with CVC3 + DIN-LED4PX

Given the CVC4’s range of operating modes and flexibility to accept DMX or PLink data, it is fully backward compatible with systems using ENTTEC’s DINLED-4PX and CVC3 (note: adjustments in dimming curve between different models may be needed).

3-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.

Video

CVC4 Unboxing

It’s time to join everyone’s fave Aussie electrical engineer, Jordan, as he gets well and truly stuck into the all new ENTTEC CVC4 LED dimmer.

Additional information

Connectors

1 x Power Input (Screw Terminal), 1 x DMX Input (Screw Terminal), 1 x PLINK In/Out (RJ45), 1 x CV Output (Screw Terminal)

IP rating

IP20

Data input protocols

DMX512a / PLINK (RJ45)

Data output protocols

PLINK (RJ45)

RDM functionality

Start address configuration / Temperature monitoring / Firmware updatable

Start address configuration options

PLINK using PIXELATOR controller / RDM (Default channel: 1)

Dimming resolution

8/16-Bit

Fixture modes / Channel footprint

8-Bit RGB, 3ch / 8-Bit RGBW, 4ch / 16-Bit RGB, 6ch / 16-Bit RGBW, 8ch

Max. data cable length

DMX, 300m per chain / PLINK, 300m between each CVC4 (Cat6)

Input voltage

12-24 V DC

Max. current rating

Max. 20A (in 4ch mode)

Max. output power

240 W (@12V) / 480 W (@24V)

Device power draw

Max. 4W – Idle 0.3W

Max. current per channel

Max. 5A

Reverse polarity protection

Yes (power input connector only)

Over temperature protection

Yes (output intensity will half and the LED indicator will blink red unit device has cooled)

PWM frequency

1KHz – Fixed

User serviceable fuse

ATO 20A blade fuse

Cooling method

Convection

Operating temperature

-20°C to +50°C / -4°F to 122°F

Environmental operating humidity

5- 95% (non-condensing)

Mounting options

Surface mount using mounting tabs

Body material

Black ABS plastic + Aluminium heat sink

Unit dimensions

88mm x 117.5mm x 31.5mm

Unit weight

0.13kg / 0.28lbs

Shipping dimensions

140mm x 140mm x 40mm

Shipping weight

0.19kg / 0.42lbs

Warranty

3-year return to base manufacturer warranty

Downloads

Data Sheet Download
