Description

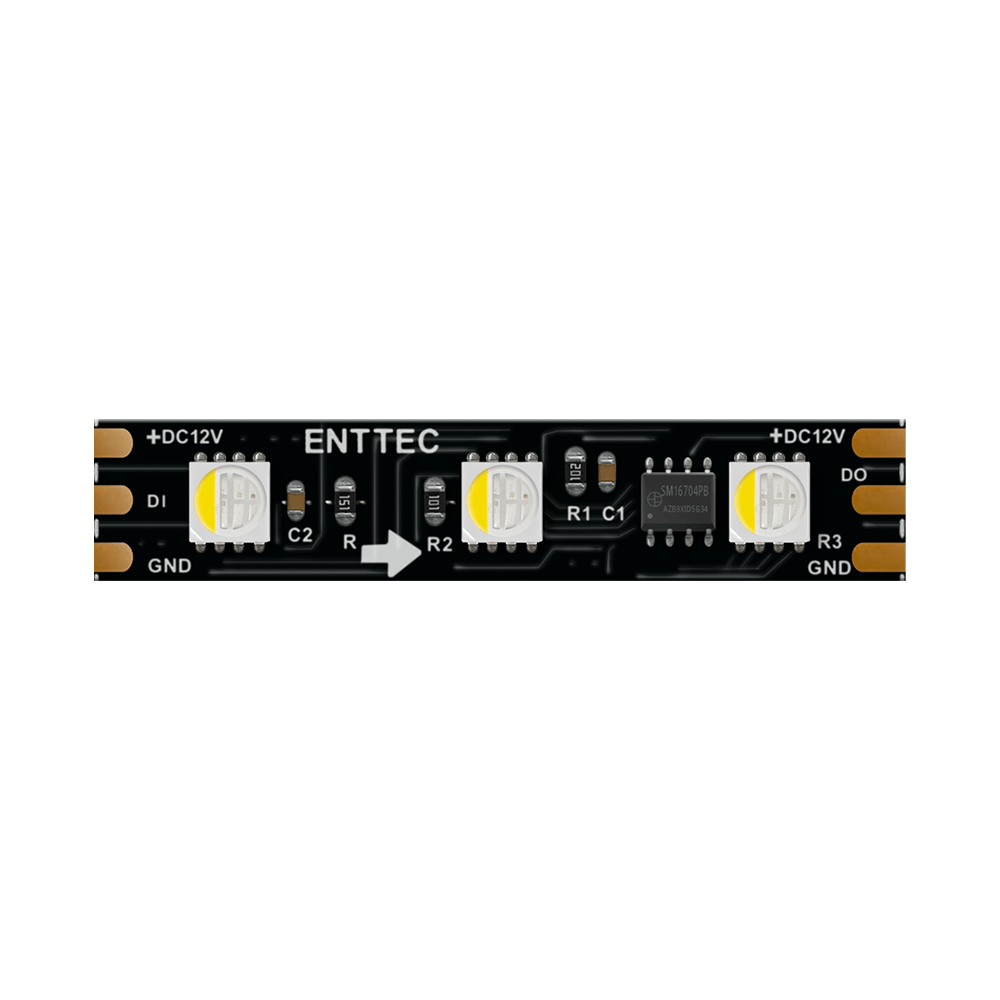

ENTTEC’s 8PXB60-RGBW-12V series are 12V, 60-LED-per-metre, addressable RGBW LED pixel strips designed for long-range professional architectural and entertainment installations, achieving soft pastels or saturated colours on a large scale.
60 RGBW LEDs per metre: ENTTEC LED pixel strip boasts 60 colour-calibrated RGBW LEDs per metre. Each LED is engineered to offer consistent brightness and extended colour gamut.
Bright + super-efficient: With a maximum power consumption of only 17.64 watts per metre, and a lumen capacity of 655.6 lumens per metre, this 12V pixel strip provides a bright and efficient package.
Australian design for top performance: Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.
Go further than before: On our 12V 8PXB60-RGBW-12V strip, every consecutive group of three SMD chips behave as one pixel. This means that you can free up extra channels to triple your output capabilities: perfect for controlling longer setups.
Millions of colours: Each pixel can achieve a 32-bit, True Colour display. That’s a whopping 4,294,967,296 possible colours for each LED chip!
Extend as you please: Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.
Features
- RGBW, 4 in 1 full colour LED pixel strip.
- Premium flexible white 3oz copper PCB.
- Suitable for stage, entertainment and architectural applications.
- 12V DC input supply voltage.
- 60 LEDs per metre density.
- 20 Pixels per metre density.
- Control protocol UCS2904.
- 4.29 billion possible shades per LED.
- 120-degree illumination.
- 3M adhesive double side tape on the rear.
- Built-in data signal reshaping circuit.
- High LED density.
- Can be cut or joined at each copper tab.
- IP20 Indoor use only.
- Designed for use with ENTTEC pixel products.
- Maximum 17.64 Watts/Metre.
