Description
ENTTEC 8PXA60-RGB-12V-W is a 12v 60 pixel per metre addressable LED Pixel Strip designed for professional architectural and entertainment purposes, used to display smooth animated graphics achieving soft pastels and saturated colours on a large scale.
Cut and join into any conceivable shape.

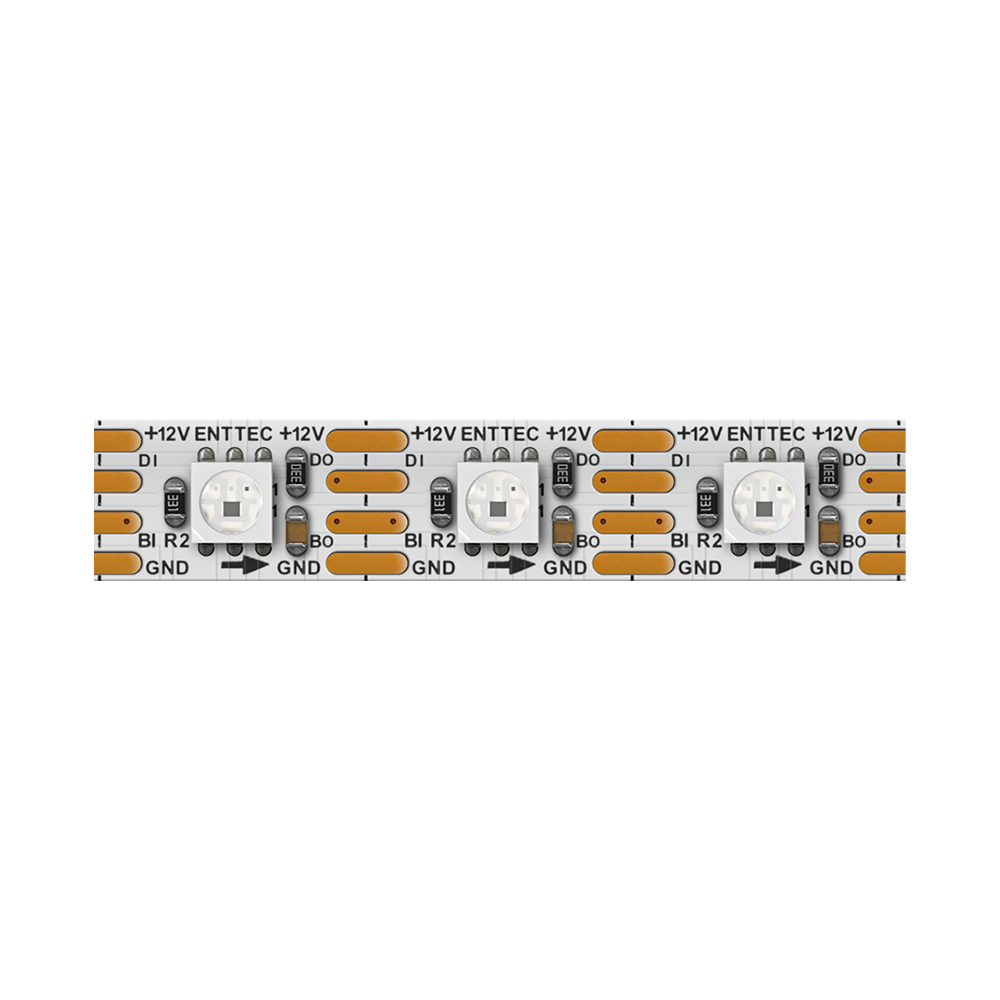

The 8PXA60-RGB-12V-W’s white PCB makes it perfectly suited for installing in extrusions and lightboxes where it will contribute to reflecting as much light forward as possible.
A key feature of ENTTEC’s 8PXA60-RGB-12V-W pixel strips is their ‘Data Backup’ line feature, this allows single pixels to be damaged on the strip, but still allow data to pass without effecting your mapping.
It’s fast 800 Kbps transmission rate and 8-bit colour depth means graphics and animations played back are smooth and consistent.
At ENTTEC, manufacturing quality and attention to detail is paramount. We always use thick 3oz copper PCB to offer more durability, better heat dissipation and reduced voltage drop when compared to other standard LED strips available on the market. This in combination with the 12v operating voltage allows up to a 10m run with a single power injection.
Features
- RGB, 3 in 1 full colour LED pixel strip.
- Premium flexible white 3oz copper PCB.
- Individually addressable led pixels, suitable for stage, entertainment and architectural applications.
- 12V DC input supply voltage.
- 60 Pixels/metre density.
- Back up data line BI/BO (In/Out).
- SK6813 IC chip (compatible to WS2812 and GS8208B protocol).
- 16.7 million possible shades.
- 120-degree illumination.
- 3M adhesive double side tape on the rear.
- Built-in data signal reshaping circuit.
- High LED density.
- Can be cut or joined at each copper tab.
- IP20 Indoor use only.
- Designed for use with ENTTEC pixel products.
- Maximum 7.2 Watts/Metre.
