Elation – REBEL Profile IP

Elation

Combining power and versatility this IP65 Profile produces a dazzling 22,00lm for intense beams, sharp projection and dynamic midair effects indoors or out.

SKU: ELA1237000298 Categories: , , ,

Description

The REBEL PROFILE™ combines power and versatility in a compact IP65-rated design, perfect for indoor and outdoor applications. Its Peak Field 600W 6,500K LED engine produces a dazzling 22,000 lumens, delivering high-intensity beams, sharp projections, and dynamic mid-air effects.

A full-featured graphics suite includes 15 glass gobos, a complete animation wheel, dual prisms, dual frost, and a high-speed iris.

The indexable framing system ensures precise control with blackout shutter cuts, while a zoom range of 3.5° to 51° enhances its flexibility.

Features

  • IP65 for temporary outdoor applications
  • Peak field 600W 6,500K White LED Engine
  • Up to 22000 Total Lumens Fixture Output
  • CMY Color Mixing and Variable CTO
  • 7-Position Color Wheel with dual High CRI Filters
  • Comprehensive Visual FX System featuring Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
  • Indexable Full Blackout Framing System
  • Wide Zoom Range from 3.5° to 51°

Additional information

Source

600W 6,500K Bright White Peak Field LED Engine
20,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data

22000 Total Lumen Fixture Output
CRI 70+ (80 or 90 with HCRI Filter)
2:1 Hotspot Ratio
Zoom Range 3.5° – 51°
Beam Angle
Field Angle
Effects

Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-60° Framing Module Index
Full 360° Bi-Directional Animation Wheel
4-Facet Round and 6 Facet Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°
Tilt Angle: 270°
Continuous 360° Pan Rotation
Colour

CMY Color Mixing
Linear CTO Color Correction (2,400K)
7 Dichroic Colors, including CRI 80 and CRI 90 filters
Gobos

2 Gobo Wheels
7 Rotating Glass Gobos
8 Static Glass Gobos
Control / Connections

2 DMX Channel Modes
DMX, RDM, Art-Net, sACN Protocol Support
(5) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
Aria x2 Wireless Device Management
NFC Configuration

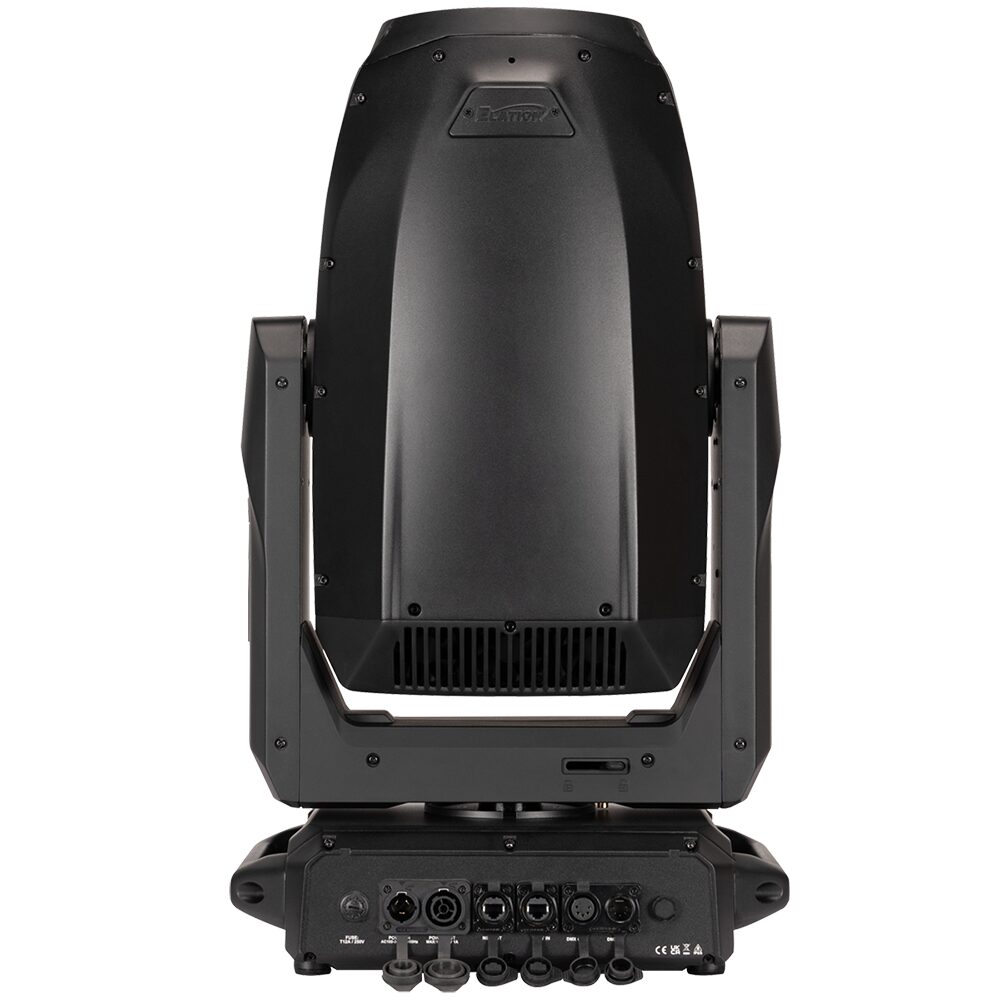

IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In
Size and Weight

Length: 398 mm (15.65 in)
Width: 281 mm (11.06 in)
Height: 666 mm (26.2 in)
Weight: 29.9 kg (66 lbs.)
Center-to-Center Spacing: 589mm (23.2in)
Electrical

AC 100-240V 50/60Hz
Max Power Consumption 950W
-4° to 113°F (-20°C to 45°C)
3509 BTU/hr (+/- 10%)
Included Items

Omega Brackets (x2)
IP65 Rated Locking Power Cable

Downloads

Data Sheet Download
User Guide Download
