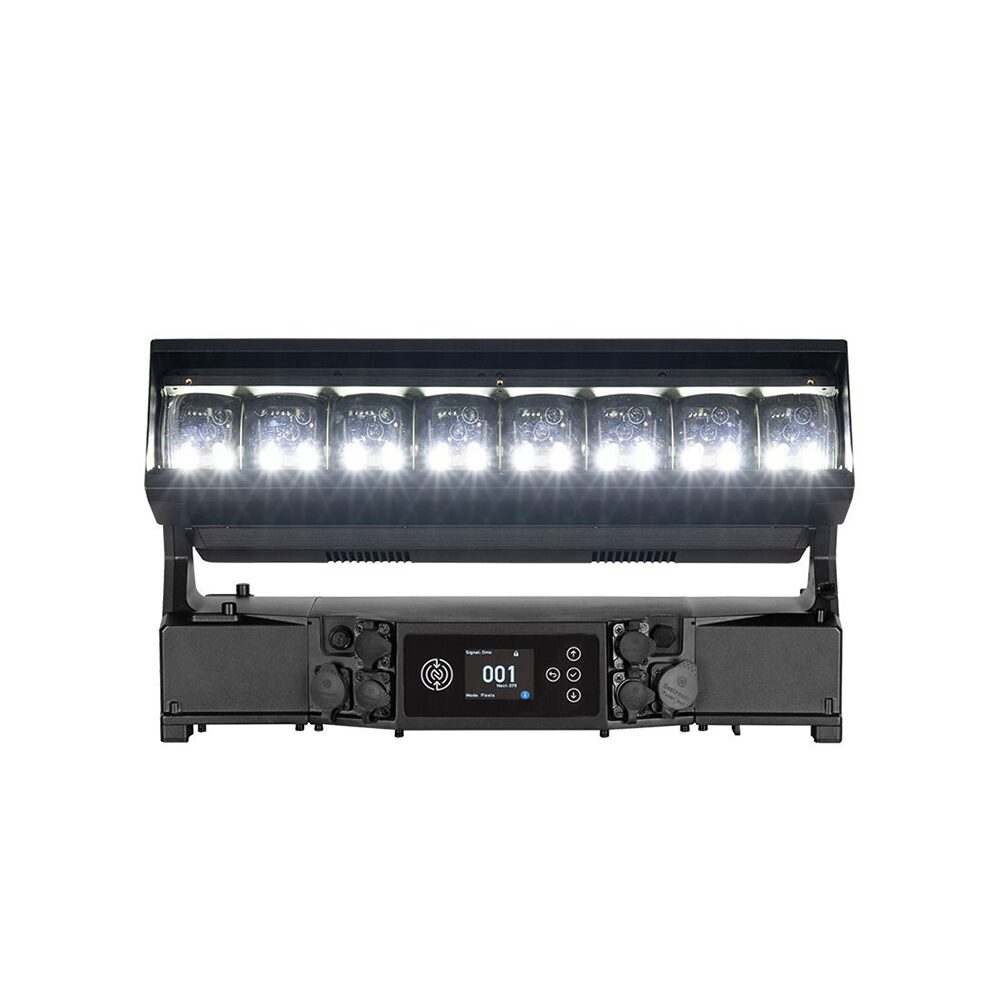

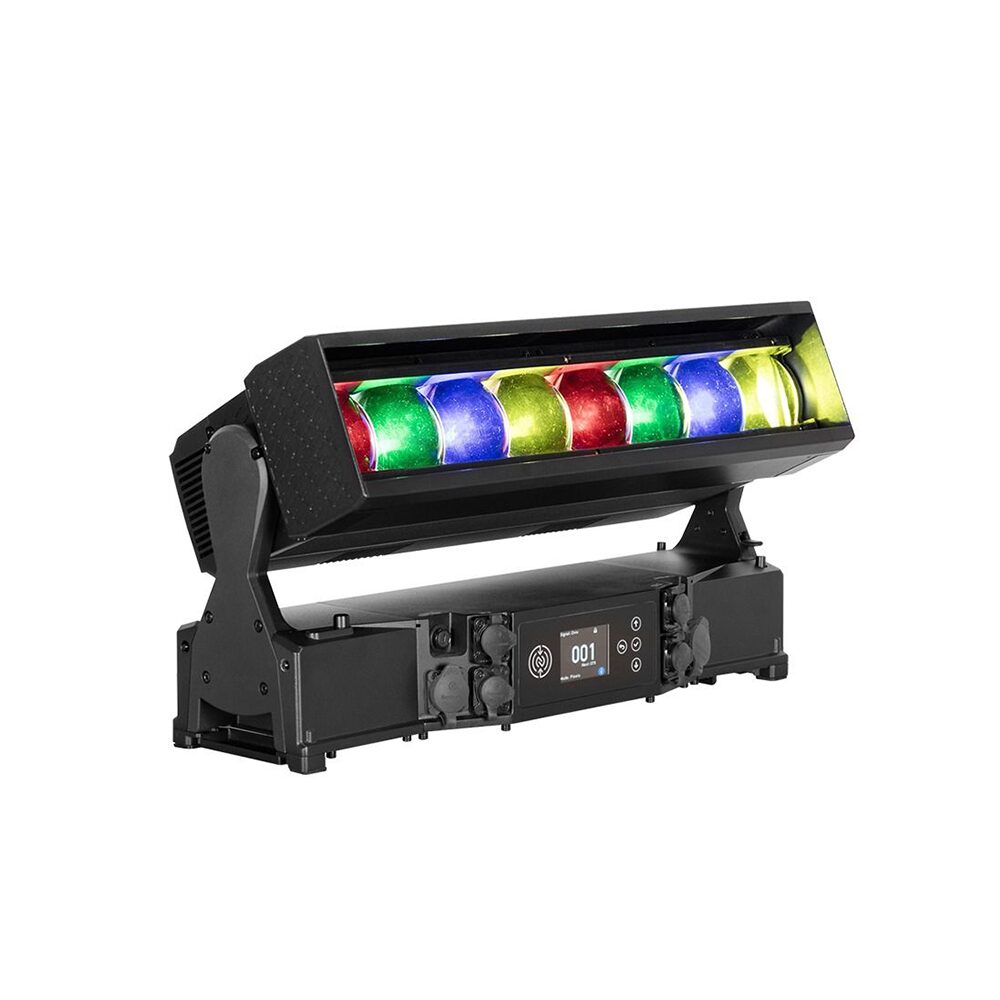

Elation – REBEL LINE 8

Elation

The REBEL LINE 8 defies expectations for linear lighting in a compact 8-cell format, delivering impressive output, precision, and color consistency in a versatile IP65 design. Its eight high-intensity 60W RGBL engines and sixteen CW SparkX pixels ignite the stage with 11,548…

SKU: ELA1236100200 Categories: , , ,

Description

The REBEL LINE 8 defies expectations for linear lighting in a compact 8-cell format, delivering impressive output, precision, and color consistency in a versatile IP55 design. Its eight high-intensity 60W RGBL engines and sixteen CW SparkX pixels ignite the stage with 11,548 lumens of relentless, full-spectrum brilliance.

A seamless linear lens system and rapid 210° tilt movement create bold, continuous beams that transform effortlessly from razor-sharp aerials to a smooth, enveloping wash. The integrated Sparkle Beam FX adds refined texture, while the SparkX cool-white crossing beams cut through the scene with crisp, unmistakable definition.

A built-in magnetic alignment system allows the REBEL LINE 8 to snap together with other LINE fixtures, forming flawless beam lines and high-impact pixel effects that read as one continuous visual element across any stage. Paired with its rugged IP55 construction and compact, tour-ready form, the REBEL LINE 8 is built for environments demanding bold intensity, sweeping kinetic motion, and advanced pixel artistry for any stage.

Features

  • (8) 60W RGBL LEDs with Pixel Control
  • (16) 5W CW SparkX LEDs with Pixel Control
  • 11,548 Total Fixture Lumen Output (Sphere)
  • 4° – 35° Beam Angle
  • Fast and precise 210° Tilt Rotation
  • IP65 Tilt FX Fixture

Additional information

Source

(8) 60W RGBL LEDs
(16) 5W CW SparkX LED Pixels
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data

Total Lumen Output:
Integrating Sphere
All LED: 11,548 Lumens
RGBL LED: 7,128 Lumens
CW LED: 4,752 Lumens
CRI 82
Zoom Range 4° – 35°

Effects

Motorized Zoom
Full Pixel LED Control
SparkX LED Beam Effect
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Tilt Angle: 210°

Color

RGBL LED Array
CW SparkX LED Array
Variable CCT 2400K – 8500K
Virtual Gel Swatch Book

Control / Connections

3 DMX Channel Modes (22/30/70 channels)
DMX Adjustable Refresh Rate (900 -25000 Hz)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
NFC Configuration
DMX, RDM, Art-NET, sACN Protocol Support
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Cable In/Out

Size / Weight

Length: 500mm (19.7 in)
Width: 168mm (6.1 in)
Height (head up): 342mm (13.4 in)
Height (head 90 degree): 254mm (10 in)
Weight: 13.2kg (29 lbs)

Electrical / Thermal

AC 100-240V 50/60Hz
810W Max Power Consumption
Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)
BTU/hr (+/- 10%) 2762.1

Included Items

Omega Brackets (x2)
Blank Name Plate
Front Louver/Grid
Diffusion Filter
IP65 Locking Power Cable
