Elation-REBEL-DARTZ-Front-Right-RedElation-REBEL-DARTZ-Front-Right-Red

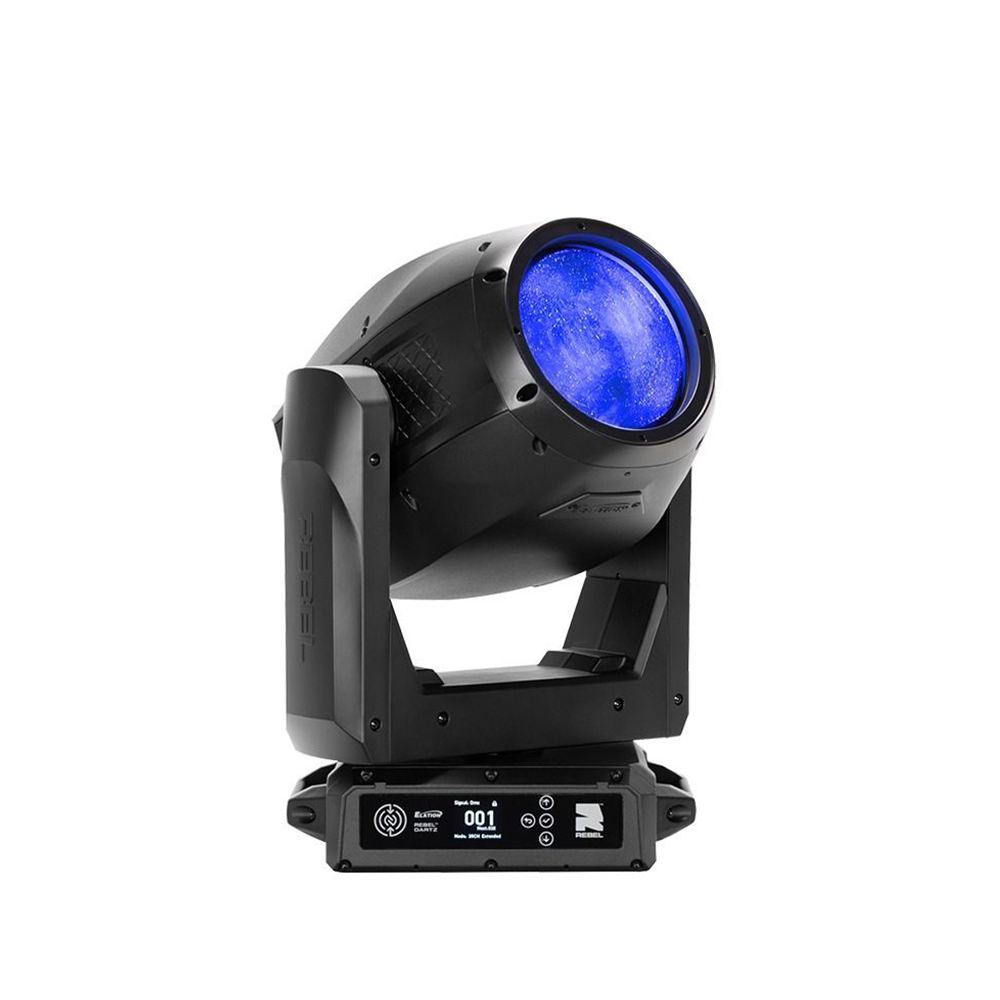

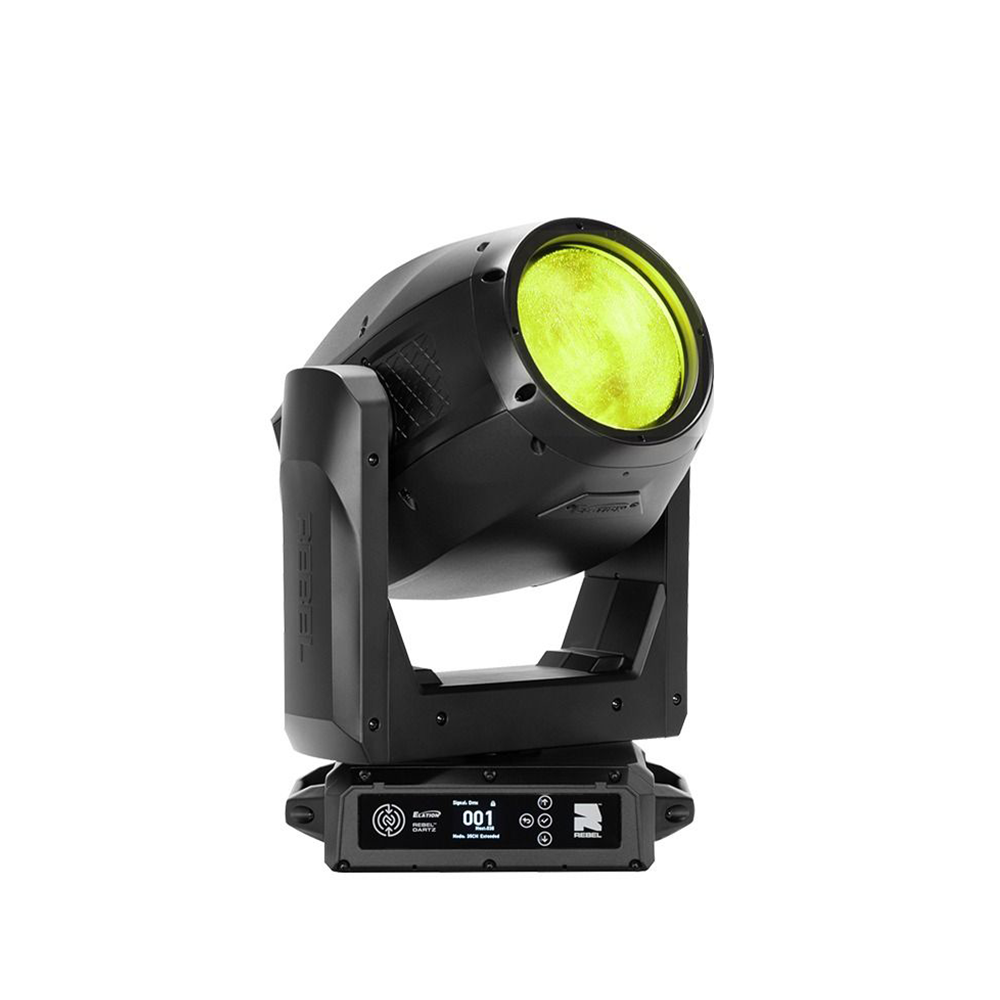

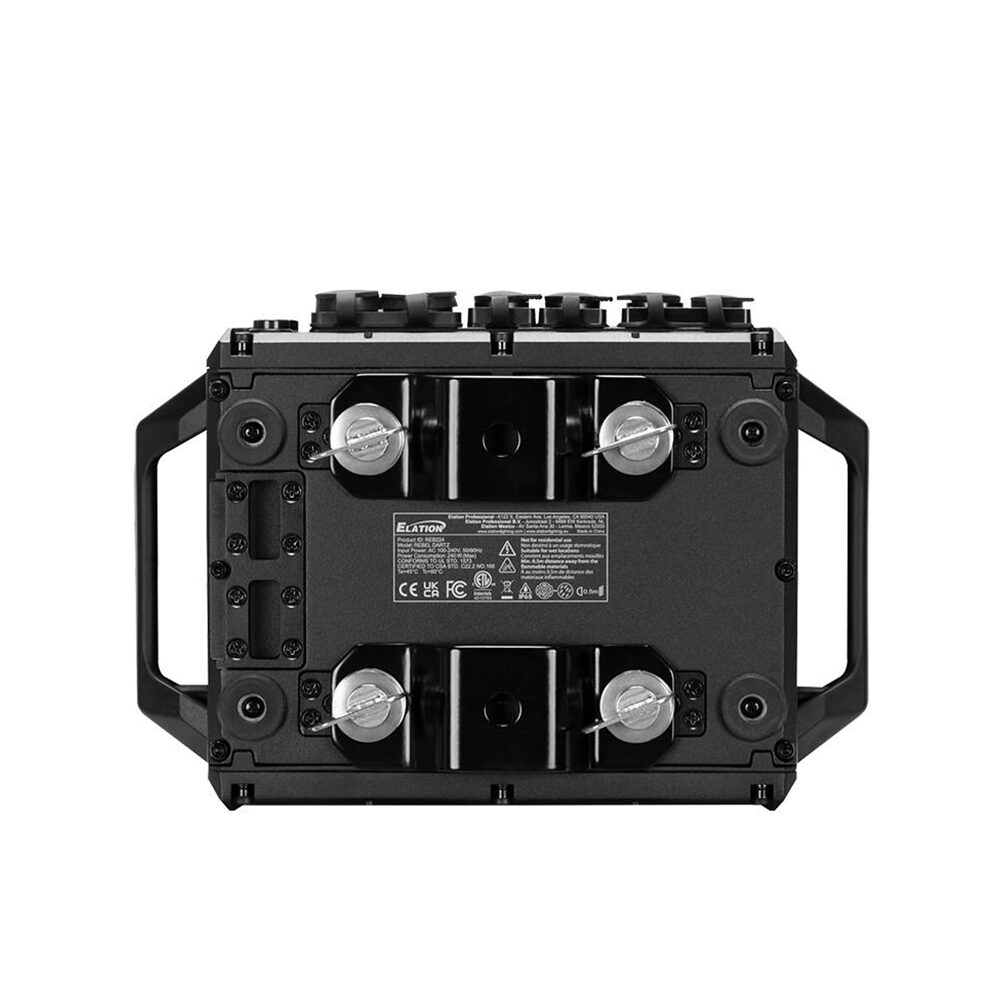

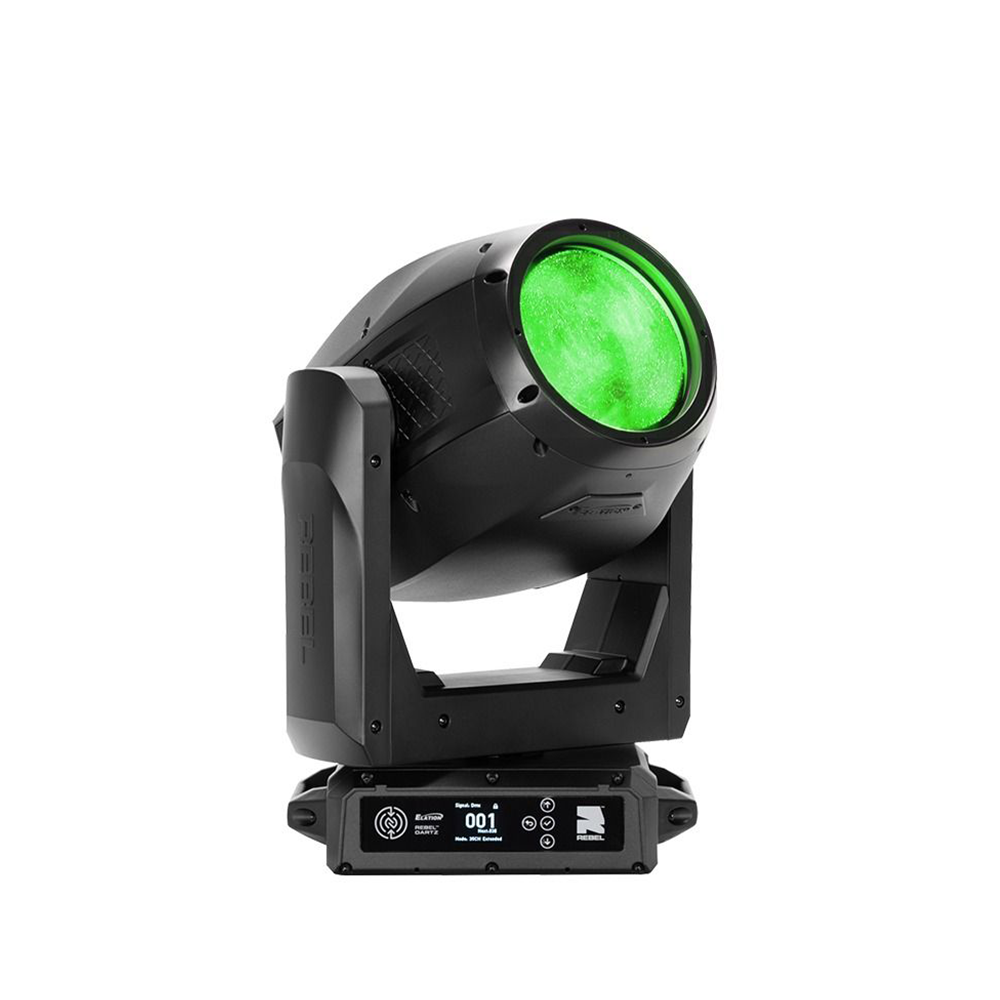

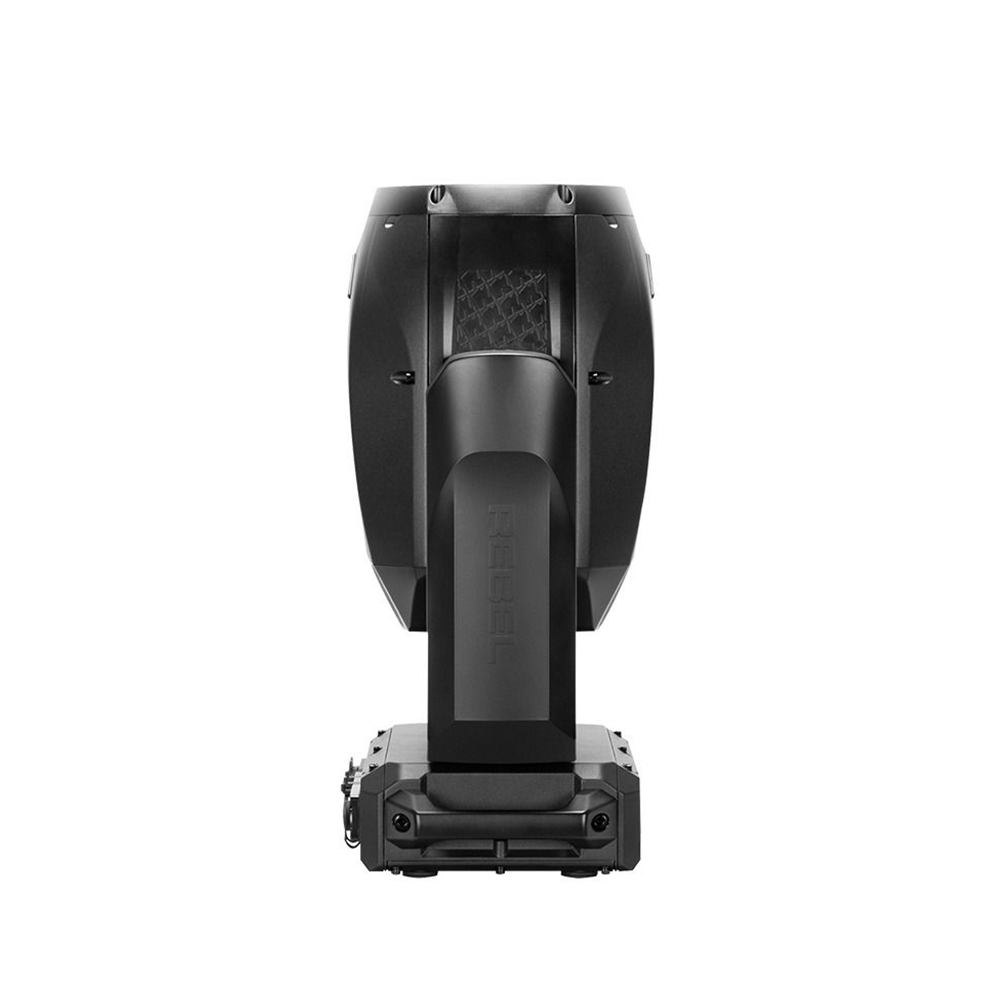

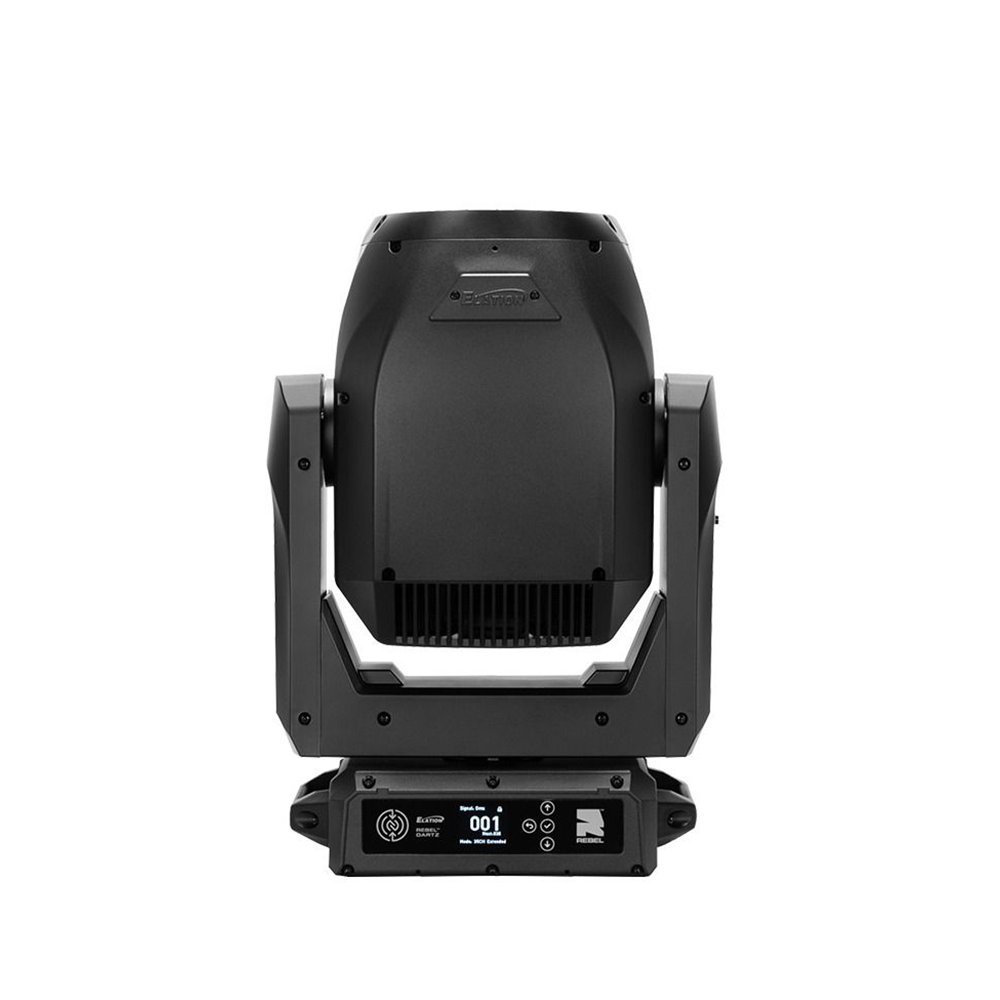

Elation – REBEL DARTZ

Elation

The REBEL DARTZ channels the unapologetic REBEL spirit into a compact, high-impact beam FX mover built for designers who demand speed, precision, and reliability in any environment. Its fierce 150W RBL engine drives an ultra-narrow 1.5° beam—sharp enough to carve the air and powerful enough to cut through dense atmospherics with ease.

Features

  • 150W RBL LED Engine
  • 1.5˚ Beam
  • 125,475 lux @ 5M
  • True Green Color Filter
  • FX Package with Rotating & Fixed Gobos, Dual Stacking Prisms & Frost
  • Variable CCT 3200K- 16000K
  • Endless High-Speed 360˚ Pan and Tilt Movements
  • NFC & Aria x2 Wireless Device Management
  • IP65
SKU: ELA1237000425 Categories: , , ,

Description

The REBEL DARTZ channels the unapologetic REBEL spirit into a compact, high-impact beam FX mover built for designers who demand speed, precision, and reliability in any environment.

Its fierce 150W RBL engine drives an ultra-narrow 1.5° beam—sharp enough to carve the air and powerful enough to cut through dense atmospherics with ease.

With 360° continuous pan and tilt, REBEL DARTZ unleashes unbound motion with kinetic energy. Its dual gobo wheels, layered prisms, and frost equip designers with a deep creative arsenal in a deceptively small footprint.

With an RBL LED engine, REBEL DARTZ produces a wide, punchy spectrum with smooth output and rich saturation, while a dedicated True Green filter adds even more versatility for building dynamic color-pairings.

As the long-awaited update to the community-favorite DARTZ 360, the REBEL DARTZ boasts four times the brightness and more gobos, all in a compact, weather-resistant, IP65-rated design. It rigs fast, travels light, and thrives anywhere the show demands—and with Aria X2 wireless DMX and RDM, NFC configuration, and five selectable fan modes, including a silent setting, it keeps setup, service, and noise control firmly dialed in.

Built to hit harder, shine sharper, and leave a mark that makes every design unmistakably REBEL, the REBEL DARTZ is a fixture that refuses to blend in.

Additional information

Source

150W RBL LED Engine

20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data

Total Lumen Output:

1,785 (Integrating Sphere)

TBA (Goniometer)

125,475 lux @ 5M

Beam Angle 1.5˚

Effects

Variable Strobe Rate: 1- 20Hz

Remote Focus

Heavy Frost Filter

Dual Independent Stacking Prisms (6 Facet Linear & 8 Facet Circular)

Variable 16-bit Dim Curve Modes

DMX Controllable LED Refresh Rate

Pan Angle: 360/540°

Tilt Angle: 360/270°

Continuous 360° Pan and Tilt Rotation

Color

RBL Color Array

True Green Color Filter

Variable CCT 3200K- 16000K

Virtual Gel Swatch Book

Gobos

2 Gobo Wheels

10 Interchangeable-Rotating / Indexing Metal Gobos

16 Static-Stamped Metal Gobos

Control / Connections

2 DMX Channel Modes

(4) Button Touch Panel

180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

DMX, RDM, Art-Net and sACN Protocol Support

Aria x2 Wireless Device Management

NFC Configuration

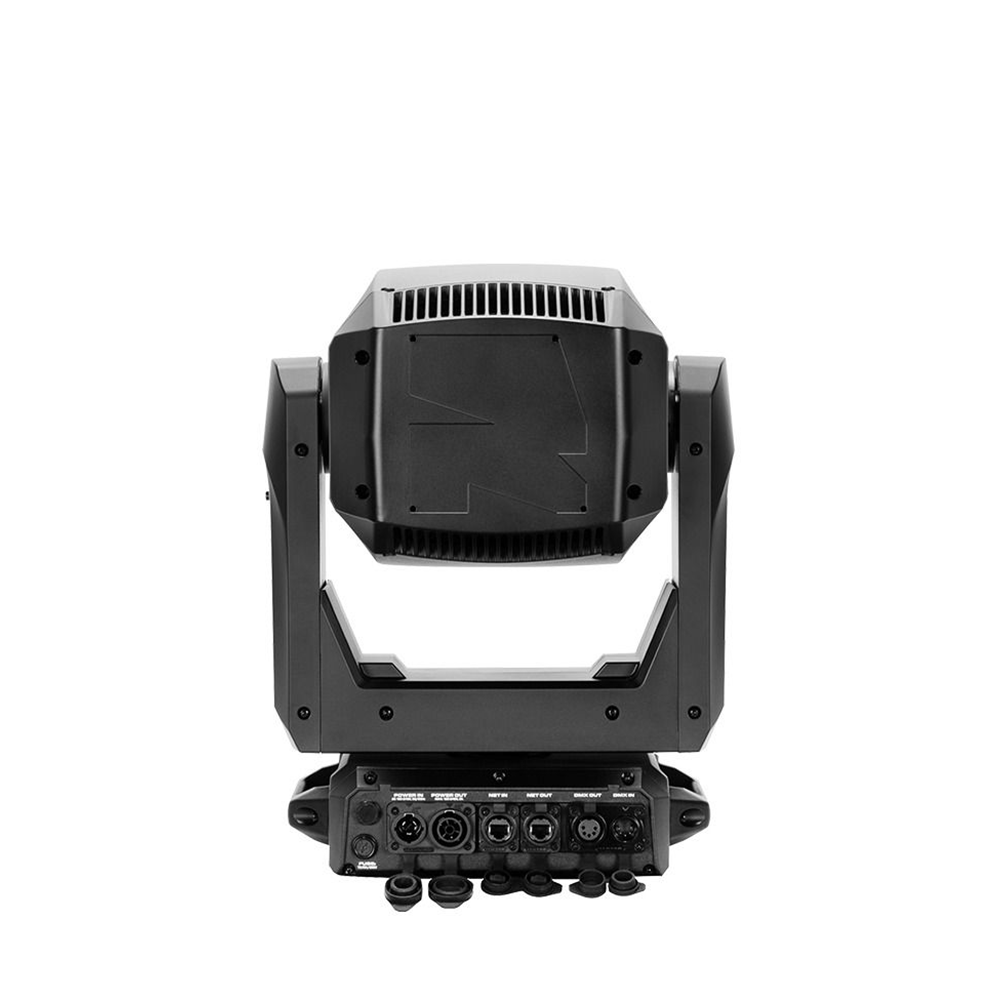

IP65 5pin DMX In/Out

IP65 RJ45 Ethernet In/Out

IP65 Locking Power In/Out

Size / Weight

Length: 13.3" (337mm)

Width: 8.6” (219mm)

Height: 18.8” (478mm)

Weight: 35 lbs. (15.9kg)

Electrical / Thermal

AC 100-240V 50/60Hz

240W Max Power Consumption

Power Thru Capacity: 10A (4 units @115V, 9 units @240V)

-4°F to 113°F (-20°C to 45°C)

Included Items

Omega Bracket x2

Safety Cable

Power Cable

Downloads

Data Sheet Download
User Guide Download
