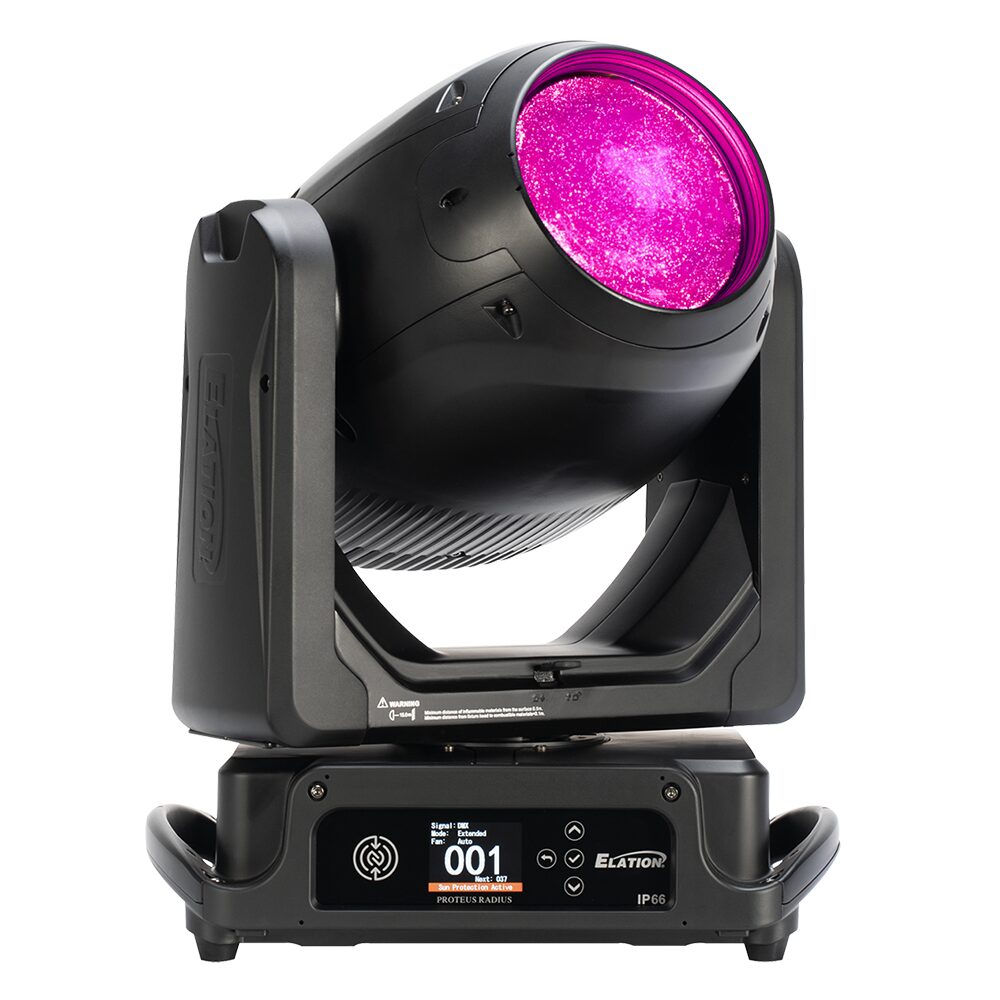

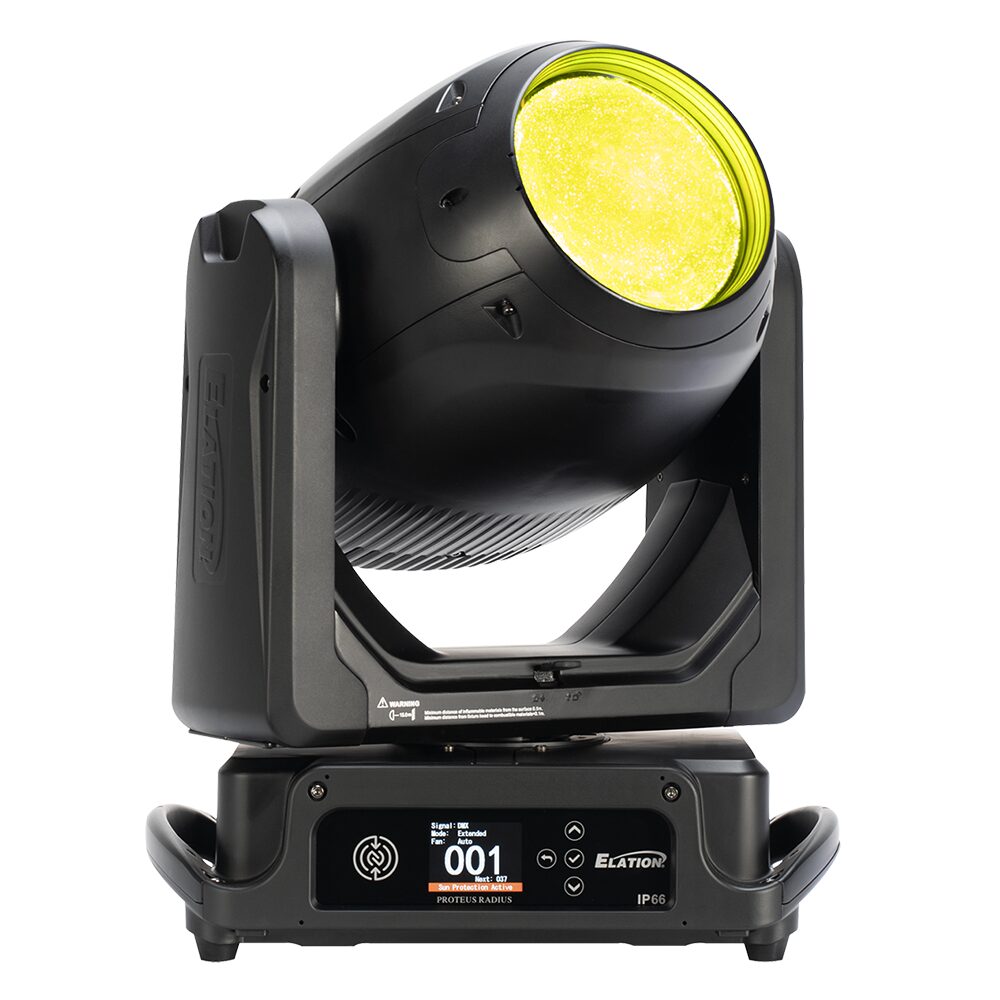

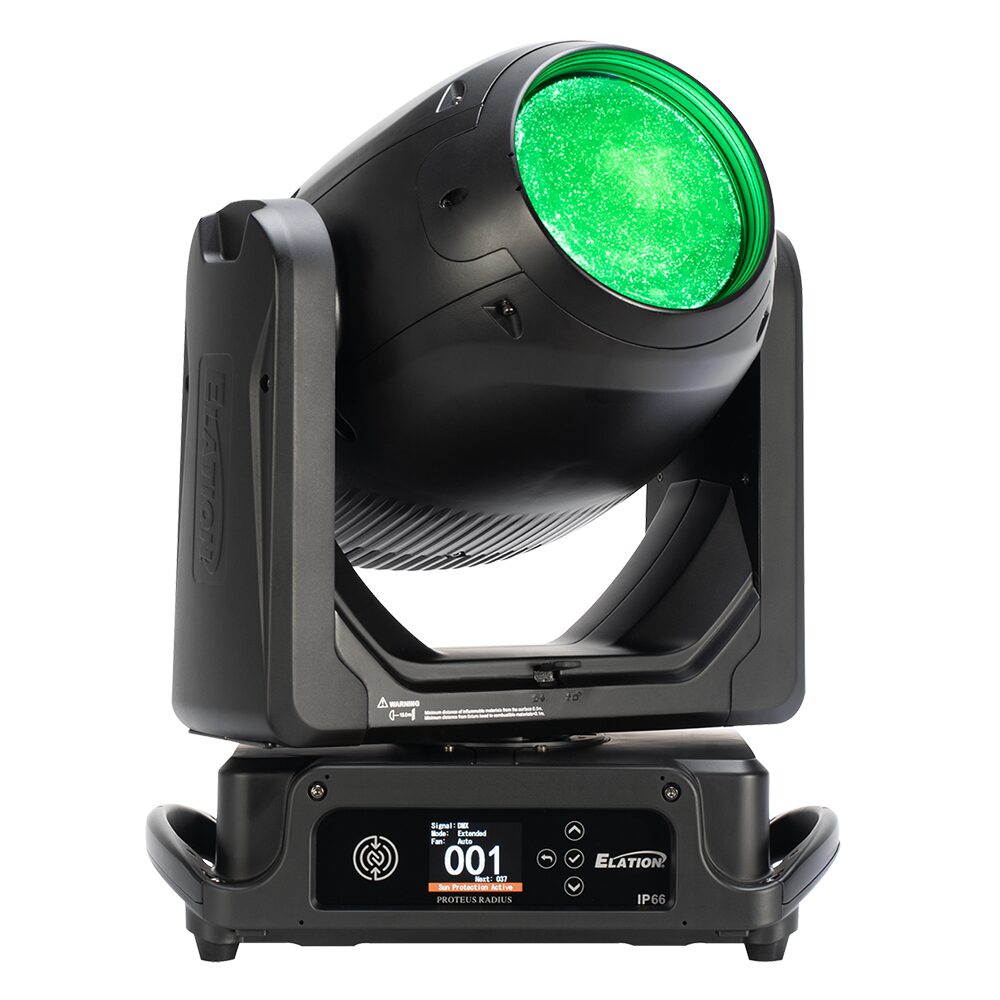

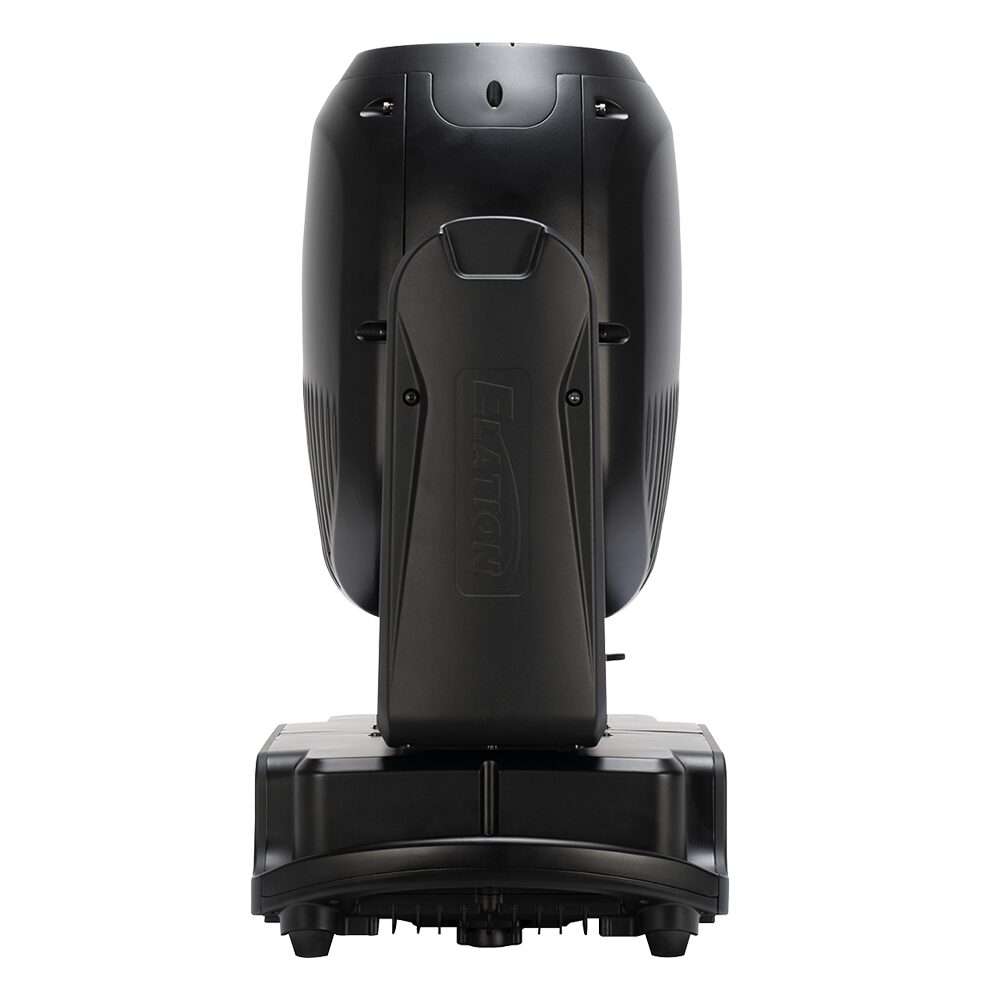

Elation – PROTEUS RADIUS

Elation

The PROTEUS RADIUS is a compact, IP66-rated Beam FX fixture with 100W laser illumination, 360° motion, and stunning effects. CLASS 1 RG2 laser product—no federal operator variance required. Perfect for high-profile events.The PROTEUS RADIUS is a compact, IP66-rated Beam FX fixture with 100W laser illumination, 360° motion, and stunning effects. CLASS 1 RG2 laser product—no federal operator variance required. Perfect for high-profile events.

Features

  • 100W Laser-Pumped Phosphor Light Engine
  • Compact and lightweight IP66 housing
  • Ultra Intense 0.9˚ Beam
  • Endless High-Speed 360 Pan and Tilt Movements
  • CMY Color Mixing CMY
  • FX Package with rotating, fixed gobo, four prisms, and dual frost
  • NFC Support
  • FIL (Foam In Lay) Polyurethane Foam Packaging Included
SKU: ELA1237000272 Categories: , ,

Description

The PROTEUS RADIUS is a high impact, IP66-rated beam fixture that combines cutting-edge technology with a compact design. It uses a 100W laser-pumped phosphor light engine to project narrow, powerful beams that reach incredible distances with precision. Its standout feature is ultra-fast 360-degree continuous rotation on both axes, allowing for bold and dynamic beam animations. Add to that CMY color mixing, customizable gobos, prisms, and frost effects, and you have a versatile tool that empowers lighting designers to create stunning aerial visuals.

The PROTEUS RADIUS is available as a Class 1 Risk Group 2 Laser Product, meaning it requires no federal operator variance for use in the United States1. Whether for concerts, competitions, or high-profile events, the PROTEUS RADIUS is built to deliver when it matters most.

Additional information

Source

100W Laser-Pumped Phosphor Light Engine

6000K, CRI 70

10,000 Hour Lamp Life

Photometric Data

100W Laser-Pumped Phosphor Light Engine

6000K, CRI 70

10,000 Hour Lamp Life

Effects

Dual Frost

4 Prisms on Dual Planes

CMY Color, Gobo, Prism Macros

Motorized Focus

Digital Shutter and Strobe

Color

Full CMY Color Mixing System
25 Position Color Wheel

Gobos

2 Gobo Wheels

13 Interchangeable-Rotating / Indexing Metal Gobos

24 Static-Stamped Metal Gobos

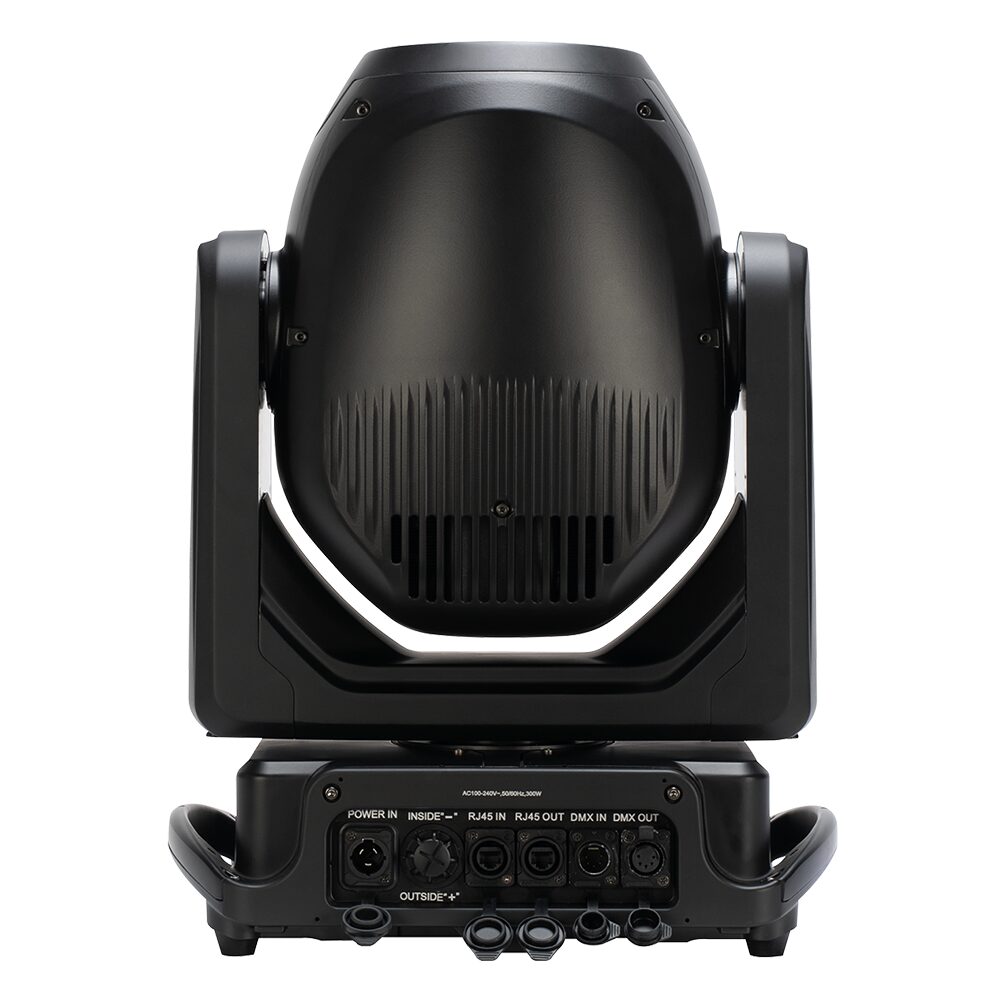

Control / Connections

2 DMX Channel Modes

(4) Button Touch Panel

Full Color 180° Reversible LCD Menu Display

DMX, RDM, Art-Net and sACN Protocol Support

IP65 5pin DMX In/Out

IP65 RJ45 Ethernet In/Out

IP65 Locking Power In

Size / Weight

Length: 10.6” (270mm)

Width: 15.5” (395mm)

Height: 20.3” (516mm)

Weight: 45.0 lbs. (20.4kg)

Center-to-Center: 18.0" (456mm)

Electrical

AC 100-240V 50/60Hz

300W Max Power Consumption

-4°F to 113°F (-20°C to 45°C)

Approvals / Ratings

CE, cETLus, IP66, FCC
