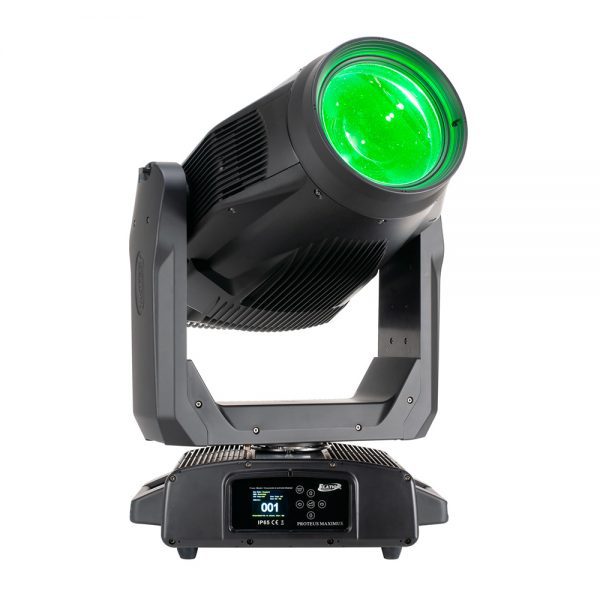

Elation - Proteus Maximus Front face of moving head light on greenElation - Proteus Maximus Front face of moving head light on green

Elation – Proteus Maximus

Elation

PROTEUS MAXIMUS is a professional-grade lighting solution. The PROTEUS MAXIMUS™ an extremely bright IP65 rated LED Profile fixture offering outstanding projection, beam and wash qualities in any environment. Providing up to 50.000 lumens from its custom designed 950W 6,500K LED engine the Proteus Maximus is the ideal fixture for any outdoor application requiring superior output, bright and powerful beams, quiet operation as well as stunningly precise gobos and colors.

Features

  • High Efficiency 950W 6,500K White LED Engine
  • Up to 50.000 Total Lumen Fixture Output
  • CMY Color Mixing and Variable CTO
  • 6 Position Color Wheel, High CRI, UV filter
  • Complete FX System featuring Rotating and Fixed Gobos, Animation, Iris, Dual Prism, Dual Frost
  • Indexable Full Blackout Framing System
  • Wide Zoom Range from 5.5° to 55° / Large 180mm Front Aperture
  • FIL (Foam In Lay) Polyurethane Foam Packaging Included
SKU: ELA1237000140 Categories: , , , ,

Description

The PROTEUS MAXIMUS™ an extremely bright IP65 rated LED Profile fixture offering outstanding projection, beam and wash qualities in any environment.

Providing up to 50.000 lumens from its custom designed 950W 6,500K LED engine the Proteus Maximus is the ideal fixture for any outdoor application requiring superior output, bright and powerful beams, quiet operation as well as stunningly precise gobos and colors. Proteus Maximus provides the designer a comprehensive FX package with 6 rotating and 7 fixed glass gobos, full animation wheel, dual prisms, dual frost and a high-speed Iris. Its indexable framing system provides full blackout shutter cuts for precise beam shape control.

With a fast zoom range from 5.5° to 55° and an impressive 180mm front lens the Proteus Maximus has the power to cut through at great distances in any outdoor concert, special events and with its fully dust and water proof design it is an ideal fixture for theme parks and cruise ships.

The PROTEUS MAXIMUS fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into a custom sized flight case (not included), and provides enhanced impact protection during transport.

Video

Elation Professional – Proteus Maximus

The PROTEUS MAXIMUS™ an extremely bright IP65 rated LED Profile fixture offering outstanding projection, beam and wash qualities in any environment.

Additional information

Weight 53 kg
Source

950W 6,500K Bright White LED Engine

30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data

50,000 Total Lumen Output

CRI 70+ (82+ with HCRI Filter)

2:1 Hotspot Ratio

Zoom Range 5.5° – 55°

Beam Angle 4.8° – 41.2°
Field Angle 6.1° – 51°

Effects

Motorized Zoom (Large 180mm Front Aperture)

4 Rotating Full Blackout Framing Blades

+/-45° Framing Indexing

Full 360° Bi-Directional Animation Wheel

4-Facet and Linear Rotating Prisms

2 Variable Frost Filters (Light and Wash)

Internal Color, Framing, Prism, and Frost Macros

Motorized Iris with Variable Pulse Effects

Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate

Pan Angle: 540°/630°

Tilt Angle: 250°

Colour

CMY Color Mixing

Linear CTO Color Correction

6 Dichroic Colors including High CRI Filter and UV

Gobos

2 Gobo Wheels

6 Rotating / Indexing Interchangeable Glass Gobos

7 Static Glass Gobos

Control / Connections

2 DMX Channel Modes (37 / 61)

16-bit Pan, Tilt and Dimming Control

Motorized Focus and Auto-Focus Presets

DMX, RDM, Art-NET, sACN Protocol Support

(6) Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

5pin XLR DMX In/Out
IP65 RJ45 ethernet In/Out

IP65 Locking Power Cable In

With Wired Digital Communication Network

Size / Weight

Length: 18.0 in (458mm)

Width: 23.3 in (591mm)

Height: 32.6 in (828mm)

Weight: 117 lbs. (53kg)

Electrical / Thermal

AC 120-240V 50/60Hz

Max Power Consumption 1,400W

-4°F to 113°F (-20°C to 45°C)

APPROVALS / RATINGS

CE, cETLus, IP65, FCC
