Elation – KL Fresnel 8 FC

Elation

KL FRESNEL 8 FC is a professional-grade lighting solution. The KL FRESNEL 8 FC™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels.

Features

  • 500W RGBMA LED Engine
  • 18,000 Total Fixture Lumen Output
  • 10° to 50° Wide Motorized Zoom
  • Stand-Alone control with 2 Encoders and LED Display
  • Smooth 16-bit Selectable Dimming Modes and Curves
  • LED Refresh Rate Adjustment
  • Flicker Free Operation for TV and FILM
  • RDM (Remote Device Management)
  • 8-leaf Barn Doors, Gel Frame and Junior Pin (1 1/8” – 28mm) included
SKU: ELA1236100183 Categories: , , ,

Description

The KL FRESNEL 8 FC™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage.

Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels.

The KL FRESNEL 8 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 18,000 field lumens with a motorized Zoom range of 10° to 50°.

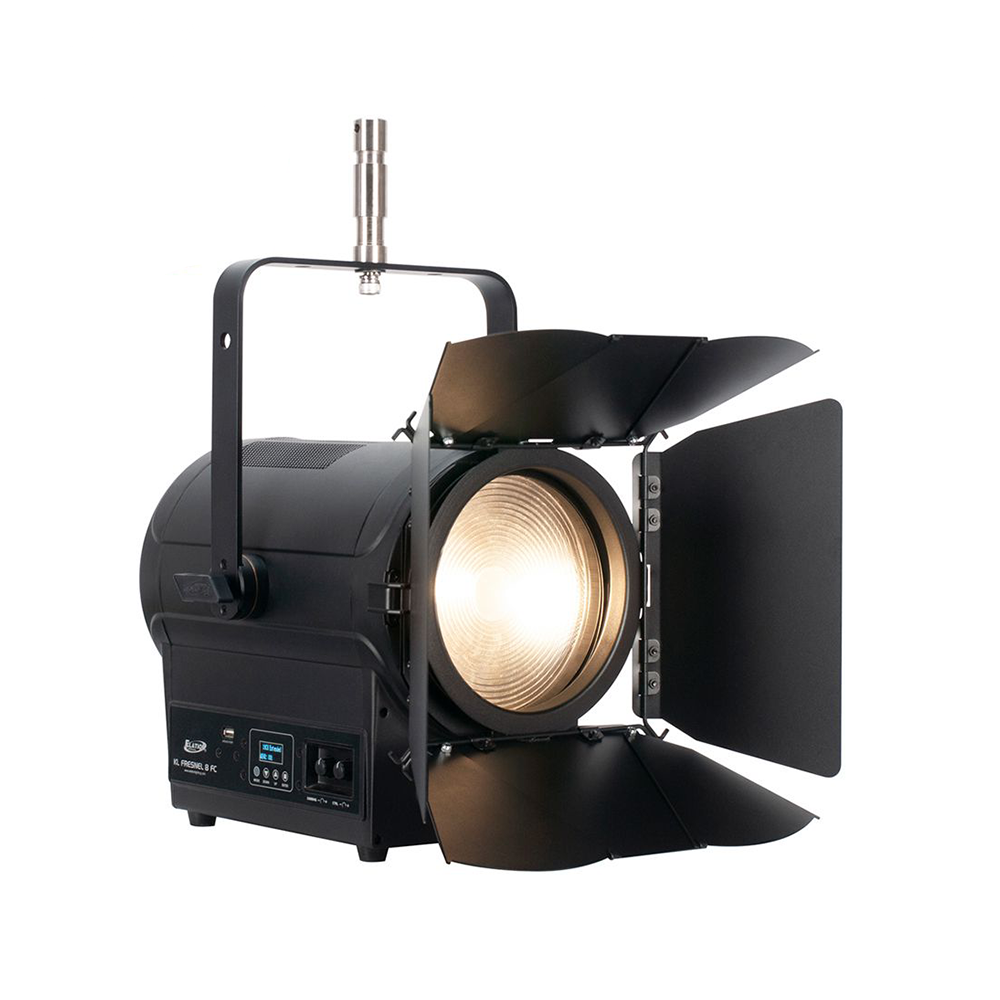

Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

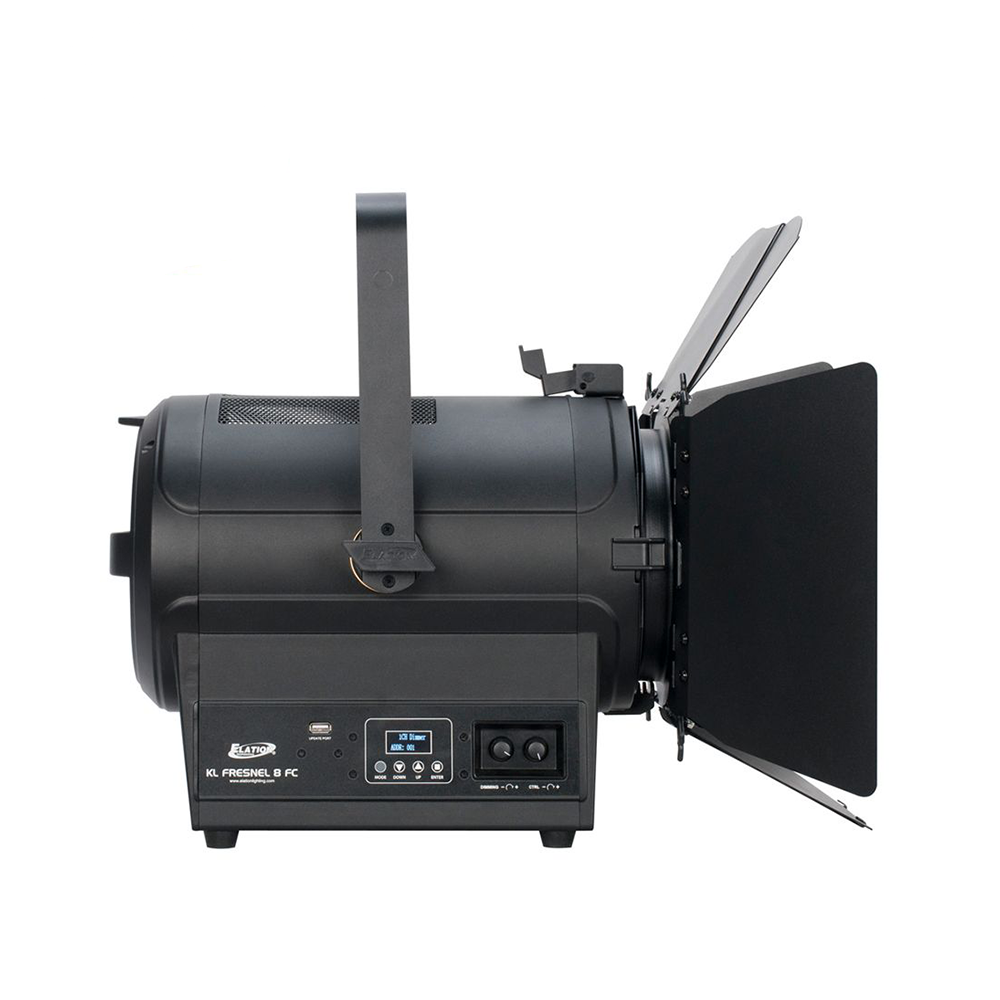

The KL FRESNEL 8 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Zoom, Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.

Video

Elation Professional – Full Color Spectrum

Now for something truly entertaining! Elation invites you to The Designers Palette, a top-quality restaurant that cooks using the full-color spectrum.

Additional information

Source

6000K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometric Data

18,000 Total Lumen Output
CRI 94.5

TLCI 94

Zoom Range 10° – 50°
Beam Angle 10.4° – 50.8°
Field Angle 20.6° – 66.1°

Effects

Motorized Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

Colour

High Brightness and High Fidelity Output Options
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K – 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book

Control / Connections

11 DMX Channel Modes (1, 5, 7, 11, 12, 19, 20, 10, 15, 16, 14)
Manual and DMX Controlled Dimmer, Color and Zoom
Dual Rotary Dials
4 Button Control Panel, LED Display
RDM (Remote Device Management)

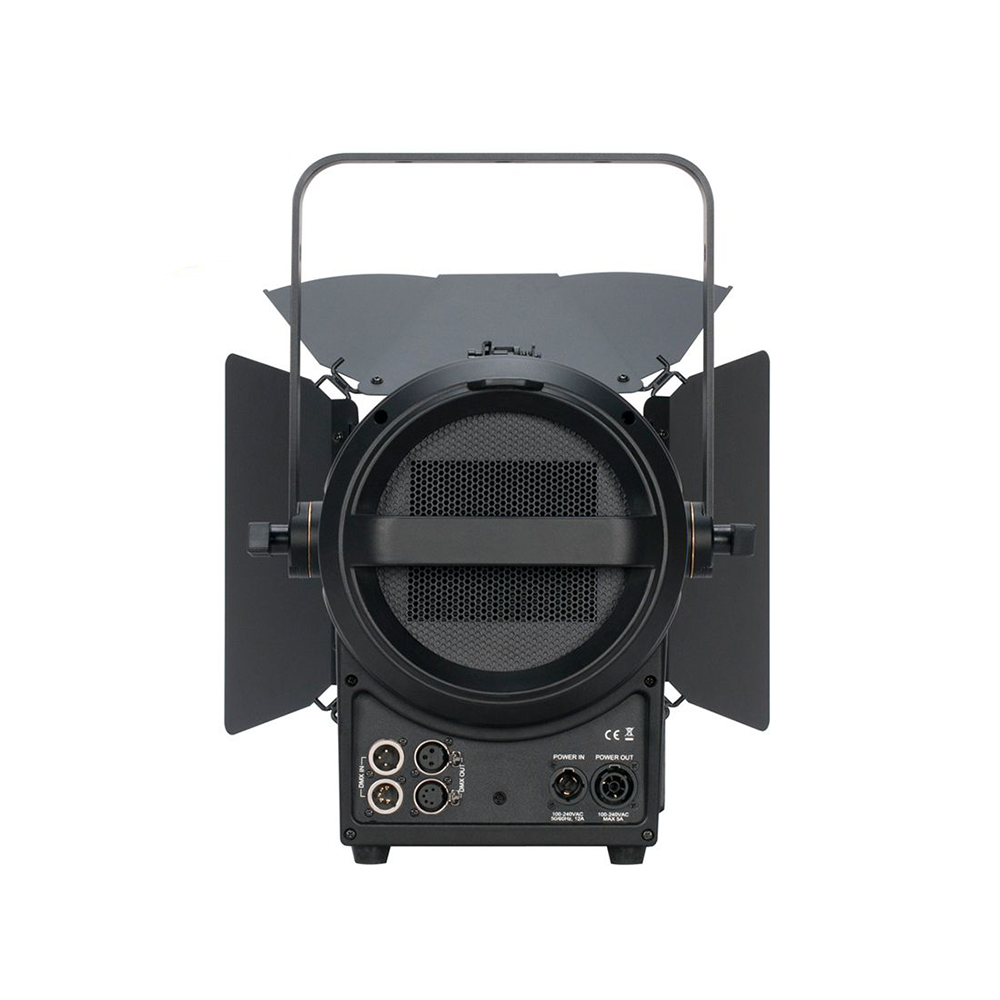

3/5pin DMX and IP65 Locking Power In/Out Connection

Size / Weight

Length: 15.1” (382.5mm)
Width: 12.9” (326.5mm)
Vertical Height: 17.9” (455mm)
Weight: 23.15 lbs. (10.5kg)

Electrical / Thermal

AC 100-240V – 50/60Hz
514W Max Power Consumption
Power Thru Capacity: 6A (1 units @110V; 2 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 1752.74

Included Items

Gel Frame and Rotating 8-leaf Barn Doors
Junior Pin (1 1/8" – 28mm)
IP65 Locking Power Cable

APPROVALS / RATINGS

CE, cETLus, IP20
